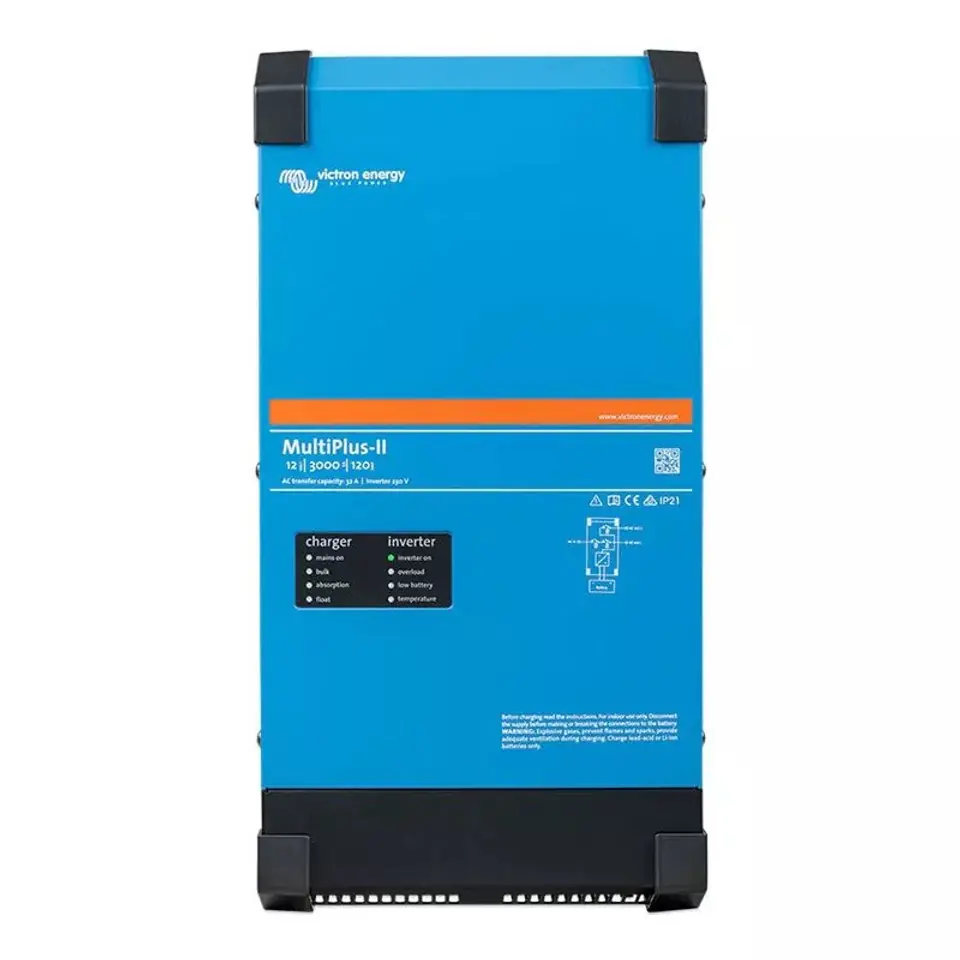

Multifunction inverter VICTRON ENERGY MultiPlus-II 12/3000/120-32 (PMP122305010)
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- PMP122305010 / 8719076057758
Share this product:
Specification
| Ac input: | 187 - 265 VAC |
|---|---|
| Automatic inverter start-up in the event of network failure: | Yes |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Charging voltage (absorption): | 14.4 V |
| Charging voltage (liquid): | 13.8 V |
| Compatible with: | ESS (Energy Storage Systems) |
| Dc voltage range: | 9.5 - 17 V |
| Dedicated application: | VictronConnect, VRM |
| Depth: | 147 mm |
| Efficiency: | 93% |
| Energy management: | Yes |
| Energy storage: | Yes |
| Fernbedienung: | Y |
| Frequency: | 50 Hz |
| Height: | 542 mm |
| Housing material: | Steel |
| Input current (max): | 32 A |
| Input voltage: | 230 V |
| International protection (ip) code: | IP22 |
| Maximum apparent power supply: | 3000 VA |
| Maximum battery charge current: | 120 A |
| Moisture (max): | 95% |
| Mounting type: | M8 |
| Number of ve.bus ports: | 1 |
| Operating temperature (t-t): | -40 - 65 °C |
| Overload protection: | Yes |
| Parallel ports quantity: | 2 |
| Peak power: | 5500 W |
| Power at zero load: | 13 W |
| Product colour: | Blue |
| Protection class: | a - g |
| Suitable for: | Photovoltaic system |
| Three-phase and parallel operation: | Yes |
| Weight: | 19 kg |
| Width: | 275 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
