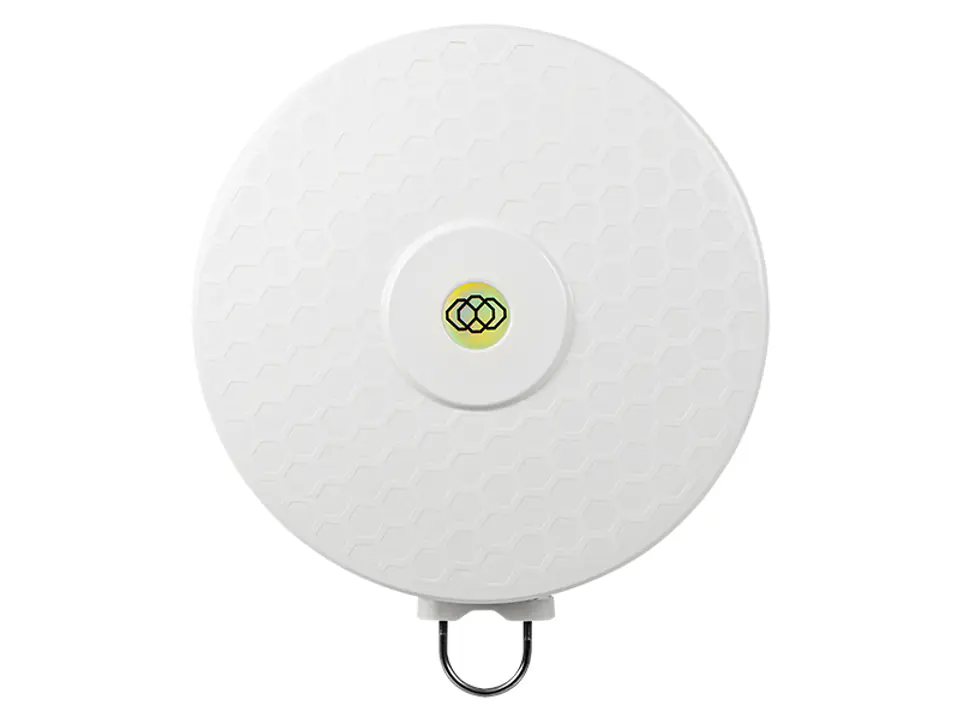

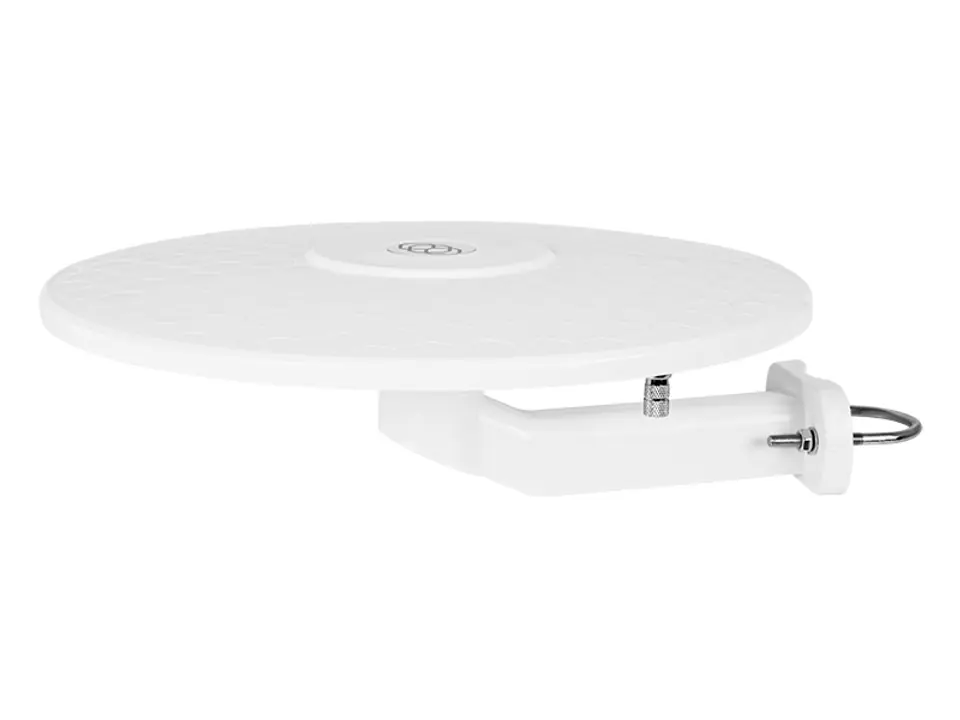

MULTICHANNEL COMPACT TV is made of very high quality high-impact polystyrene, which guarantees the possibility of use in various weather conditions. It uses a state-of-the-art amplifier that allows reception of TV programs in the range from 40 to 850 MHz. The advantage of the antenna is its small size and weight, which allows it to be mounted in many places / roof, balcony, window / as well as on moving objects / yacht / car /.
A very important advantage of the MULTICHANNEL COMPACT TV antenna is its omnidirectional / HORIZONTAL / directional characteristics, which in practice means that it does not need to be directed towards the transmitter.

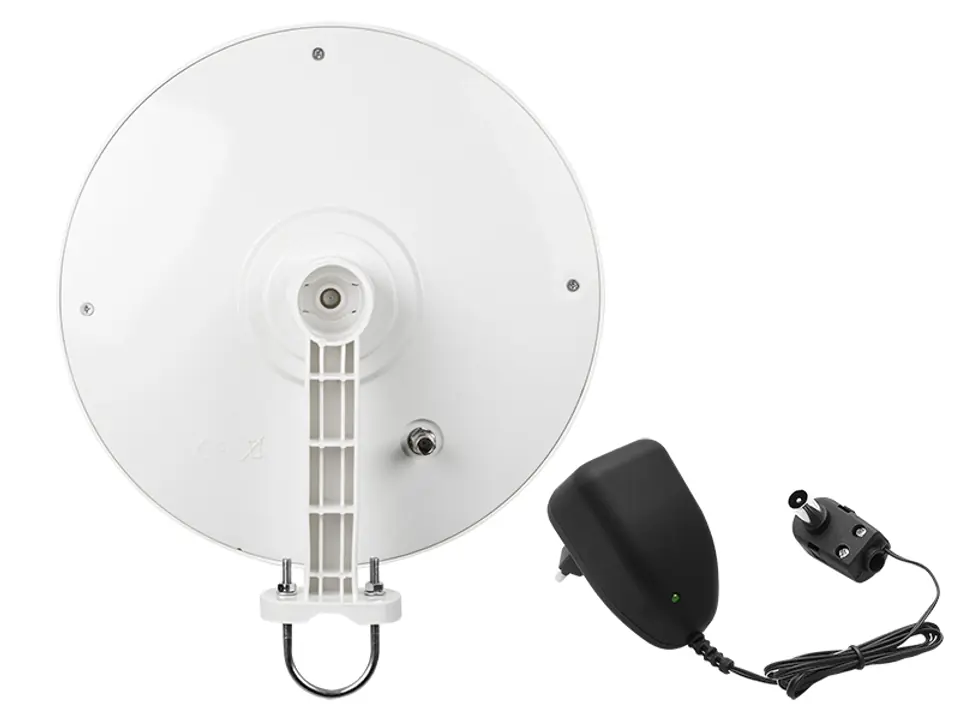

The antenna is powered by a coaxial cable supplying the amplified signal to the receiver. When using low-loss passive signal splitters, several receivers can be connected at the same time. For connections, use coaxial cable with wave resistance of 75 Ohm and external diameter of 6mm.
- Frequency range: 40-850MHz
- Orientation: omnidirectional
- Polarization: horizontal
- Energy gain: 20-30 dB
- Output: 75 Ohm
- Power supply: 12V 10-30mA DC
