Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling, edge milling and high-precision finishing. Ideal for use in mold production. Thanks to the very large helix angle and the reinforced core, extremely smooth operation is achieved, thus small shape deviations and a very good surface of the workpiece. For high-speed machining of HSC materials with a maximum hardness of 56 HRC.
Multi-blade cutter, b.long,WN,full. Signum,grip HA 6-8-blade 12mm GÜHRING
€27.61
Shipping from warehouse: B6
Estimated shipping: Fri, Sep 12 - Mon, Sep 15
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9037160120000 / 4031093676779
Share this product:

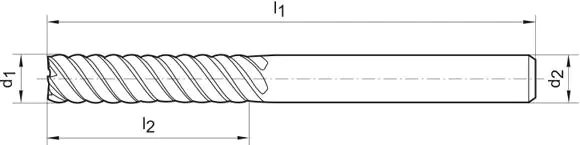

Specification
| Cast iron gg/gts: | 200 |
|---|---|
| Cutting part length l2: | 45 mm |
| Diameter d1 = h 10: | 12 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 55 |
| Hardened steel < 55 hrc fz: | 0.026 mm/rev |
| Hardened steel < 60 hrc: | 55, 45 |
| Inox duplex: | 85 |
| Number of blades: | 6 |
| Shank diameter d2 = h6: | 12 mm |
| Total length l1: | 150 mm |
