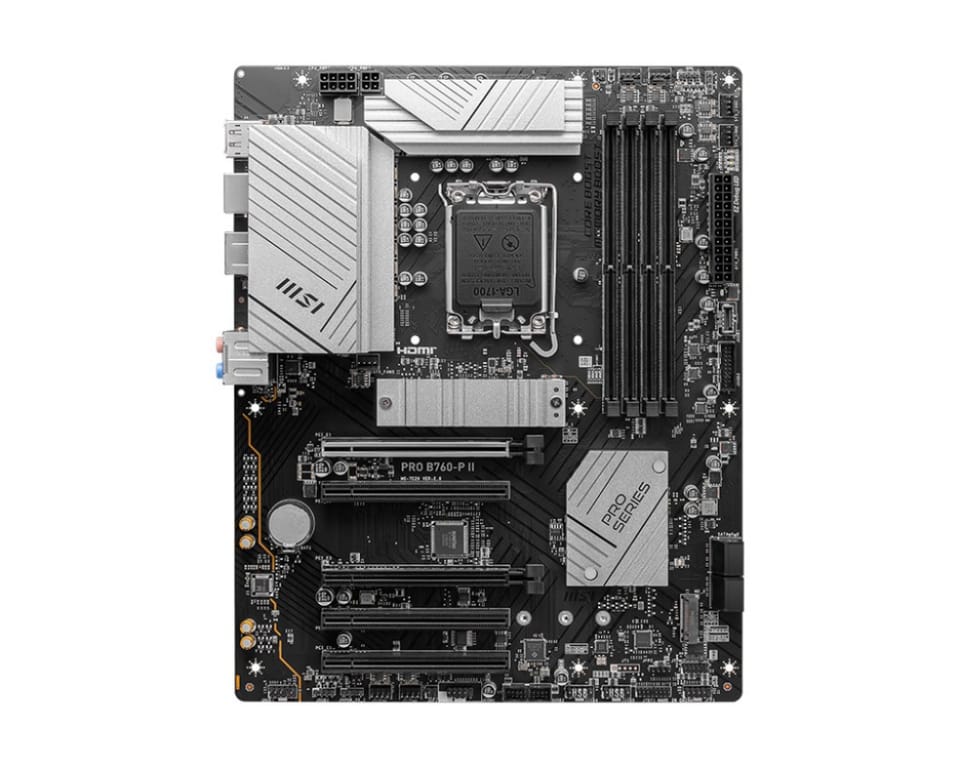

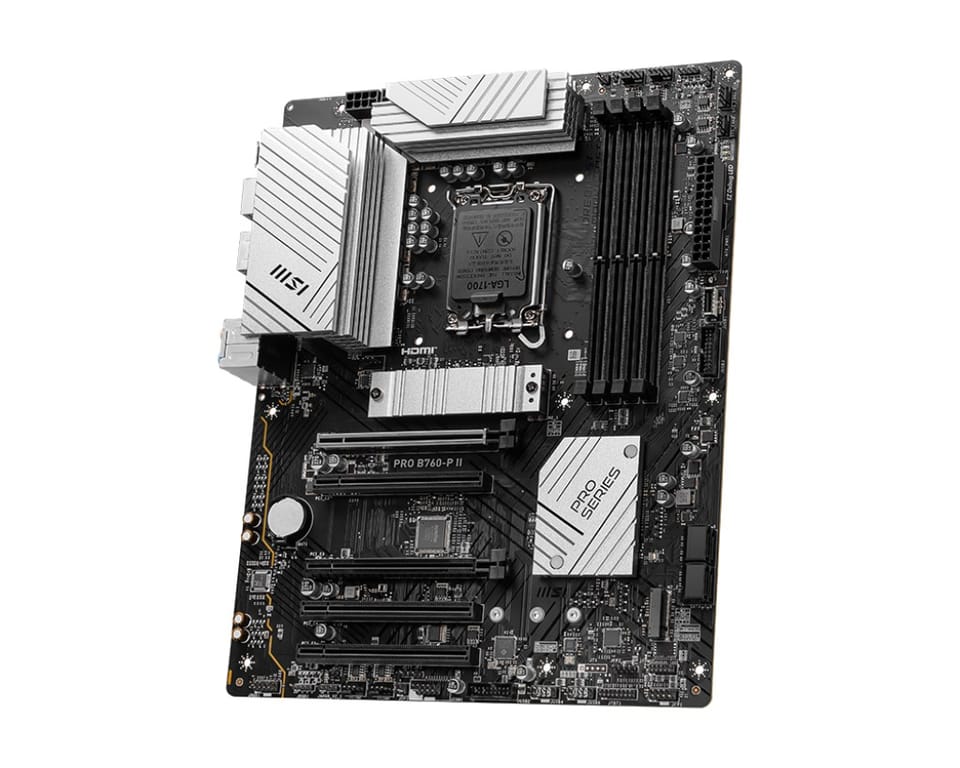

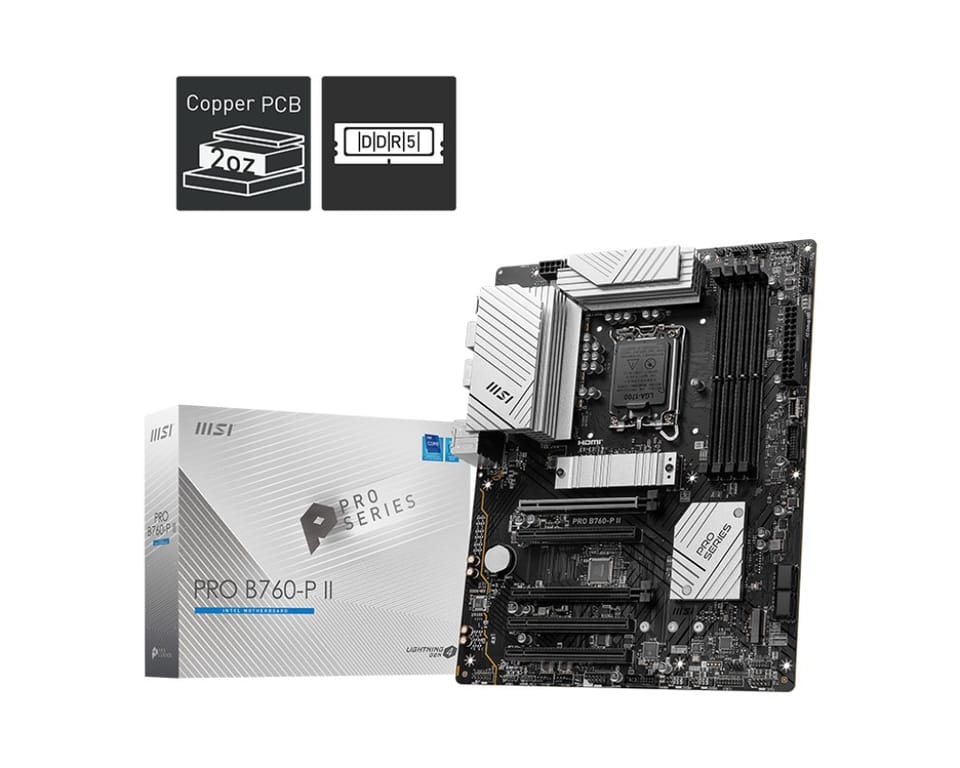

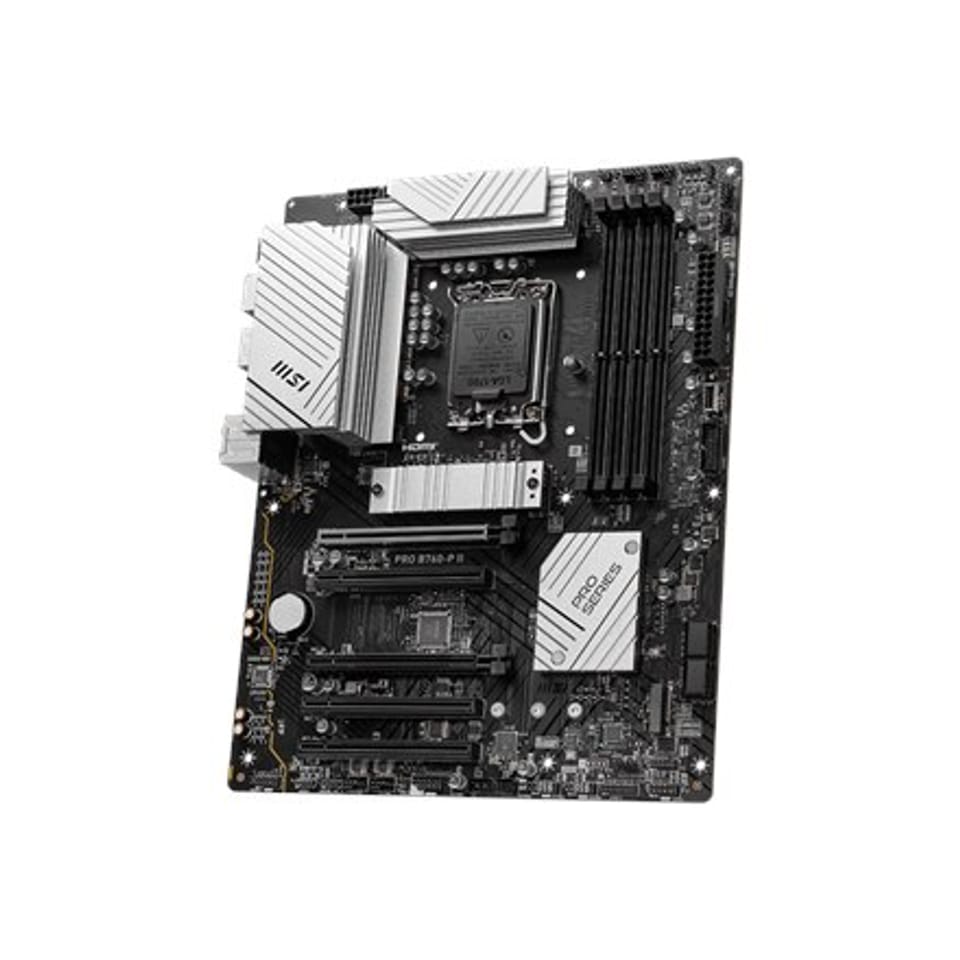

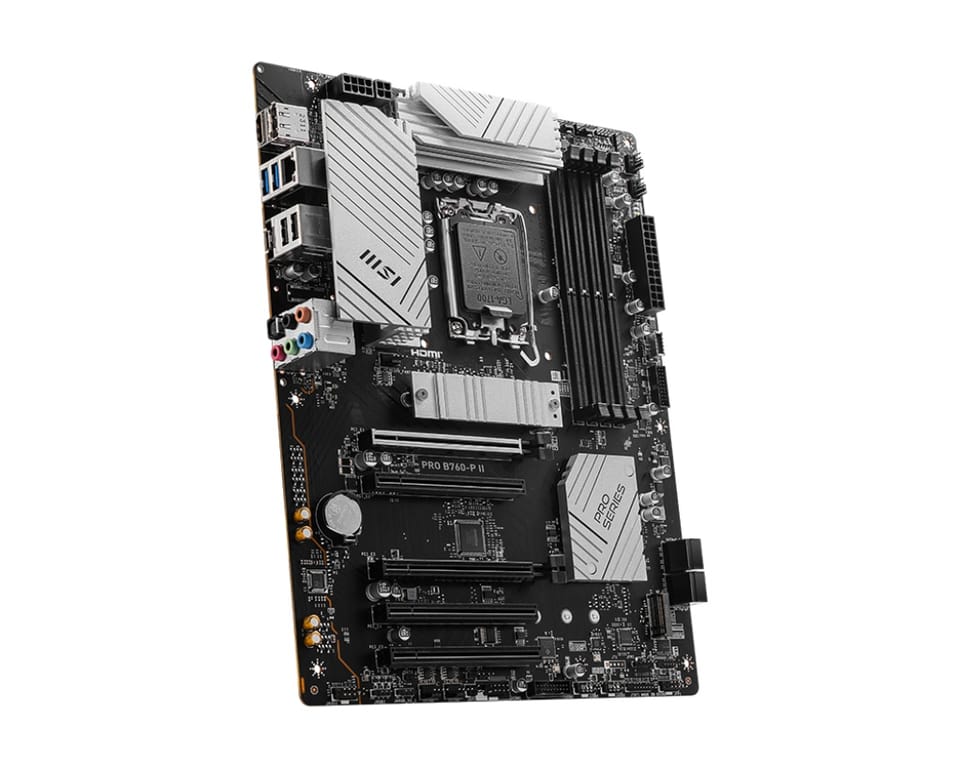

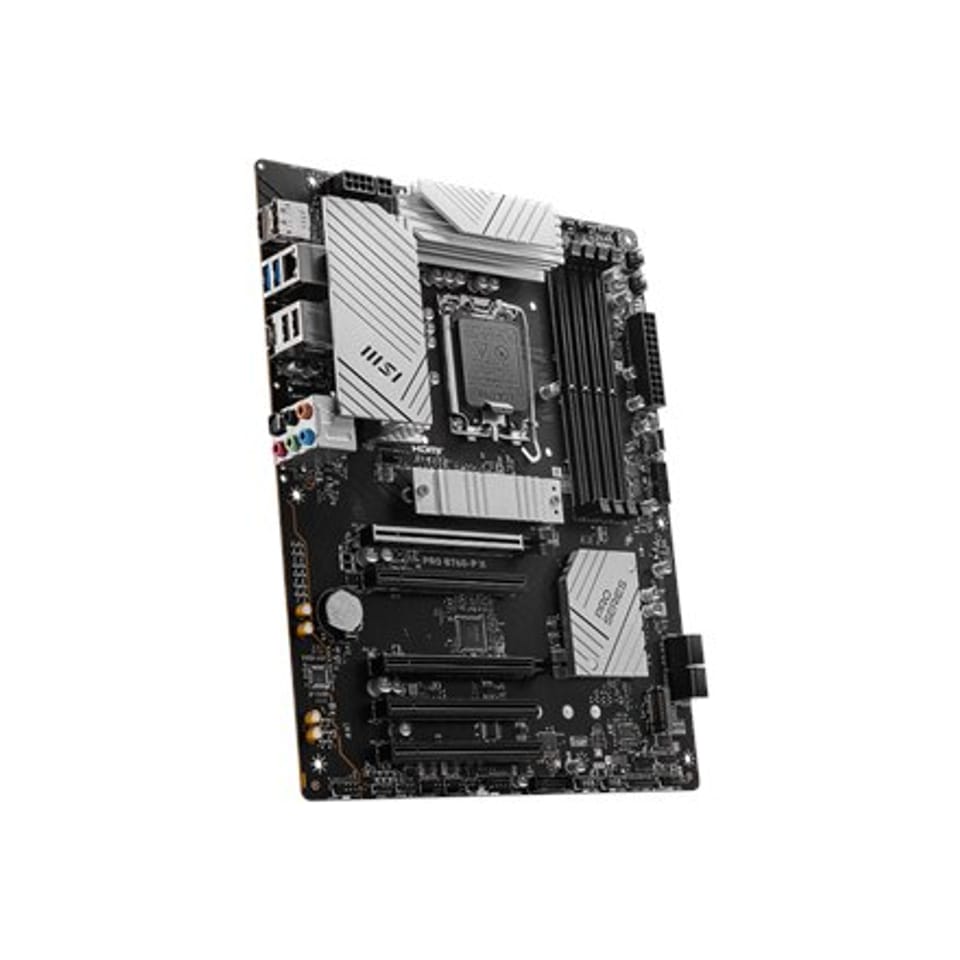

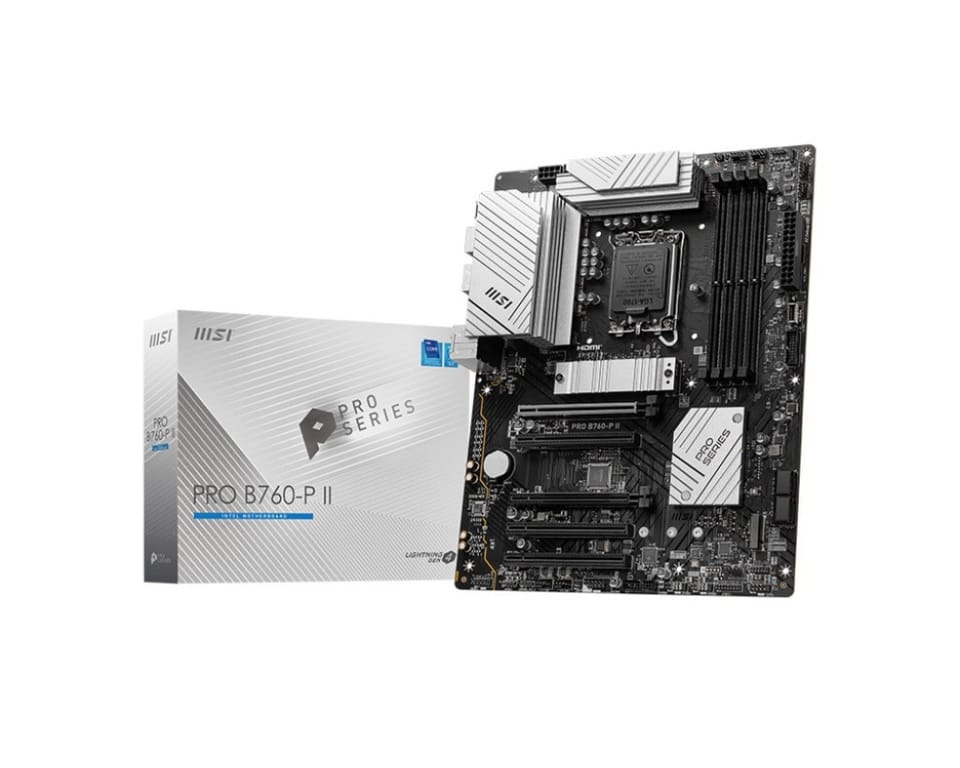

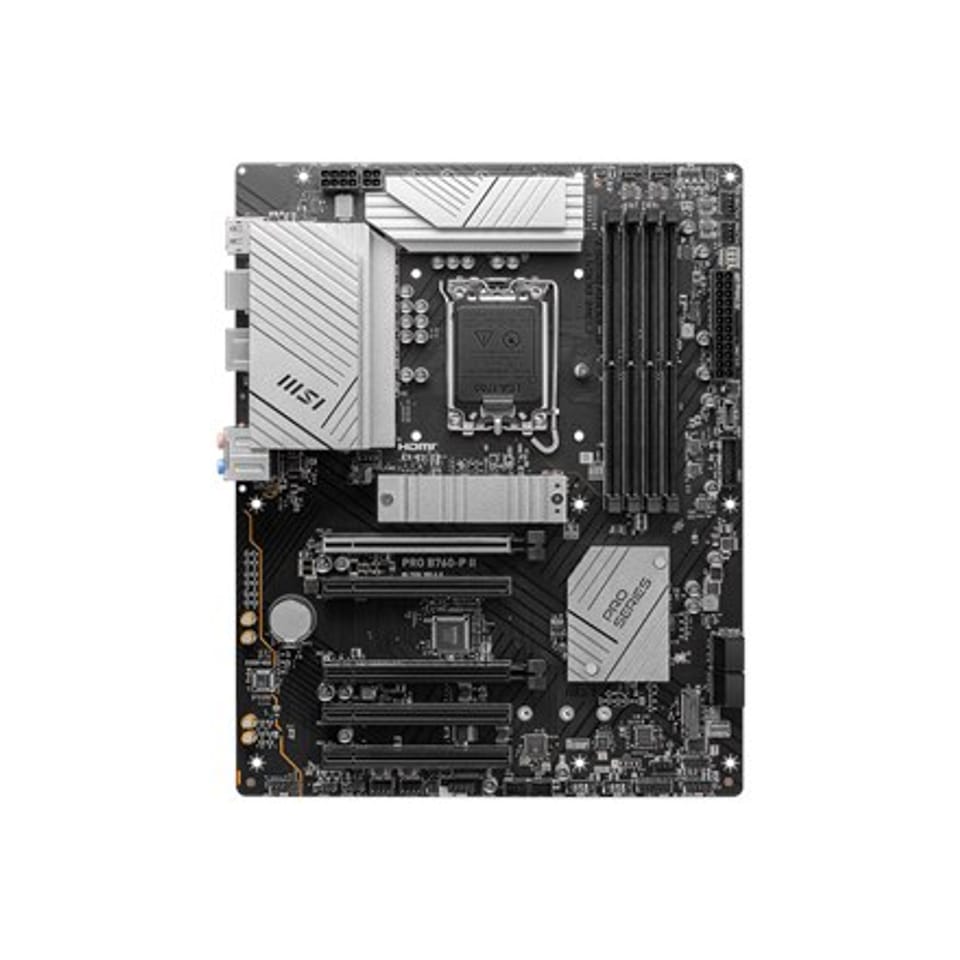

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

PLN 653.85
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Msi
Product code:
7E29-002R / 4711377193887

Specification

12v power connector:Yes
Acpi version:6.4
Atx power connector (24-pin):Yes
Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Bios memory size:256 Mbit
Bios type:UEFI AMI
Cables included:SATA
Chassis intrusion connector:Yes
Clear cmos button:Yes
Clear cmos jumper:Yes
Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Pentium® Gold
Component for:PC
Cpu fan connector:Yes
Depth:304.8 mm
Displayport version:1.4
Displayports quantity:1
Drivers included:Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdmi ports quantity:1
Hdmi version:2.1
Lan controller:Realtek RTL8125-BG
Maximum internal memory:256 GB
Maximum internal memory supported by processor:256 GB
Memory channels:Dual-channel
Memory slots type:DIMM
Motherboard chipset:Intel B760
Motherboard chipset family:Intel
Motherboard form factor:ATX
Non-ecc:Yes
Number of hdds supported:4
Number of m.2 (m) slots:2
Number of memory slots:4
Number of sata iii connectors:4
Number of storage drives supported:6
Pci express x1 (gen 3.x) slots:1
Pci express x1 (gen 4.x) slots:2
Pci express x16 (gen 4.x) slots:1
Pci express x4 (gen 4.x) slots:1
Power fan connector:Yes
Processor manufacturer:Intel
Processor socket:LGA 1700
Raid levels:1, 5, 10, 0
Raid support:Yes
S/pdif out connector:Yes
Supported memory clock speed (max):7000 MHz
Supported memory clock speeds:5800, 5400, 7000, 6800, 5200, 4800, 6000, 5000, 5600, 6400, 6200, 6600
Supported memory types:DDR5-SDRAM
Supported storage drive interfaces:PCI Express 4.0, SATA III
System management bios (smbios) version:3.5
Unbuffered memory:Yes
Usb 2.0 connectors:4
Usb 2.0 ports quantity:4
Usb 3.2 gen 1 (3.1 gen 1) connectors:4
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Wi-fi:No
Width:243.8 mm
Windows operating systems supported:Windows 11 x64, Windows 10 x64

BUSINESS ELEGANCEPRO Series motherboards are optimized to meet the needs of professional users, regardless of their profession. This line boasts impressive performance and high-quality build quality, ensuring an exceptional user experience. If productivity is your top priority, you can count on MSI PRO Series motherboards. They will help you multitask and increase your productivity.

  • Supports 14th, 13th, and 12th Gen processors. Gen. Intel Core processors, as well as support for Intel Pentium Gold and Celeron processors compatible with the LGA 1700 socket.
  • Dual-channel DDR5 memory support up to 7000+ MHz (overclocking).
  • Enhanced power system: 12+1-phase, dual-rail Duet Rail Power System with P-PAK technology, 8- and 4-pin processor power connectors, Core Boost and Memory Boost technologies.
  • Premium cooling system: Extended Heatsink, 7W/mK thermal pads on the power MOSFETs, and additional thermal pads on the chokes enhance system performance and allow for hours of uninterrupted gaming.
  • High-quality PCB: 6-layer PCB with two ounces of layered copper, made of server-grade materials.
  • Exceptional speed: PCIe 4.0, Lightning Gen 4 x4 M.2 connectors.
  • Intel Turbo USB 10 Gbps: The solution utilizes Intel 10 Gbps controller. Turbo USB technology ensures uninterrupted connection, greater stability of USB transmission at higher speeds.
  • 2.5G LAN: Enhanced networking solution for professional and multimedia use. Offers a secure, stable, and fast network connection.
  • AUDIO BOOST sound system: Studio-quality sound for exceptional gaming immersion.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
