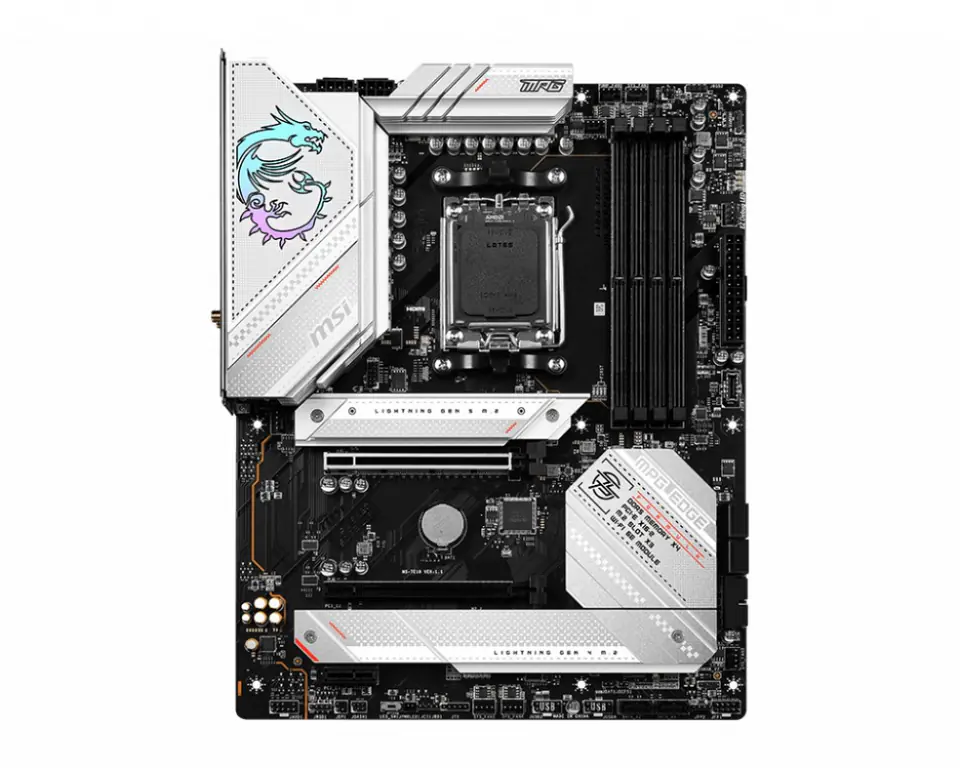

MSI MPG B650 EDGE WIFI motherboard AMD B650 Socket AM5 ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Msi
- Product code:
- MPG B650 EDGE WIFI / 4711377010191
Share this product:
Specification
| Atx power connector (24-pin): | Y |
|---|---|
| Audio chip: | Realtek ALC4080 |
| Audio output channels: | 7.1 channels |
| Bluetooth: | Y |
| Bluetooth version: | 5.2 |
| Chassis intrusion connector: | Y |
| Compatible processor series: | AMD Ryzen 9 7th Gen, AMD Ryzen 7 7th Gen |
| Cpu fan connector: | Y |
| Depth: | 243.8 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Y |
| Front panel connector: | Y |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Lan controller: | Realtek RTL8125-BG |
| Line-in: | Y |
| Maximum internal memory: | 128 GB |
| Microphone in: | Y |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Pc health monitoring: | Fan |
| Pci express x16 (gen 3.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Raid levels: | 1, 0, 10 |
| Supported memory clock speeds: | 5000, 6600, 5200, 6000, 6400 MHz, 6200, 5800, 5400, 5600, 4800 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Wi-fi: | Y |
| Wi-fi standards: | Wi-Fi 6E (802.11ax), 802.11g, 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width: | 304.8 mm |
| Windows operating systems supported: | Windows 11 x64 |
