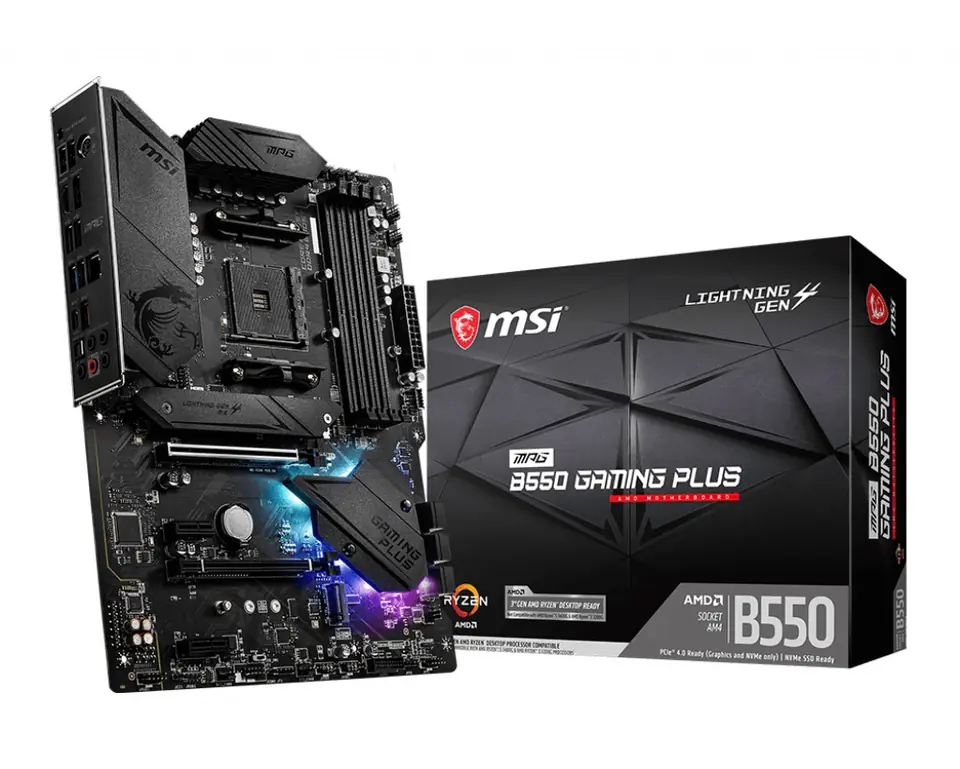

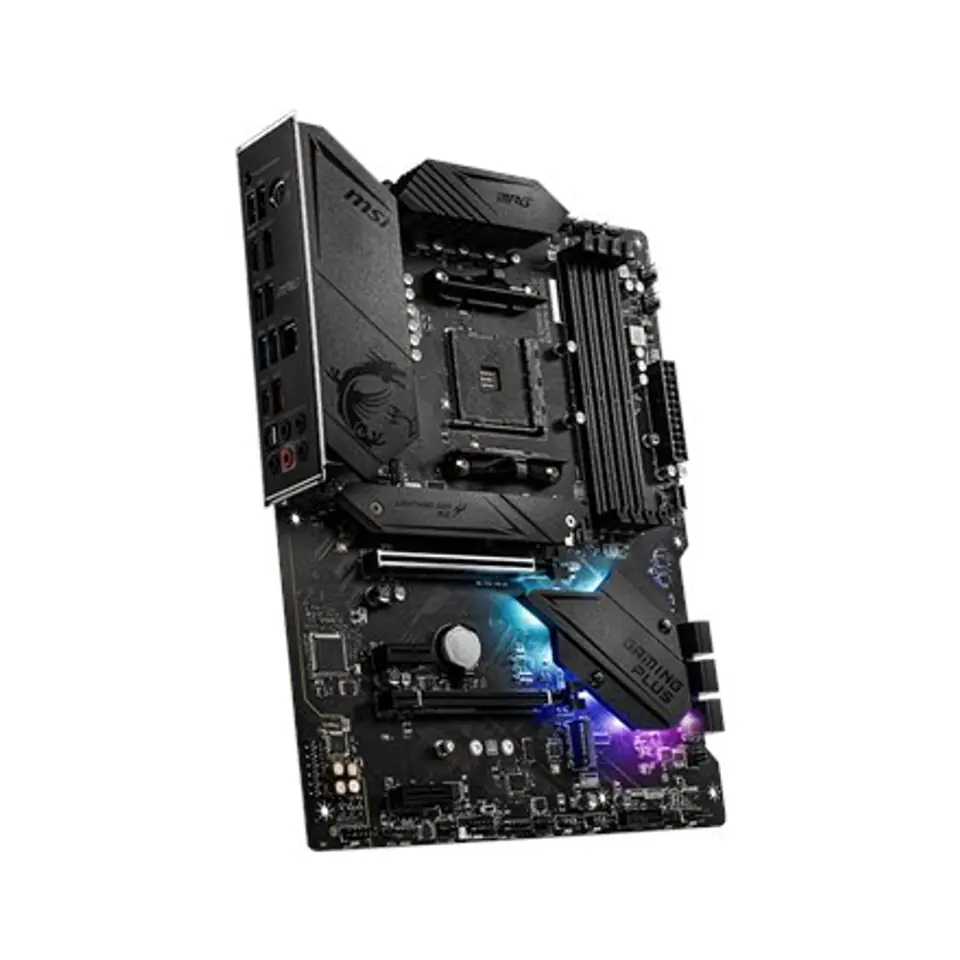

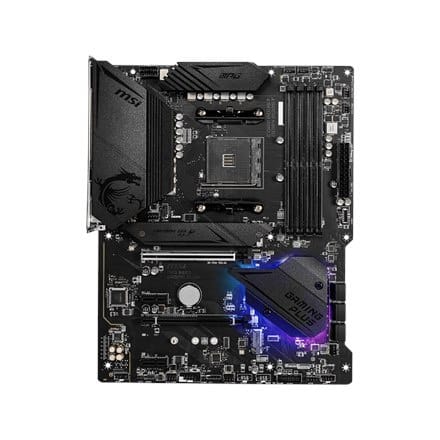

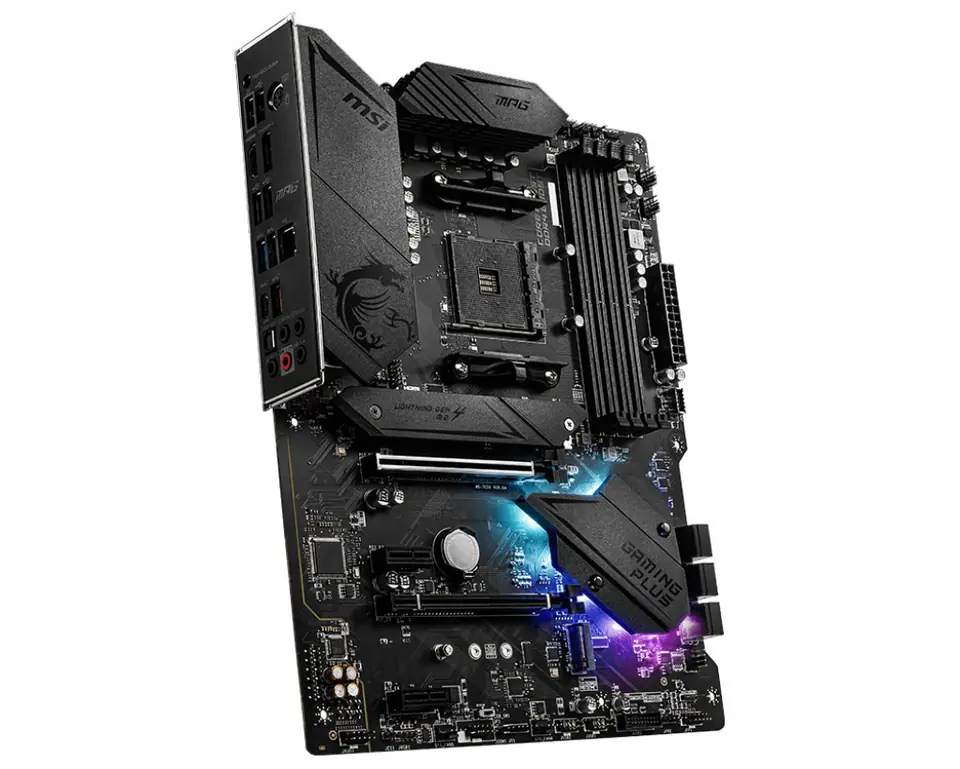

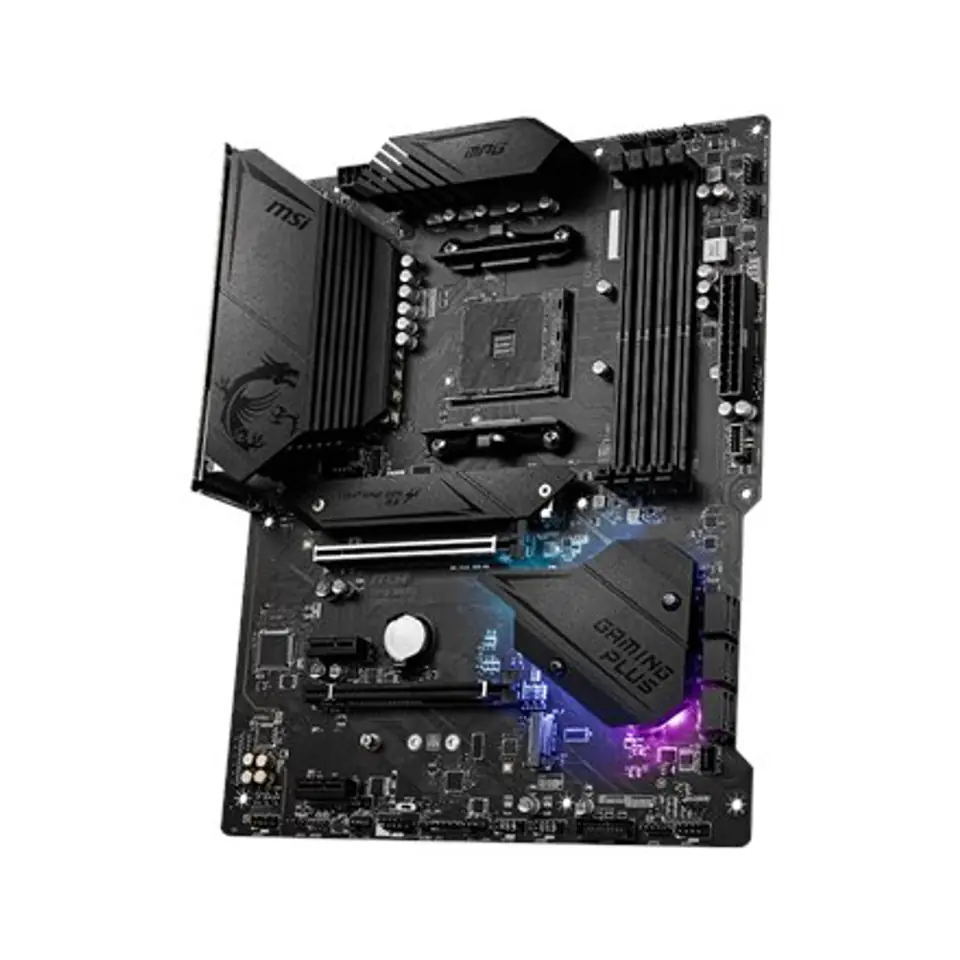

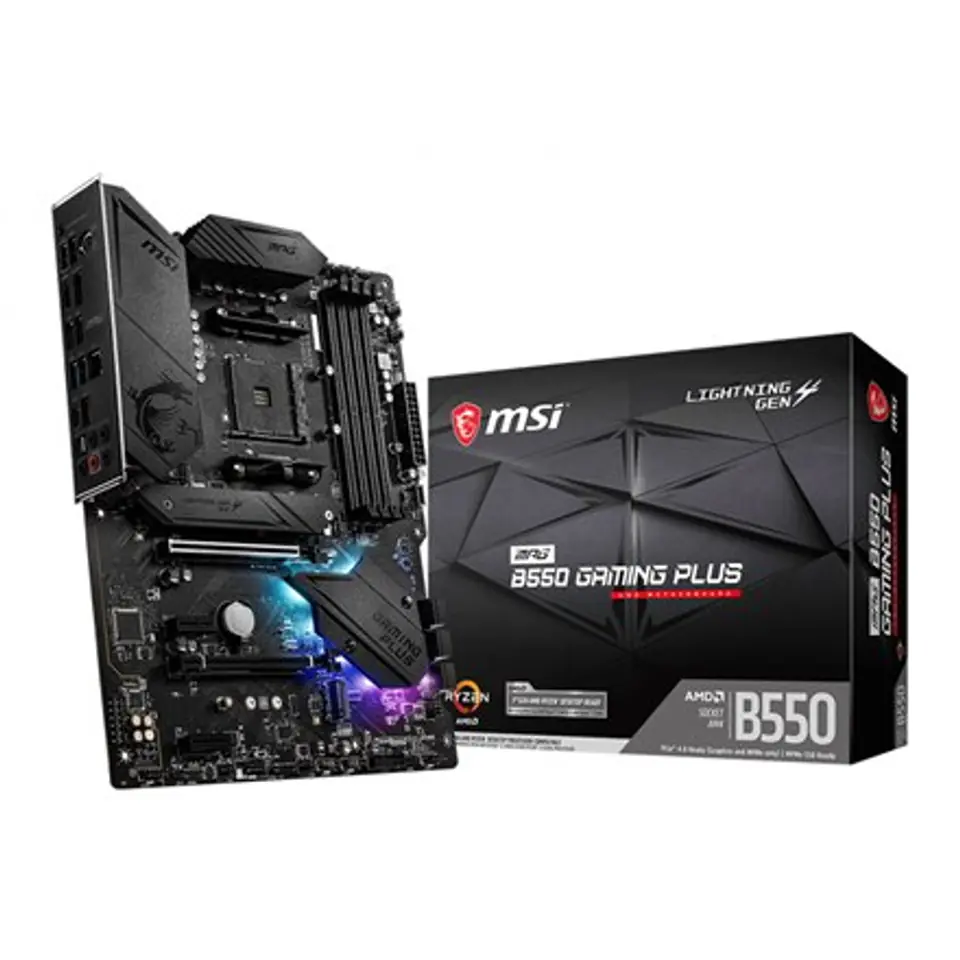

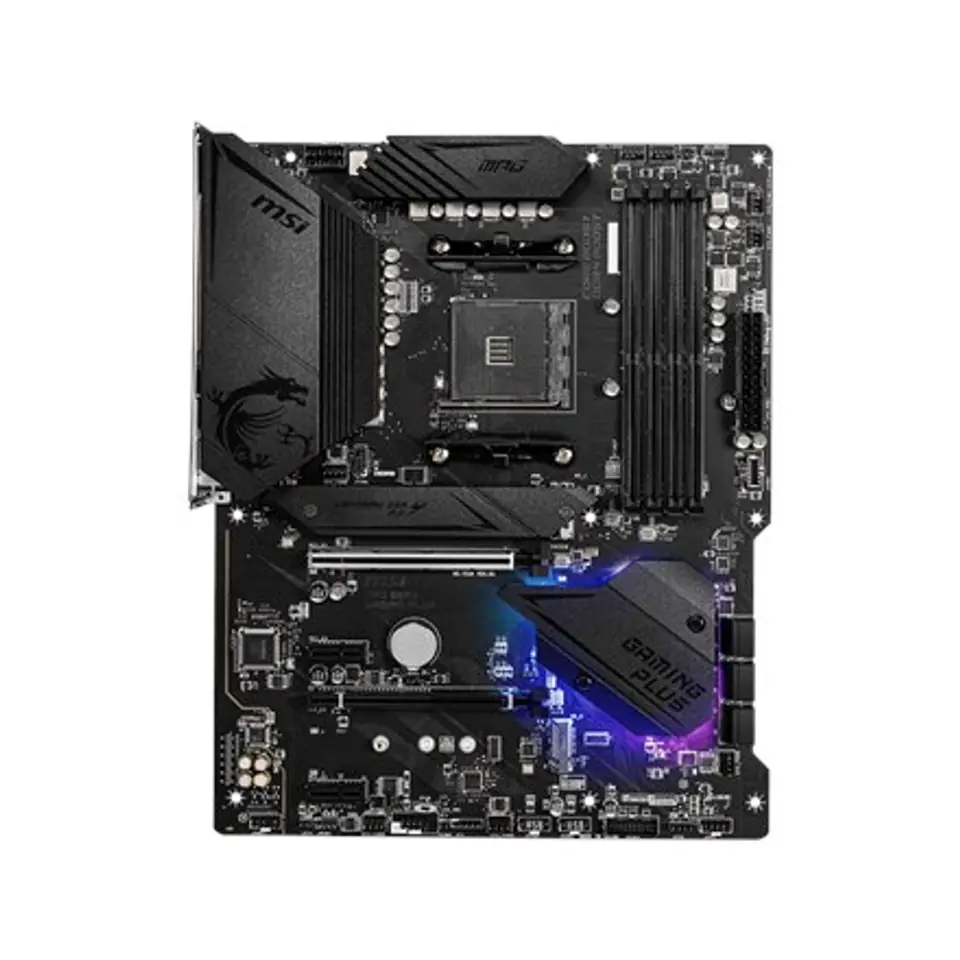

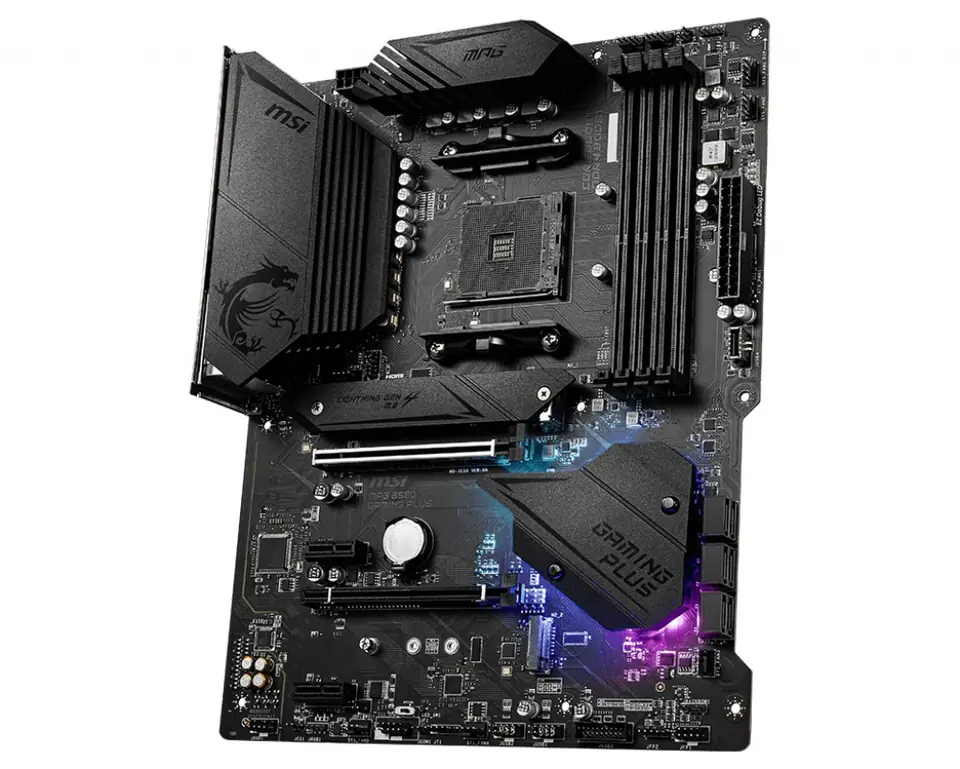

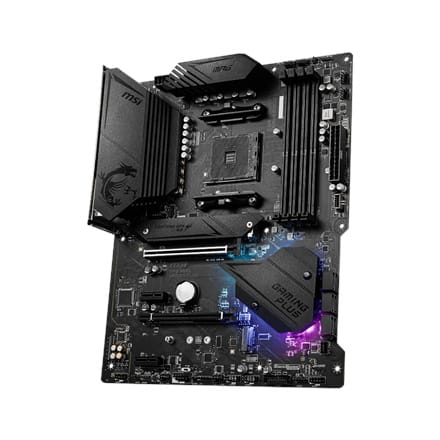

MSI MPG B550 GAMING PLUS Processor family AMD, Processor socket AM4, DDR4, Memory slots 4, AMD B Chipset, ATX
€125.83
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Msi
- Product code:
- MPG B550 GAMING PLUS / 4719072731885
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC892 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Digital audio optical out: | 1 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Height: | 65 mm |
| Lan controller: | Realtek 8111H |
| Maximum graphics card memory: | 16000 MB |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 6 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of mounting holes: | 9 |
| Number of sata iii connectors: | 6 |
| Parallel processing technology support: | 2-Way CrossFireX |
| Pc health monitoring: | Fan, CPU, Temperature |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 10, 0 |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speeds: | 3466, 1866, 3200 MHz, 4266, 3000, 2933, 3600, 3866, 2400, 2800, 2667, 3733, 4400 MHz, 3066, 4133, 4000, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Weight: | 1 kg |
| Wi-fi: | No |
| Width: | 305 mm |
