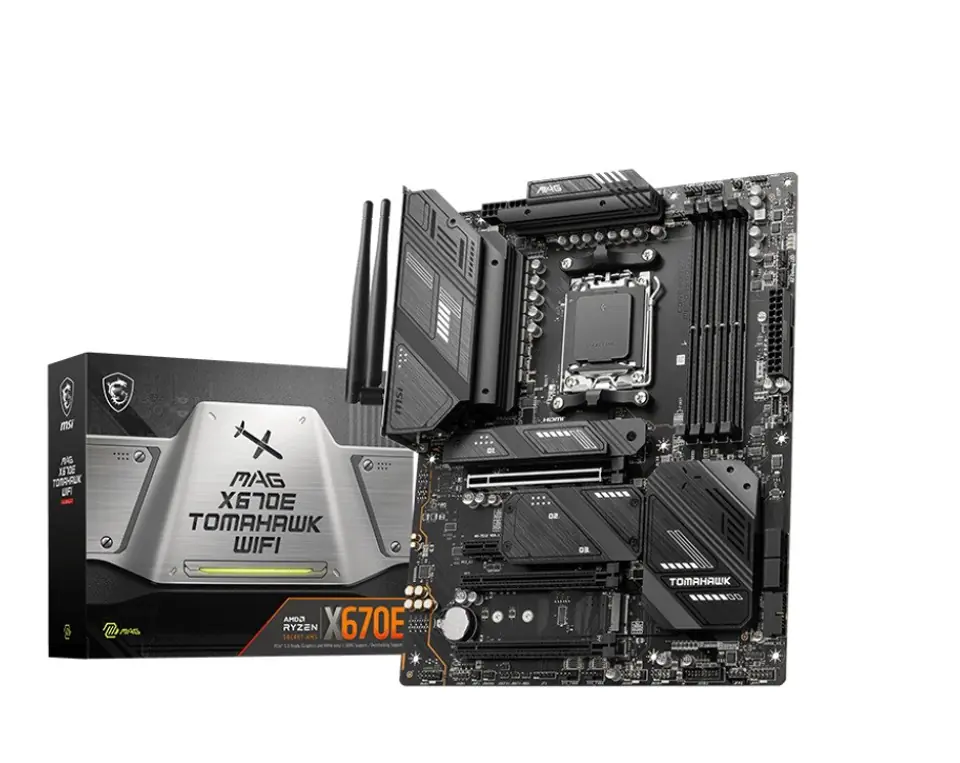

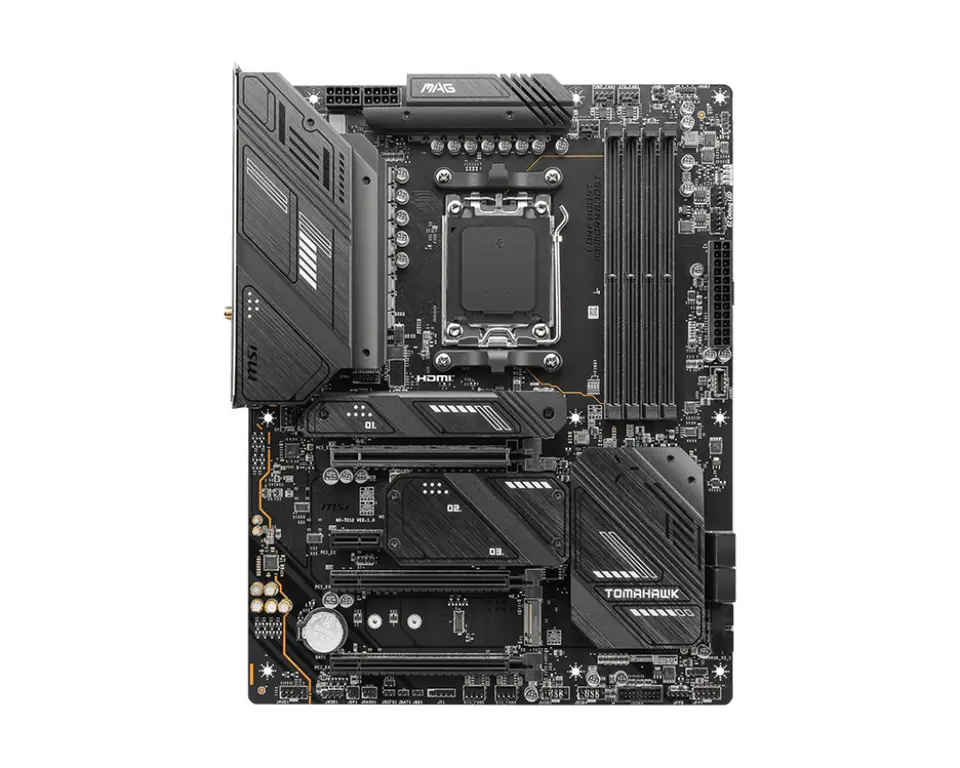

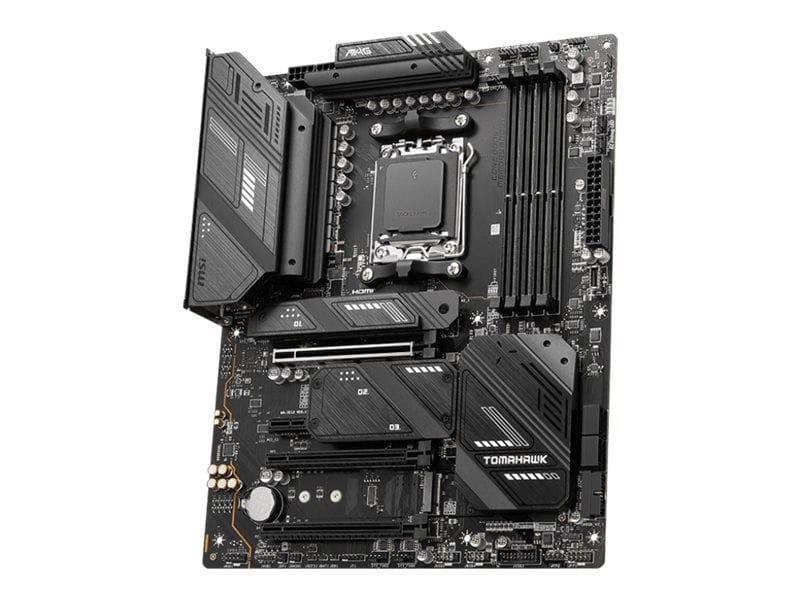

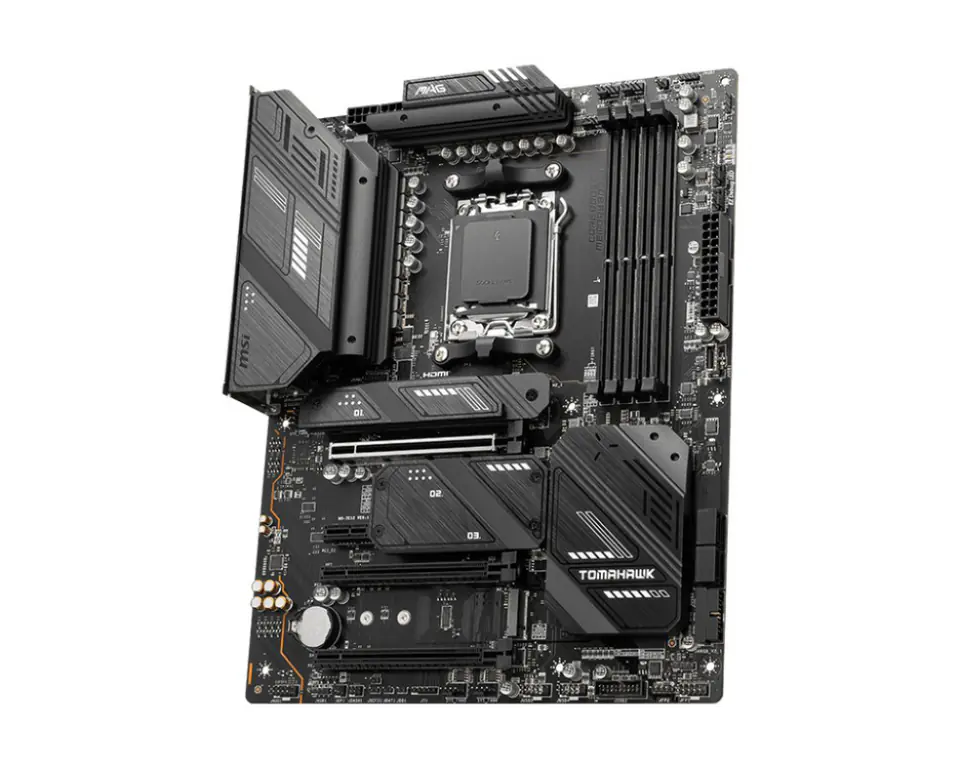

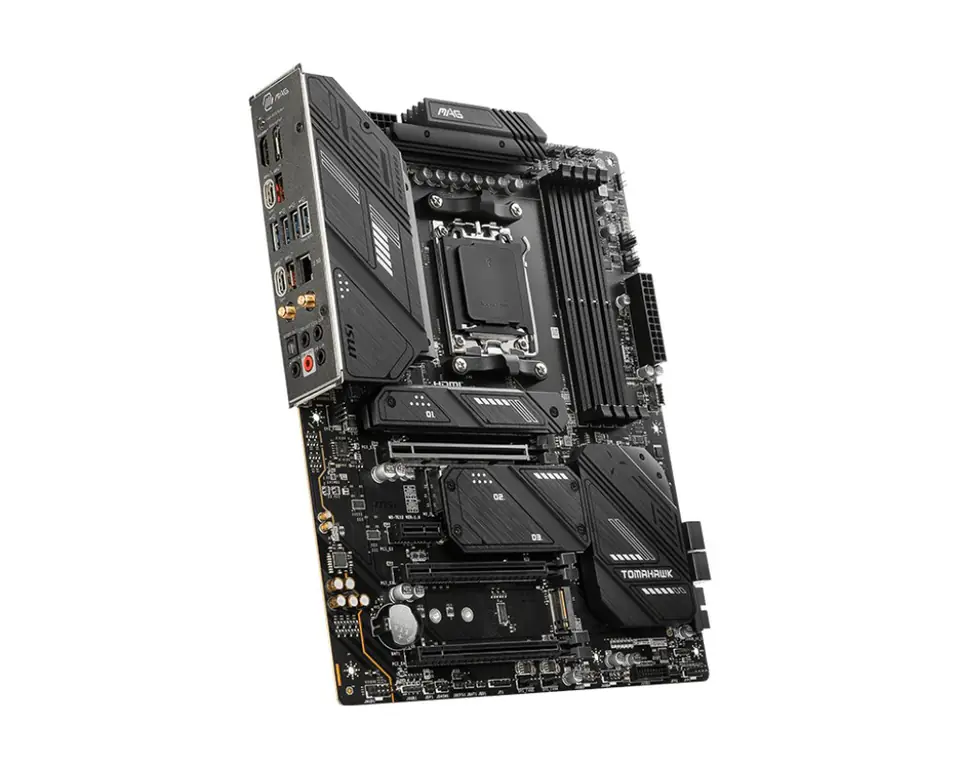

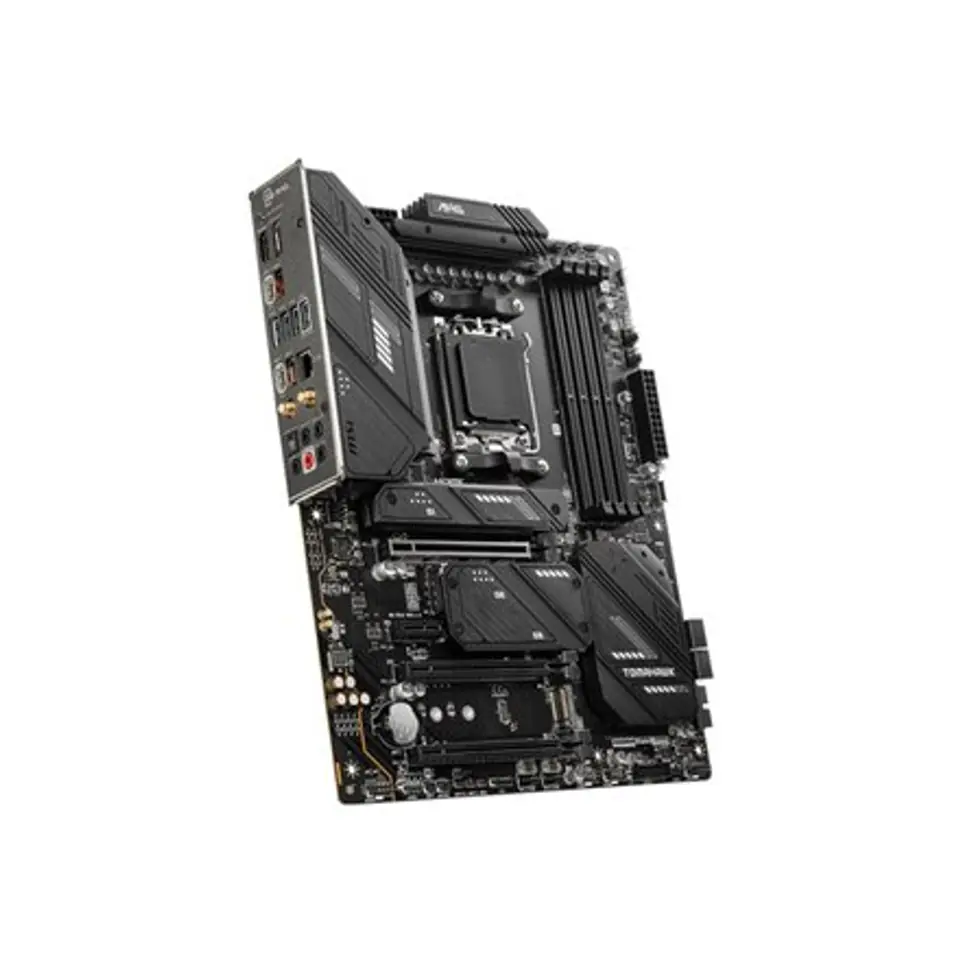

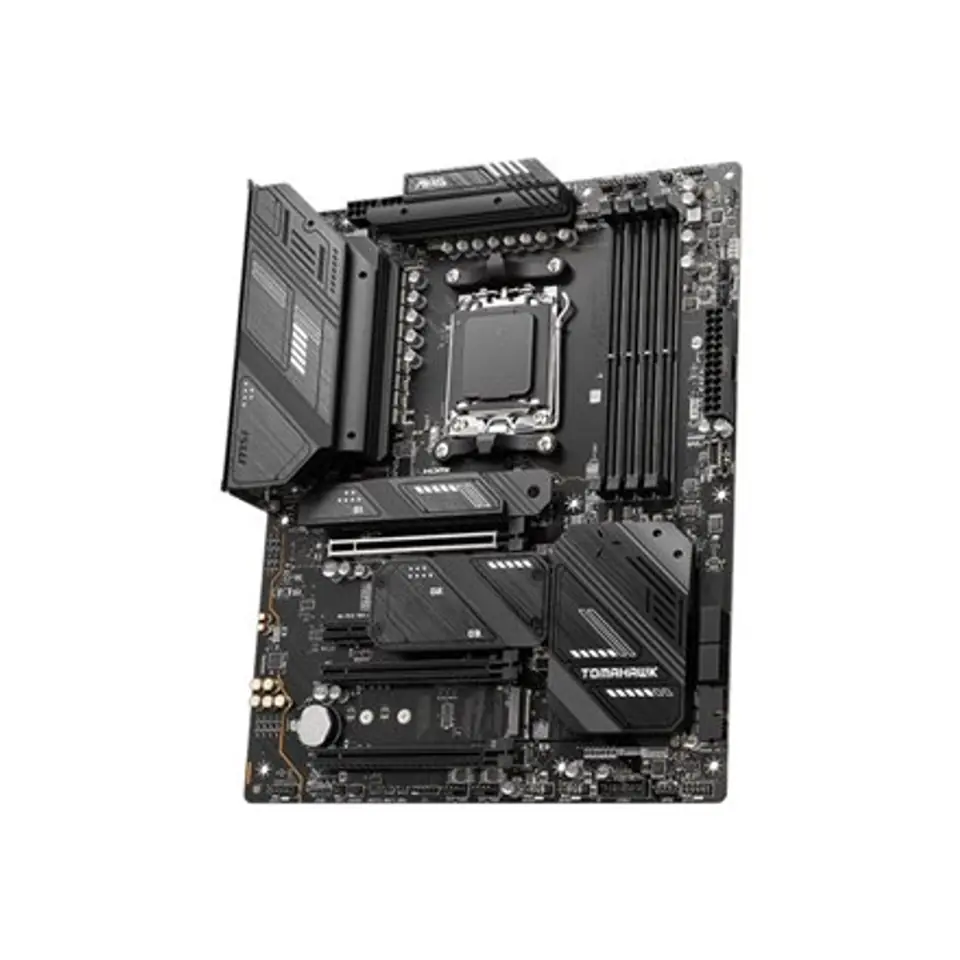

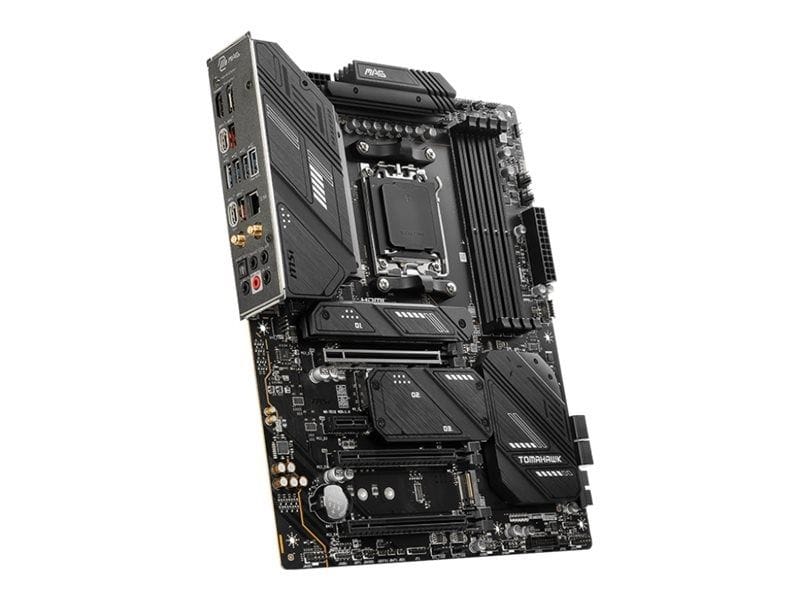

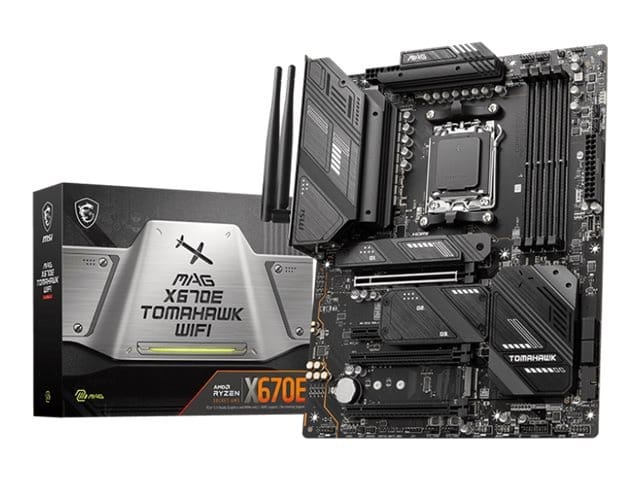

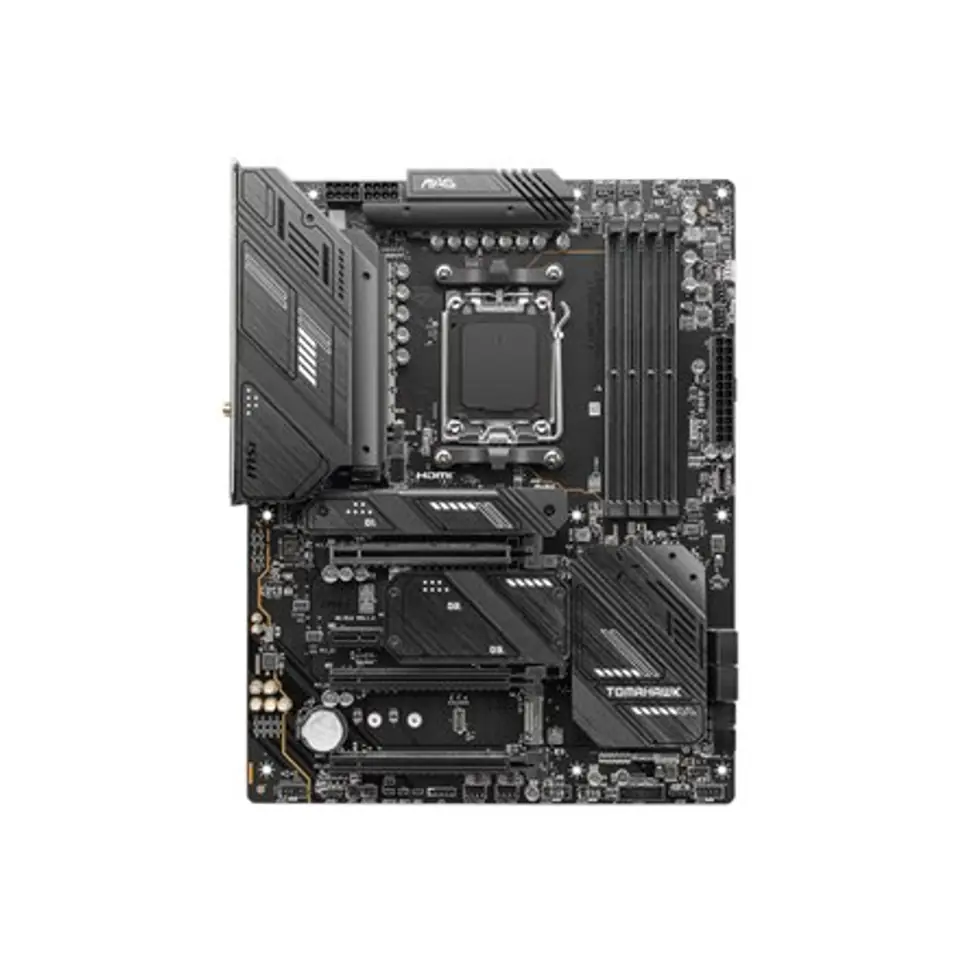

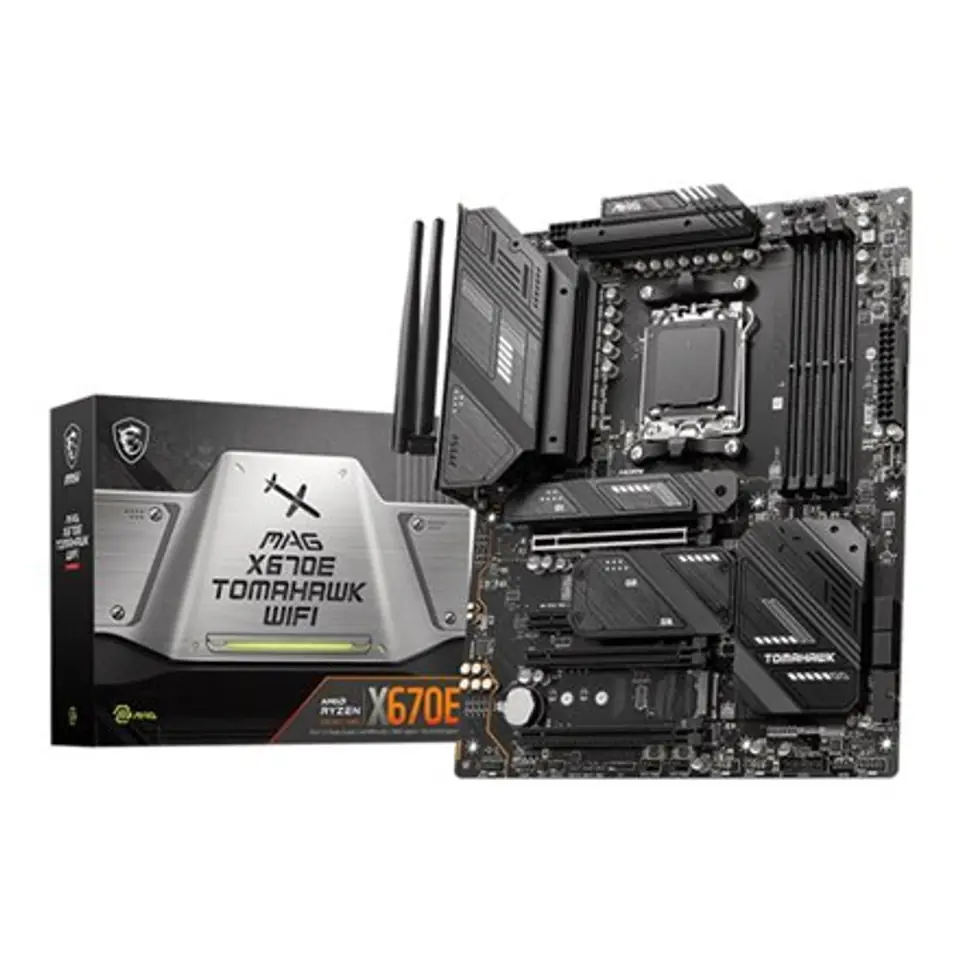

MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Msi
- Product code:
- 7E12-001R / 4711377076562
Share this product:
Specification
| Amd opteron series: | 7000 |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC1200 |
| Audio output channels: | 7.1 channels |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Chassis intrusion connector: | Yes |
| Compatible processor series: | AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 304.8 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Lan controller: | Realtek RTL8125-BG |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Microphone in: | Yes |
| Motherboard chipset: | AMD X670 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of m.2 (m) slots: | 4 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Black |
| Raid levels: | 0, 1, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speed (max): | 6600 MHz |
| Supported memory clock speeds: | 4800 MHz, 6400, 6200, 5000, 5200, 6000 MHz, 5800, 5400, 6600, 5600 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Width: | 243.8 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |
