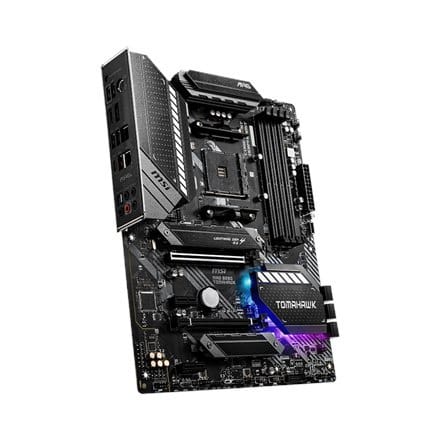

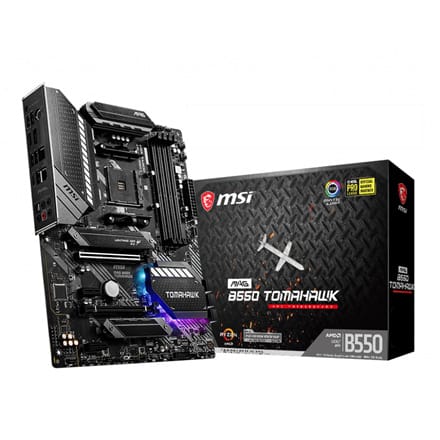

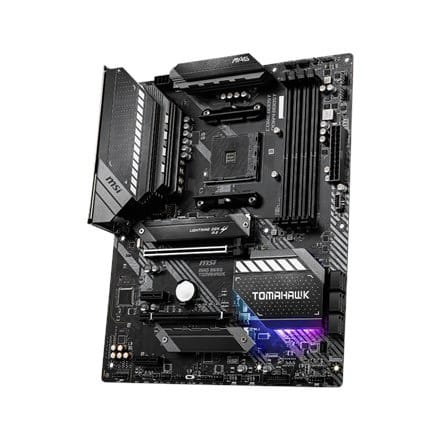

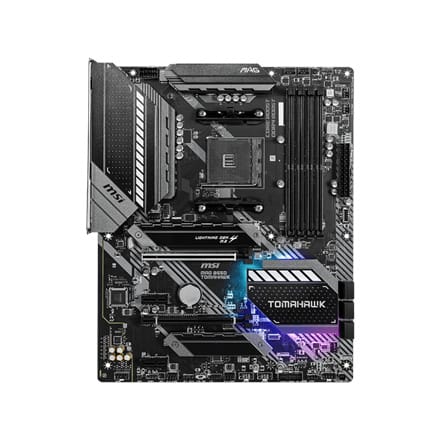

MSI MAG B550 Tomahawk AMD B550 Socket AM4 ATX

€170.68
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Thu, May 9 - Mon, May 13
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Msi
Product code:
7C91-001R / 4719072728625

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio chip:Realtek ALC1200
Audio output channels:7.1 channels
Cables included:SATA
Chassis intrusion connector:Yes
Clear cmos jumper:Yes
Compatible processor series:3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5
Cpu fan connector:Yes
Depth:244 mm
Digital audio optical out:1
Displayports quantity:1
Drivers included:Yes
Ethernet interface type:2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:2
Front panel audio connector:Yes
Hdmi ports quantity:1
Lan controller:Realtek RTL8111H, Realtek RTL8125B
Maximum graphics card memory:16000 MB
Maximum internal memory:128 GB
Maximum number of smp processors:1
Maximum resolution:4096 x 2160 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Motherboard chipset:AMD B550
Motherboard chipset family:AMD
Motherboard form factor:ATX
Number of chassis fan connectors:6
Number of m.2 (m) slots:2
Number of memory slots:4
Number of mounting holes:9
Number of sata iii connectors:6
Parallel processing technology support:2-Way CrossFireX
Pci express x1 (gen 3.x) slots:2
Pci express x16 (gen 3.x) slots:1
Pci express x16 (gen 4.x) slots:1
Processor manufacturer:AMD
Processor socket:Socket AM4
Ps/2 ports quantity:1
Raid levels:0, 1, 10
Rgb led pin header:Yes
S/pdif out port:Yes
Supported memory clock speeds:2933, 3600, 2667, 2400, 2800, 3000, 1866, 3200, 4133, 2133, 4000, 4533 MHz, 3866, 4266, 4600, 3466, 5100, 3733, 4400, 3066, 4733 MHz
Supported memory types:DDR4-SDRAM
Supported storage drive interfaces:Serial ATA III
Supported storage drive types:HDD & SSD
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Wi-fi:No
Width:305 mm
Windows operating systems supported:Windows 10 x64

Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

  • Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.

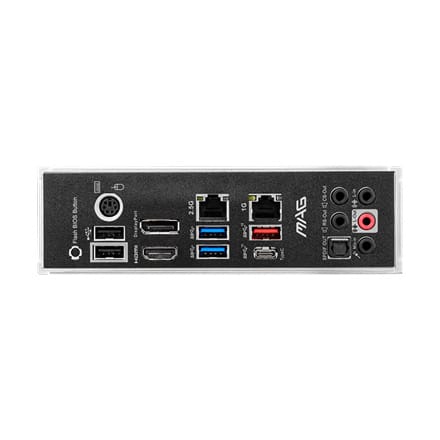

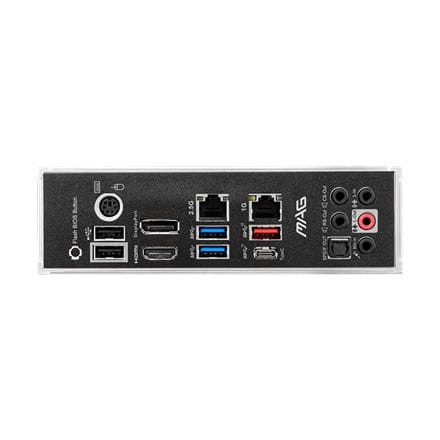

  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
