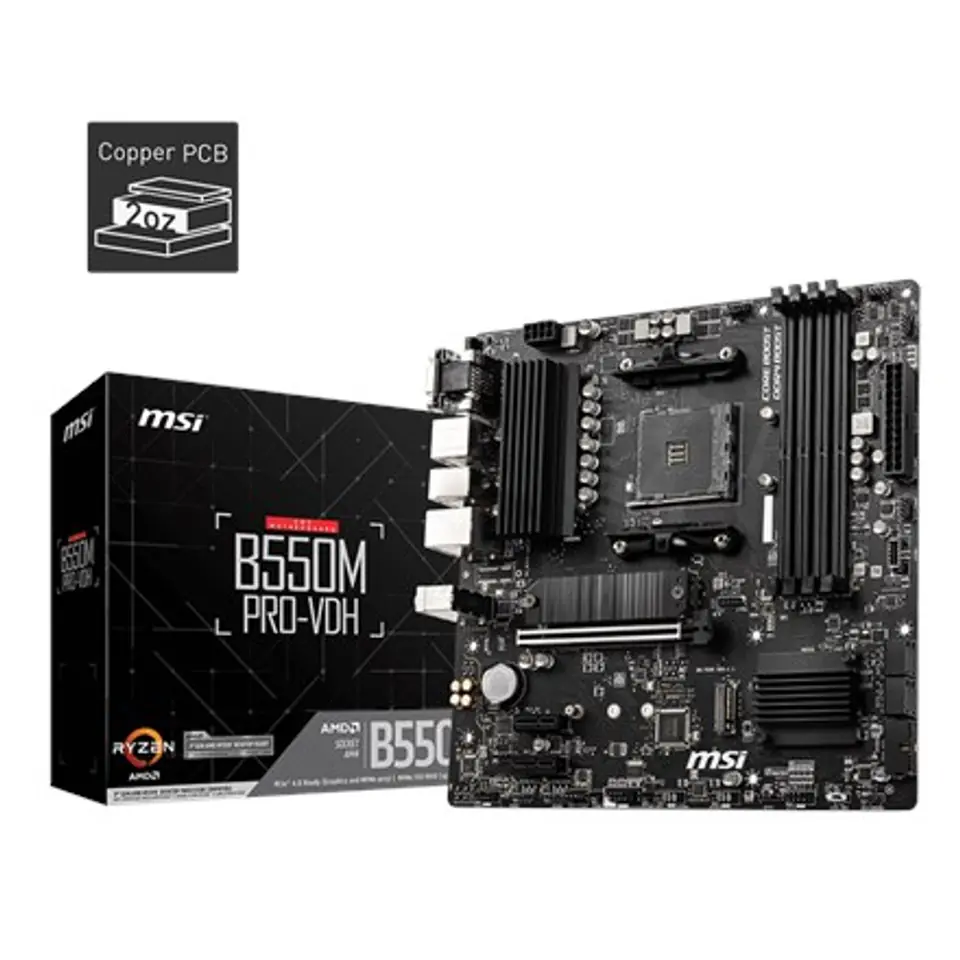

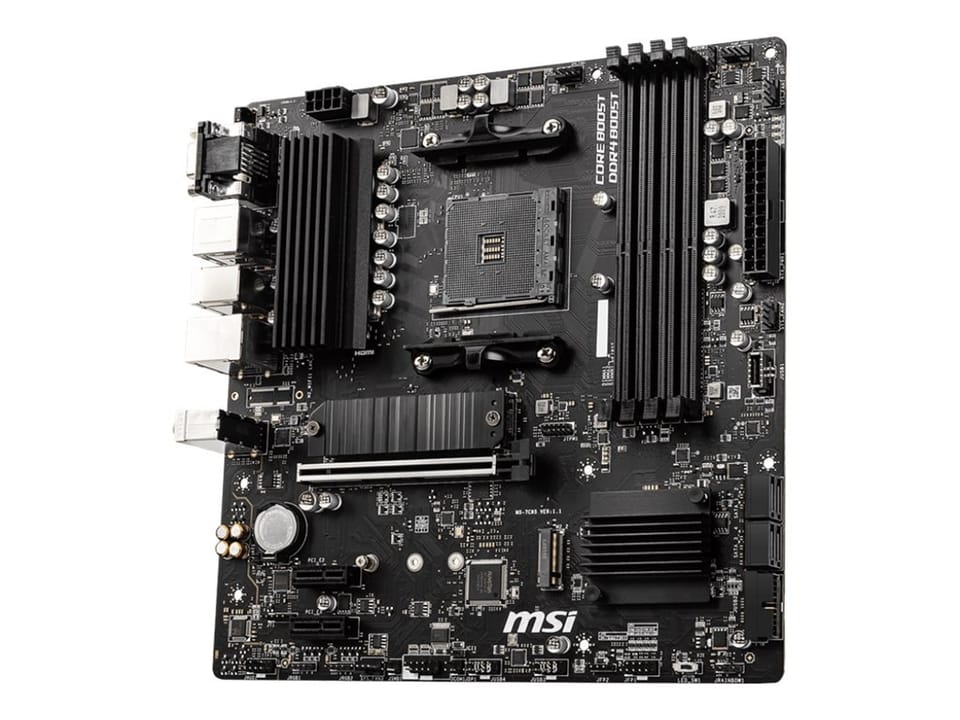

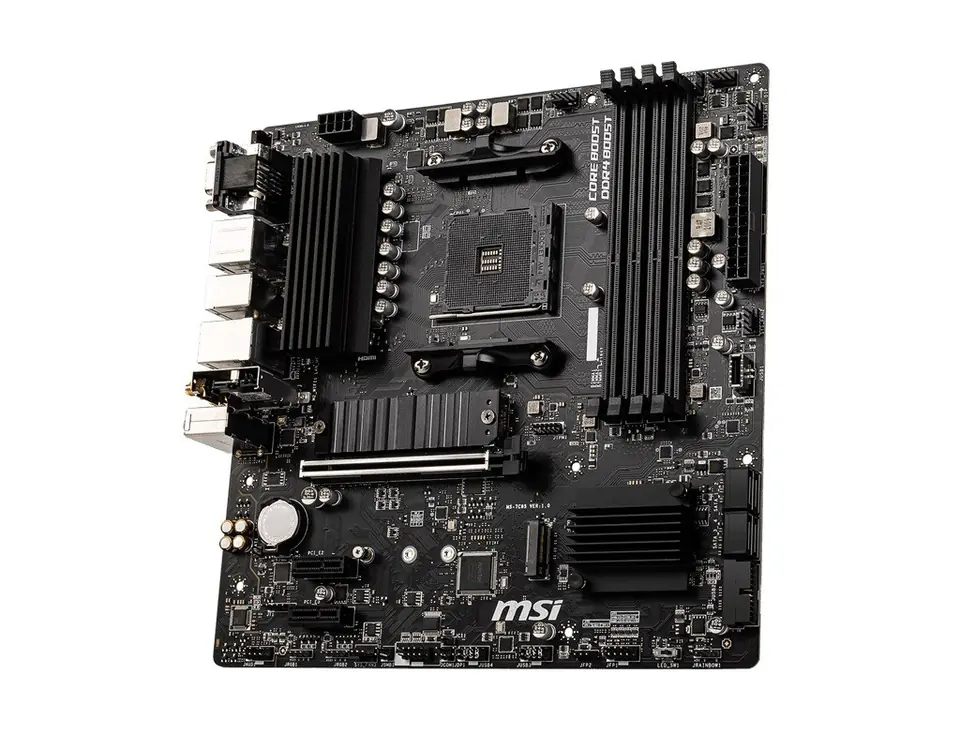

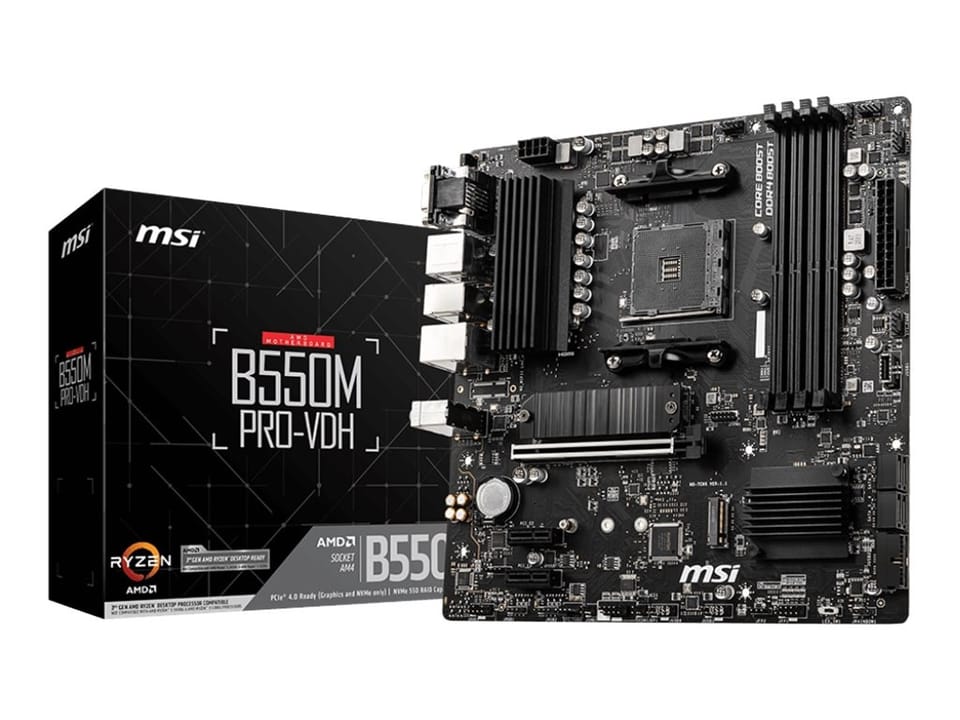

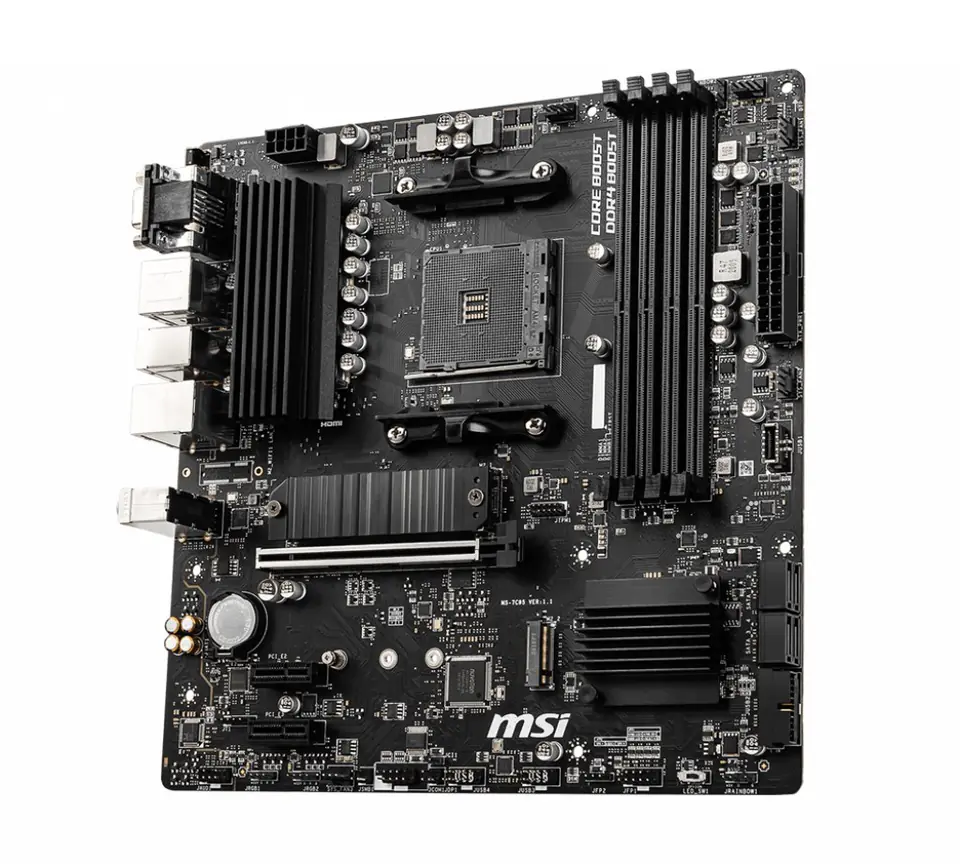

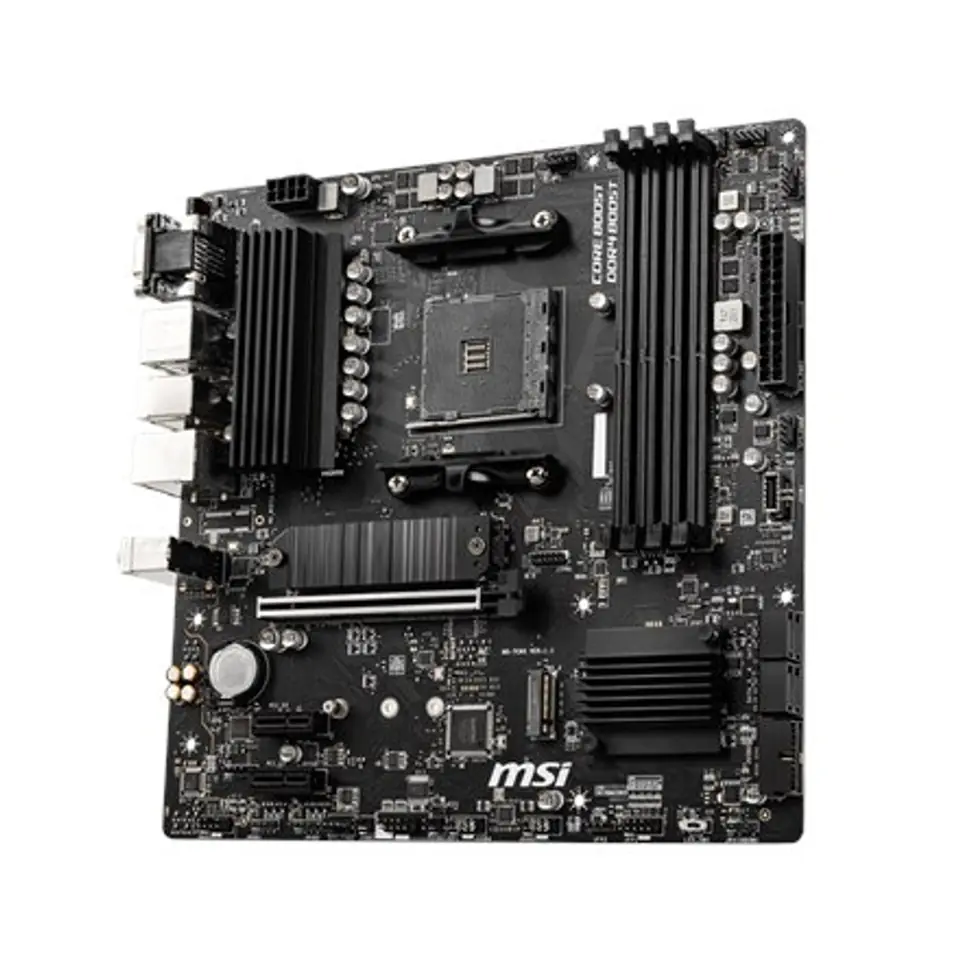

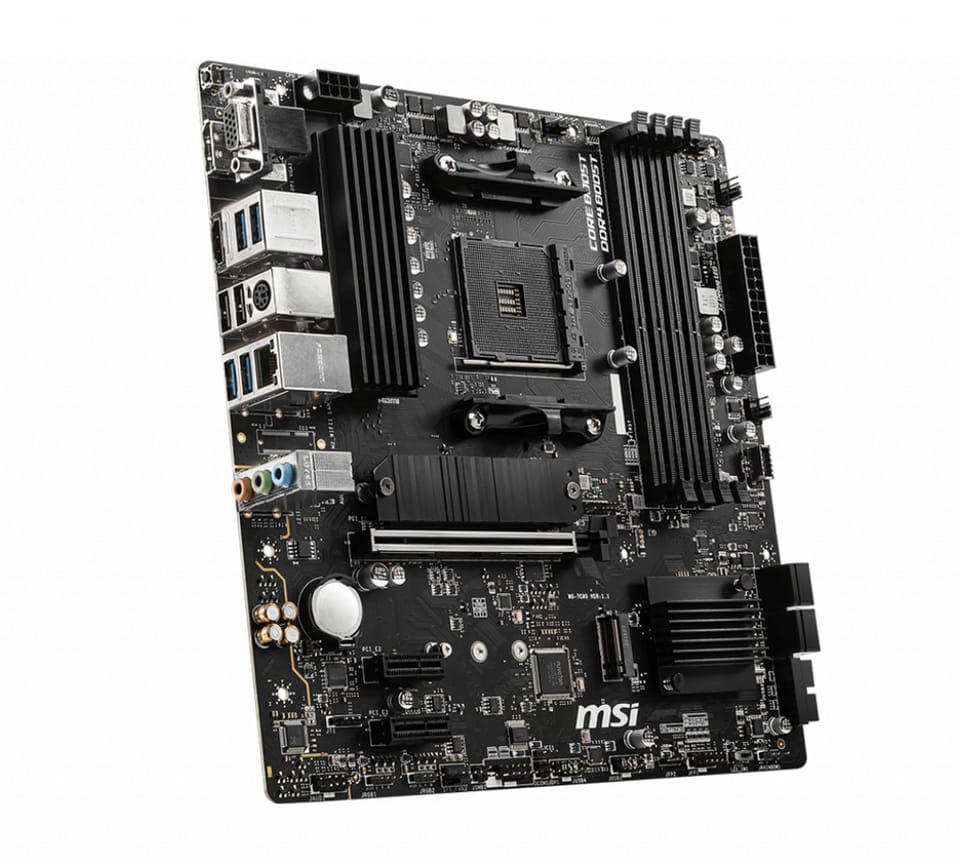

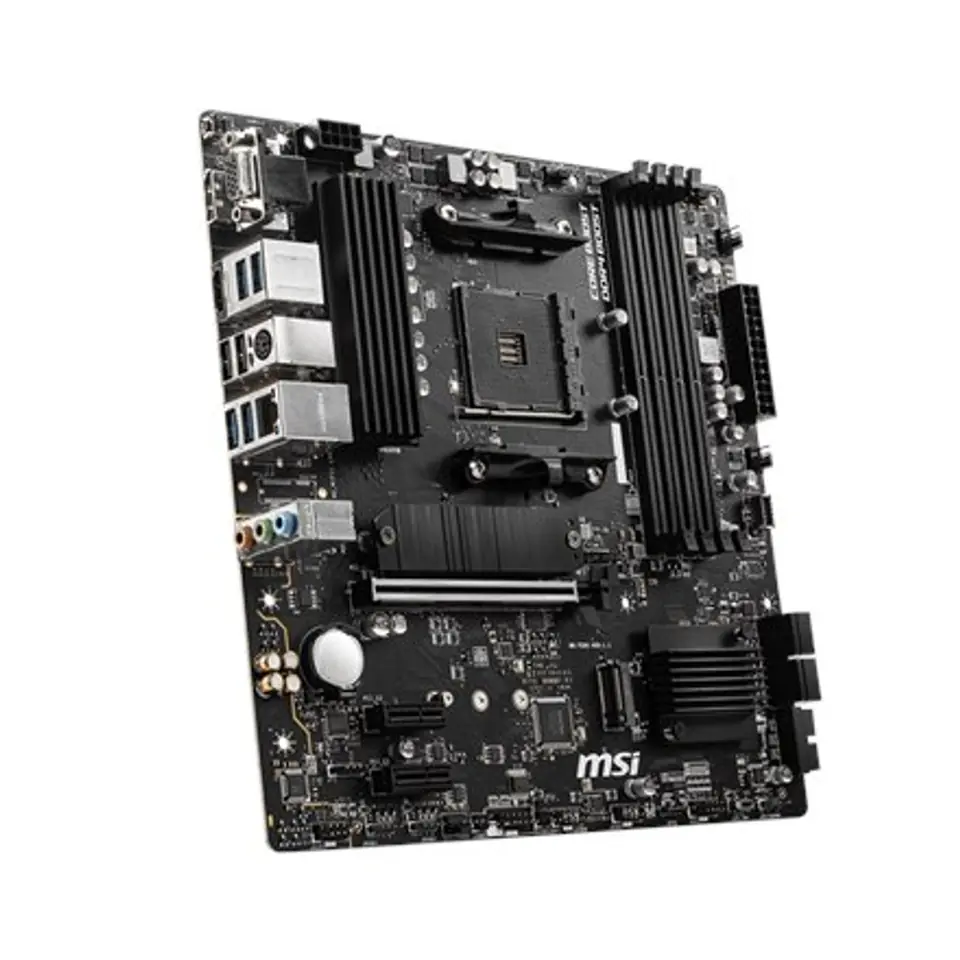

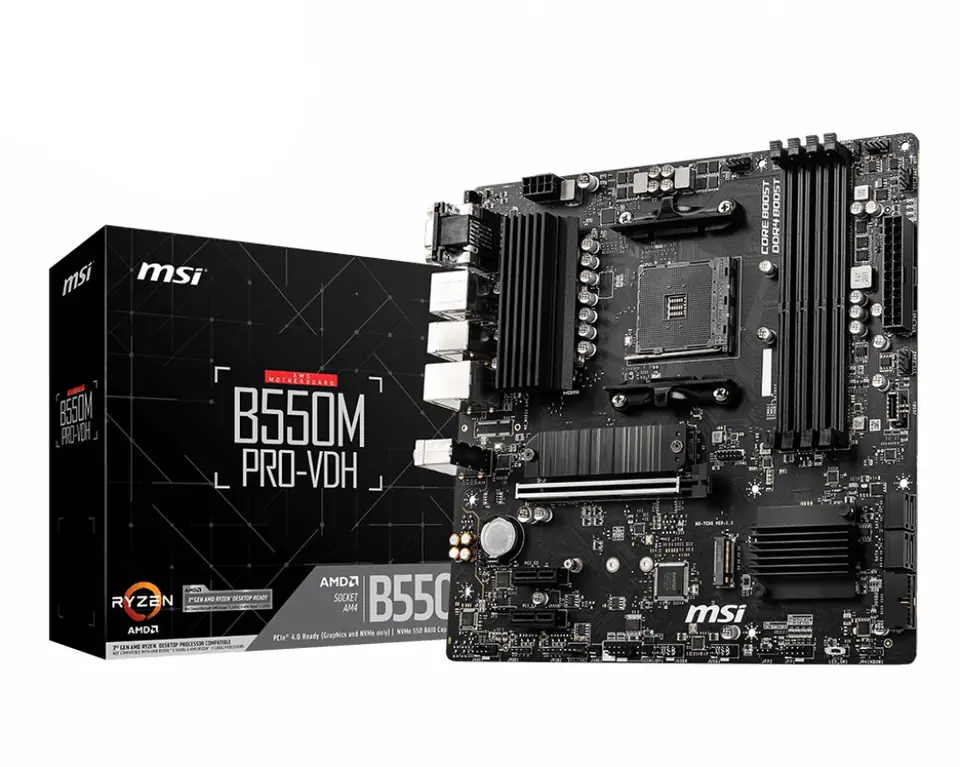

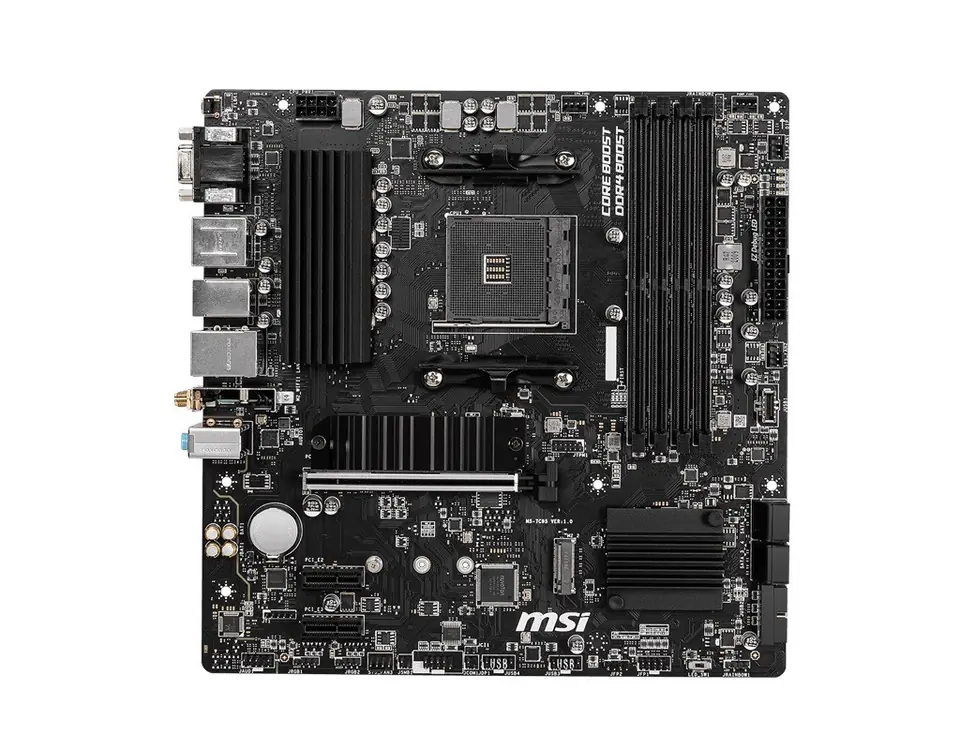

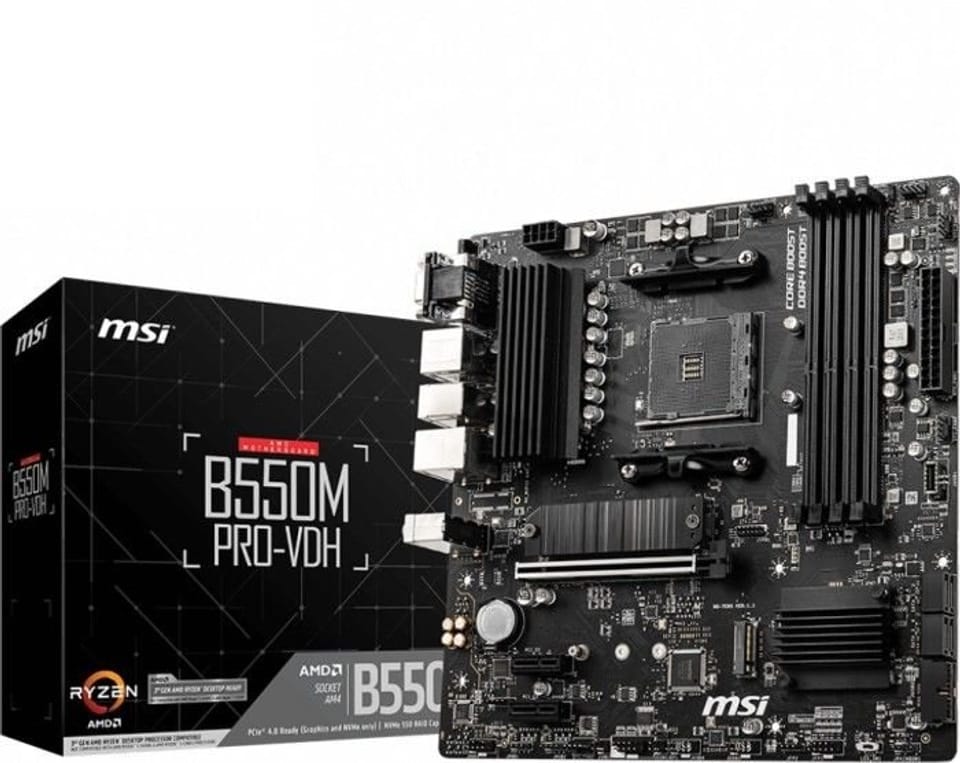

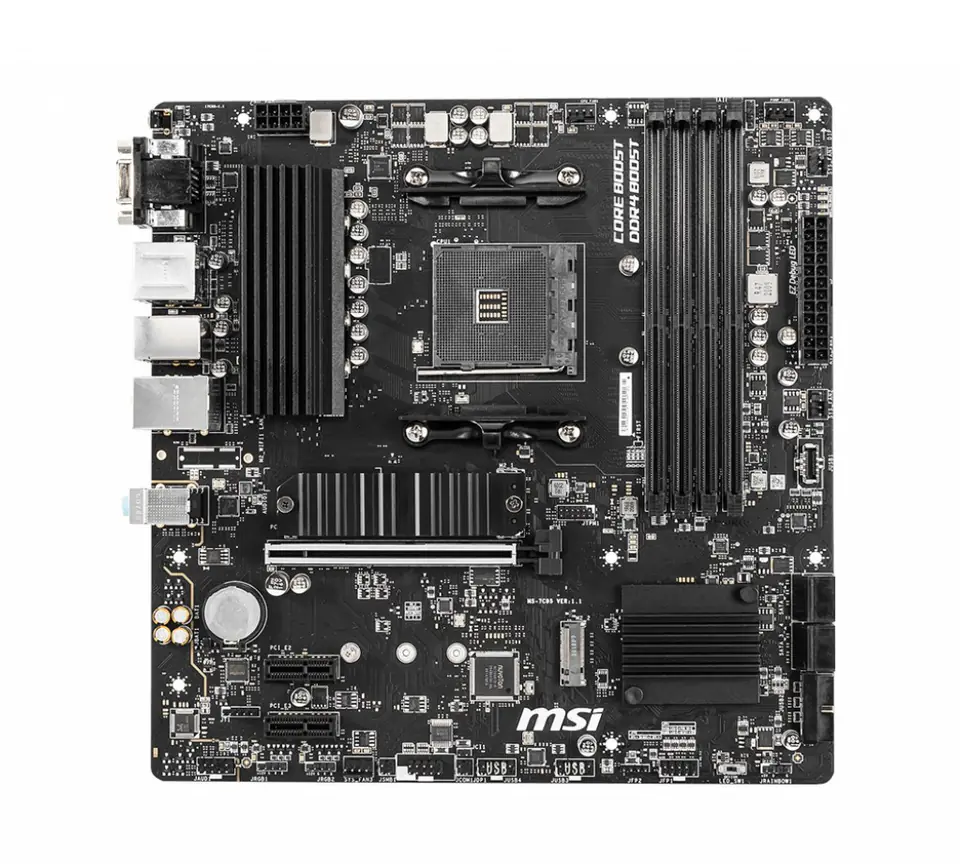

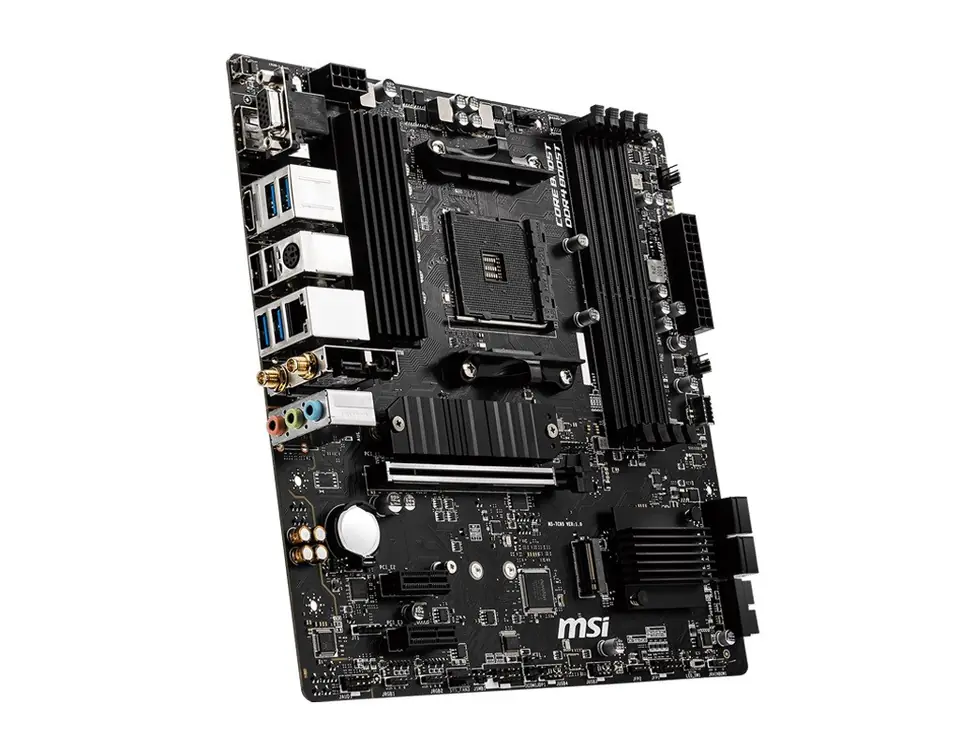

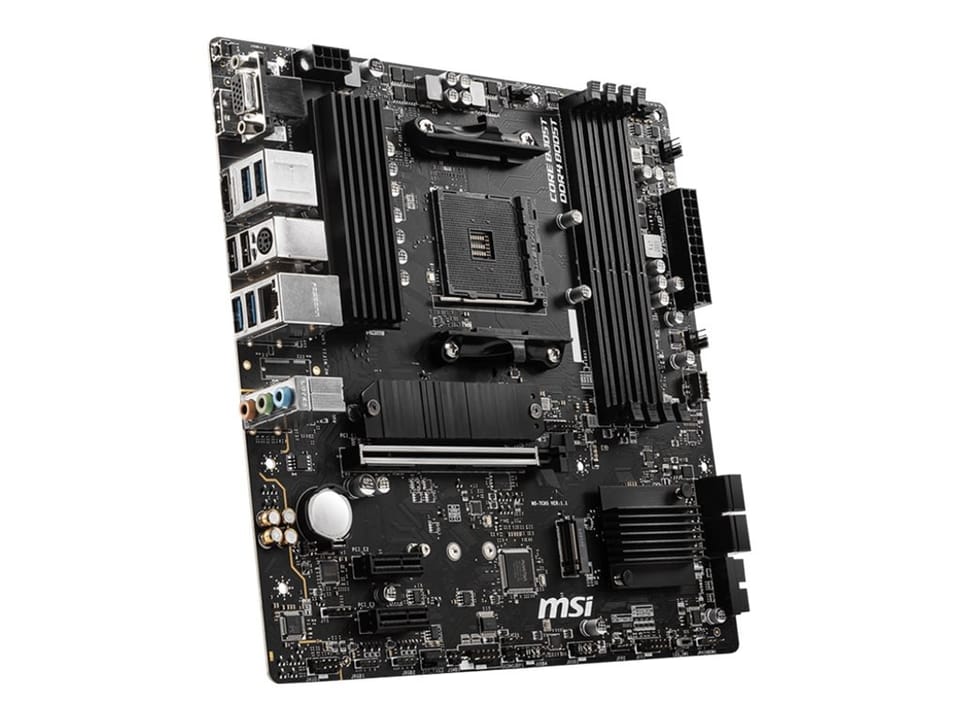

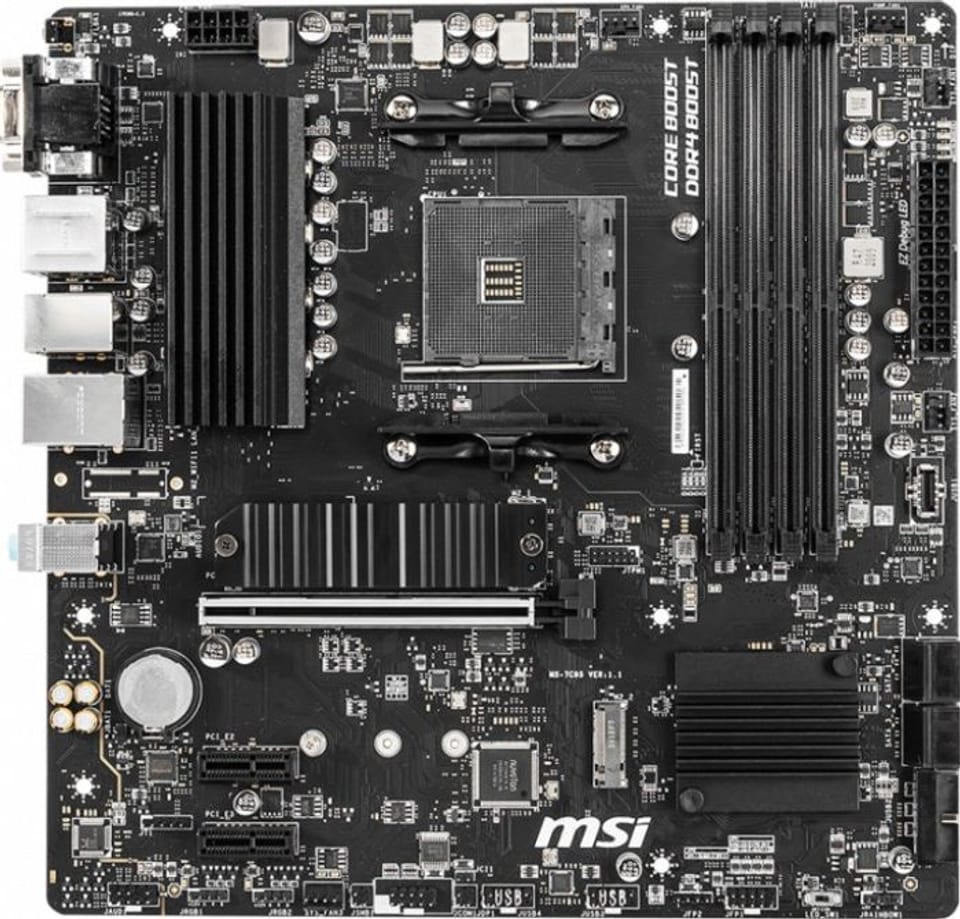

MSI B550M PRO-VDH - bundkort - micro-A
This product is not available
- Availability:
- expected delivery
- Brand:
- Msi
- Product code:
- B550M PRO-VDH / 4719072758417
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Lan controller: | Realtek 8111HN |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 3 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Raid levels: | 10, 1, 0 |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speeds: | 2667, 3733, 4400 MHz, 3066, 1866, 3200 MHz, 4266, 2133, 3000, 4133, 4000, 2933, 3600, 3466, 3866, 2400, 2800 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
