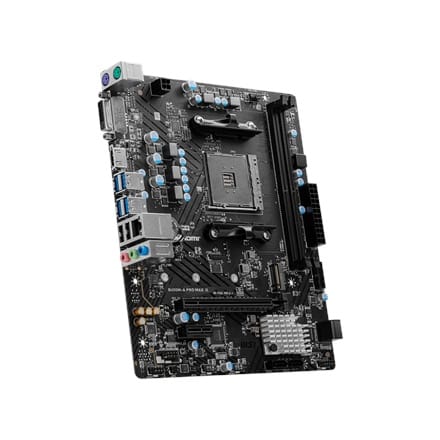

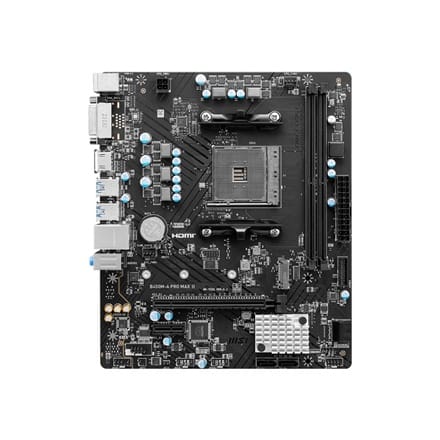

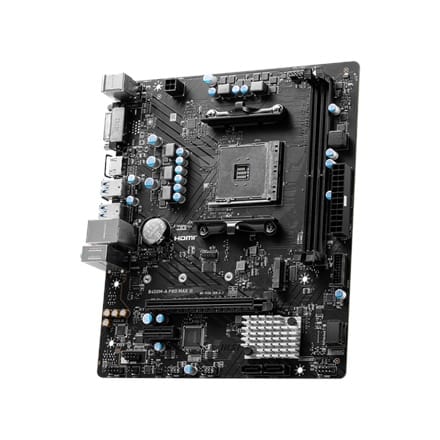

MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX
€108.57
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 15 - Tue, Dec 16
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Msi
- Product code:
- B450M-A PRO MAX II / 4711377125291
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | AMD Ryzen™ 5 |
| Cpu fan connector: | Yes |
| Depth: | 236 mm |
| Drivers included: | Yes |
| Dvi-d ports quantity: | 1 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Headphone outputs: | 1 |
| Maximum internal memory: | 64 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B450 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Parallel connector: | Yes |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 2.x) slots: | 1 |
| Pci express x16 slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 2 |
| Quick installation guide: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speeds: | 2667, 3733, 3066, 3466, 3866, 3200, 4133, 4000, 3000, 2933, 3600, 2800 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb connector type: | USB Type-A |
| Wi-fi: | No |
| Width: | 200 mm |
| Windows operating systems supported: | Windows 7 x64, Windows 10 x64 |
