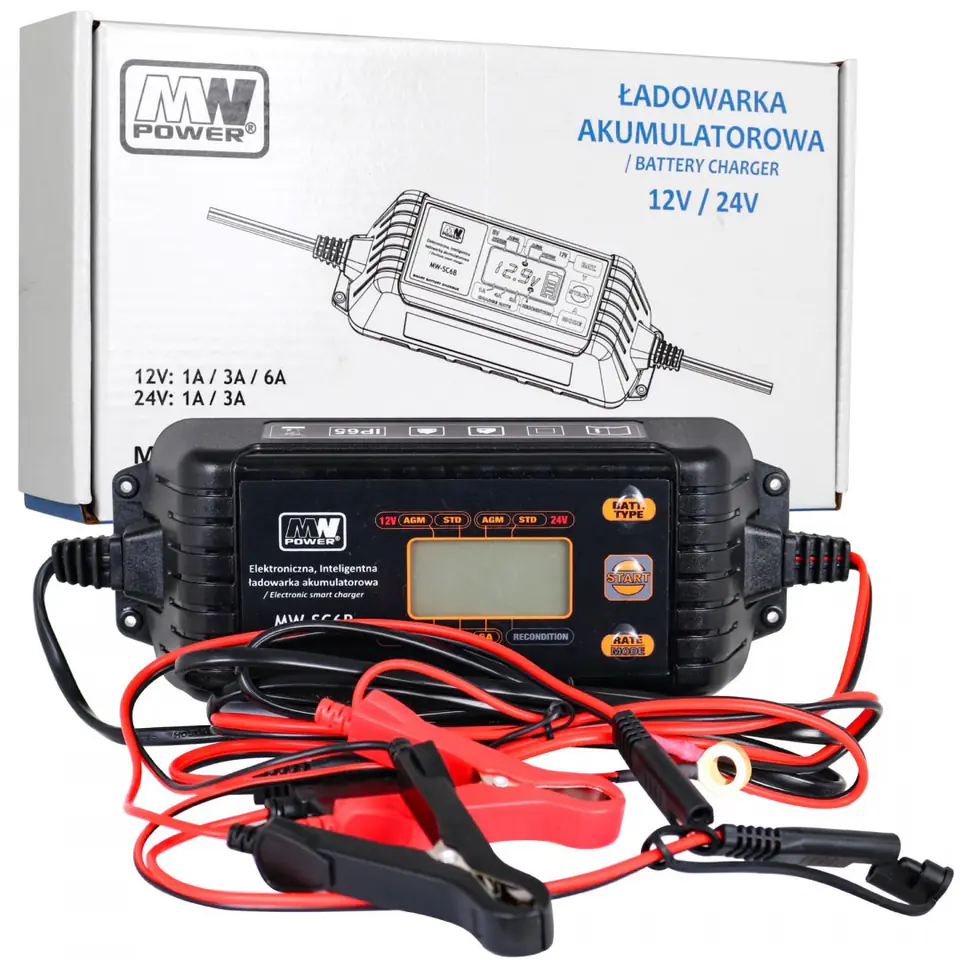

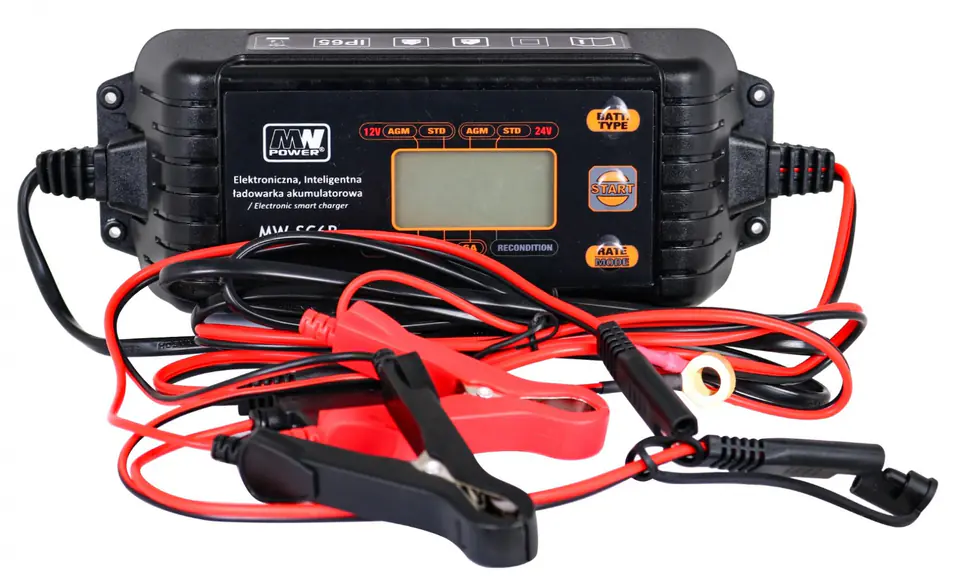

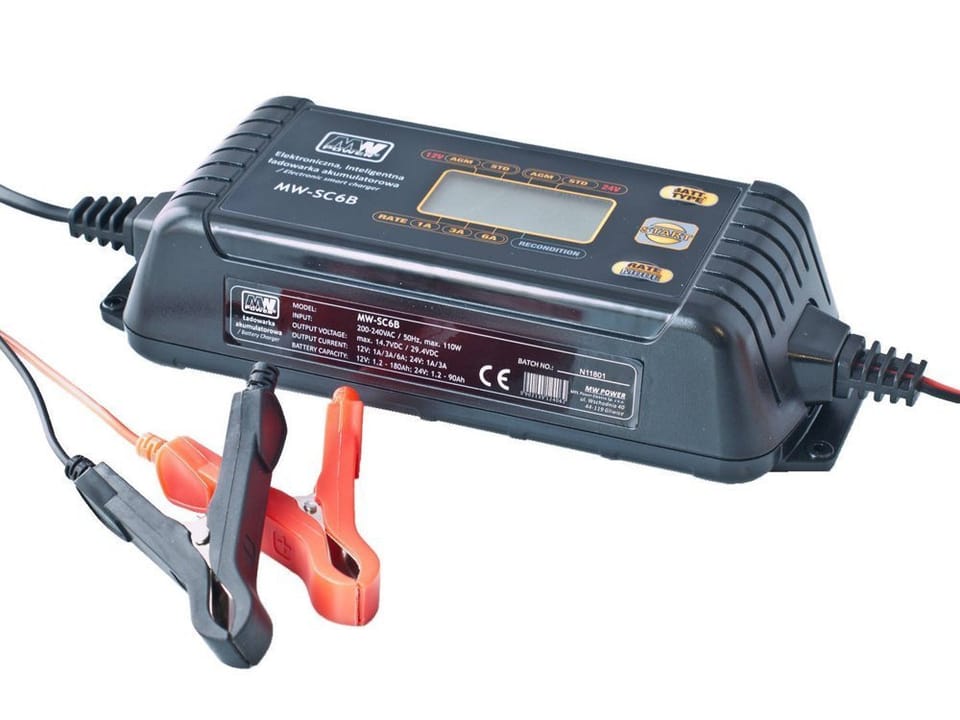

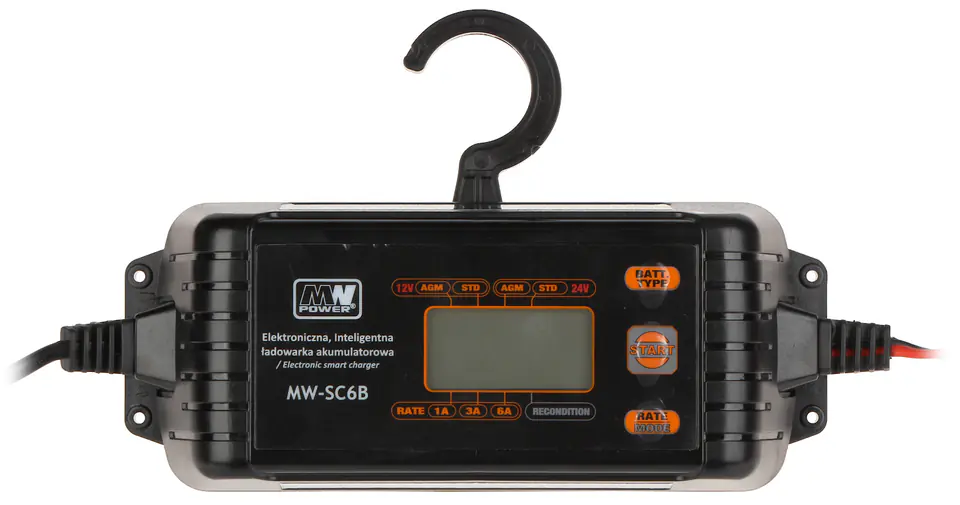

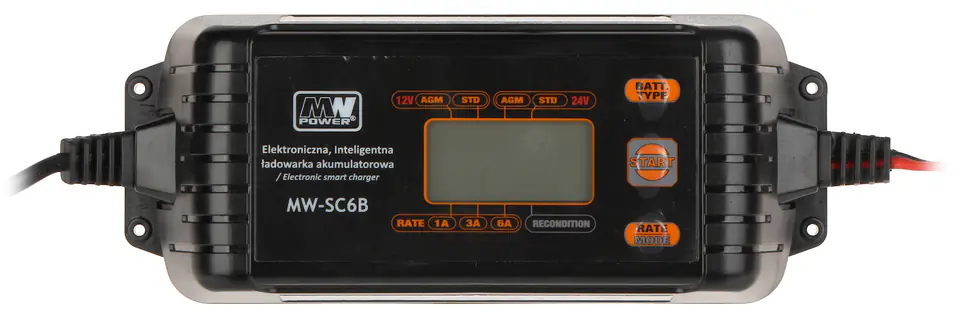

MPL MW-SC6B charger

€59.98

Shipping from warehouse: ⁨E10⁩

Estimated shipping: Fri, May 17 - Mon, May 20

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: MPL POWER ELEKTRO
Product code:: 5902135124062 / 5902135124062

Specification

Ac input frequency:	50 Hz
Ac input voltage:	220 - 240 V
Battery capacity:	12 volts: 1.2 Ah ... 180 Ah, 24 volts : 1.2 Ah ... 90 AH
Battery charging current:	12 volts: 1 A / 3 A / 6 A, 24 volts : 1 A / 3 A
Battery charging voltage:	14.4 V / 14.7 V DC 28.8 V / 29.4 V DC
Battery type:	12 volts, 24 volts : lead-acid, gel, AGM
Built-in display:	Y
Cable length:	1.50 m - Battery cable 1.50 m - Power cord
Charging voltage:	14.7 / 29.4 V
Colour:	Black
Depth:	89.5 mm
Dimensions:	218 x 90 x 50 mm
Height:	49.5 mm
Height of goods in centimeters:	20
In:	1
Insulation class:	Class II
Length of goods in centimeters:	20
Manufacturer's code:	8535
Number of connectors:	2
Operating relative humidity (h-h):	20 - 90%
Operating temperature:	-5 °C ... 40 °C
Operating temperature (t-t):	-5 - 40 °C
Output power:	0.0882 kW
Overall weight in grams:	1333.33
Power:	220 ... 240 VAC / 50 Hz
Power cable length:	1.55 m
Power consumption:	.max. 110 watts (Printing)

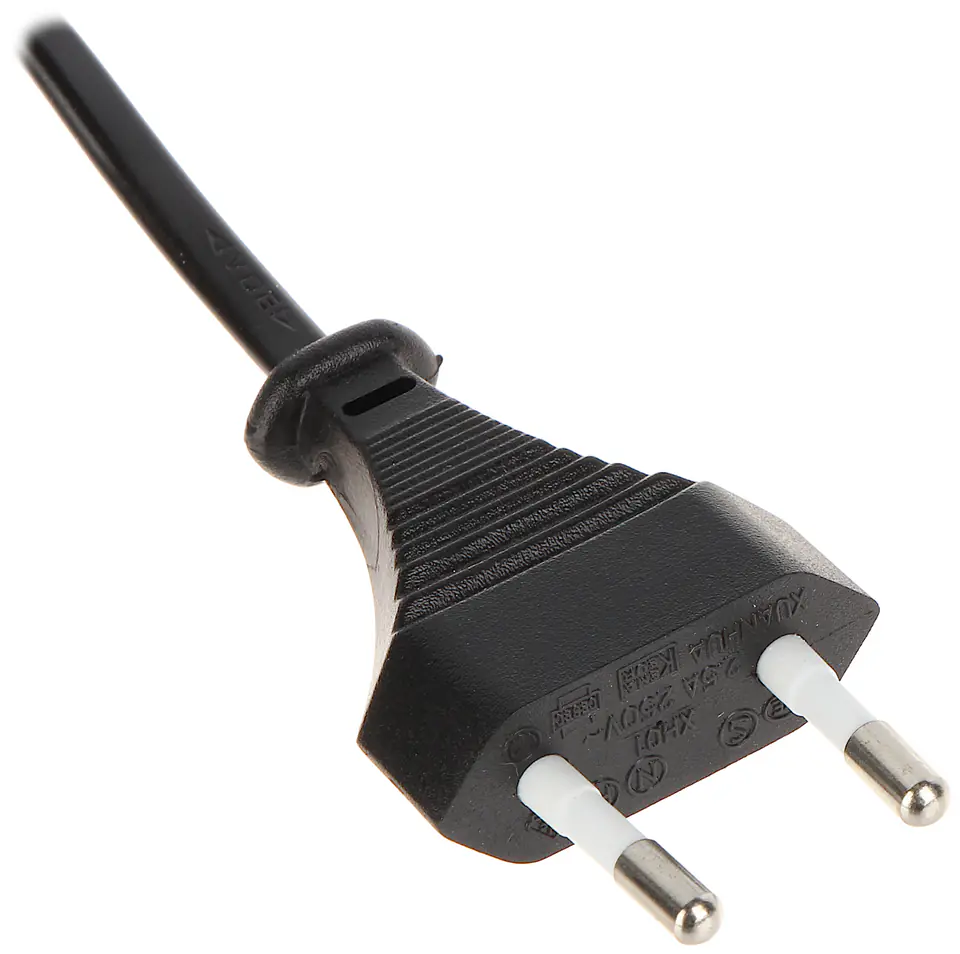

Power plug:	Type C (Europlug)
Producer / brand:	MW POWER
Product colour:	Black
Scales:	0.64 kg
Sealing:	IP65

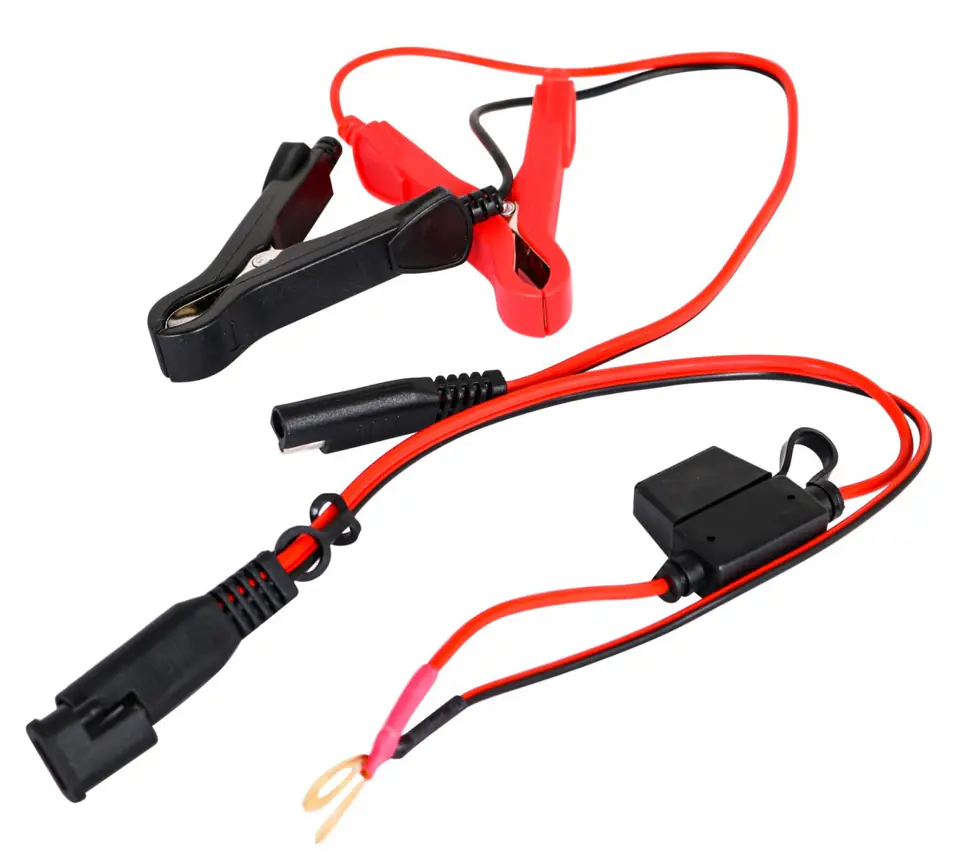

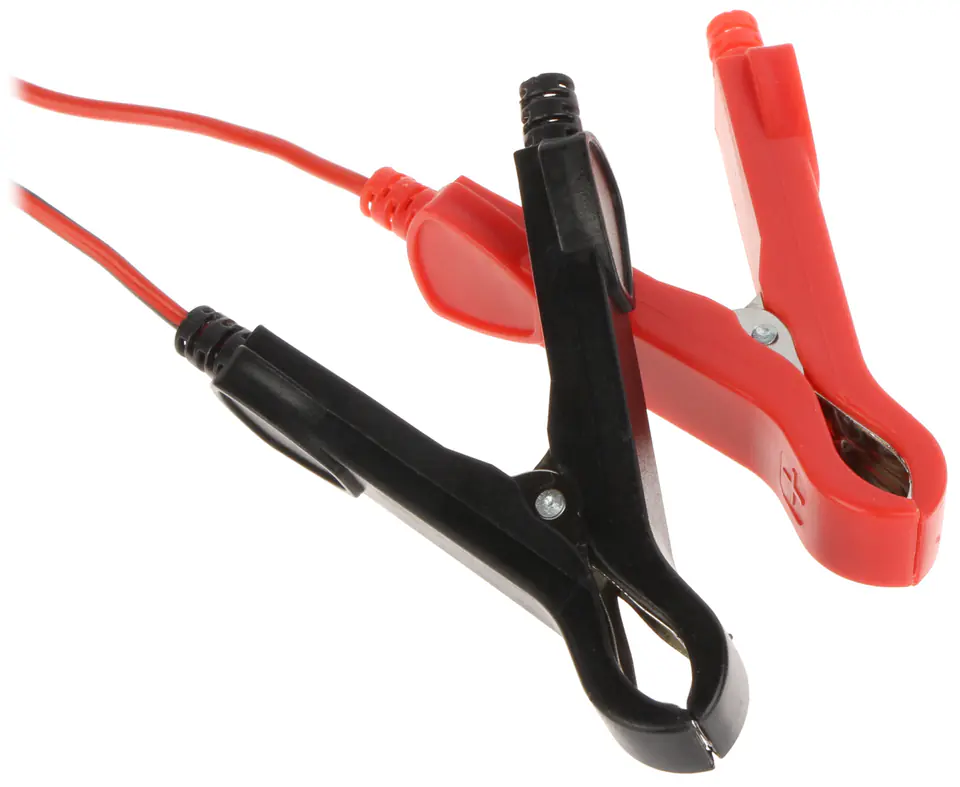

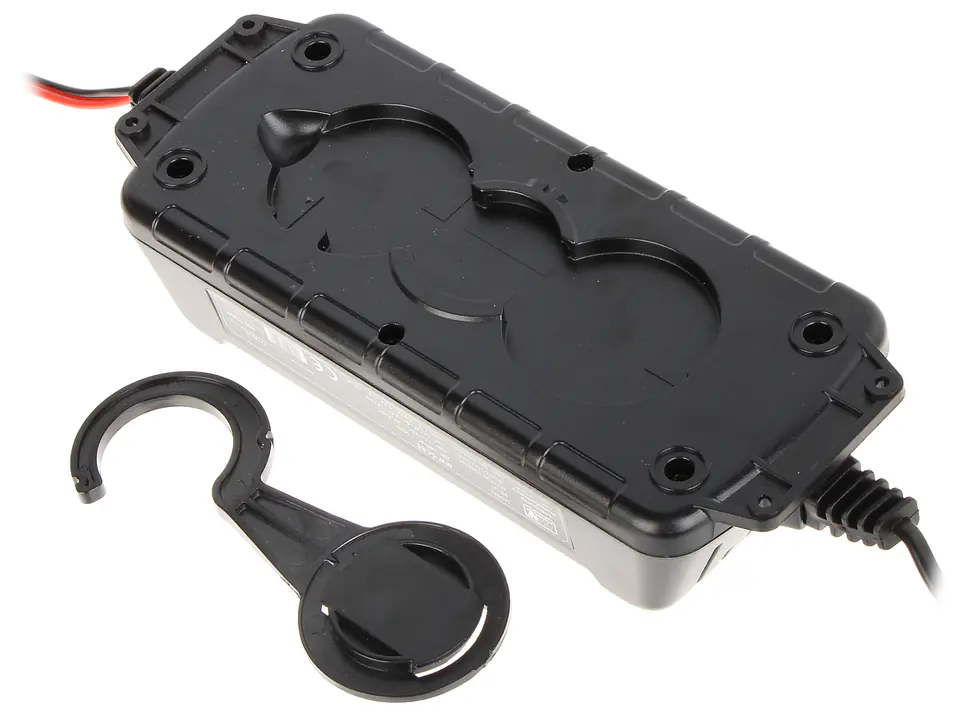

Selected features:	Microprocessor control system Fully automatic 10-step charging process Keeping the battery charged Detection and regeneration of a dead battery Short-circuit protection, overvoltage Overcharge protection Thermal protection Protection against reverse polarity connection Insulated crocodile clamps The device can work both indoors and outdoors Easy to attach
Status:	new
Storage relative humidity (h-h):	10 - 95%
Storage temperature (t-t):	10 - 60 °C
Suitable for:	Indoor
Warranty:	2 years
Weight:	625 g
Weight of the product with pre-packaging:	2
Width:	218.4 mm
Width of goods in centimeters:	20

Smart charger - charger for fast charging and maintenance of lead-acid, calcium, deep cycle, gel and AGM batteries 12V/24V charger charges current: 1A 3A 6A

Features:

Suitable for 12V and 24V wet, gel and AGM lead-acid batteries
Battery capacity: 1.2Ah – 180Ah(12V), 1.2Ah-90Ah (24V)
Protections: short-circuit / overvoltage
Selectable charging current: 1A/3A/ 6A (12V), 1A/3A (24V)

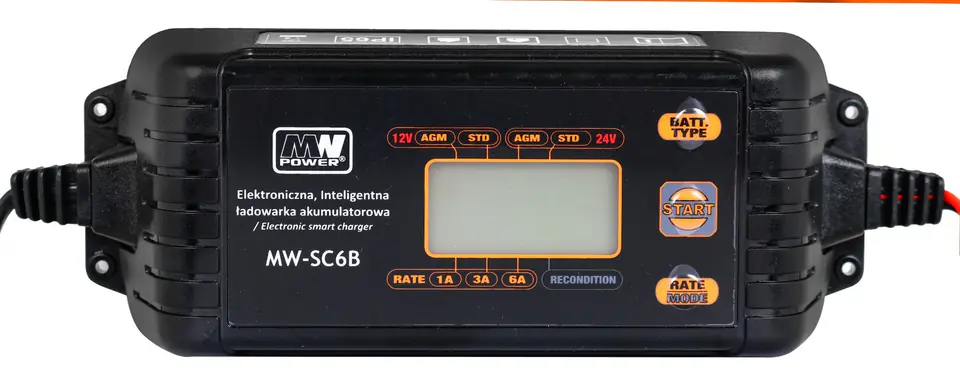

LCD display, user-friendly interface, microprocessor-controlled
Battery status detection

Use:

Car
Quads
Boats
Lawn mowers
Motorcycles
jet and snowmobile

Electrical Specification:

MODEL: MW-SC6B
Input voltage: 200-240V (50Hz)
Input current (max.): 0.75A/230VAC
Output Voltage (Max.): 14.7V / 29.4V
Output Current: 1A/3A/6A(Selectable) 1A/3A(Selectable)
Output Power (Max.): 88.2W
Efficiency (typ.): 80%
Overvoltage protection: 16VDC (12V mode), 32V (24V mode), output voltage disconnection
Short-circuit protection: Disconnection of output voltage, information on the display
Over temperature: 140°C, off and back in operation reactivation
Operating temperature: -5°C ÷ + 40°C
Operating humidity: 20-90% (relative humidity, non-condensing)
Storage temperature and humidity: -10°C ÷ 60°C, 10 ÷ 95% (relative humidity, non-condensing)
Safety standards: EN 60335-2-29:2004+A2:2010; EN 60335-1:2012 + A11:2014
EMC standards: EN 55014-1 , EN 55014-1 , EN 61000-3-3, EN 55014-2, EN 61000-3-3, EN-61000-3-2
Dimensions: (L/W/H mm) 218.4 / 89.5 / 49.5mm
Weight: 0,75kg
Wire length: 150cm / clips 160cm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
