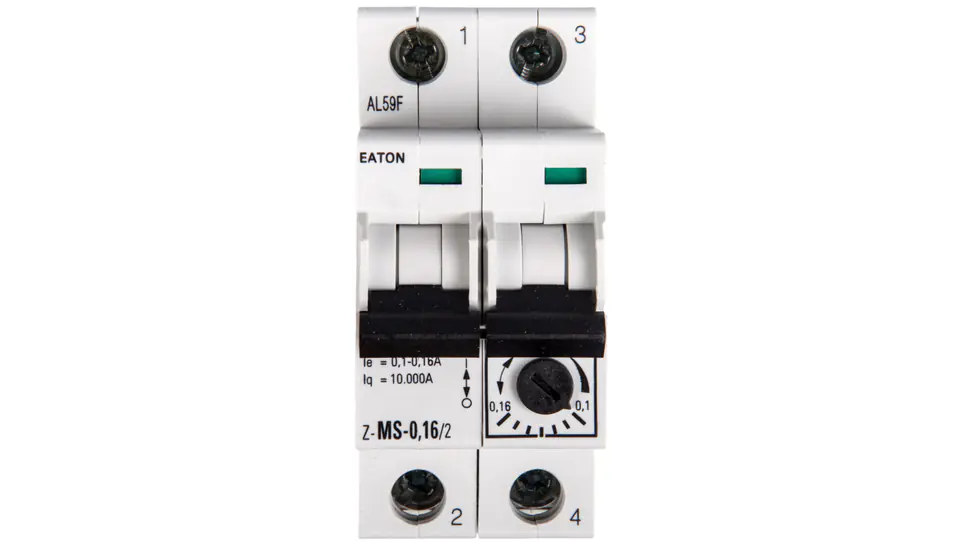

Motor circuit breaker 2P 0,1-0,16A Z-MS-0,16/2 248389
This product is not available
- Availability:
- expected delivery
- Brand:
- Eaton
- Product code:
- 248389 / 4015082483890
Share this product:
Specification
| Construction of the device: | Fixed device |
|---|---|
| Degree of protection (ip): | IP20 |
| Ean: | 4015082483890 |
| How to trigger: | Thermomagnetic |
| Immediate short-circuit trigger setting range [a] from: | 1,3 |
| Immediate short-circuit trigger setting range [a] to: | 1,7 |
| Number of poles: | 2 |
| Overload trigger setting range [a] from: | 0,1 |
| Overload trigger setting range [a] to: | 0,16 |
| Phase loss sensitivity: | Yes |
| Rated continuous current iu [a]: | 0.1600 |
| Rated short-circuit switching capacity of icu at 400 v, ac [ka]: | 10 |
| Type of main circuit connection: | Screw connection |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
