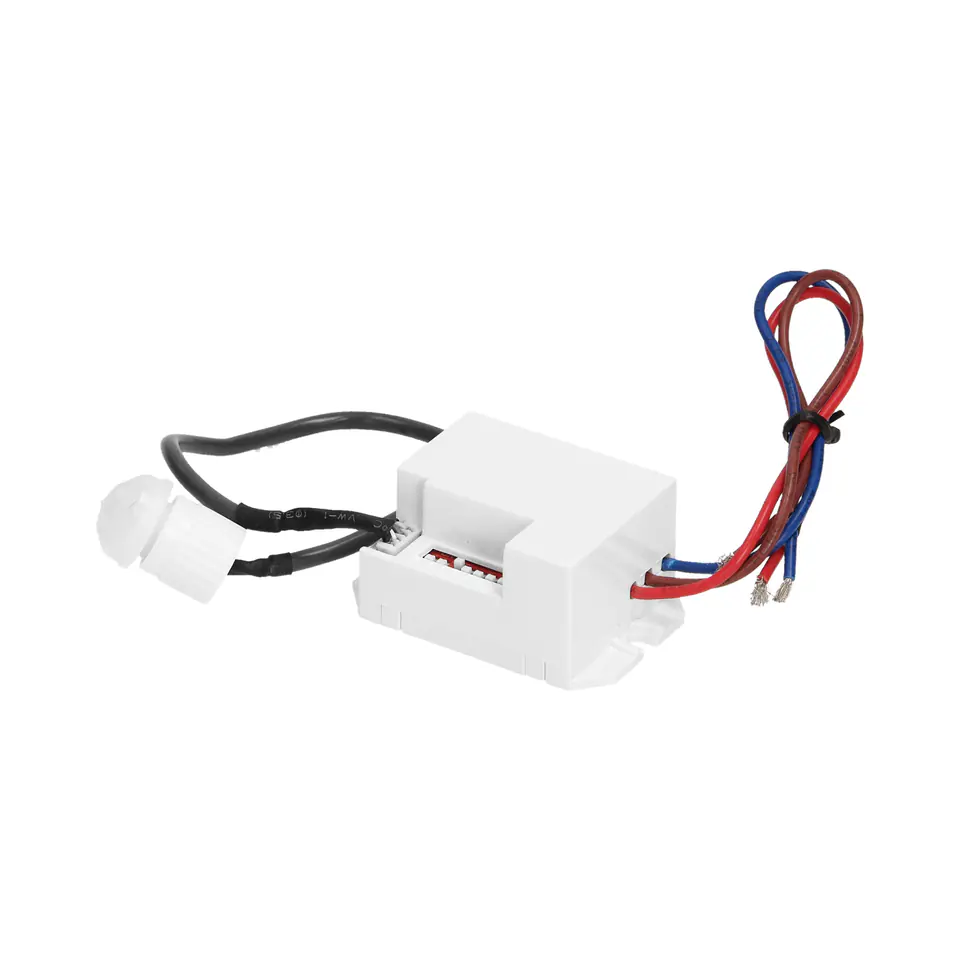

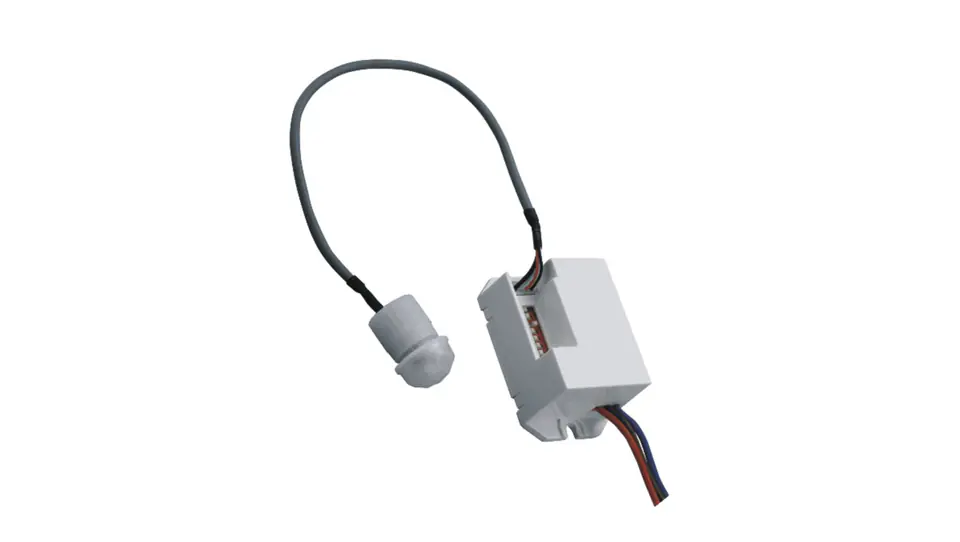

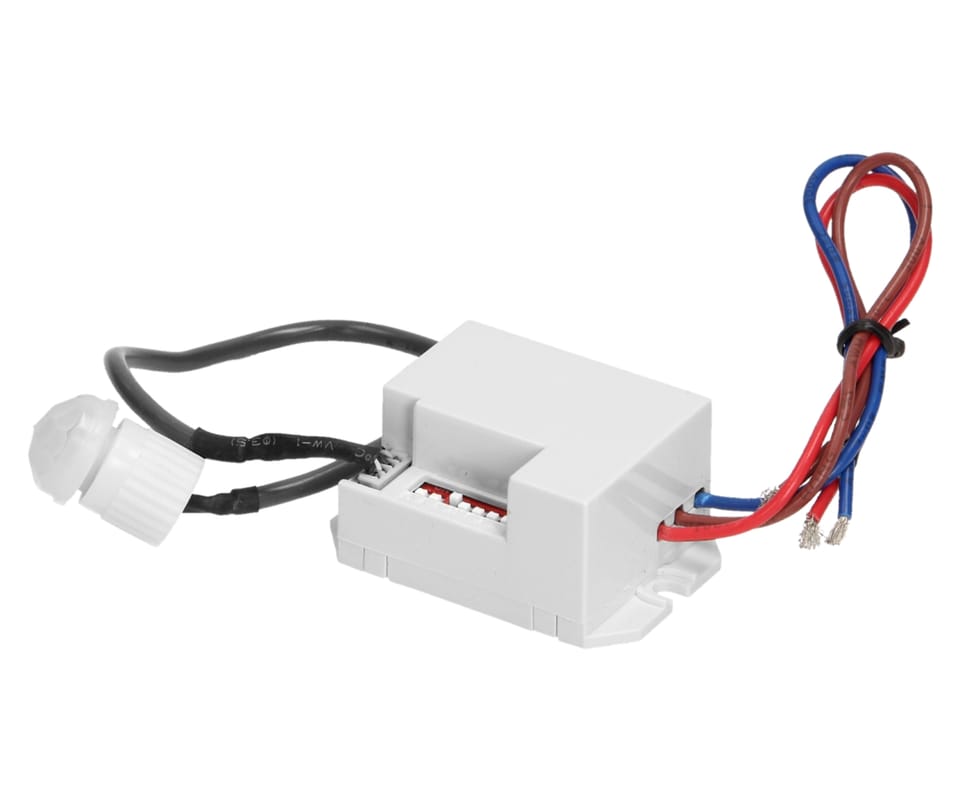

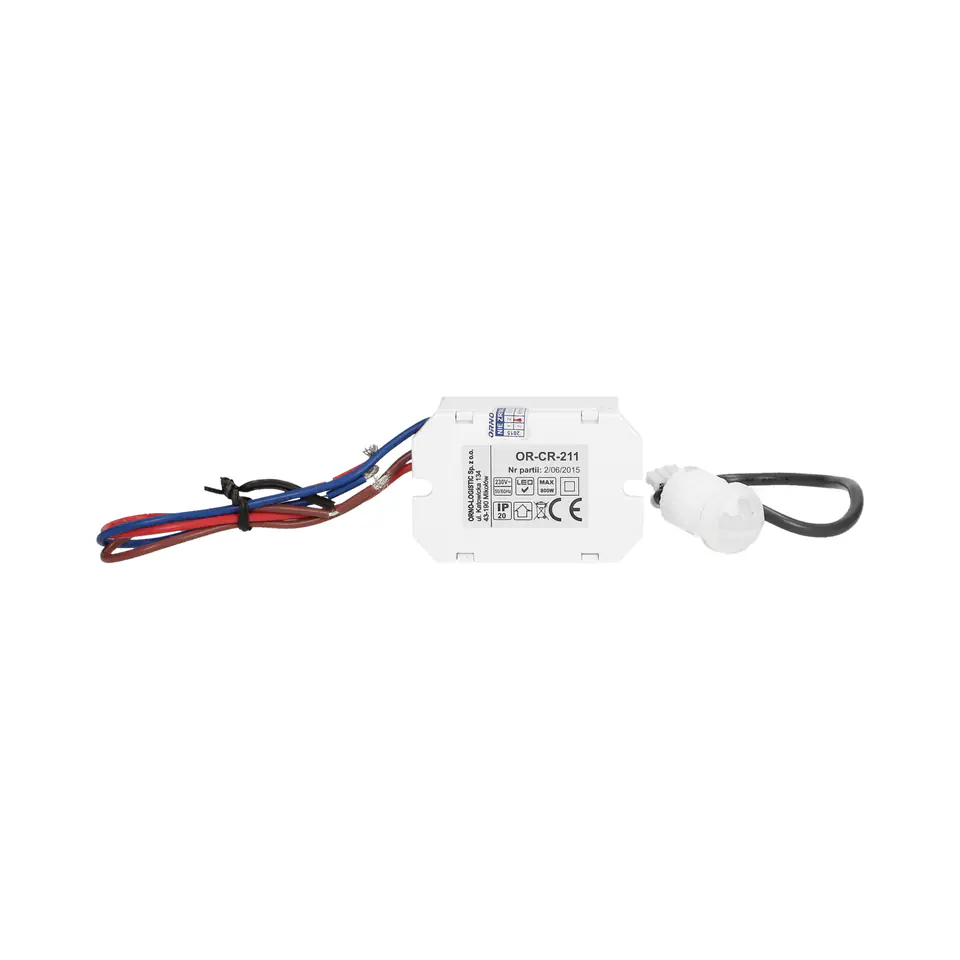

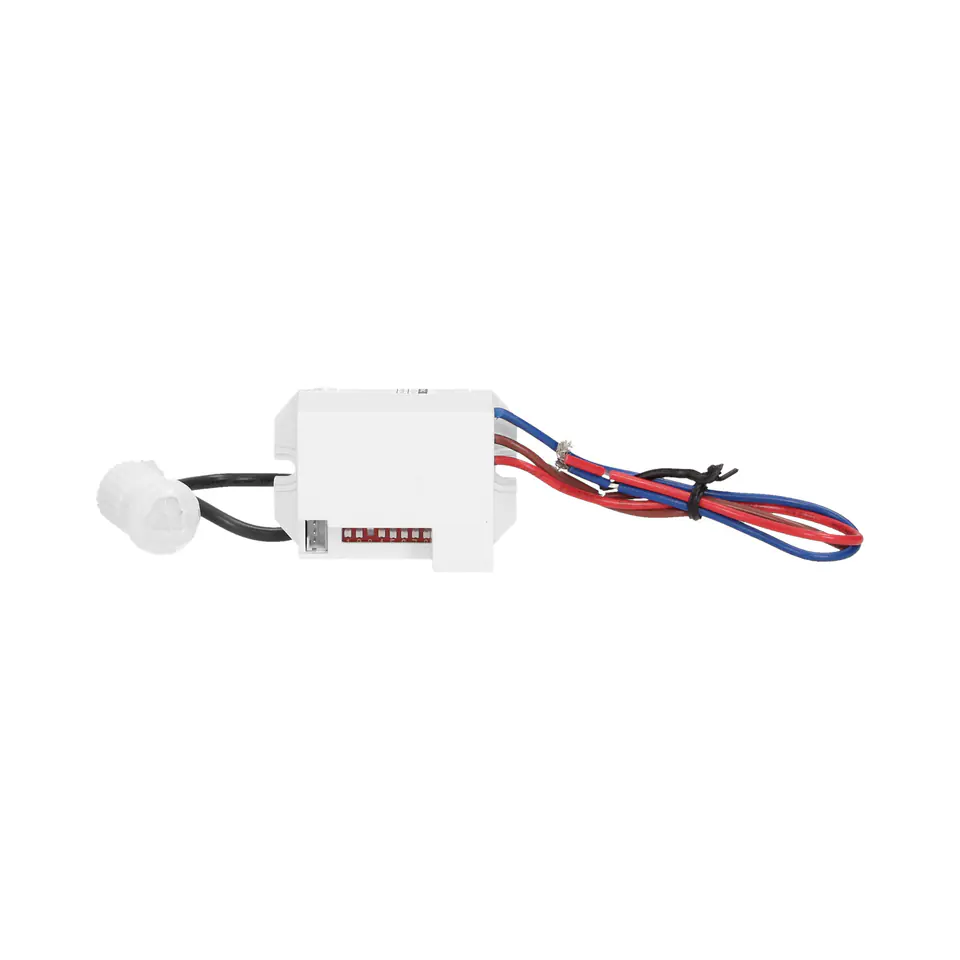

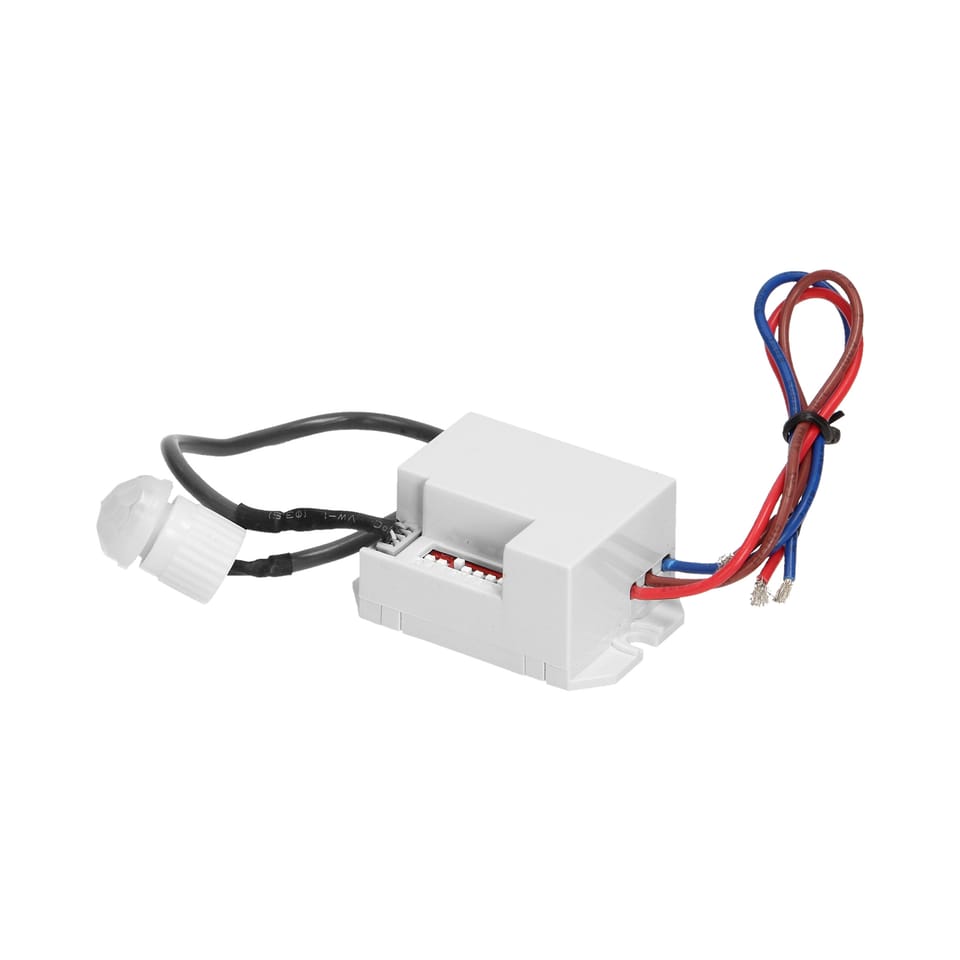

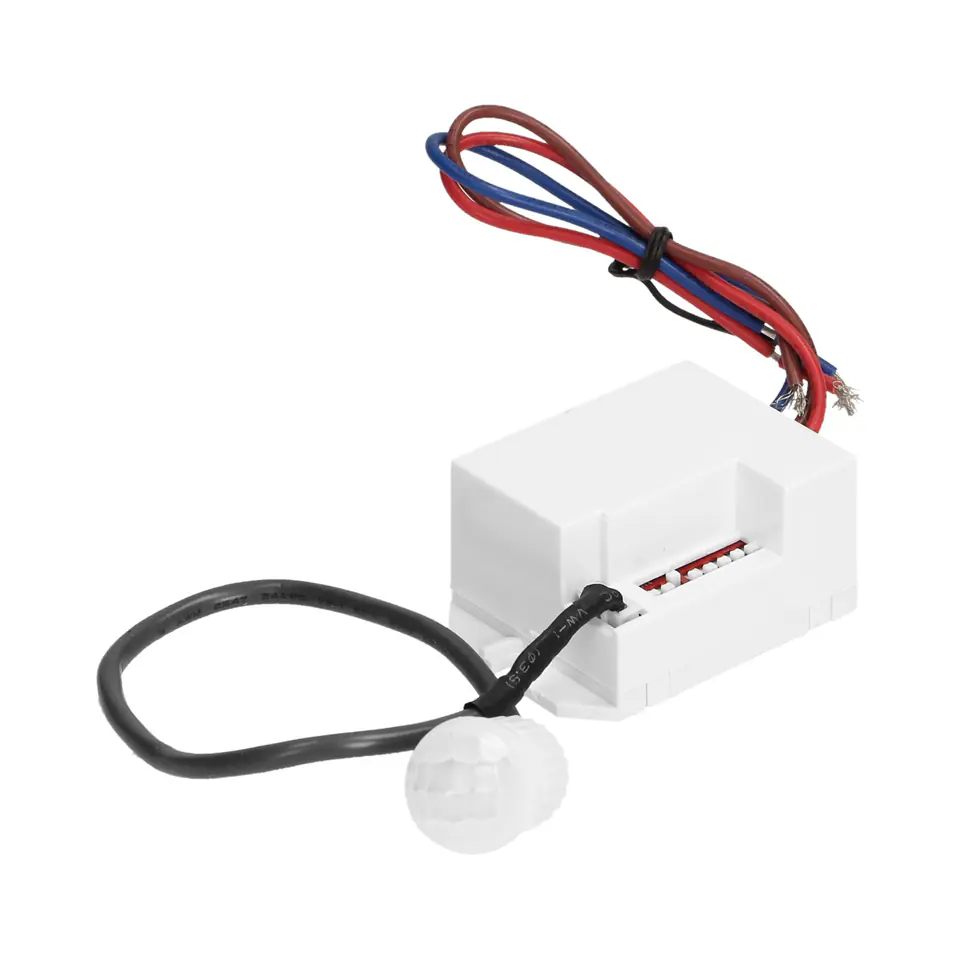

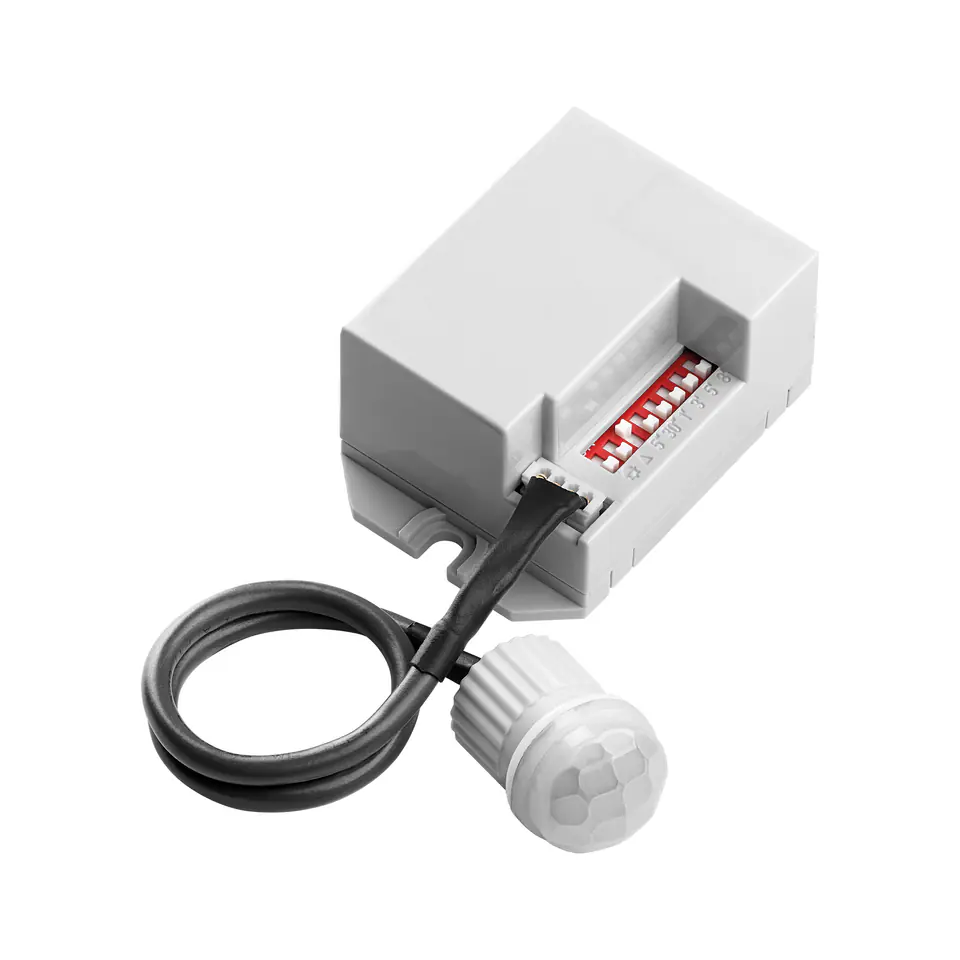

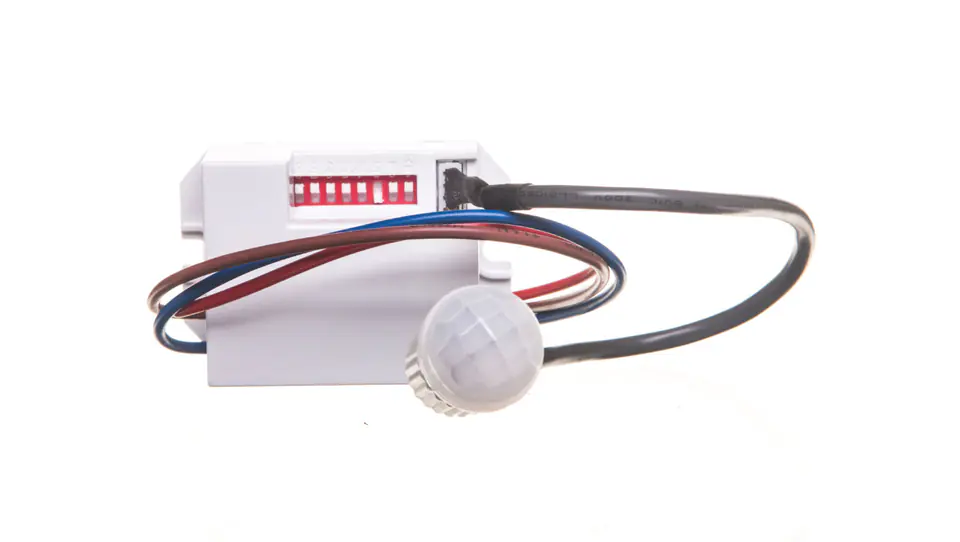

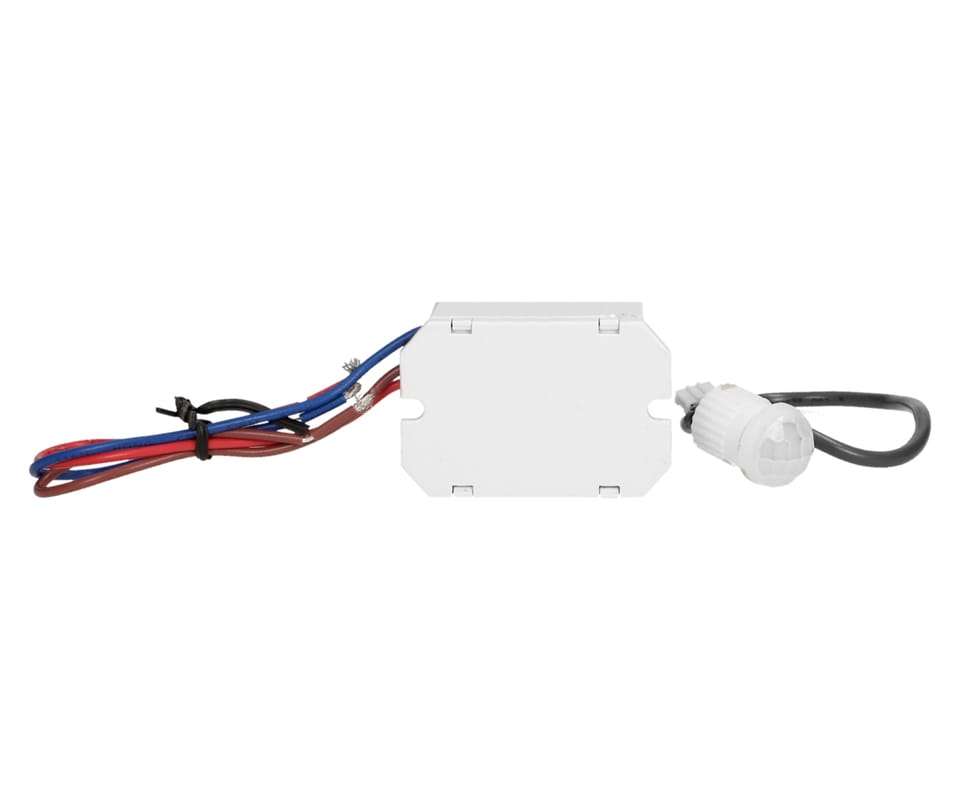

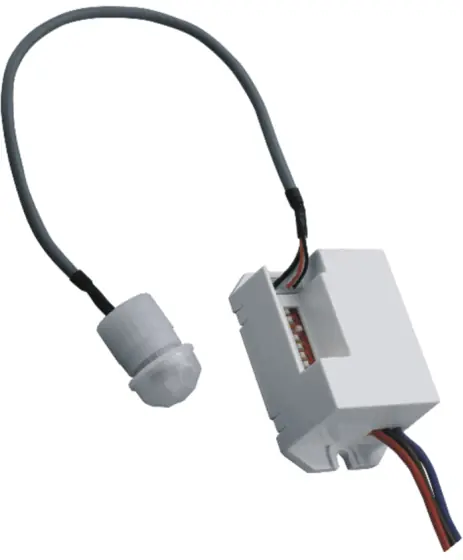

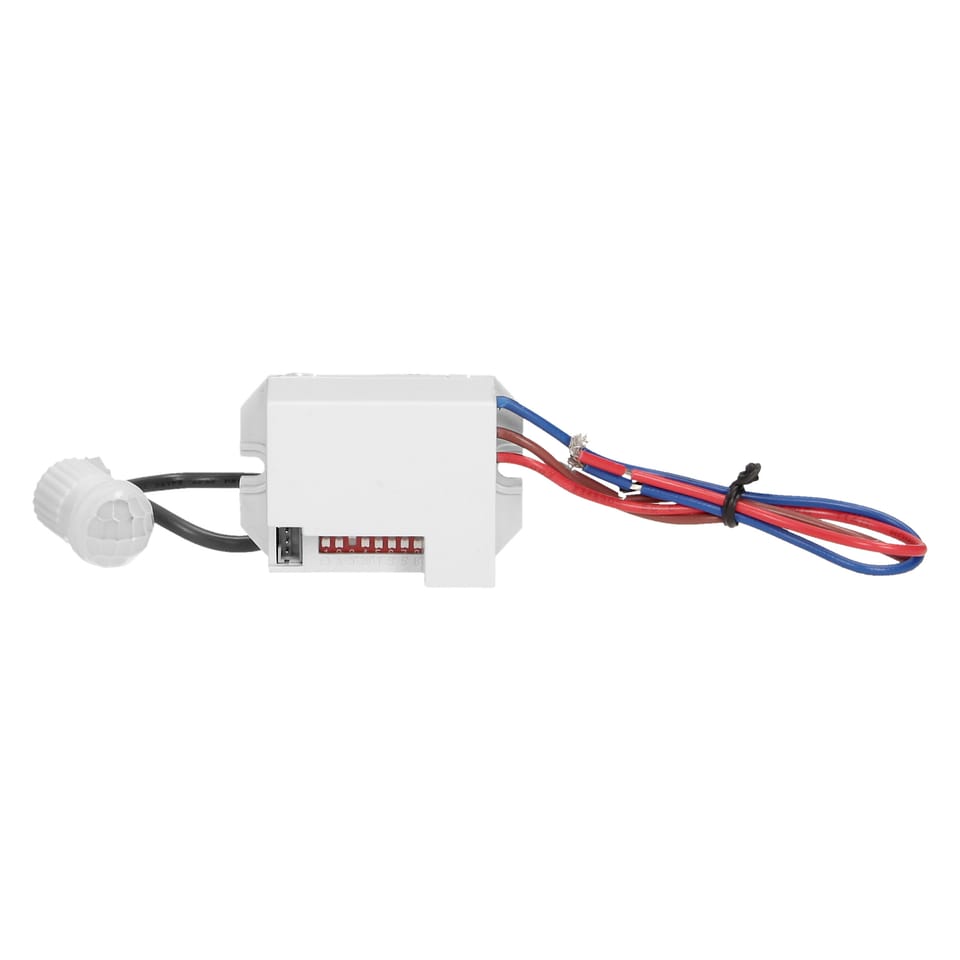

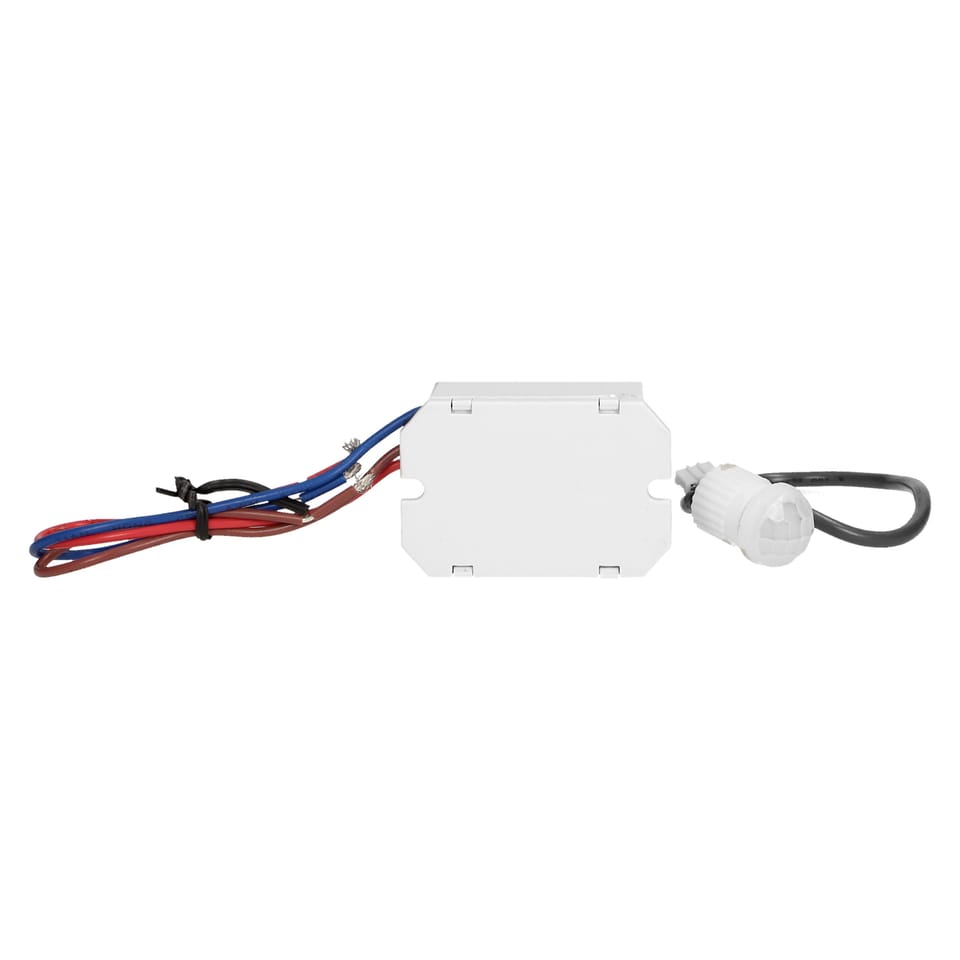

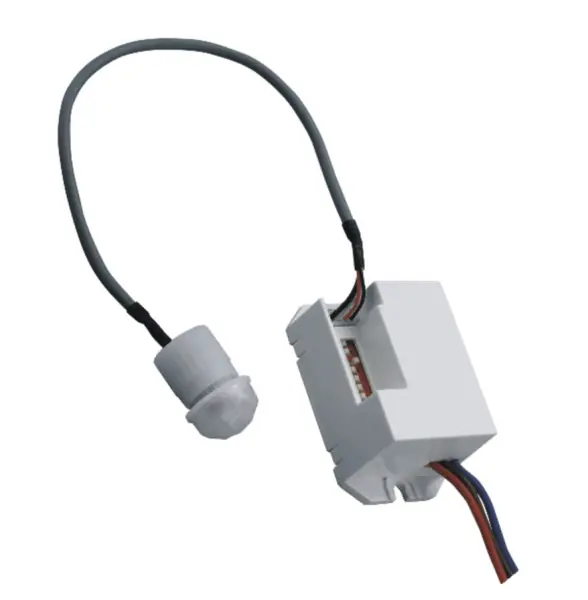

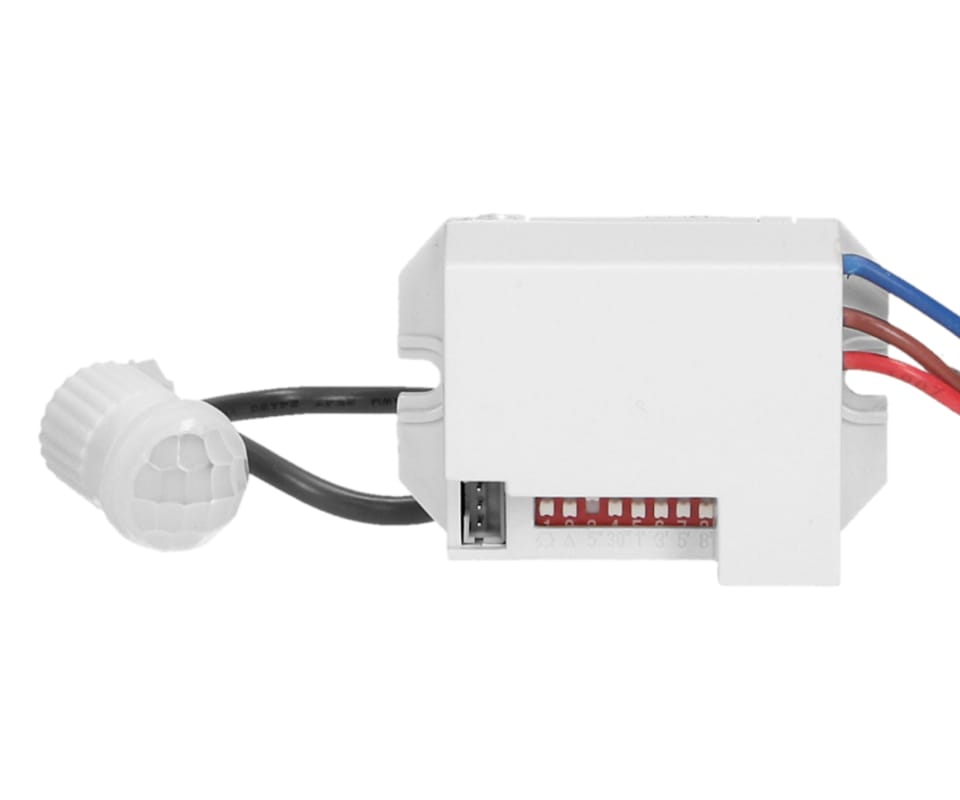

Motion sensor with external sensor, is used to automatically control lighting or other electrical devices. The lighting is switched on by means of a PIR motion sensor that acts on infrared. DIP-switches for adjusting: lighting time and light intensity sensitivity. The sensor works with LED lighting.
Motion sensor 360st. with external sensor, IP20, 800W
PLN 31.93
Shipping from warehouse: H7
Estimated shipping: Mon, Oct 27 - Wed, Oct 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- OR-CR-211 / 5901752481534
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 10 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 60 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] to: | 360 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum lateral reach [m]: | 6 |
| Maximum range straight ahead [m]: | 6 |
| Maximum switching power [w]: | 800 |
| Maximum switching time [min]: | 8 |
| Minimum switching time [s]: | 5 |
| Model: | Motion sensor |
| Mounting method: | Surface mounting |
| Networkable: | No |
| Optimal installation height [m]: | 2.5000 |
| Rated voltage [v]: | 230 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Matte |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| With signaling element: | No |
