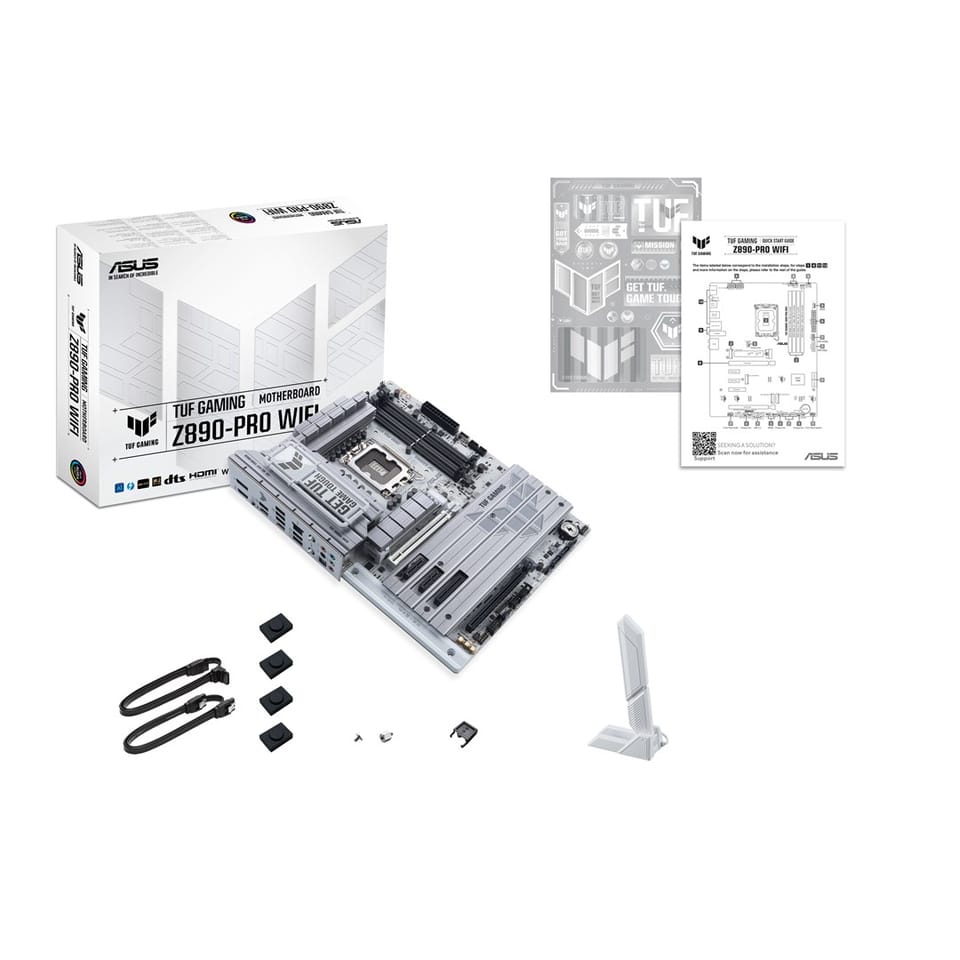

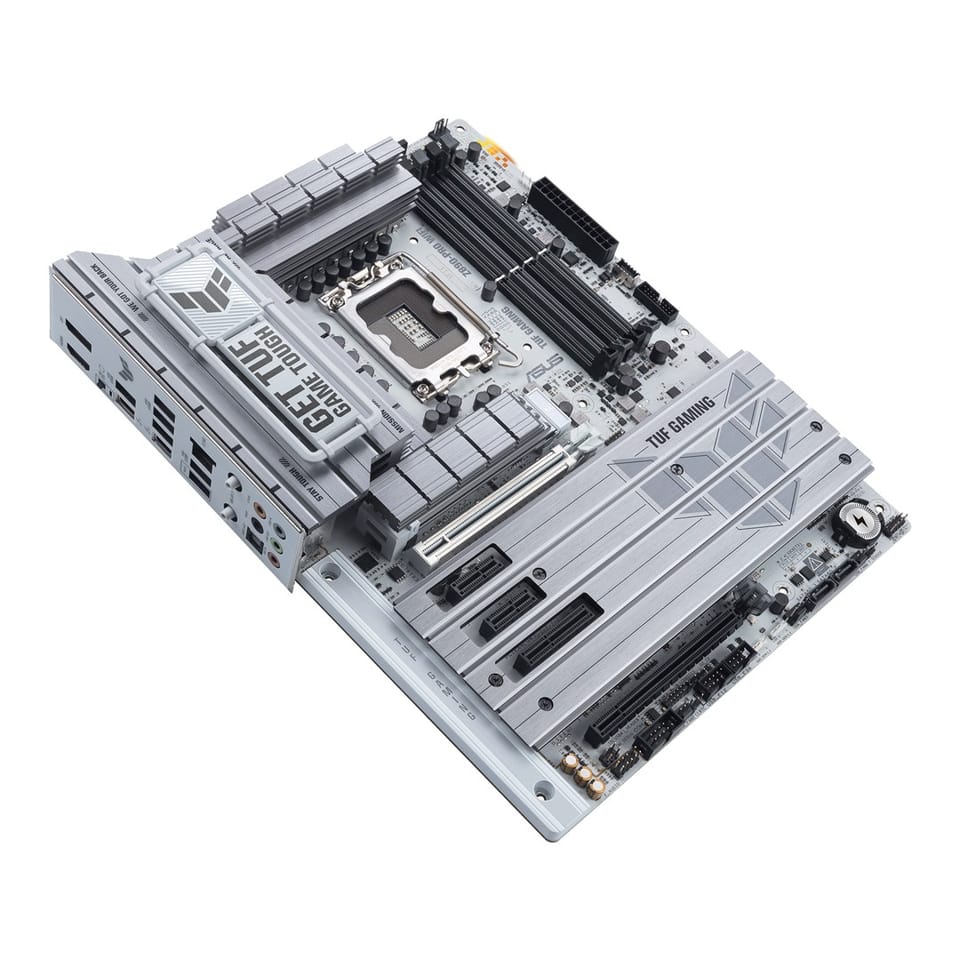

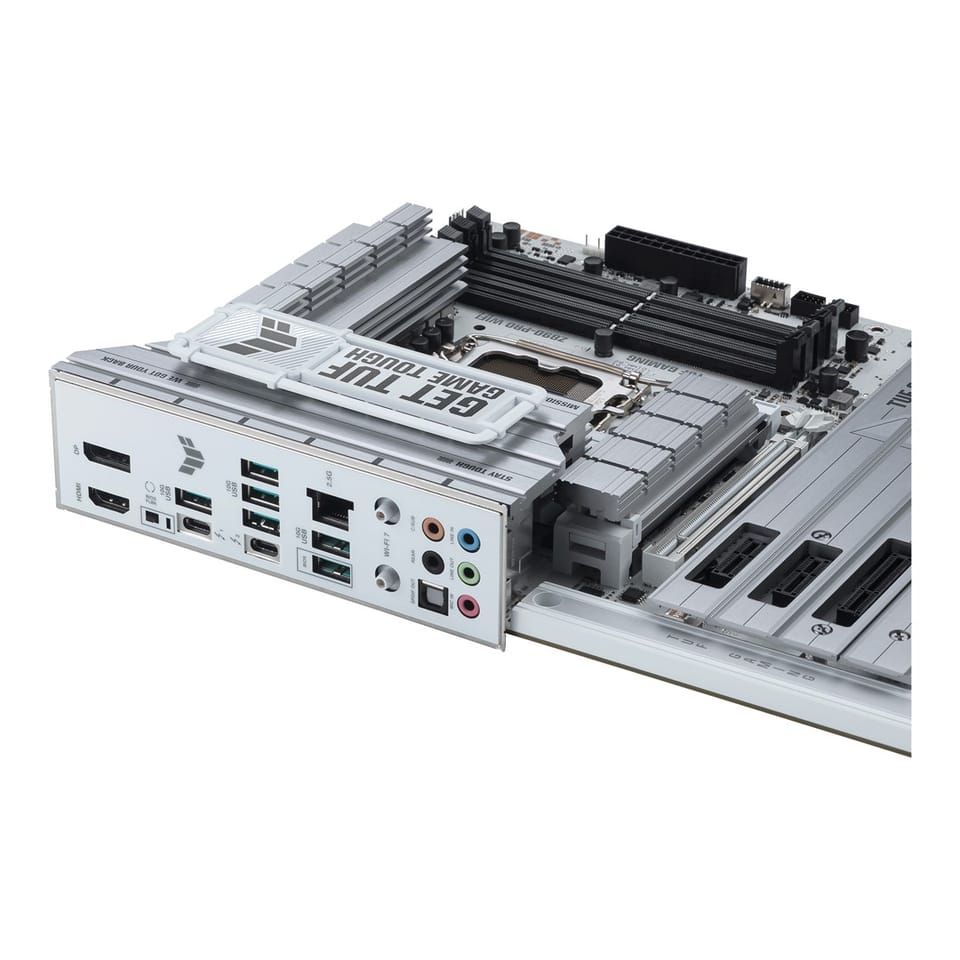

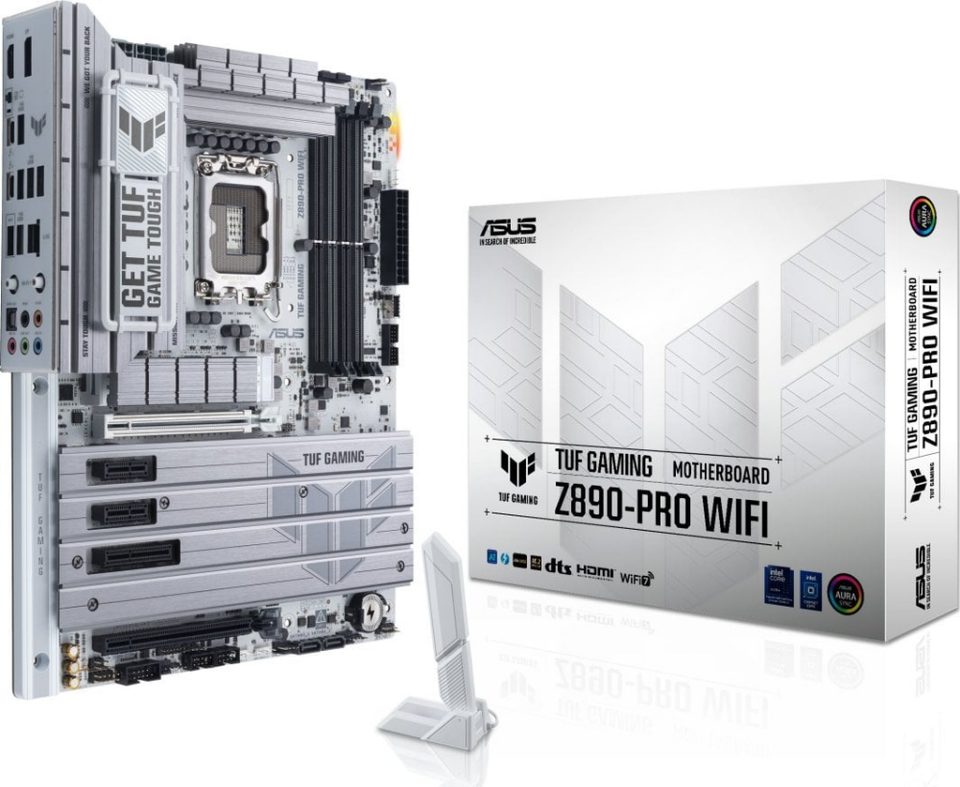

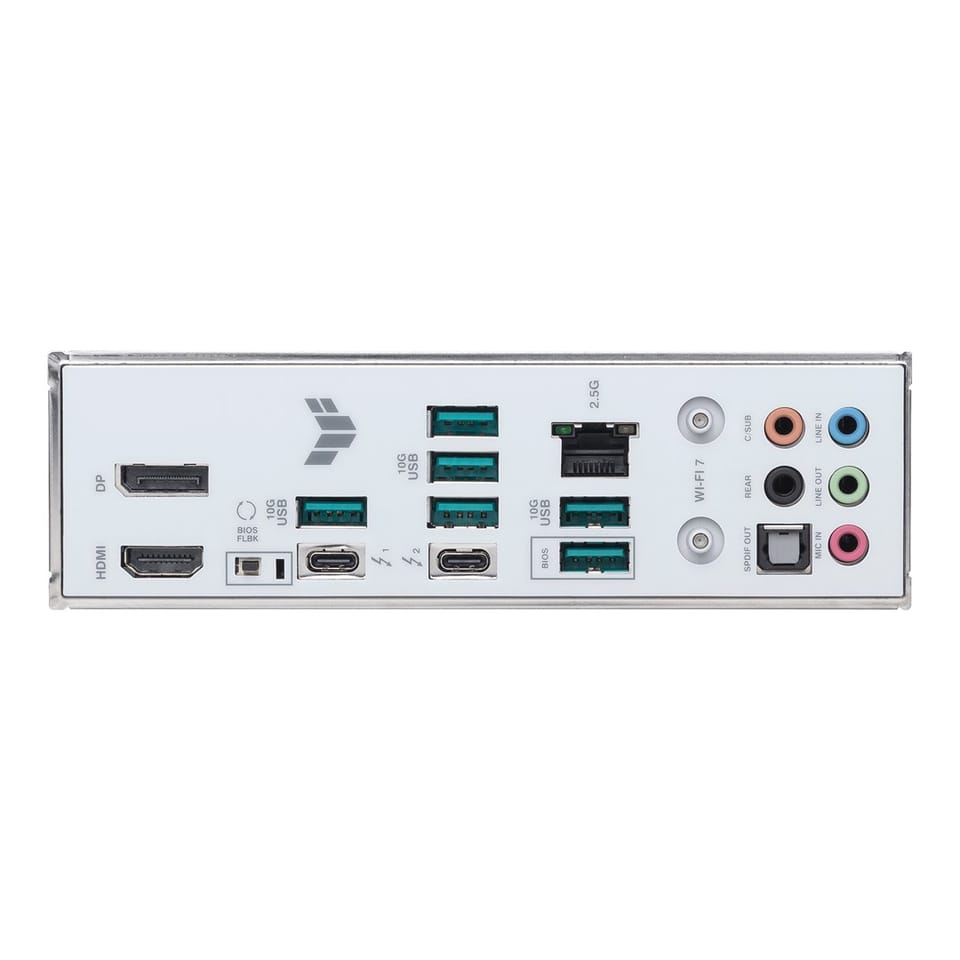

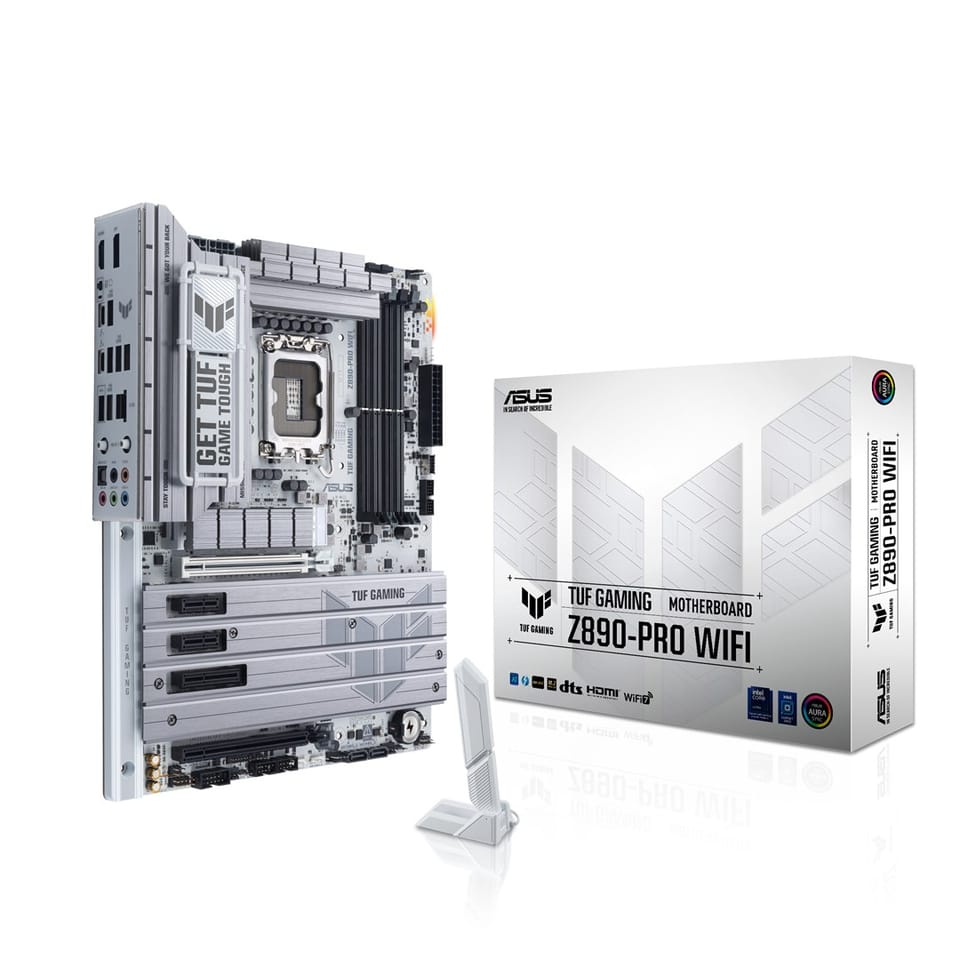

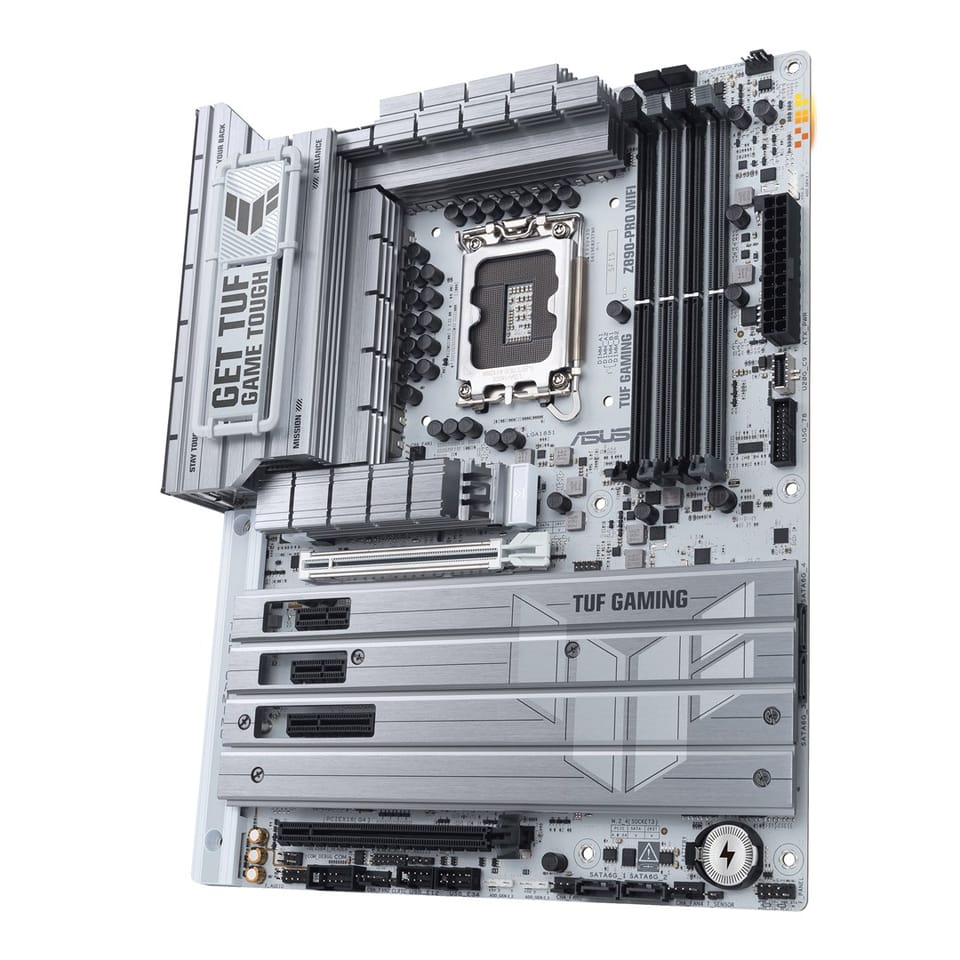

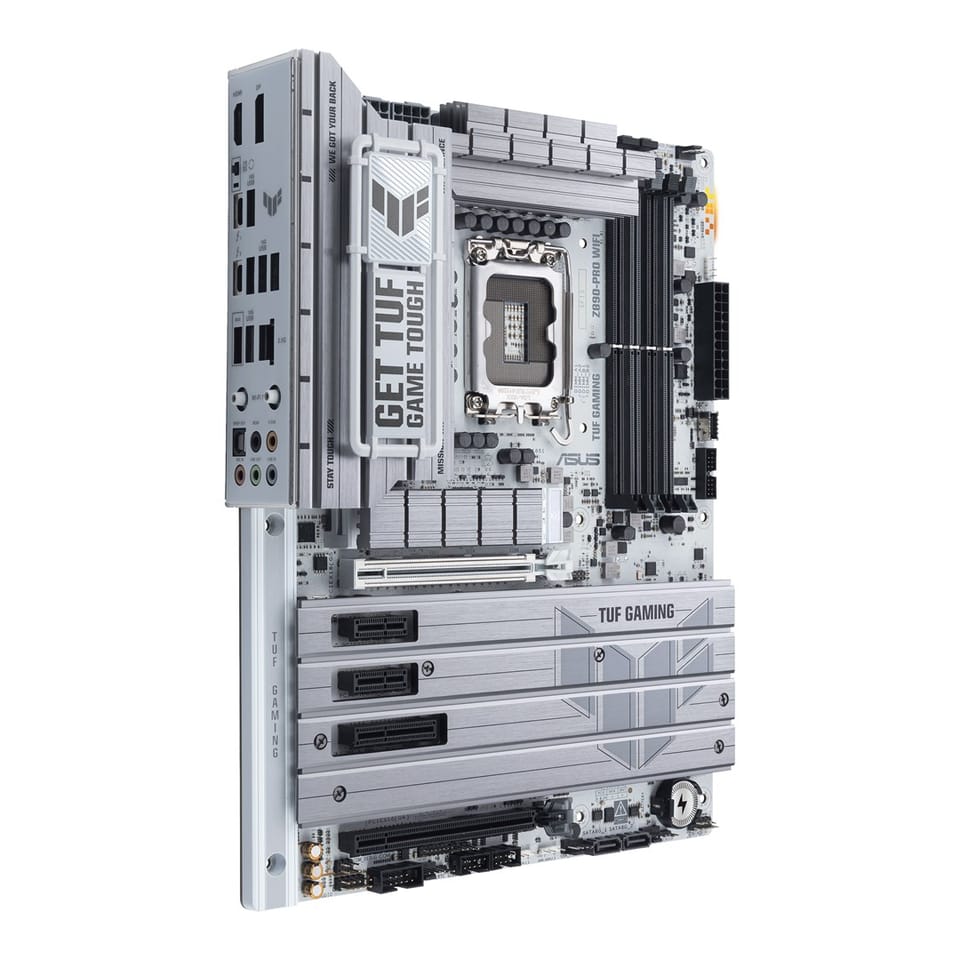

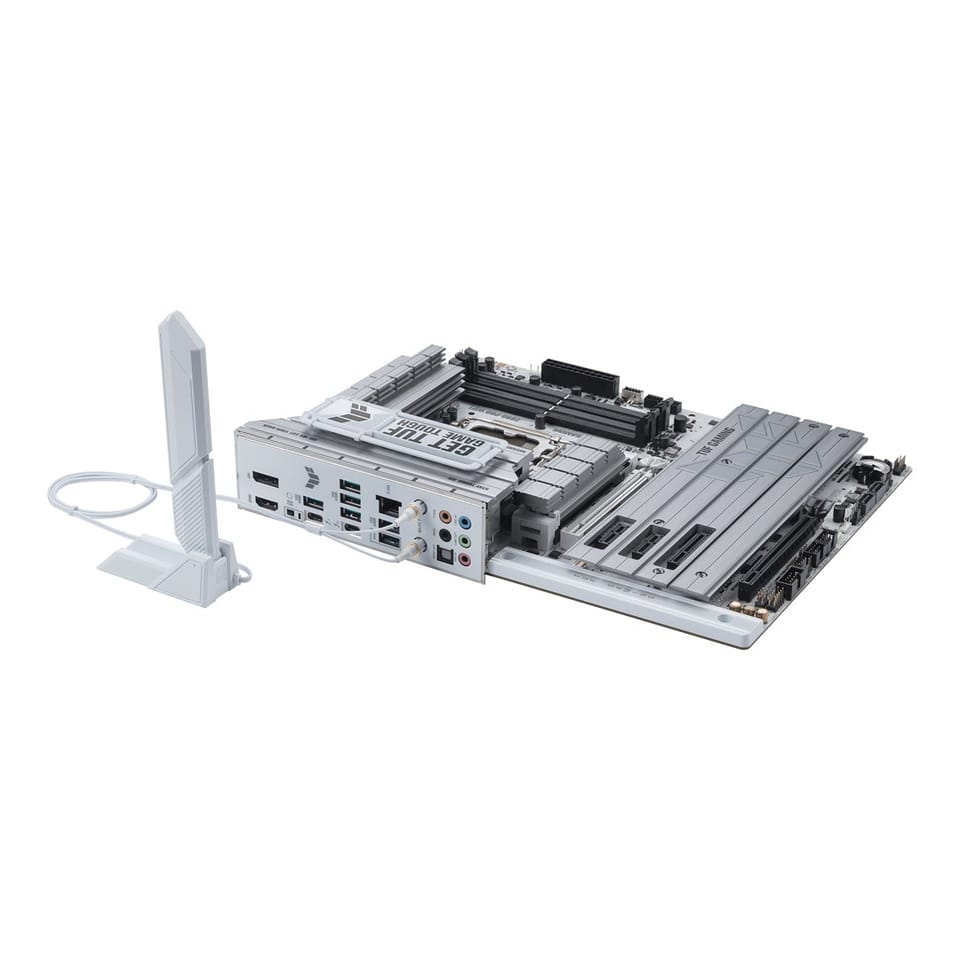

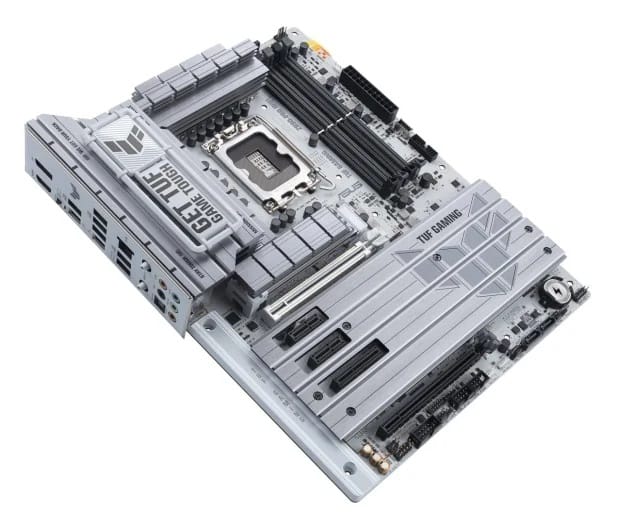

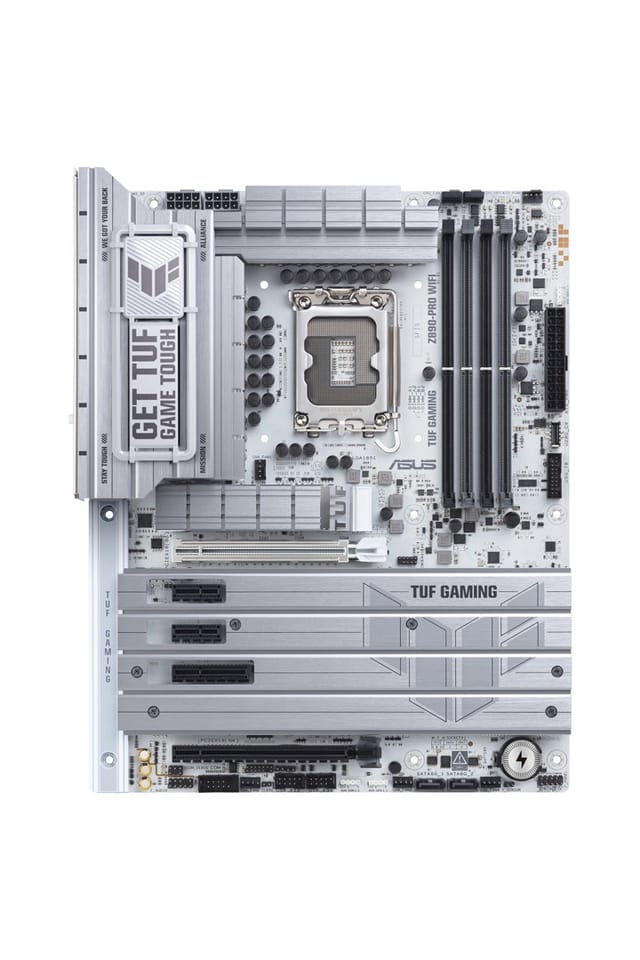

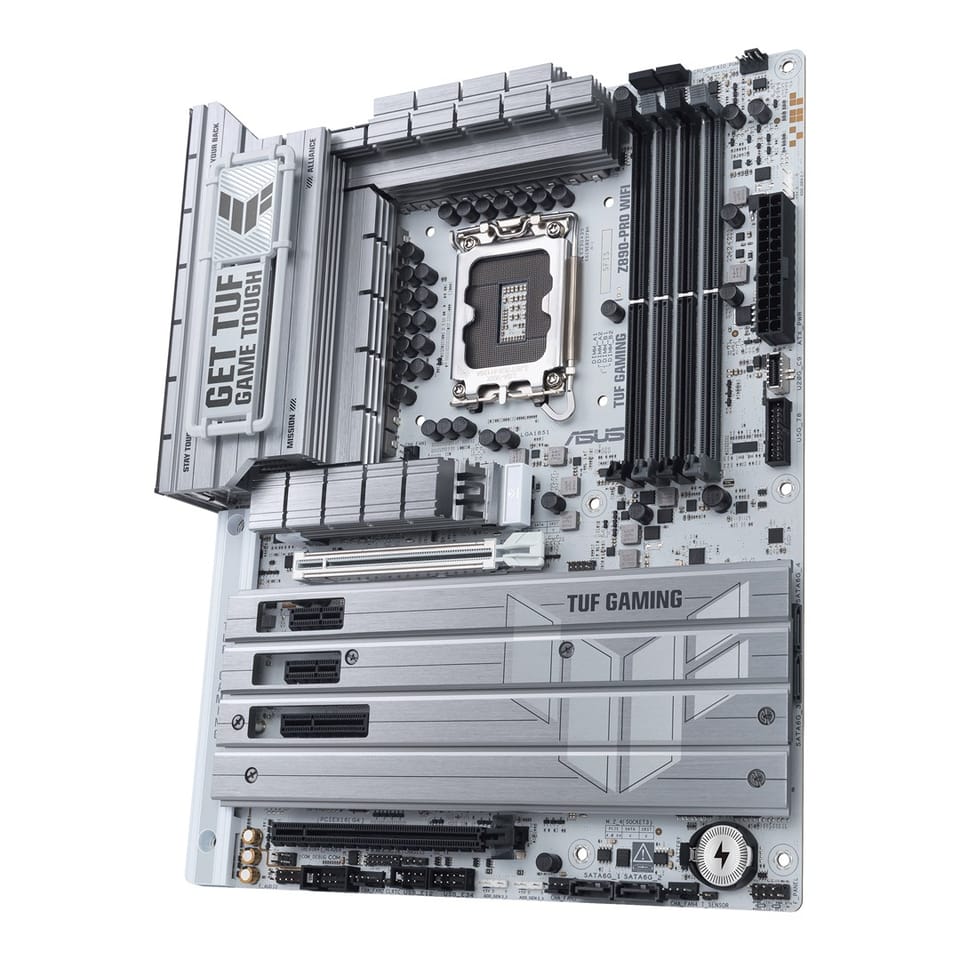

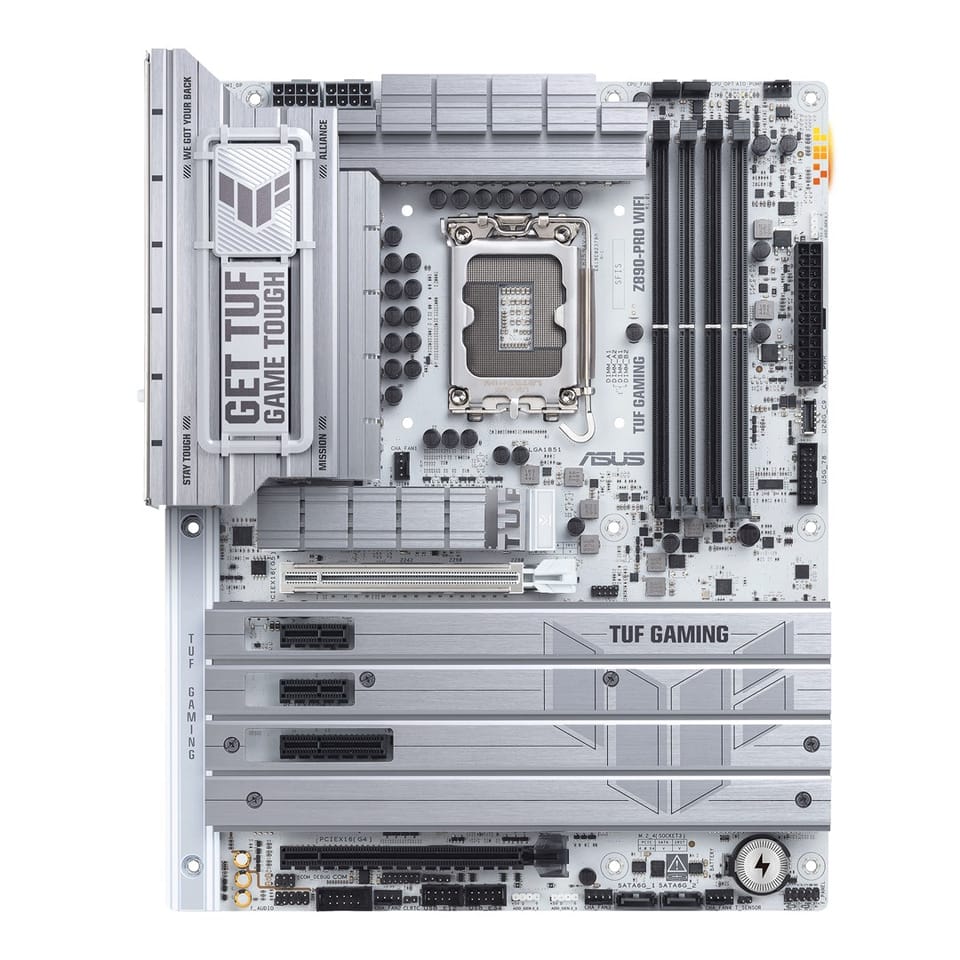

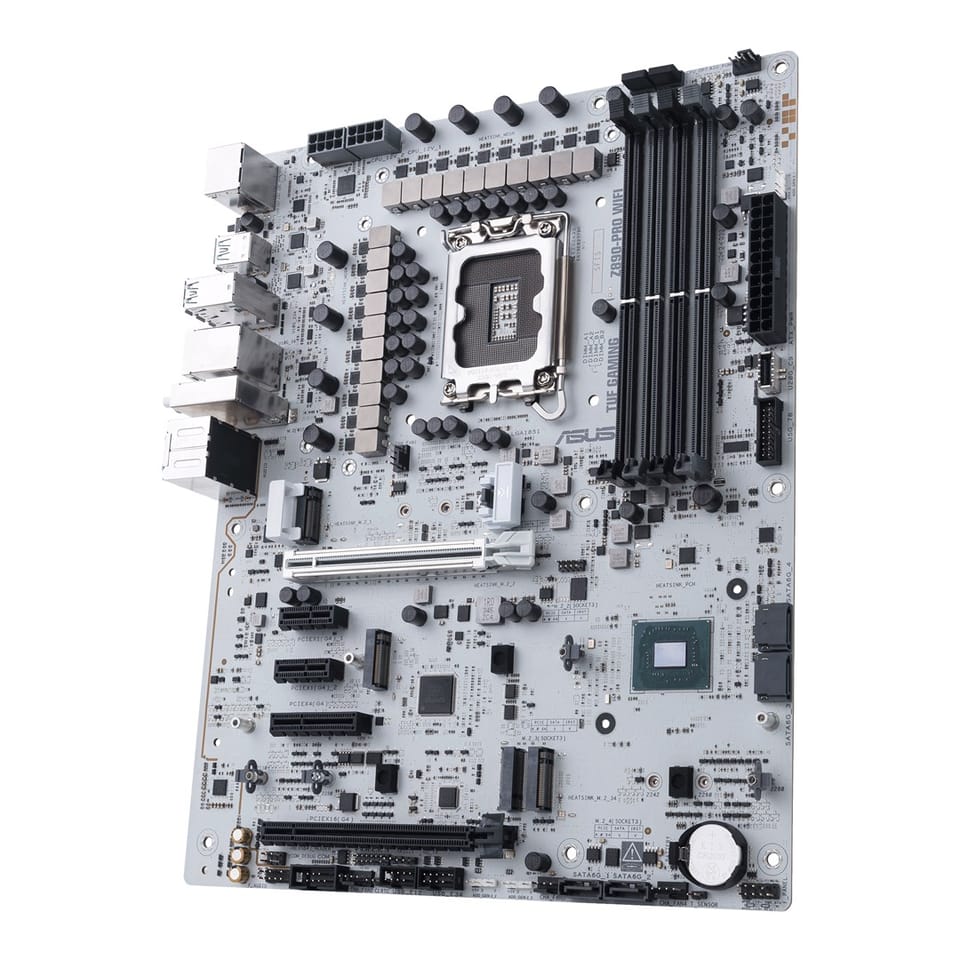

Motherboard TUF GAMING Z890-PRO WIF I s1851 4DDR5 TB4/DP ATX/90MB1IR0-M0EAY0
€382.59
Shipping from warehouse: M7
Estimated shipping: Thu, Oct 2 - Mon, Oct 6
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- TUF GAMING Z890-PRO WIFI / 4711387762639
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC1220P |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Maximum internal memory: | 192 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel Z890 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 4 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 4 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 8 |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package weight: | 2.5 kg |
| Package width: | 353 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Pci express x4 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Raid levels: | 0, 10, 5, 1 |
| Raid support: | Yes |
| Screws included: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1851 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Thunderbolt ports quantity: | 2 |
| Top wi-fi standard: | Wi-Fi 7 (802.11be) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 6 |
| Usb 3.2 gen 2x2 connectors: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 7 (802.11be) |
| Width: | 305 mm |
| Wifi-ap antenna jack: | 1 |
| Windows operating systems supported: | Windows 11 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
