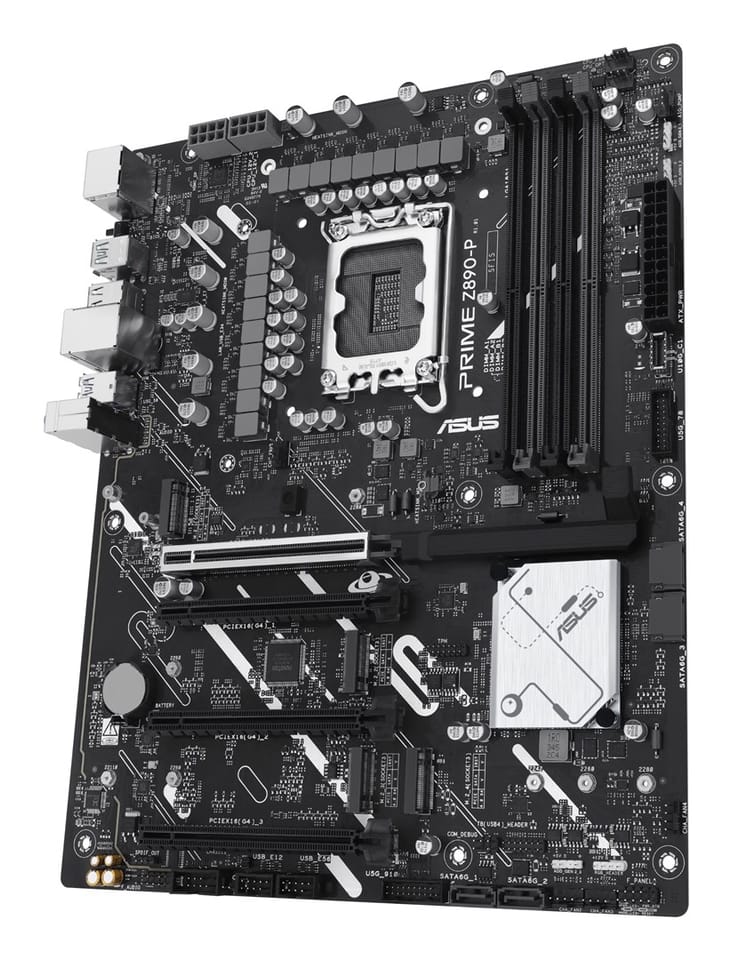

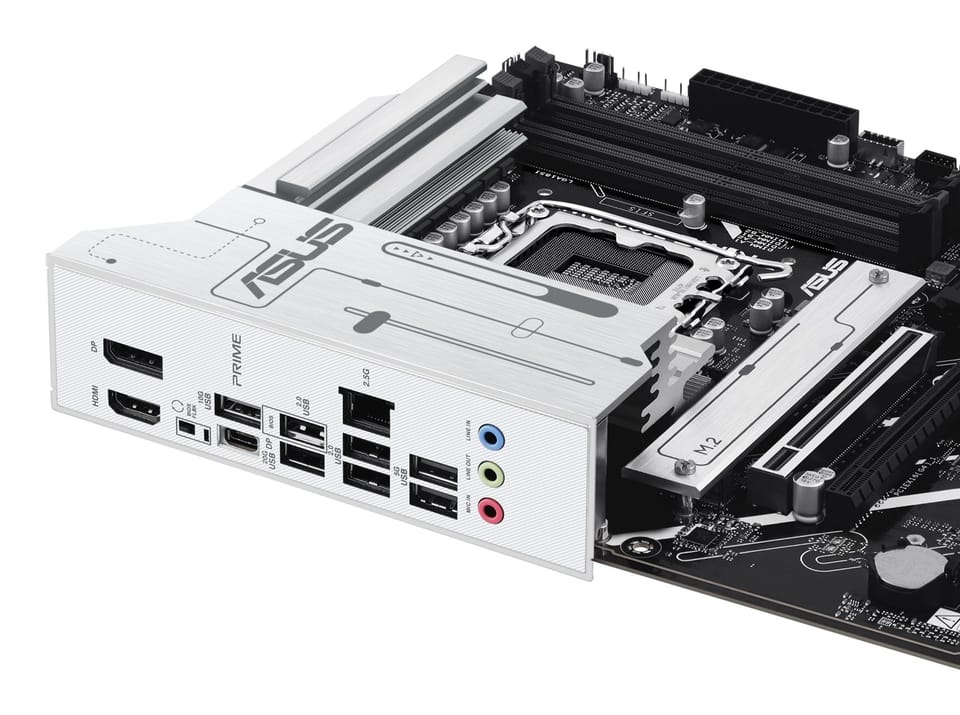

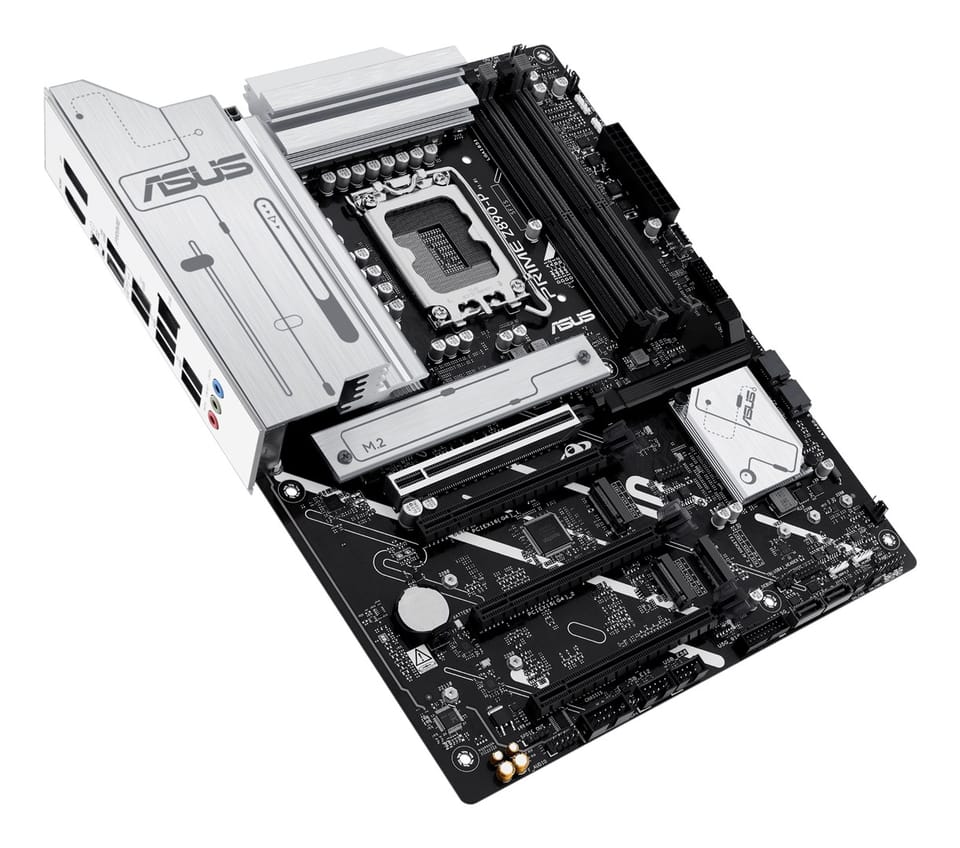

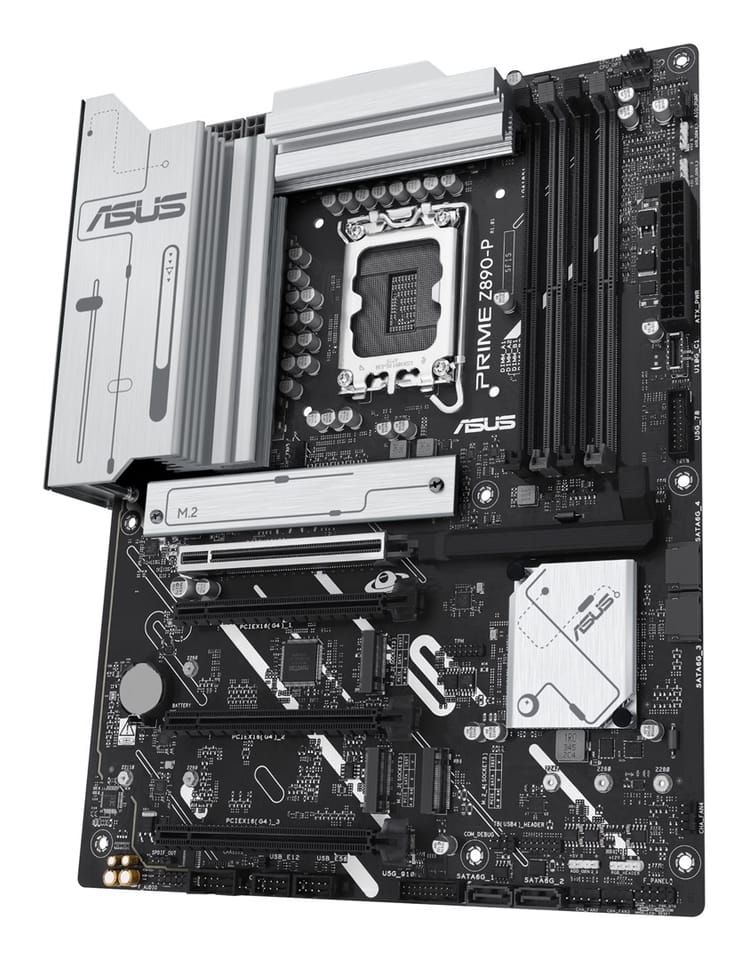

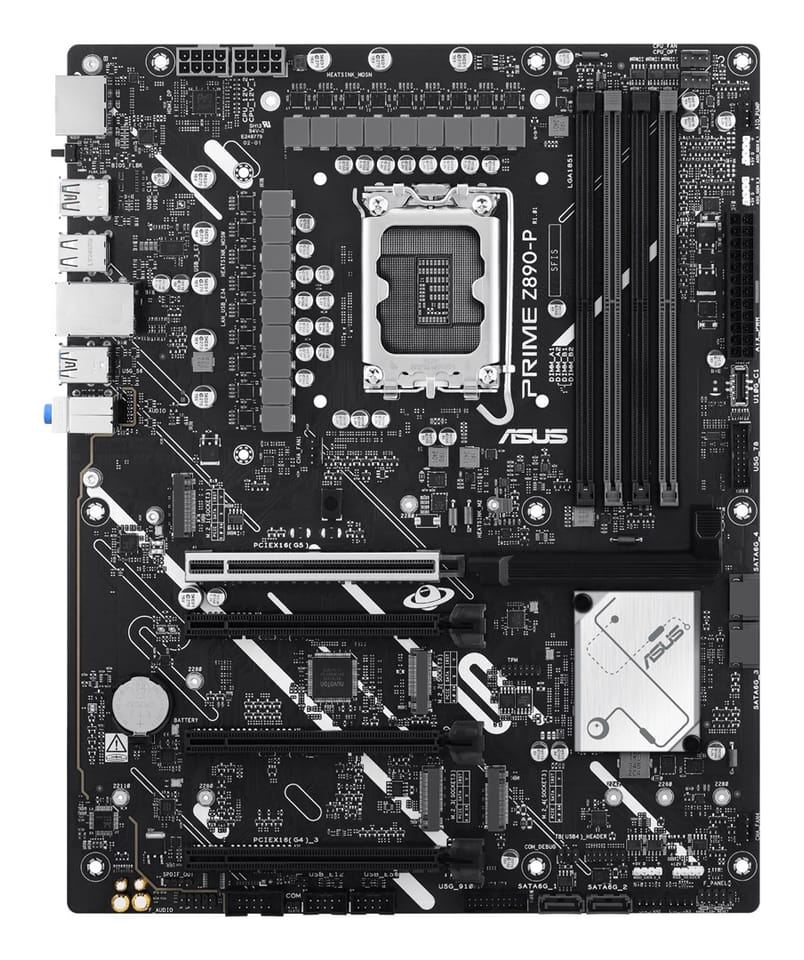

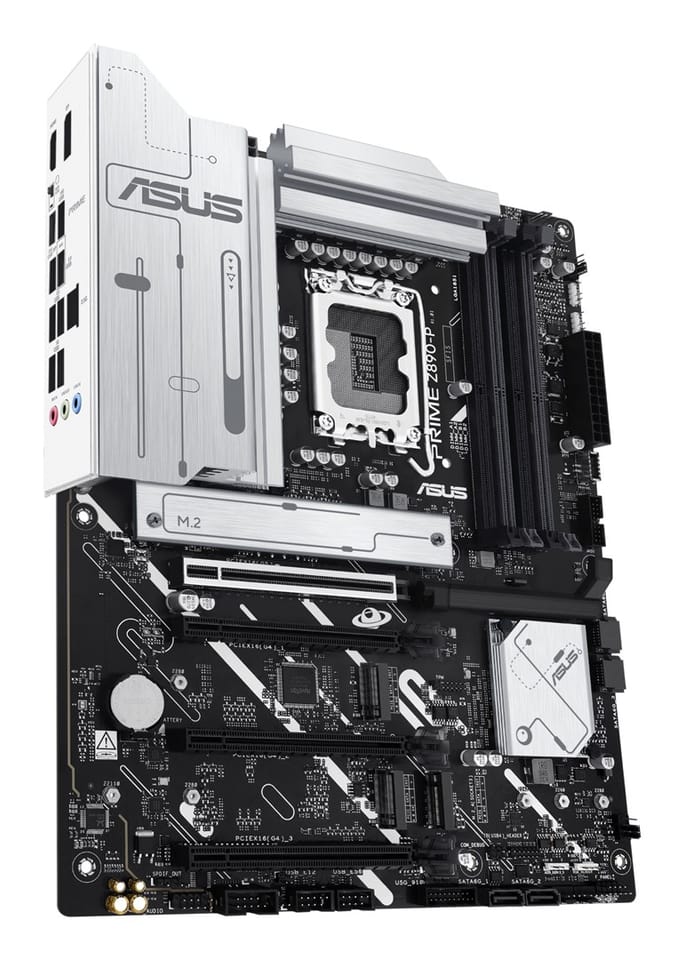

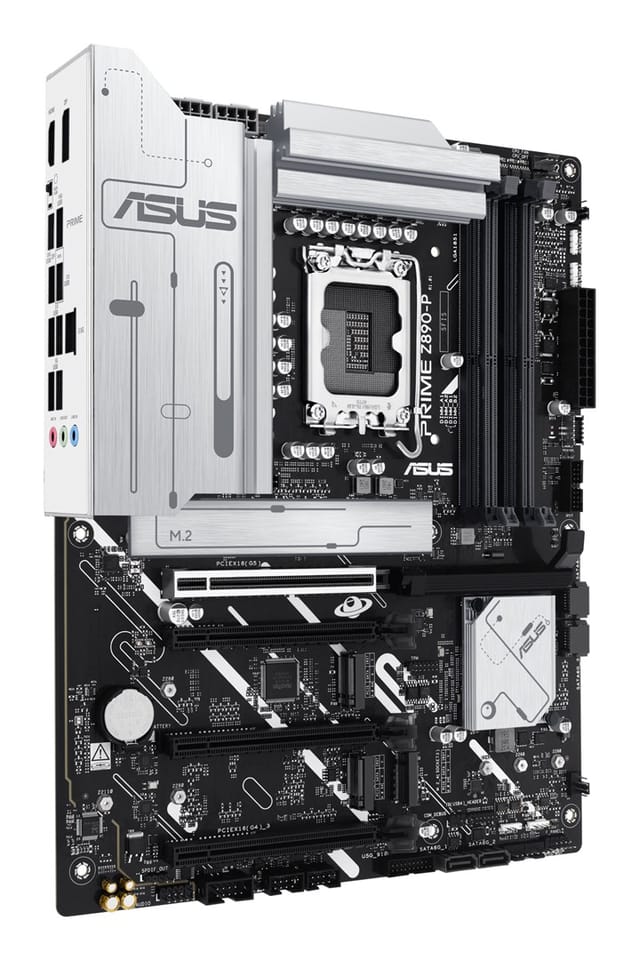

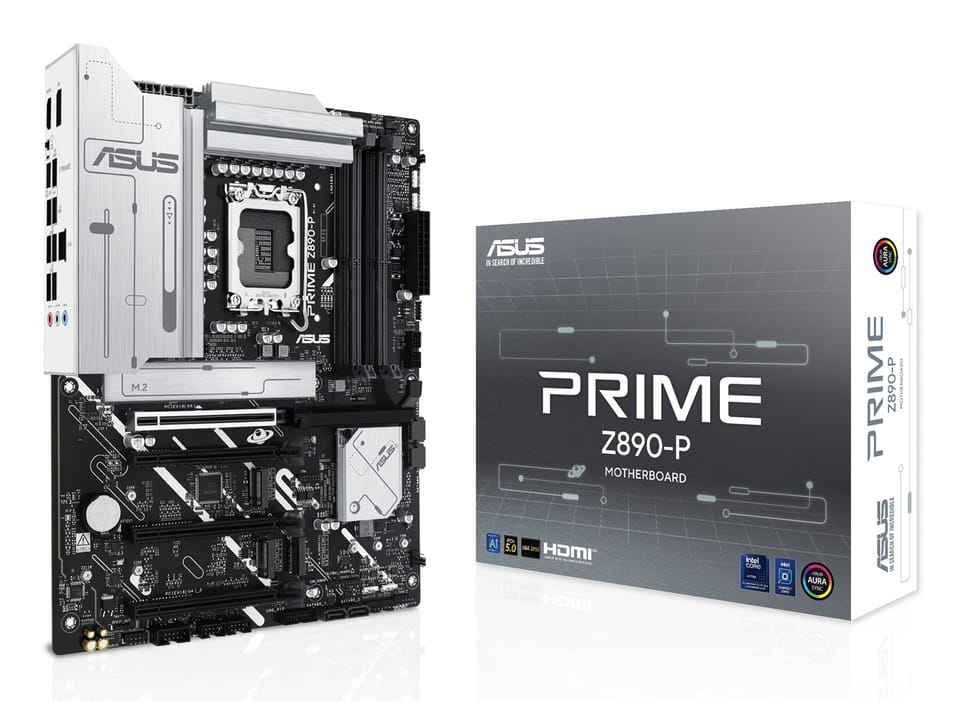

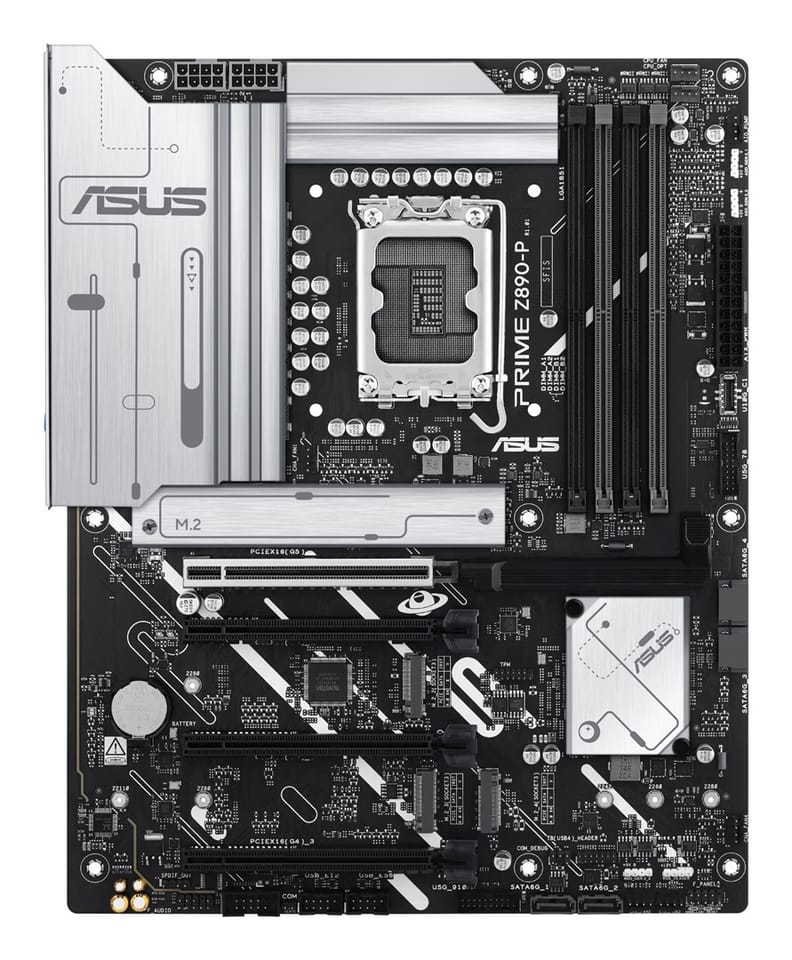

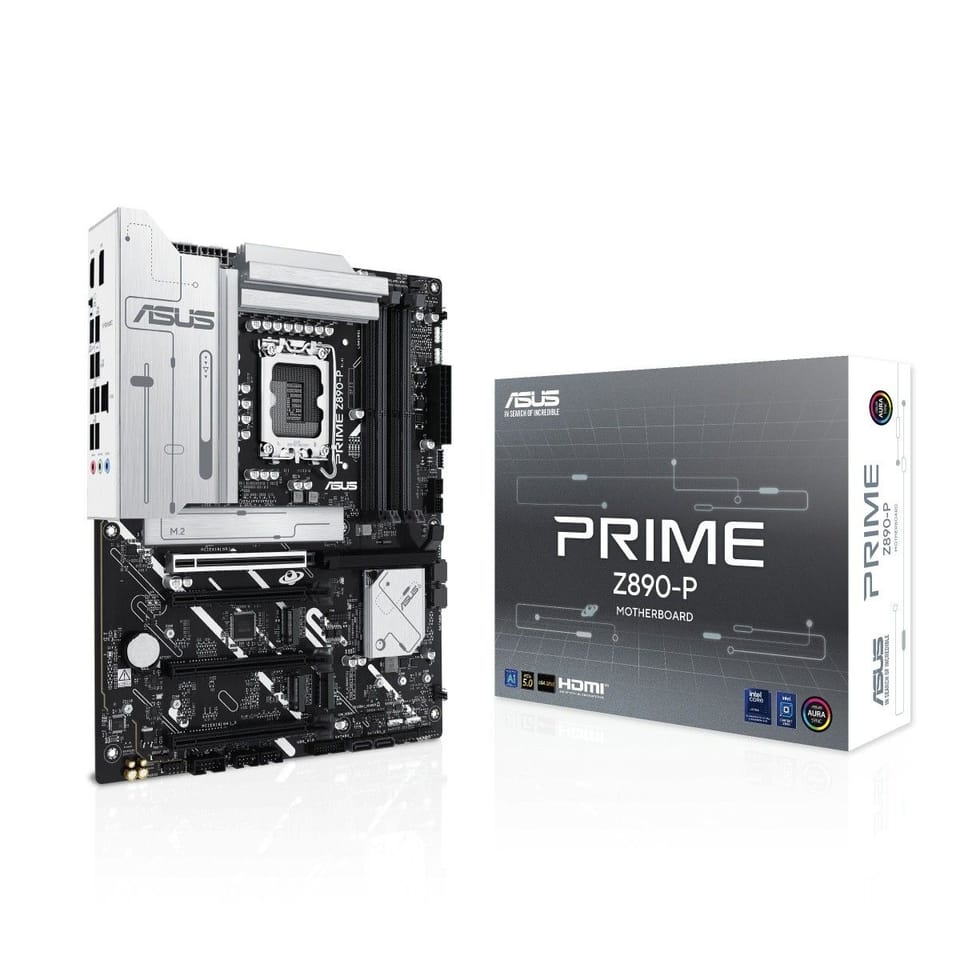

Prime Z890-PASUS PRIME Series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra processors (2 Series). Featuring a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME Z890-P motherboard provides users and DIY PC enthusiasts with a range of performance optimizations through intuitive software and firmware features. It's designed to be ready for Advanced AI PCs, offering the power and connectivity needed for demanding AI applications.
Motherboard PRIME Z890-P s1851 4DDR 5 DP/HDMI/DP/TB4 ATX /90MB1I50-M0EAY0
€312.34
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- PRIME Z890-P / 4711387759103
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Back-to-bios button: | Yes |
| Bios type: | UEFI AMI |

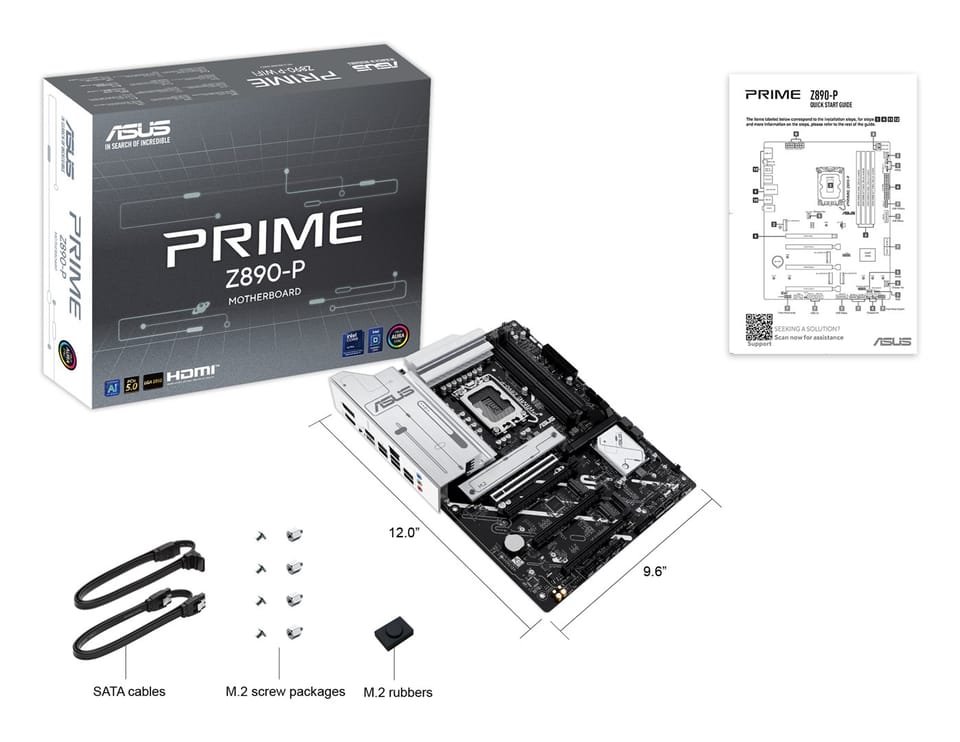

| Cables included: | SATA |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Cooling type: | Passive |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 192 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel Z890 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 4 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 4 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 8 |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package weight: | 1.89 kg |
| Package width: | 353 mm |
| Parallel processing technology support: | Not supported |
| Pci express x16 (gen 4.x) slots: | 3 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Product colour: | Black |
| Quick installation guide: | Yes |
| Raid levels: | 1, 10, 0, 5 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 11, Windows 10 |
