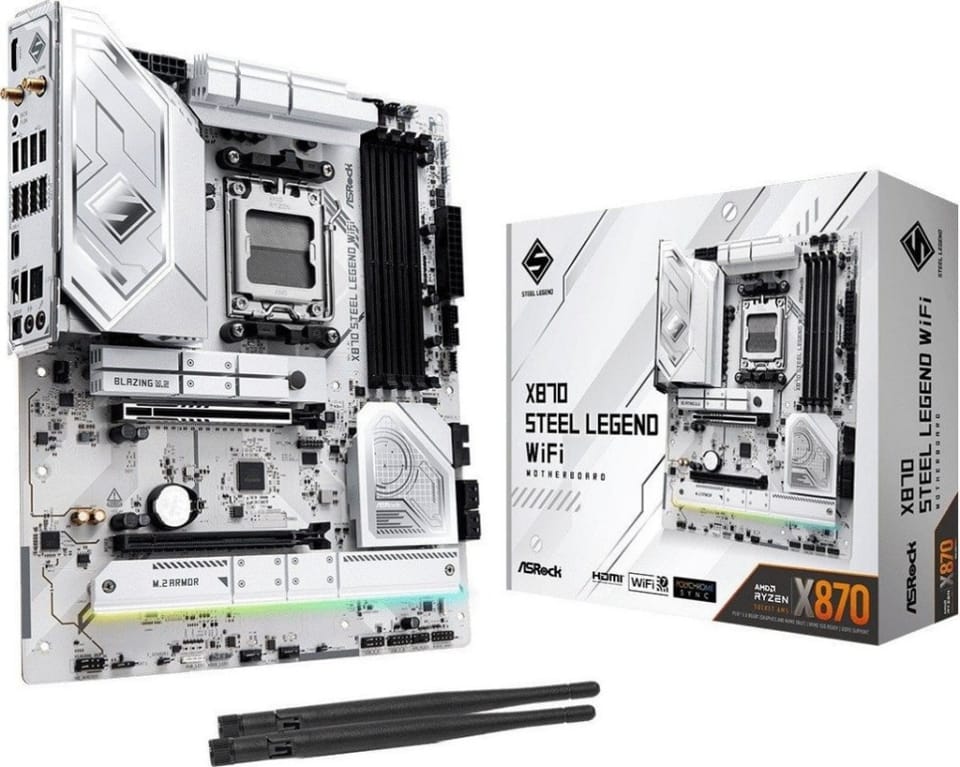

X870 Steel Legend WiFi
- Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 2 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
- 2 USB4 Type-C (Rear),
- 1 USB 3.2 Gen2x2 Type-C (Front),
- 2 USB 3.2 Gen2 Type-A (Rear),
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Exclusive 20K Cap with 1000uF CapacitanceThe upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
- Higher Capacitance: Greater charge storage for better support under high loads.
- Lower Ripple: Reduced power output fluctuations, improving quality.
- More Stable Output Current: Stable power supply, minimizing voltage impacts.
- Better Performance & System Stability: Increased reliability and consistent performance.
14+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Hi-Density Power ConnectorCPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.
8 Layer PCB designThe 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 XMP & EXPO SupportDerived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
M.2 Heatsink Toolless DesignBesides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
M.2 Bottom HeatsinkThe M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
XXL M.2 HeatsinkThe extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Anti-Drop ScrewTired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Aluminum HeatsinkThe first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Wi-Fi 7 Enhanced VR ExperienceWi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Wi-Fi 7 802.11beLatest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
Multi-link Operation(MLO)Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
Enhanced USB4 Type-CUSB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front Panel USB 3.2 Gen2x2 Type-C HeaderThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Lightning Gaming PortsAimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Ultra USB PowerProvides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
Audio That MattersWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication QualityThe Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
Ultimate Gaming Experience
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices! - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with ll of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
POLYCHROME RGBThis motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Customized Thermal ManagementThe thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.
Reinforced Steel Slot [PCIe 5.0 Version]The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Auto Driver InstallerNo need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS FlashbackGet the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Flexible Integrated I/O ShieldUnlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
