Contactor LE-412523 has two NO contactsBoth control voltage and power supply uses alternating currentThe device does not have a manipulator for manual operation
The LE-412523 is designed for mounting on the TS-35 DIN rail

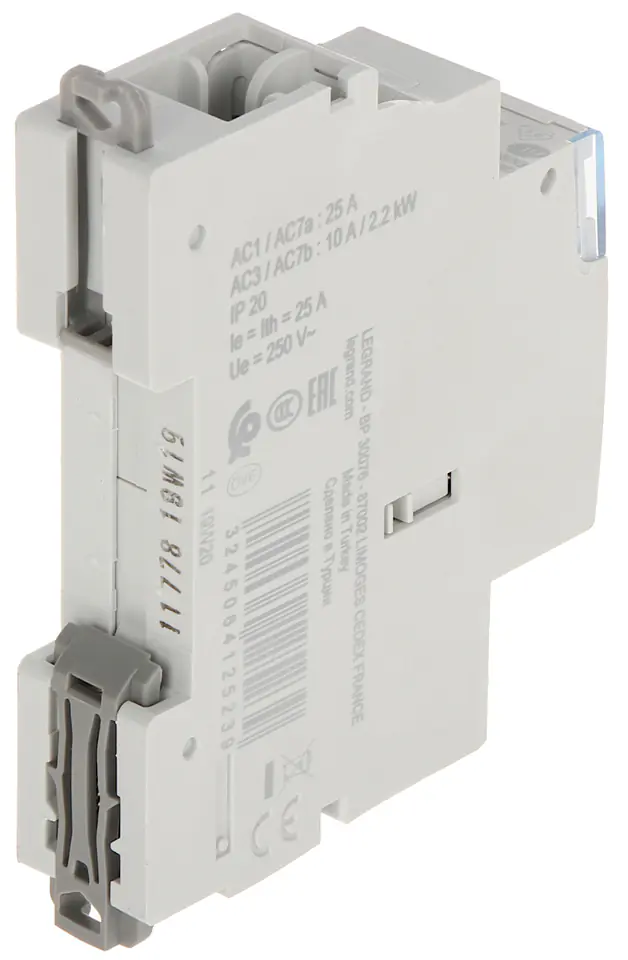

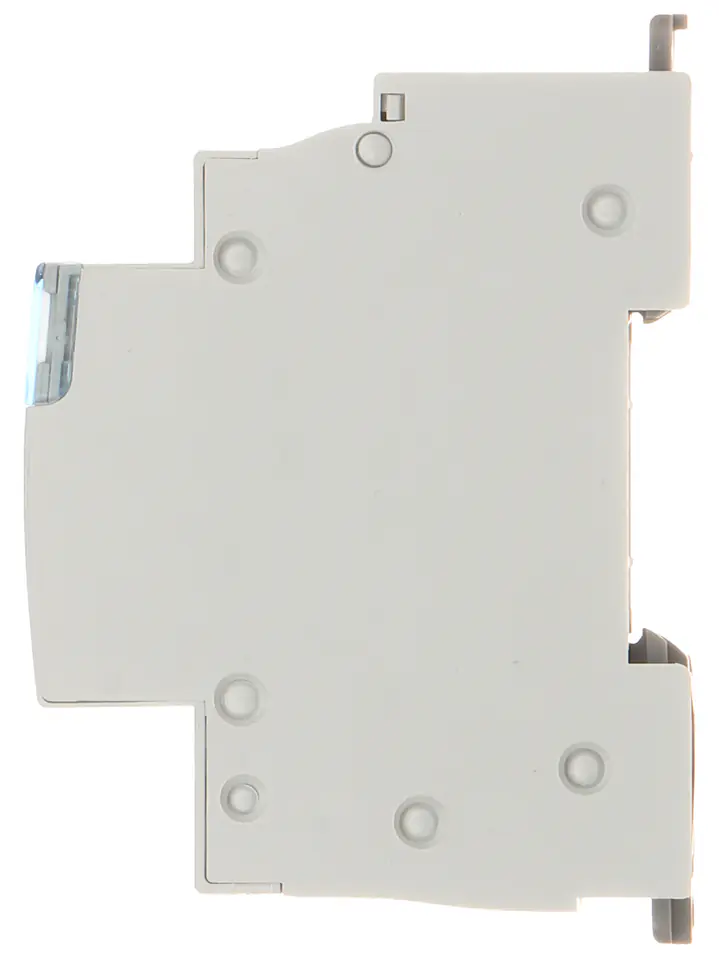

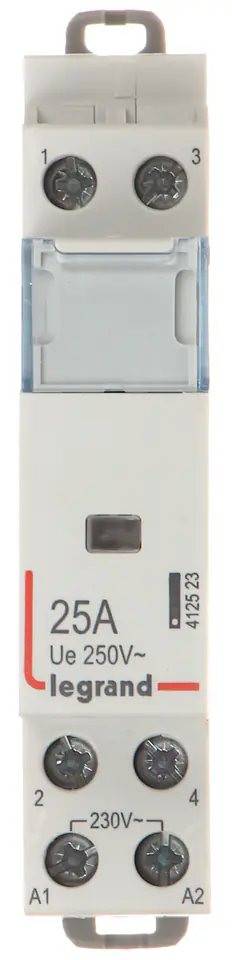

MODULAR CONTACTOR LE-412523 25 A 250 V AC LEGRAND
€30.39
Shipping from warehouse: D4
Estimated shipping: Thu, Dec 4 - Mon, Dec 8
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- LE-412523 / 3414971697140
Share this product:
Specification
| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Category of use:: | AC1 |
| Connector type:: | screw terminals |
| Device type:: | Contactor - NO, Single phase |
| Dimensions:: | 67 x 94 x 17.5 mm |
| Load rated voltage:: | Max. 250 V AC |
| Manufacturer / brand:: | LEGRAND |
| Maximum connecting capacity:: | 3000 W (for incandescent lamps) 1540 VA (for fluorescent lamps) 980 VA (for parallel compensated fluorescent lamps) |
| Number of poles:: | 2 |
| Rated load current:: | 25 A |
| Rated supply voltage:: | 230 VAC |
| Scales:: | 0.12 kg |
| Selected features:: | Provided space for a card with a description |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 1 |
