MOBILE IP ATE-N0401EF-T2 (4 CHANNELS) AUTONE

This product is not available
Availability:
expected delivery
Brand:
AUTONE
Product code:
ATE-N0401EF-T2 / 5902887054471

Specification

Alarm inputs / outputs:8 / 1
Dimensions:185 x 149 x 58 mm
Max. memory card capacity:2 x 128 GB SD/SDHC
Operating temperature:-20 °C ... 70 °C
Permissible relative ambient humidity:10 % ... 95 % RH
Power:8 V ... 36 VDC
Producer / brand:AUTONE
Recording modes:Manual, alarm, motion detection, scheduling
Resolution of recorded videos:.max. 1920 x 1080 - 1080p
Scales:1.1 kg
Selected features:12V DC power supply directly from the DVR - M12 connector Registration of alarm and service events Motion detection Automatic recording when turned on Software update via USB port 3G / 4D supportTracking the vehicle route with GPSDowns live view, recordings and saved route via a dedicated serverFree account on the manufacturer's serverCMSV6 server application for Windows (free license up to 10 devices)Ability to copy recordings from the device to your own server via Wi-Fi interface
Sim slot:mini SIM
Supported hard drives:1 pc 2.5" - 2TB SATA

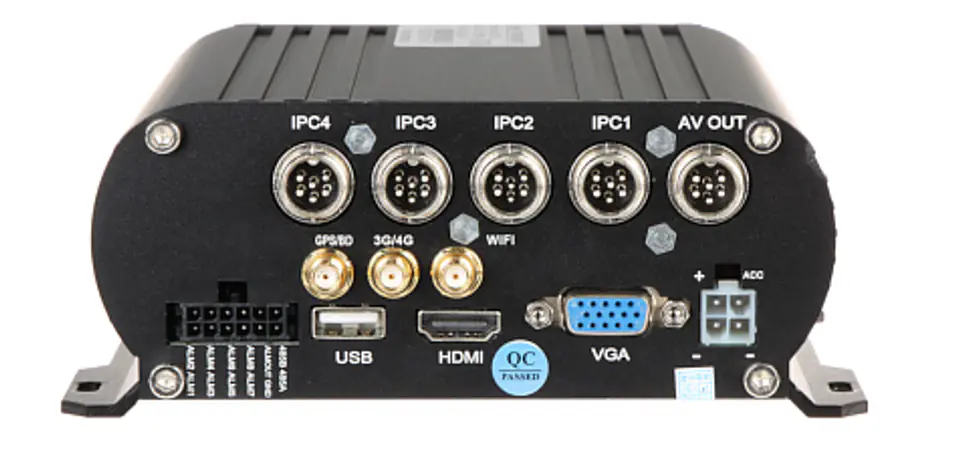

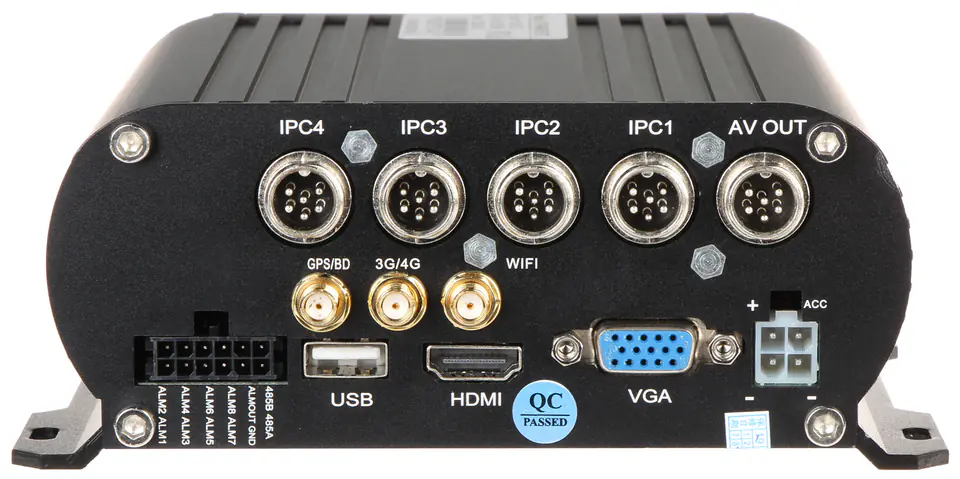

Video inputs:4 pcs. Ethernet + PoE - M12 socket, 6-pin

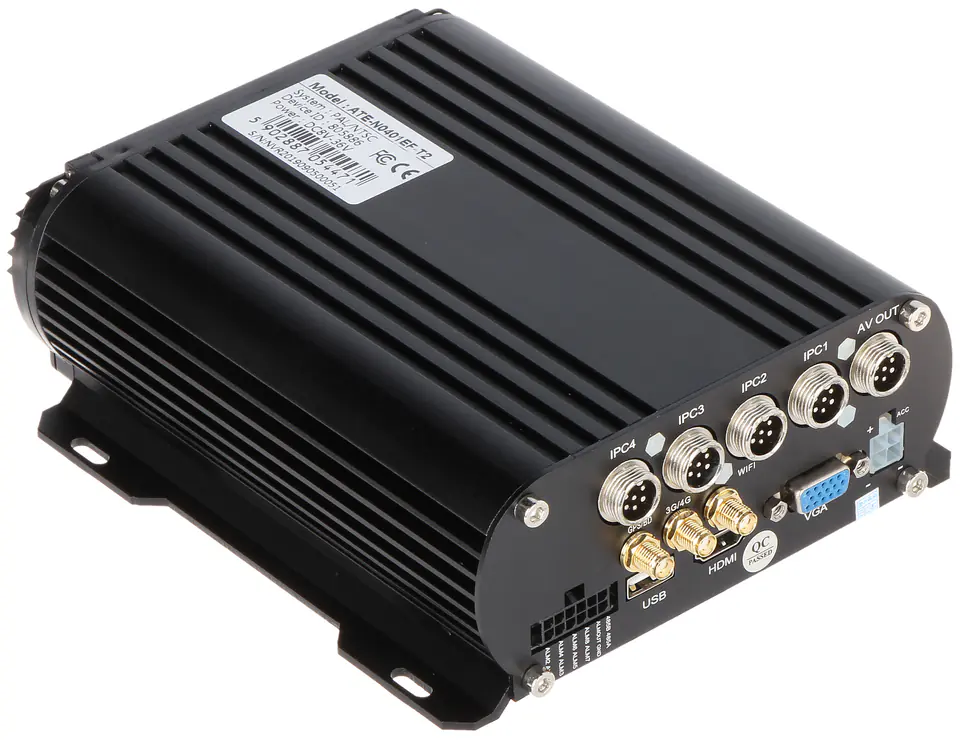

Video outputs:1 pc HDMI 1 pc VGA 1 pc Video, CVBS : M12 socket, 6-pin - CINCH, on cable
Warranty:2 years

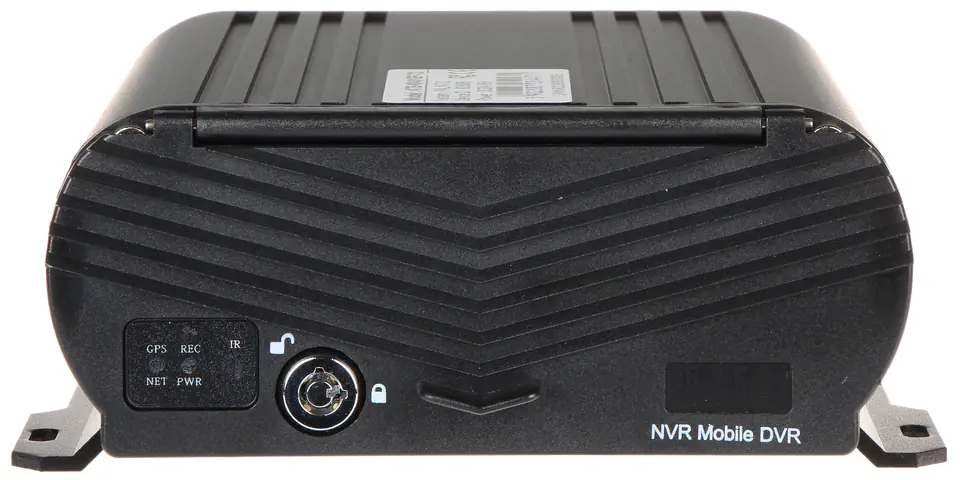

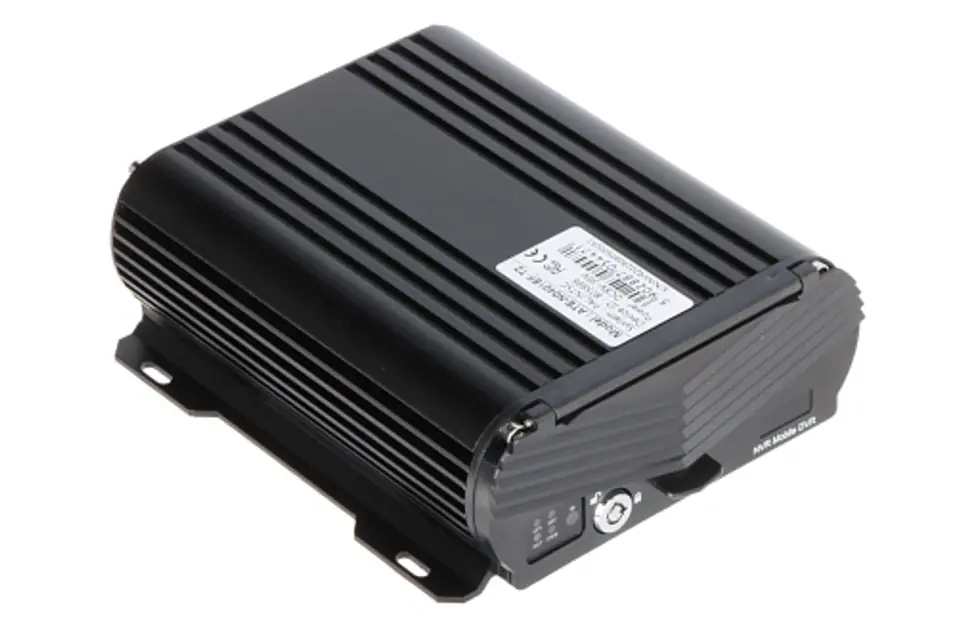

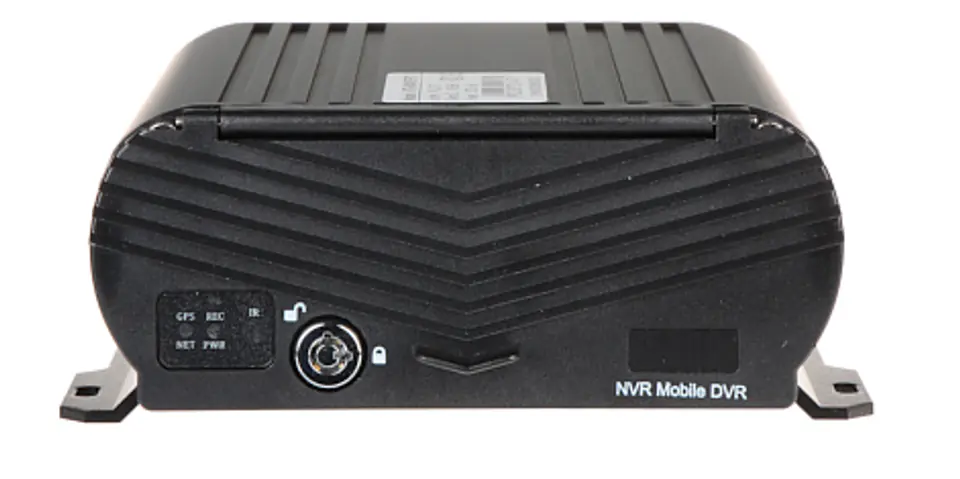

ATE-N0401EF-T2 is a recorder designed for mobile applications, e.g. in coaches, city buses, trams or fleet vehicles

Features of the device:
Recording the route traveled by the vehicle using the GPS receiverAccess to live image view, recordings and saved route via a dedicated serverFree account on the manufacturer's serverCMSV6 server application for Windows (free license up to 10 devices)Ability to copy recordings from the device to your own server via Wi-Fi interface

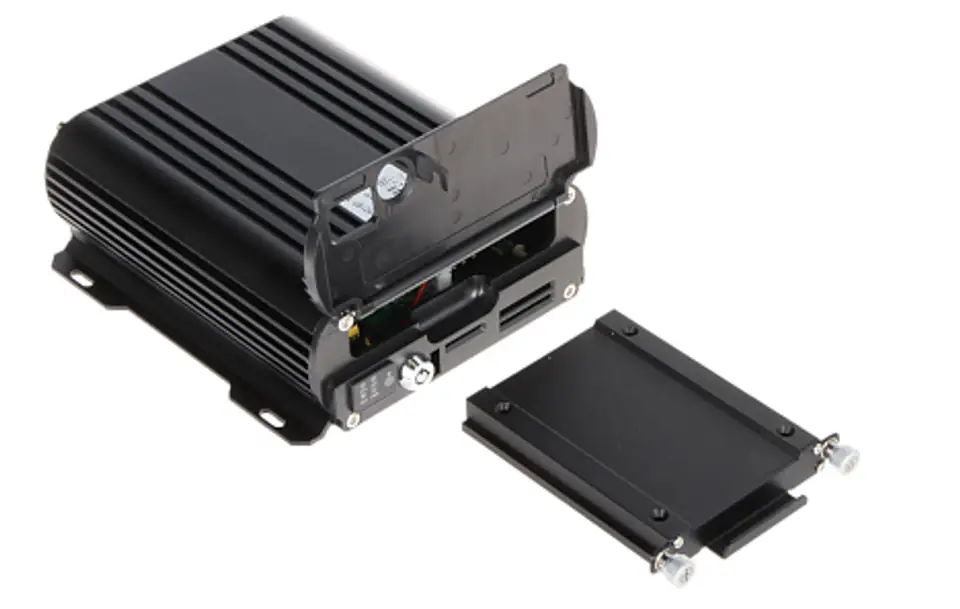

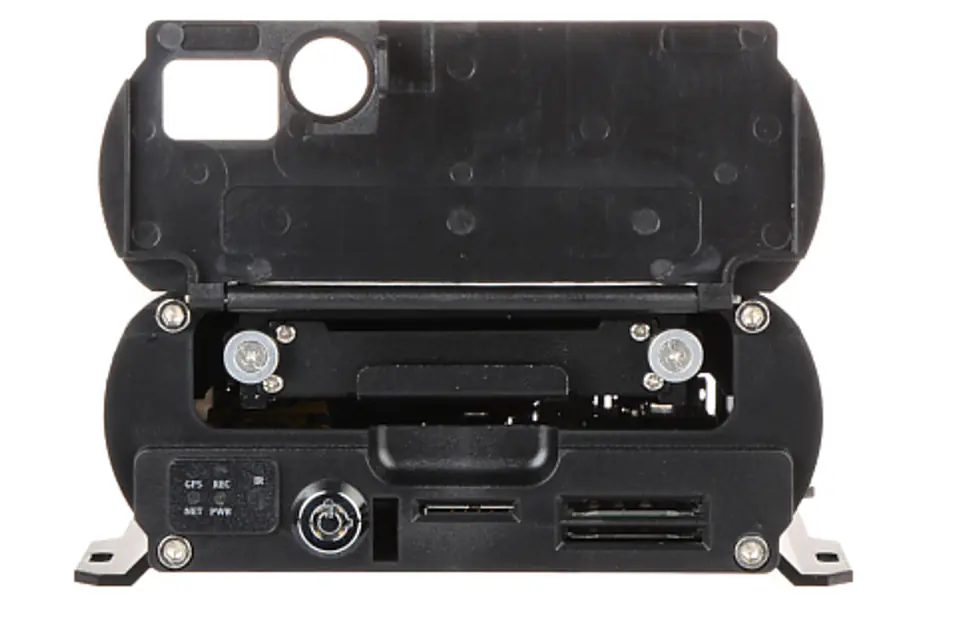

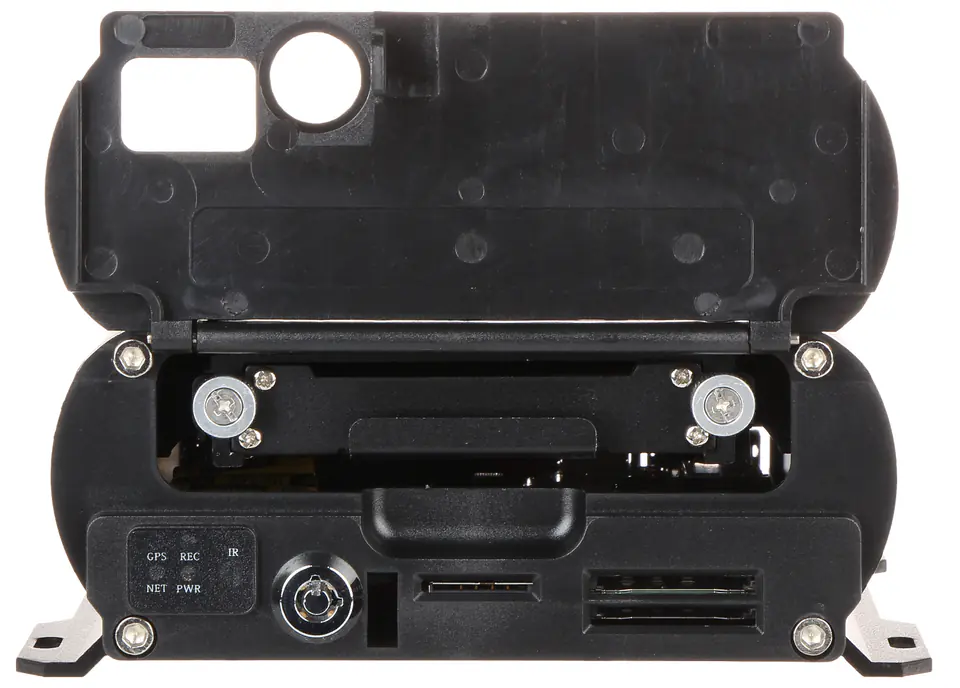

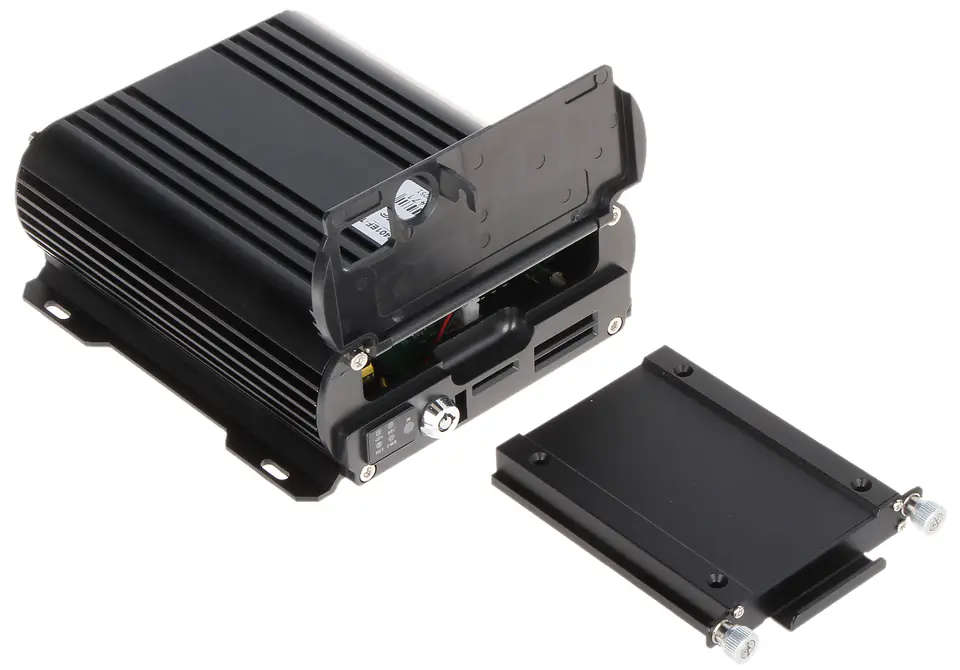

The device is designed to be resistant to vibration and shockThe data can be saved to 2 SD cards or a 2.5" hard drive

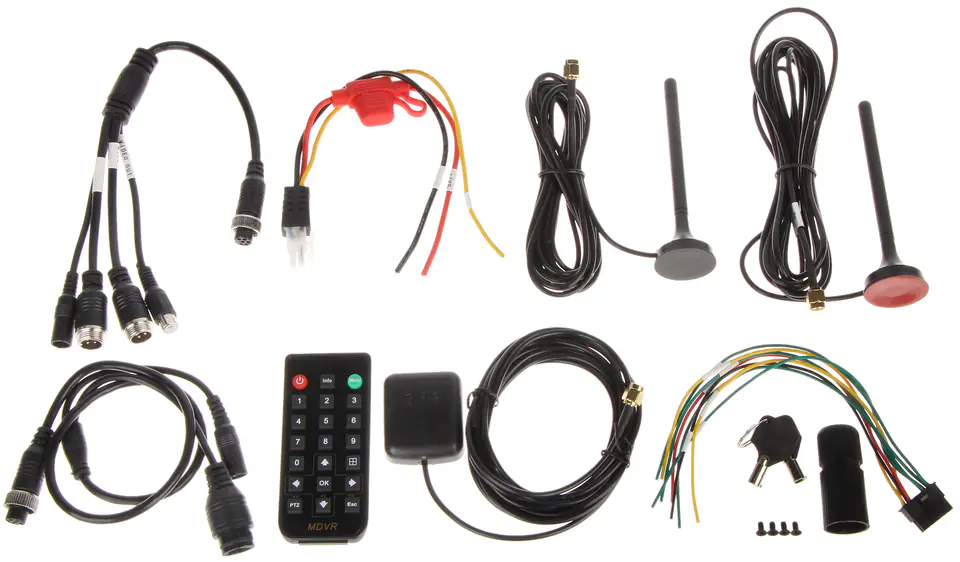

Power cables are connected to the car installation in the same way as a standard radio receiverConnecting the line "behind the ignition" allows you to use the automatic start function of the recorder

The device has a battery backup power supply that allows recording for 10 seconds after turning off the engine

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
