| Case:: | Dome, Metal |
|---|---|
| Colour:: | Black |

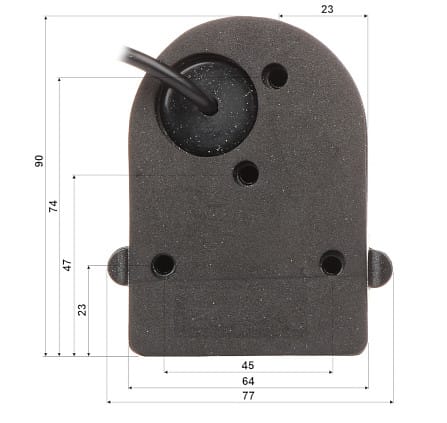

| Dimensions:: | 90 x 77 x 65 mm |
| Ir illuminator range:: | 10 m |
| Manufacturer / brand:: | AUTONE |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 2.8 mm |
| Operating temperature :: | -20 °C ... 60 °C |
| Power consumption:: | < 5 W |
| Power:: | 12 V DC / 420 mA - 12V DC power supply for cameras directly from the recorder |
| Resolution:: | 1920 x 1080 - 1080p |
| S/n ratio:: | ≥ 58 dB |
| Scales:: | 0.27 kg |
| Selected features:: | AGC - Automatic BLC Image Gain Adjustment - Backlight Compensation ICR Filter - Compatible with IR Illuminators Automatic White Balance Sharpness - Sharpen image contours |
| Standard:: | AHD |
| Transducer:: | 1/3" Sony CMOS IMX323 |
| Use:: | The camera is designed for outdoor installation of vehicles |
| Vandal proof:: | IK10 |
| Video output:: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle:: | 91° (manufacturer data)90° (our tests) |
| Warranty:: | 2 years |

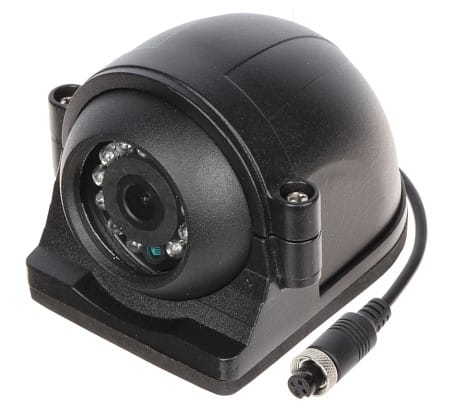

ATE-CAM-AHD735HD camera is designed for outdoor installation of vehicles
AHD interface enables the transmission of analog, complex video signal via coaxial cableDuringus there are no delays and the original, high image quality is preserved
The camera meets ip67 protection class
