| Case:: | Mini, Metal |
|---|---|
| Colour:: | Black |
| Dimensions:: | 101 x 82 x 60 mm |
| Ir illuminator range:: | 10 m |
| Manufacturer / brand:: | AUTONE |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 2.8 mm |
| Operating temperature :: | -10 °C ... 50 °C |
| Power consumption:: | < 10 W (łącznie) |
| Power:: | 2 x 12 V DC / 420 mA - 12V DC power supply for cameras directly from the DVR |
| Resolution:: | 1920 x 1080 - 1080p |
| S/n ratio:: | ≥ 58 dB |
| Scales:: | 0.46 kg |
| Selected features:: | AGC - Automatic BLC Image Gain Adjustment - Backlight Compensation Automatic White Balance Sharpness - Sharpening Image Contours |
| Standard:: | AHD |
| Transducer:: | 1/3" Sony CMOS IMX323 |
| Use:: | The camera is designed for outdoor installation of vehicles |

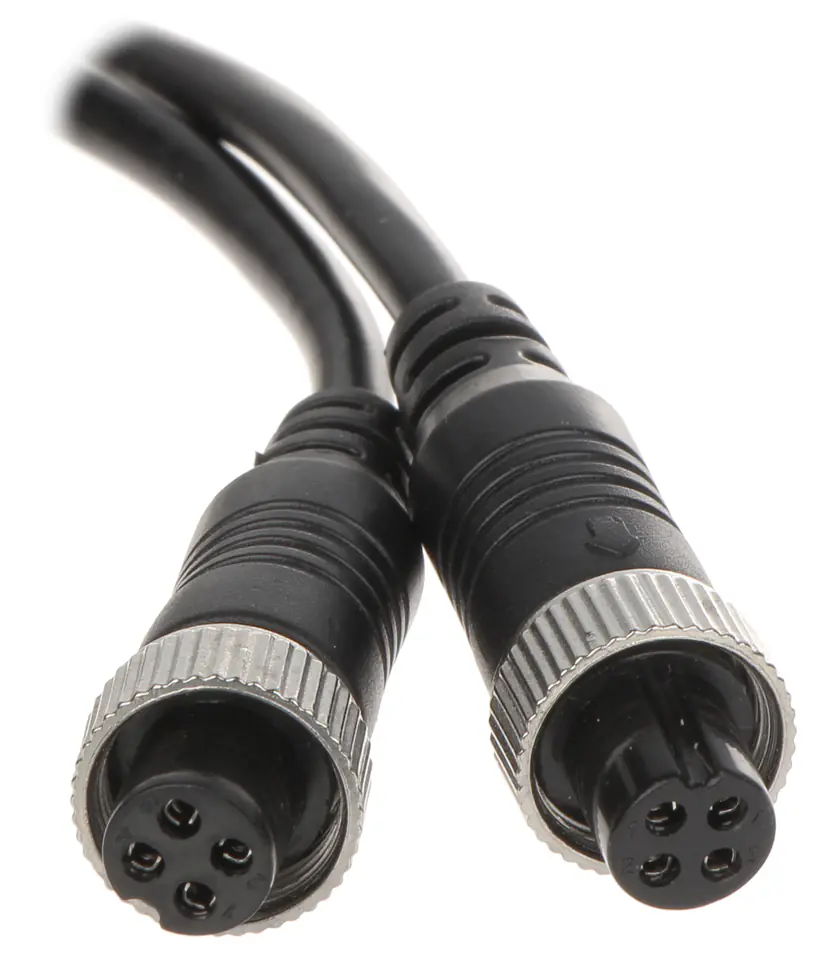

| Video output:: | 2 x 1 Vpp / 75 Ω - Socket M12, 4-pin, Code A |
| Viewing angle:: | 89° (manufacturer data)85° (our tests) |
| Warranty:: | 2 years |

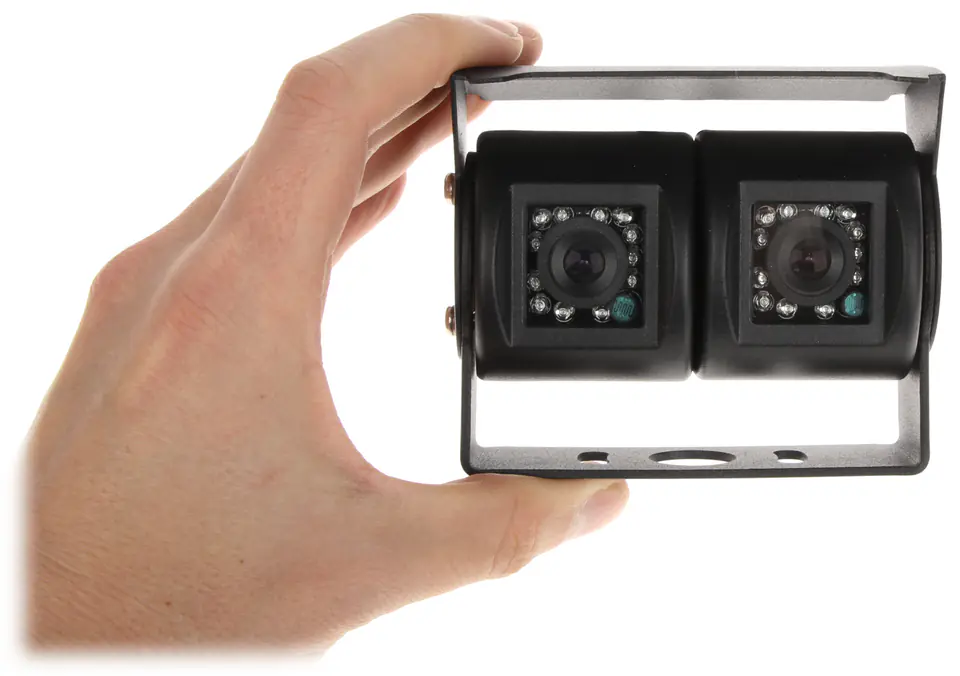

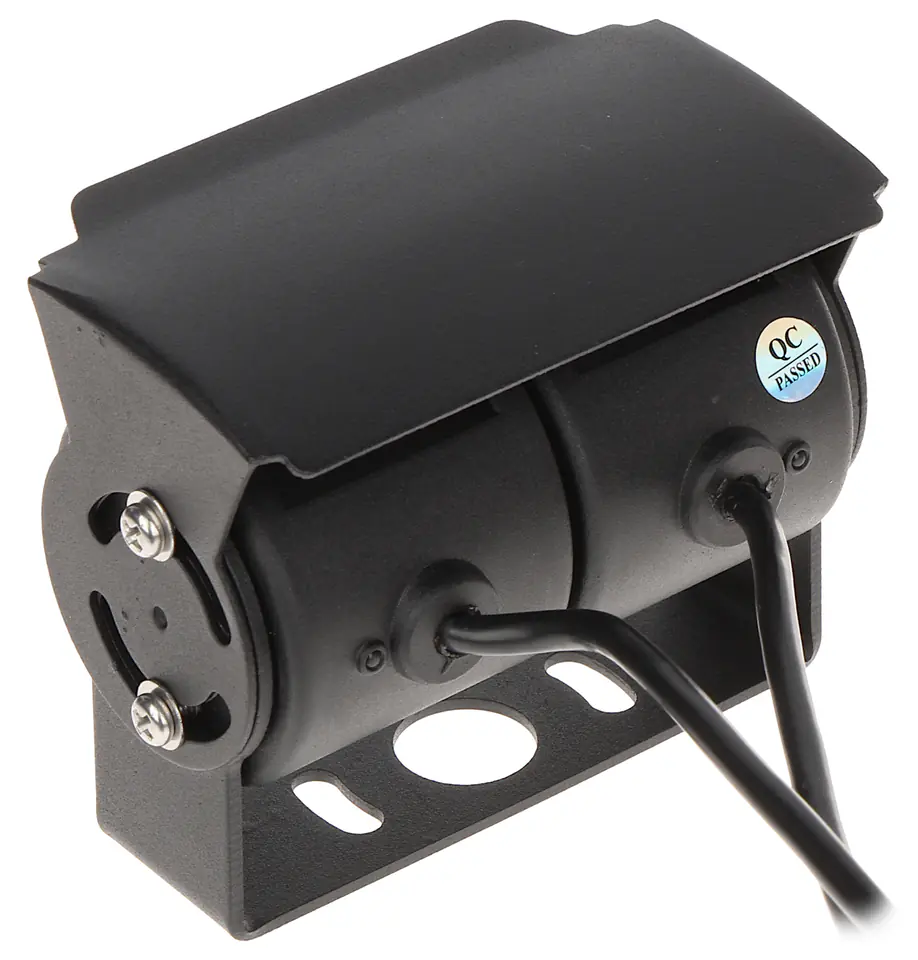

The ATE-CAM-AHD620HD dual reversing camera is designed for outdoor mountingTwo cameras with an independently adjustable tilt angle allow accurate observation of the vehicle's surroundingsAs the design allows good visibility when reversing both low and high-altitude obstacles
Independent adjustment of the vertical inclination of each camera allows you to combine two images vertically, which is especially useful for tall vehicles, such as trucks, buses, etc. The camera meets ip67 protection class
