| Case:: | Dome, Metal |
|---|---|
| Colour:: | Black |

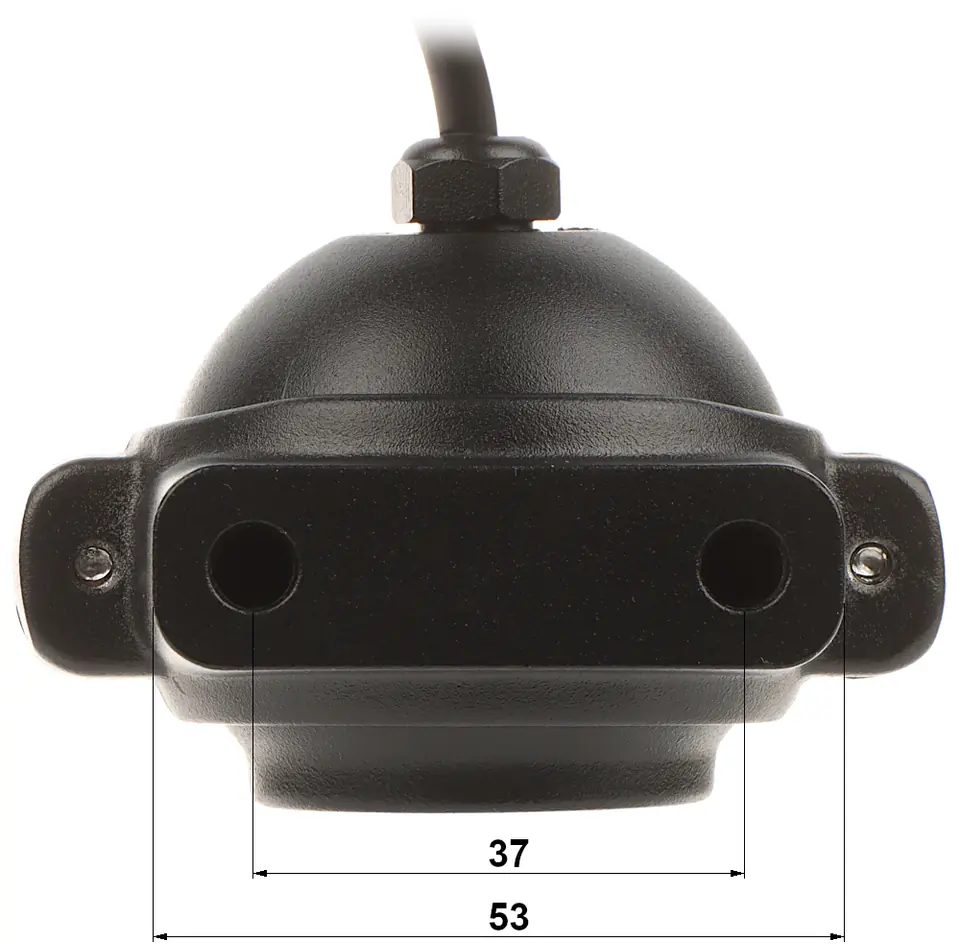

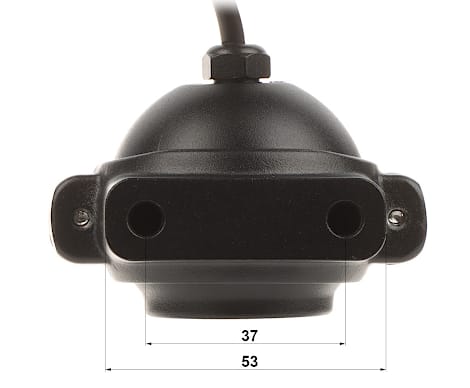

| Dimensions:: | 73 x 105 x 53 mm (with handle) |
| Ir illuminator range:: | 10 m |
| Manufacturer / brand:: | AUTONE |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 2.8 mm |
| Operating temperature :: | -20 °C ... 50 °C |
| Power consumption:: | < 5 W |
| Power:: | 12 V DC / 420 mA - 12V DC power supply for cameras directly from the recorder |
| Resolution:: | 1920 x 1080 - 1080p |
| S/n ratio:: | ≥ 58 dB |
| Scales:: | 0.19 kg (with handle) |
| Sealing:: | IP66 |
| Selected features:: | AGC - Automatic BLC Image Gain Adjustment - Backlight Compensation Automatic White Balance Sharpness - Sharpening Image Contours |
| Standard:: | AHD |
| Transducer:: | 1/3" Sony CMOS IMX323 |
| Use:: | The camera is designed for outdoor installation of vehicles |

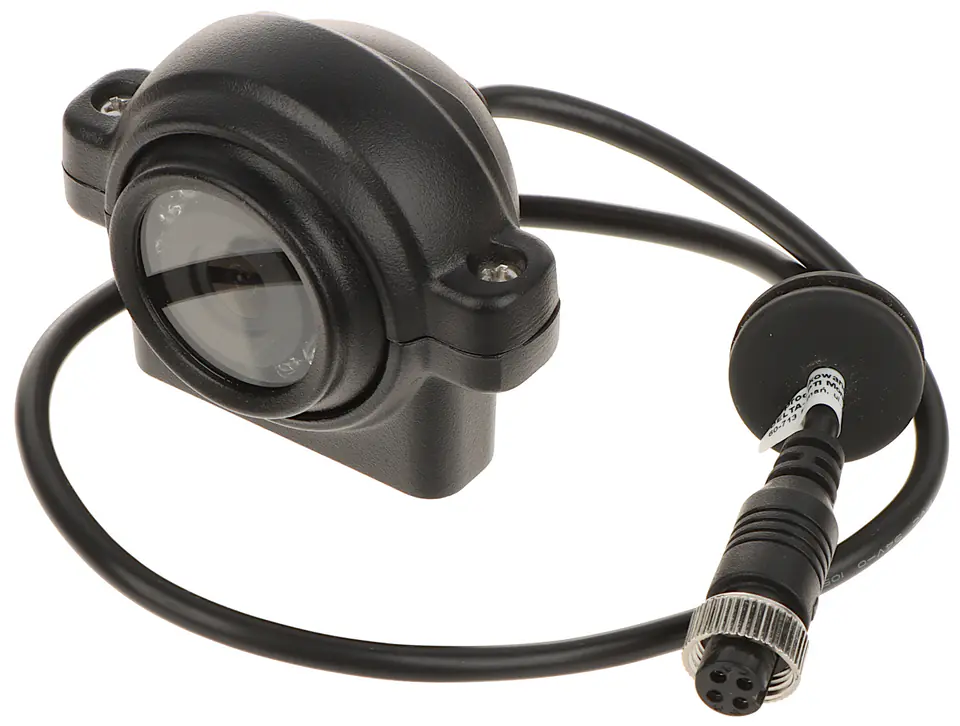

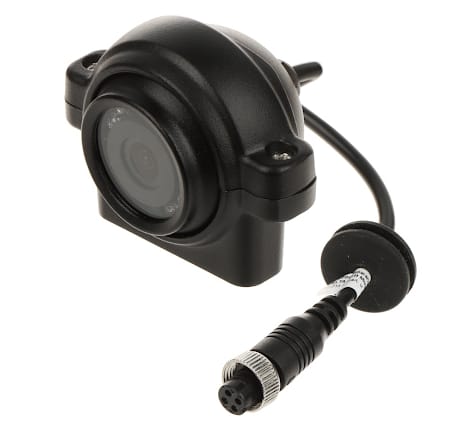

| Video output:: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle:: | 89° (manufacturer data) 100° (our tests) |
| Warranty:: | 2 years |

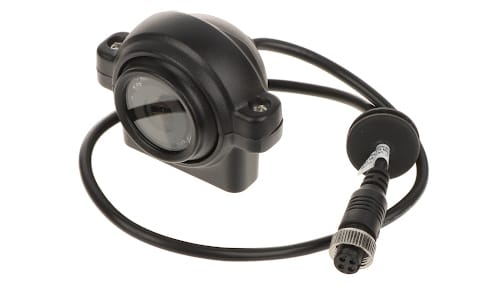

ATE-CAM-AHD539HD-V2 camera is designed for outdoor installation of vehicles
AHD interface enables the transmission of analog, complex video signal via coaxial cableDuringus there are no delays and the original, high image quality is preserved
The camera meets IP66 protection class
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
