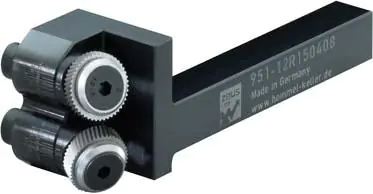

Milling knurling tool (without knurling roller)
Material: handle made of heat-treated steel. Delivery without a roll for milling knurling.
Application: pattern shaping by milling knurling (chip machining).
For longitudinal knurling. In addition, the tool can be used for knurling workpieces according to DIN 82: RGE 30° and RGE 45°.
Knurling rollers: RGE 30°: 2 x AA
RGE 45°: 1 x BL 15°/1 x BR 15°
Machine tool type: automatic longitudinal lathes and small lathes – CNC and conventional – clamping in a suitable tool holder.
