Longitudinal hole cutter, solid carbide, corner radius
Execution: with center blade, suitable for drilling.
It is recommended to use tools only in shrink or hydraulic chucks.
Application: for copy milling and grooving and for universal corner radius machining to reduce notch effect on the workpiece – less corner wear when milling grooves. For HSC high-speed machining.
Milling cutter mandrel DIN6527pelnow.FIRE,gripHA,2-os.12/2mm GÜHRING
€81.81
Shipping from warehouse: B6
Estimated shipping: Mon, Oct 27 - Wed, Oct 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9035610120200 / 4031093718714
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

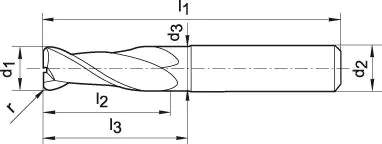

| Corner radius r: | 2.0 mm |
| Cutting part length l2: | 22 mm |
| Diameter d1 = h 10: | 12 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 64 |
| Inox duplex: | 51 |
| Inox ferrite./martenz.: | 80 |
| Neck diameter d3: | 11.5 mm |
| Neck length l3: | 38 mm |
| Shank diameter d2 = h6: | 12 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.046 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 83 mm |
