Mandrel cutter, solid carbide, corner radius
Execution: with center blade, suitable for drilling.
It is recommended to use tools only in shrink or hydraulic chucks.
Application: for plunge milling, grooving and circumferential milling with corner radius to minimize notch effect on the workpiece – less corner wear during plunge milling and grooving milling. For HSC high-speed machining.

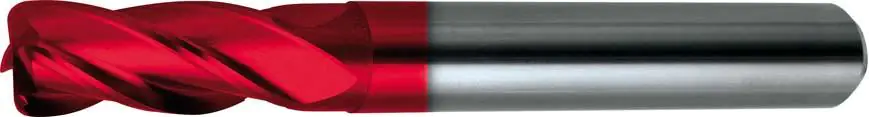

Milling cutter mandrel DIN6527fullnow.FIRE,gripHA,4-os.8/2mm GÜHRING
€73.19
Shipping from warehouse: B6
Estimated shipping: Mon, Apr 6 - Wed, Apr 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9035620080200 / 4031093718837
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

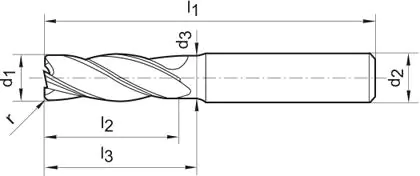

| Corner radius r: | 2.0 mm |
| Cutting part length l2: | 19 mm |
| Diameter d1 = h 10: | 8 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 64 |
| Inox duplex: | 51 |
| Inox ferrite./martenz.: | 80 |
| Neck diameter d3: | 7.7 mm |
| Neck length l3: | 27 mm |
| Shank diameter d2 = h6: | 8 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.032 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 63 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
