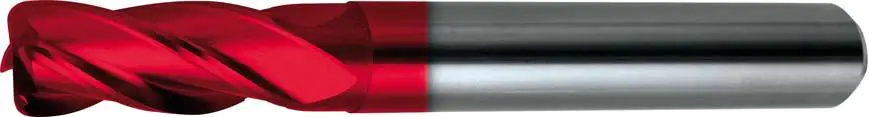

Mandrel cutter, solid carbide, corner radius
Execution: with center blade, suitable for drilling.
It is recommended to use tools only in shrink or hydraulic chucks.
Application: for plunge milling, grooving and circumferential milling with corner radius to minimize notch effect on the workpiece – less corner wear during plunge milling and grooving milling. For HSC high-speed machining.
Milling cutter mandrel DIN6527fullnow.FIRE,gripHA,4-os.16/1,5mm GÜHRING
€162.33
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 25 - Fri, Nov 28
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9035620160150 / 4031093718950
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

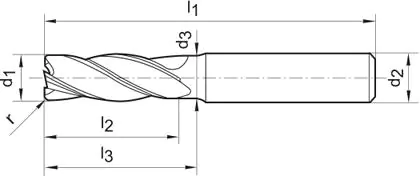

| Corner radius r: | 1.5 mm |
| Cutting part length l2: | 32 mm |
| Diameter d1 = h 10: | 16 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 64 |
| Inox duplex: | 51 |
| Inox ferrite./martenz.: | 80 |
| Neck diameter d3: | 15.5 mm |
| Neck length l3: | 44 mm |
| Shank diameter d2 = h6: | 16 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.054 mm/rev |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 92 mm |
