Longitudinal hole cutter, solid carbide, corner radius

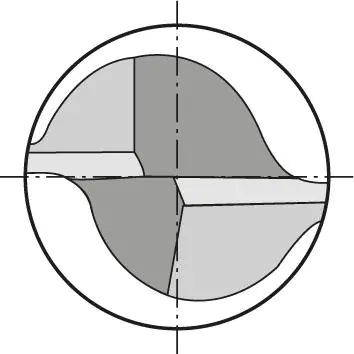

Execution: with center blade, suitable for drilling.
It is recommended to use tools only in shrink or hydraulic chucks.
Application: for copy milling and grooving and for universal corner radius machining to reduce notch effect on the workpiece – less corner wear when milling grooves. For HSC high-speed machining.
Milling cutter mandr.dlugiDIN6527full.FIRE,gripHA,2-os.16/1mm GÜHRING
PLN 731.58
Shipping from warehouse: B6
Estimated shipping: Mon, Apr 6 - Wed, Apr 8
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- GÜHRING
- Product code:
- 9035610160100 / 4031093718721
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

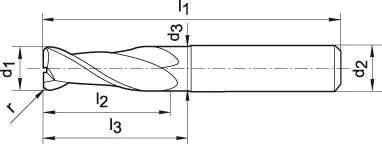

| Corner radius r: | 1.0 mm |
| Cutting part length l2: | 26 mm |
| Diameter d1 = h 10: | 16 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 64 |
| Inox duplex: | 51 |
| Inox ferrite./martenz.: | 80 |
| Neck diameter d3: | 15.5 mm |
| Neck length l3: | 44 mm |
| Shank diameter d2 = h6: | 16 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.054 mm/rev |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 92 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
