Digital micrometer diameter machine
Design: with 3-line contact, self-centering measuring head, measuring sensor from 12 mm reinforced with cemented carbide. From 40 mm measuring head made of aluminum to reduce weight, 8.5 mm LCD digit height, variable data output with radio connection (with optional transmitter module), RS232, Digimatic and USB. Delivery with basic device, measuring head and CR2032 battery, 3 V, in case.
Functions: mm/inch switching, automatic activation by turning the drum, button lock for set zero position, no need to reset after switching on (Absolut system), reset (reset) possible in any position, preset function (preset of the measured value), ABS (switch from relative to absolute measurement).

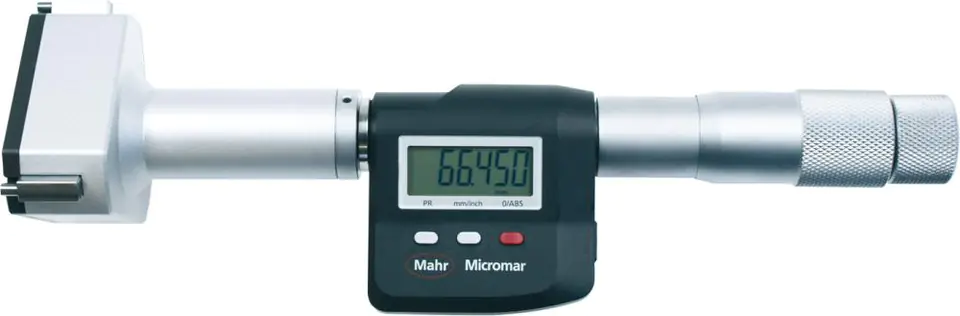

Micrometer diameter. 3-point,digital 100-125mm MAHR
This product is not available
- Availability:
- expected delivery
- Brand:
- Mahr
- Product code:
- 4191034 / 4059192010850
Share this product:
Specification
| Depth of measurement: | 132 mm |
|---|---|
| Error limit: | 6 μm |
| Measuring range: | 100-125 mm |
| Read: | 0.001 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
