Gun for internal measurements
Design: adapter thread for changing measuring heads, self-centering measuring head with three measuring sensors protruding from the side, offset by 120°, measuring sensor from 12 mm reinforced with cemented carbide. From 12mm measuring sensor to hole bottom, from 40mm measuring head made of aluminum to reduce weight. Delivery: basic device, measuring head, without indicating device, in case.
Application: for measuring through holes, blind holes and centering edges.

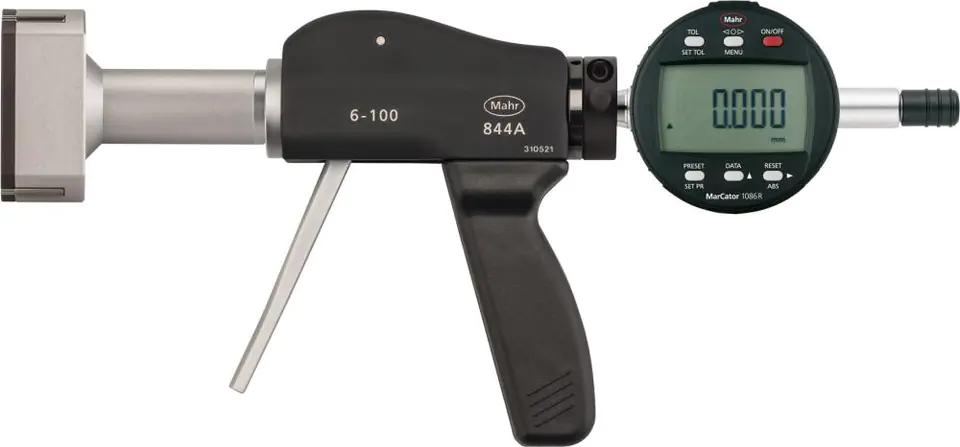

Measuring gun with measuring head 12-16mm MAHR
PLN 5,112.16
Shipping from warehouse: B6
Estimated shipping: Thu, Feb 5 - Mon, Feb 9
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Mahr
- Product code:
- 4487703 / 4059192021498
Share this product:
Specification
| Depth of measurement: | 64 mm |
|---|---|
| Error limit: | 3 μm |
| Measuring depth with extension: | 139 mm |
| Measuring range: | 12-16 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
