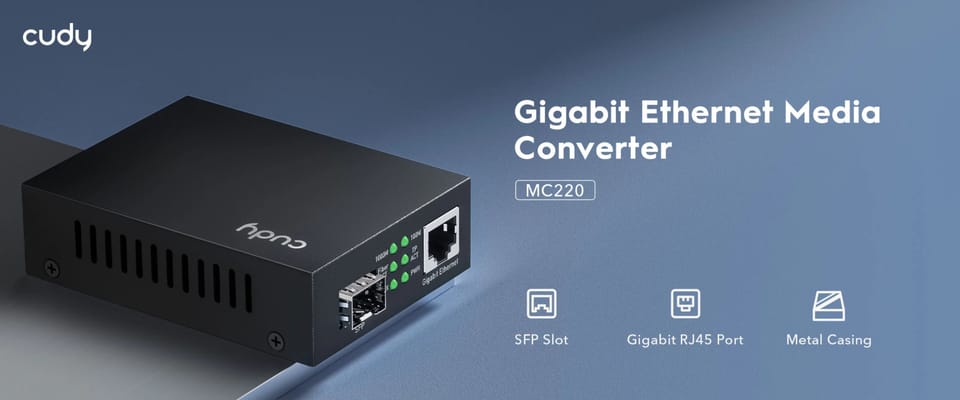

Ethernet 10/100/1000 Mb/s media converter MC220
- 1x RJ45 connector 10M / 100M / 1000M
- 1x SFP
- Supports full duplex and half duplex
- 2Mbit RAM per data buffer
- Supports a jumbo frame size of 9 KB
Qualcomm Inside
Qualcomm chip inside provides stable transmission, stable performance and strong anti-interference capabilities.
- Lightning protection.
- Strong anti-interference capability.
- High speed and stable signal conversion.
Easy to view
Highly visible LED indicators show status to easily monitor network activity.
- FP: ON: maximum fibre speed, OFF: no maximum speed.
- TP: ON: maximum Ethernet speed, OFF: other than maximum speed
- Link / ACT: flashes when sending and receiving
- FDX: ON: full duplex mode, OFF: half duplex
- PWR: ON: on, OFF: off
Heat dissipation
Made of high-quality metal casing, durable and long-lasting with better heat dissipation, suitable for indoor and outdoor operation.
- Operating temperature: 0°C to 70°C
- Storage temperature: -45°C to 80°C
High performance
- Average time between failures > 50000 hours.
- 2Mbit RAM per data buffer
- Supports a jumbo frame size of 9 KB
Voltage range 100V ~ 240V
- Supports a voltage range of 100V ~ 240V
- DC current: 5 V DC 1.0 A
- Power consumption: 3 watts
Plug-and-play
- Plug-and-play, no additional software required.
- Modulation configuration design, support hot swap.
