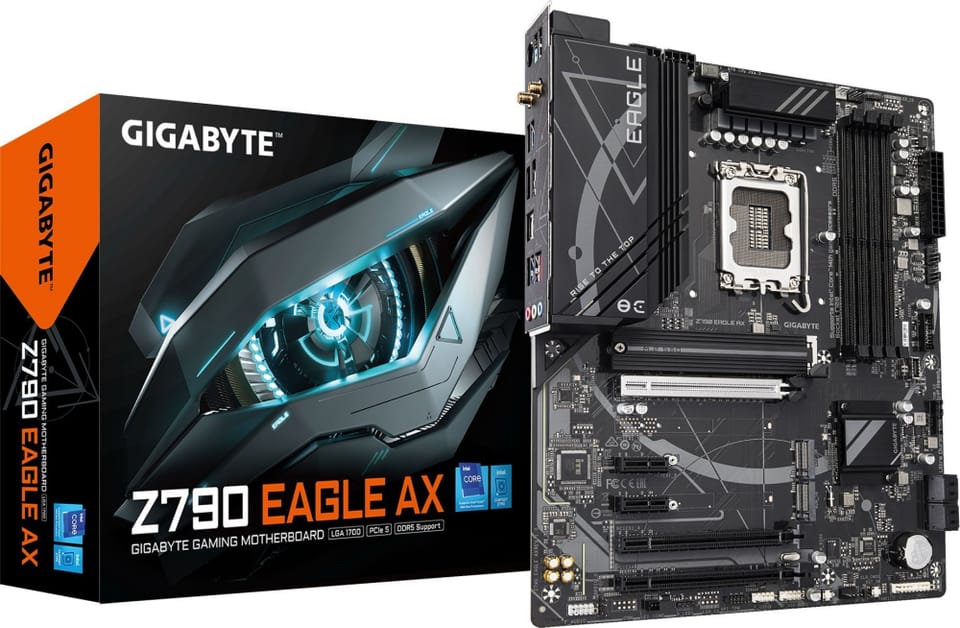

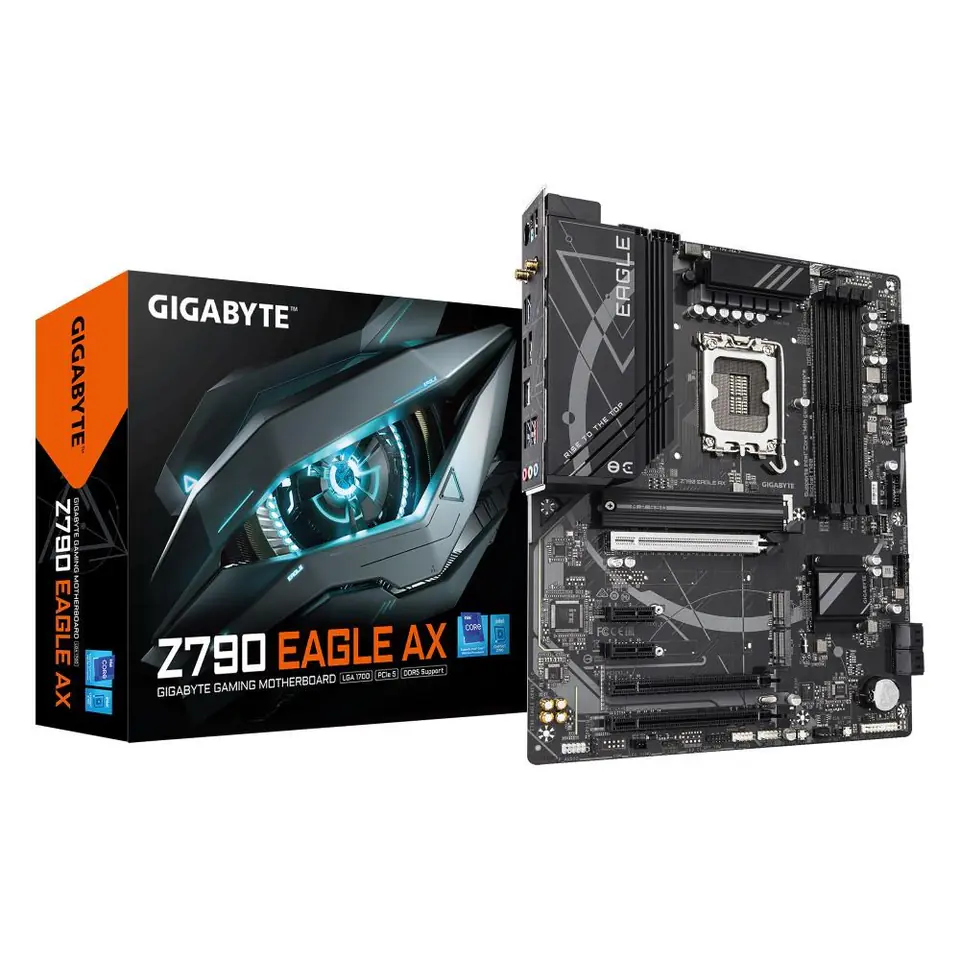

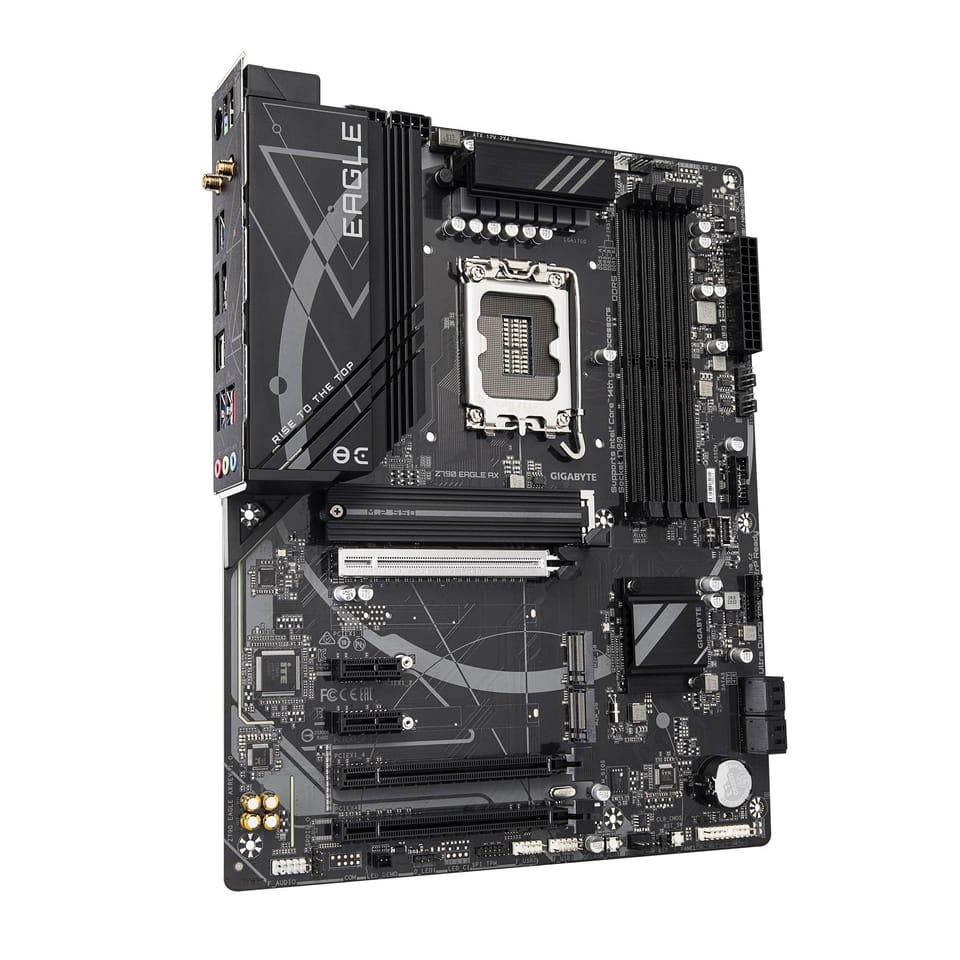

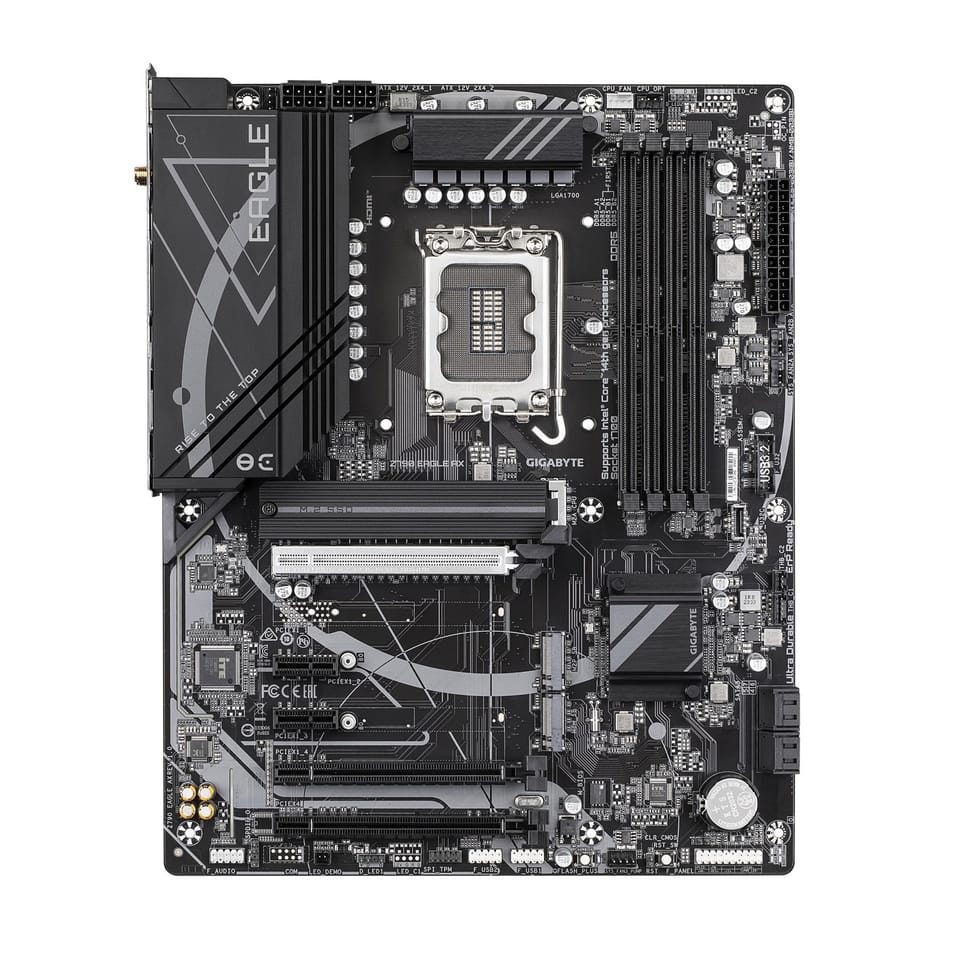

MB Z790 S1700 ATX/Z790 EAGLE AX GIGABYTE

€301.30

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: Z790 EAGLE AX / 4719331860998

Specification

12v power connector:	Yes
Acpi version:	5.0
Antenna included:	Yes
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios memory size:	256 Mbit
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.3
Cables included:	SATA
Clear cmos button:	Yes
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i5, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Celeron®
Component for:	PC
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Discrete graphics support:	Yes
Displayport version:	1.2
Displayports quantity:	1
Ecc:	Yes
Ecc сompatibility:	ECC & Non-ECC
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.1
Headphone outputs:	1
Height:	35 mm
Lithium weight per battery:	0.07 g
Maximum internal memory:	192 GB
Maximum internal memory supported by processor:	192 GB
Maximum number of smp processors:	1
Maximum resolution:	4096 x 2304 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel Z790 Express
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Non-ecc:	Yes
Number of battery cells:	1
Number of eatx power connectors:	2
Number of hdds supported:	4
Number of m.2 (m) slots:	3
Number of memory slots:	4
Number of sata iii connectors:	4
Number of storage drives supported:	7
On-board graphics card:	No
Package depth:	270 mm
Package height:	80 mm
Package weight:	1.81 kg
Package width:	335 mm
Parallel processing technology support:	Not supported
Pc health monitoring:	Temperature, Fan, Water cooling, Voltage
Pci express x1 (gen 3.x) slots:	2
Pci express x16 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 (gen 5.x) slots:	1
Power source type:	ATX
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product colour:	Bronze
Products per shipping (inner) case:	1 pc(s)
Ps/2 ports quantity:	1
Raid levels:	10, 1, 0, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory clock speed (max):	7600 MHz
Supported memory clock speeds:	5800, 5400, 4400 MHz, 5600, 6800, 7200, 5200, 7400, 6400, 6200, 6600, 7600 MHz, 6000 MHz, 7000, 4800 MHz
Supported memory module capacities:	8GB, 1GB, 2GB, 4GB, 48GB, 32GB, 16GB, 12GB
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
System management bios (smbios) version:	2.7
Thunderbolt headers:	2
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2x2 type-c ports quantity:	1
Usb connector type:	USB Type-C, USB Type-A
Warranty period:	3 year(s)
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Wlan controller model:	Intel Wi-Fi 6E AX211

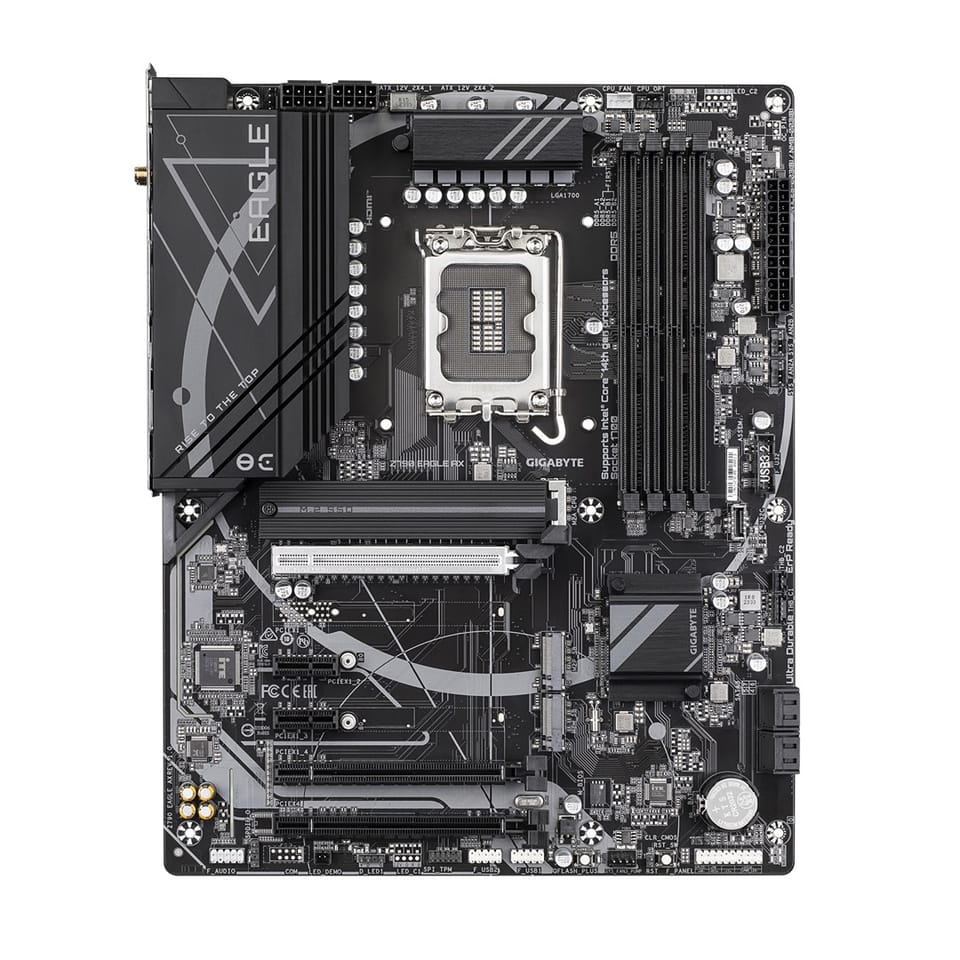

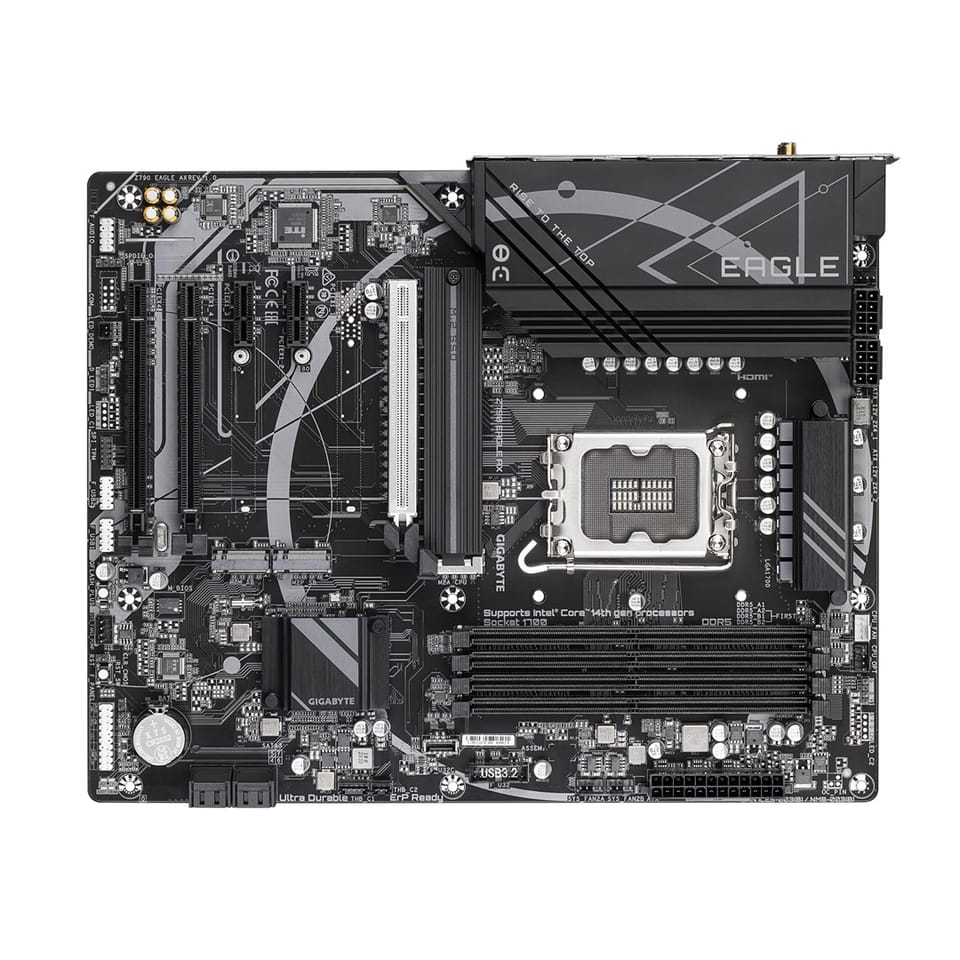

Z790 EAGLE AX

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution
Dual Channel DDR5: 4 x DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage: 3xPCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

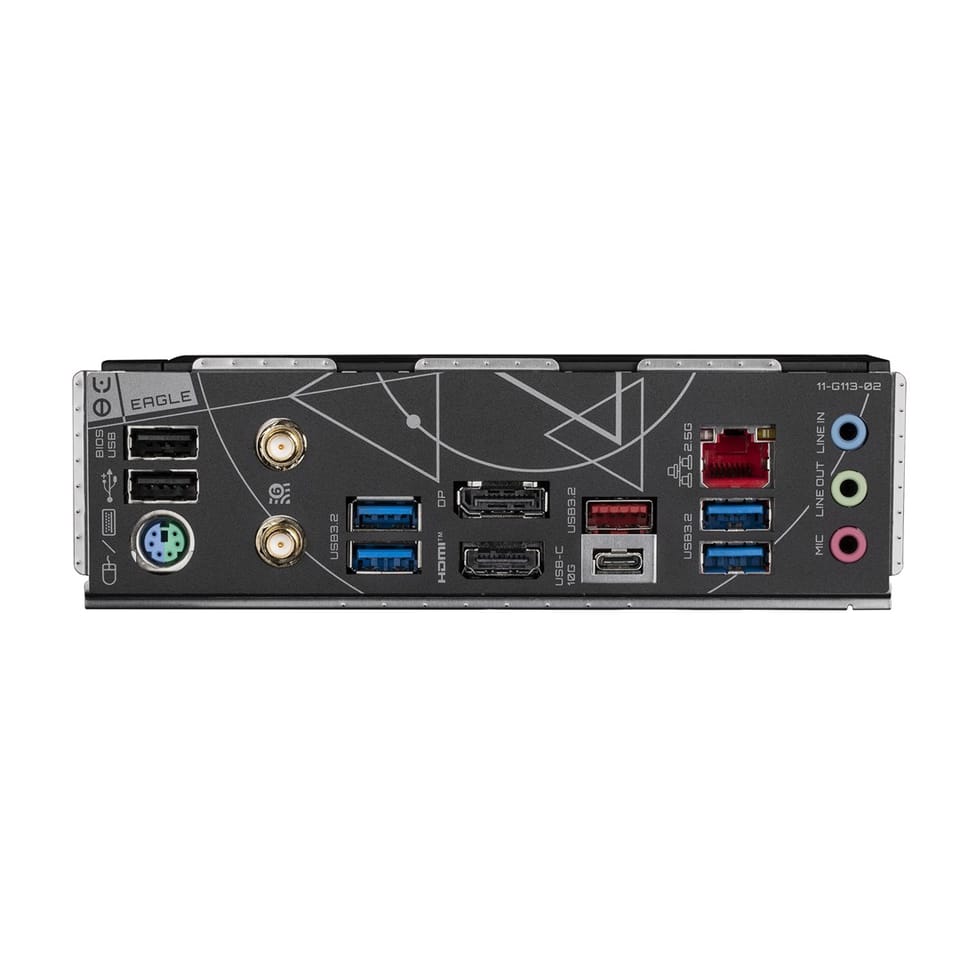

Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable PerformanceGIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

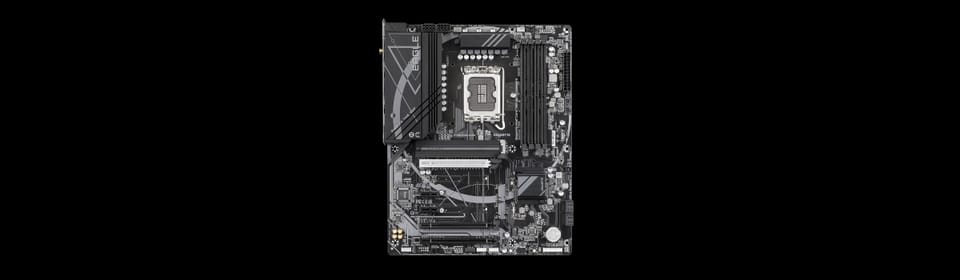

Digital VRM DesignThe best VRM design ever built with the highest quality components.

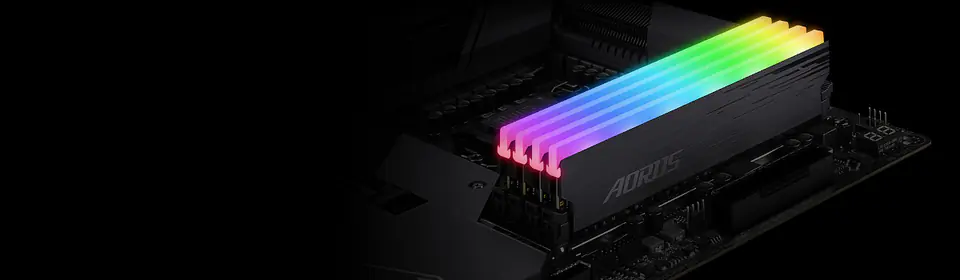

Unlock DDR5DDR5 Overclocking Up to 7600 and BeyondGIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Future ConnectivityThe ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

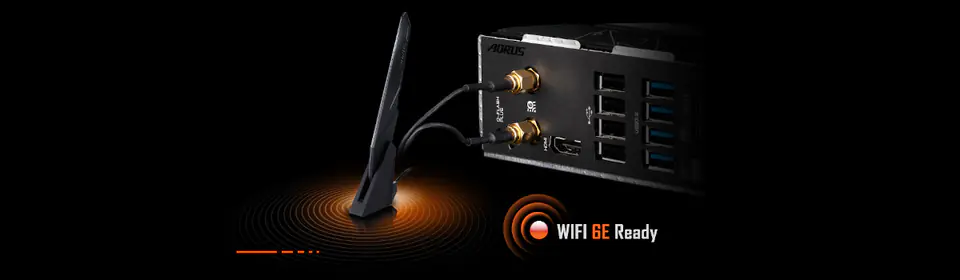

802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LANSupercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware DesignFeaturing PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.

Hi-Fi AudioHigh-End Audio CapacitorsThese high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise GuardEssentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy FriendlyInnovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-LatchUnlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory, and graphics card.
