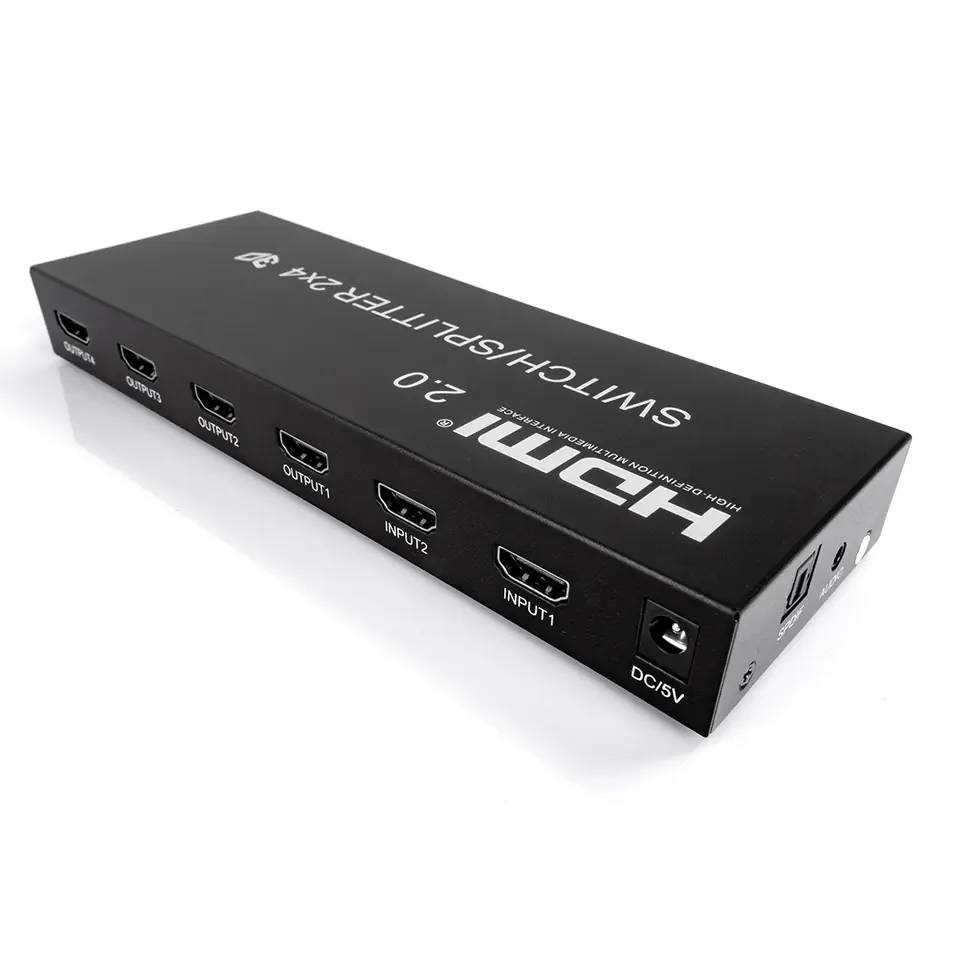

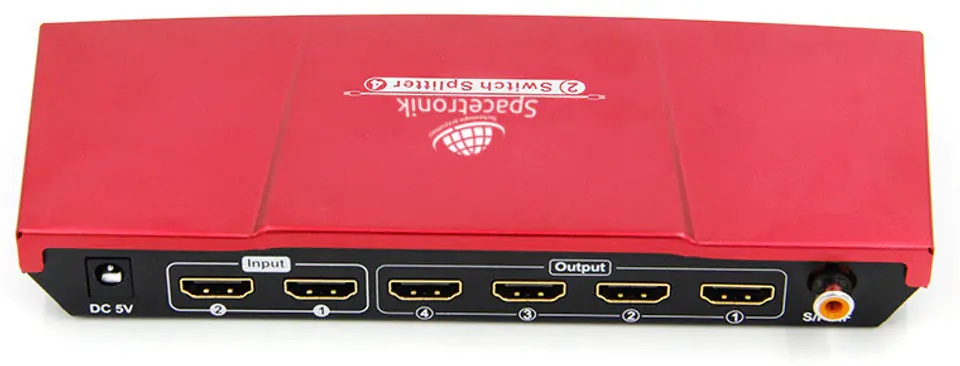

Matrix HDMI 2/4 Spacetronics SPH-M241 4K

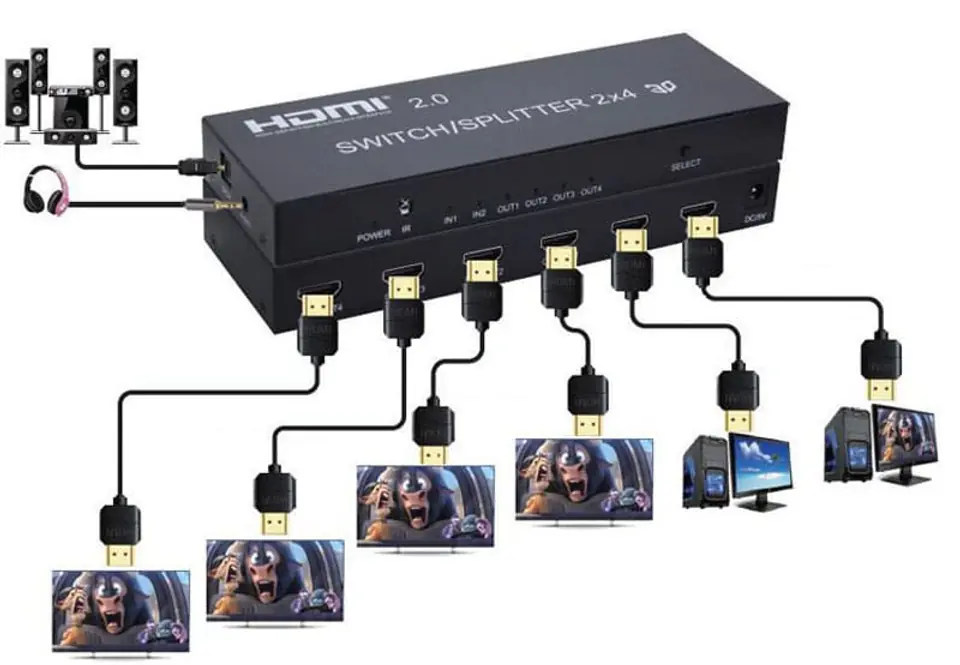

Matrix HDMI 2x4 can combine 2 HD signal sources with 4 HD displays, in addition, the device has a toslink output or stereo headphones. Matrix allows you to easily switch or split two HDMI devices into four HDMI-compatible monitors or projectors. The output ports can realize independent audio output through a stereo headset. The device is ideal for data center control, information distribution, conference room presentations, school and training environments.
- Support 3D video format
- Support 4K (input) 4K (output) resolution - Also capable of upscaling down
- Support 4 HDMI audio outputs
- 2 HDMI inputs switch and split into 2 HDMI displays.
- Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD channel
- HDMI version: HDMI 2.0
- HDMI resolution: up to 3840x2160 4K@60 Hz
- Audio format support: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Maximum bandwidth: 600MHz
- Maximum bitrate: 6 Gbps
- Input cable distance: 4K@30Hz ≤10M AWG26 HDMI 4K@60Hz ≤5M HDMI 2.0
- Output cable distance: 4K@30Hz ≤10M AWG26 HDMI 4K@60Hz ≤5M HDMI 2.0
- HDMI input: 2
- HDMI output: 4
- Maximum working current: 600mA
- Power supply format: Input: AC (50 Hz, 60 Hz) 100V-240V; Output: DC5V/1A
- Operating temperature range: (-15 to +45 °C)
- Operating humidity range: 5 to 90% RH (non-condensing)
- Dimensions (LxWxH): 200 x 70 x 25 (mm)
- Weight: 280g

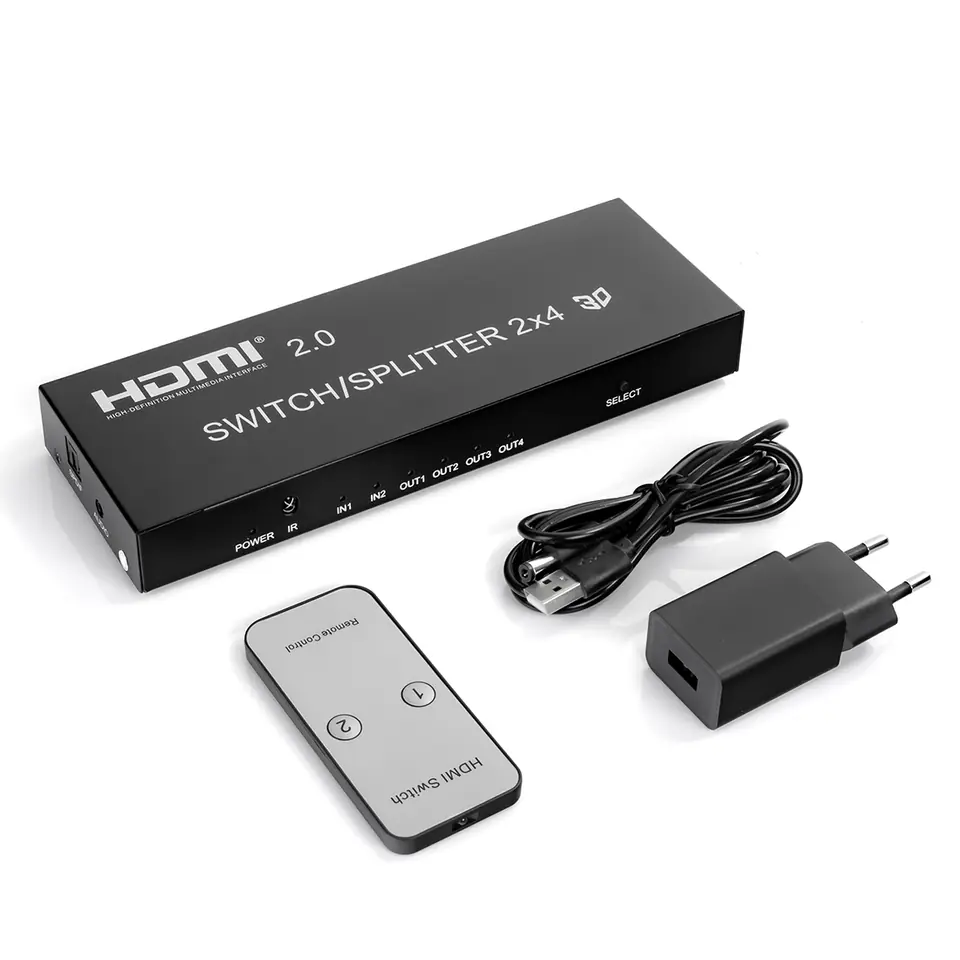

- Matrix 2/4
- Power supply
- Remote control
