Manufacturer no: 10030676

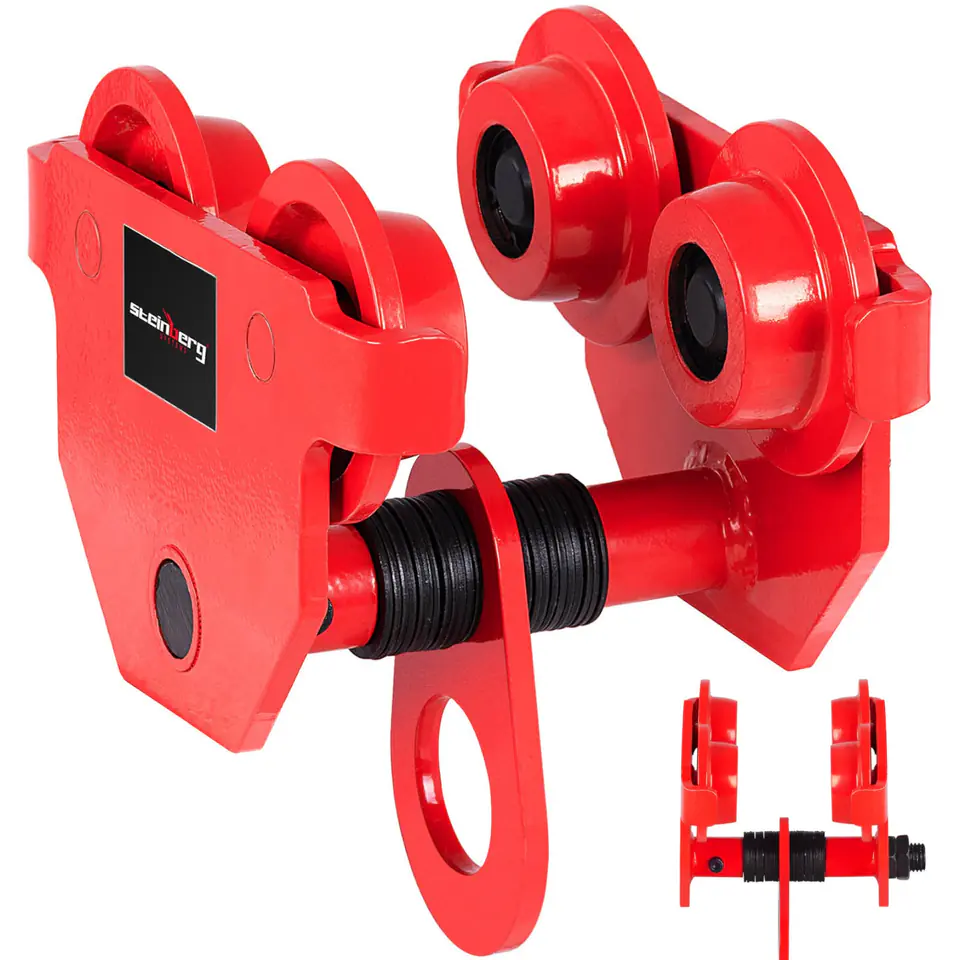

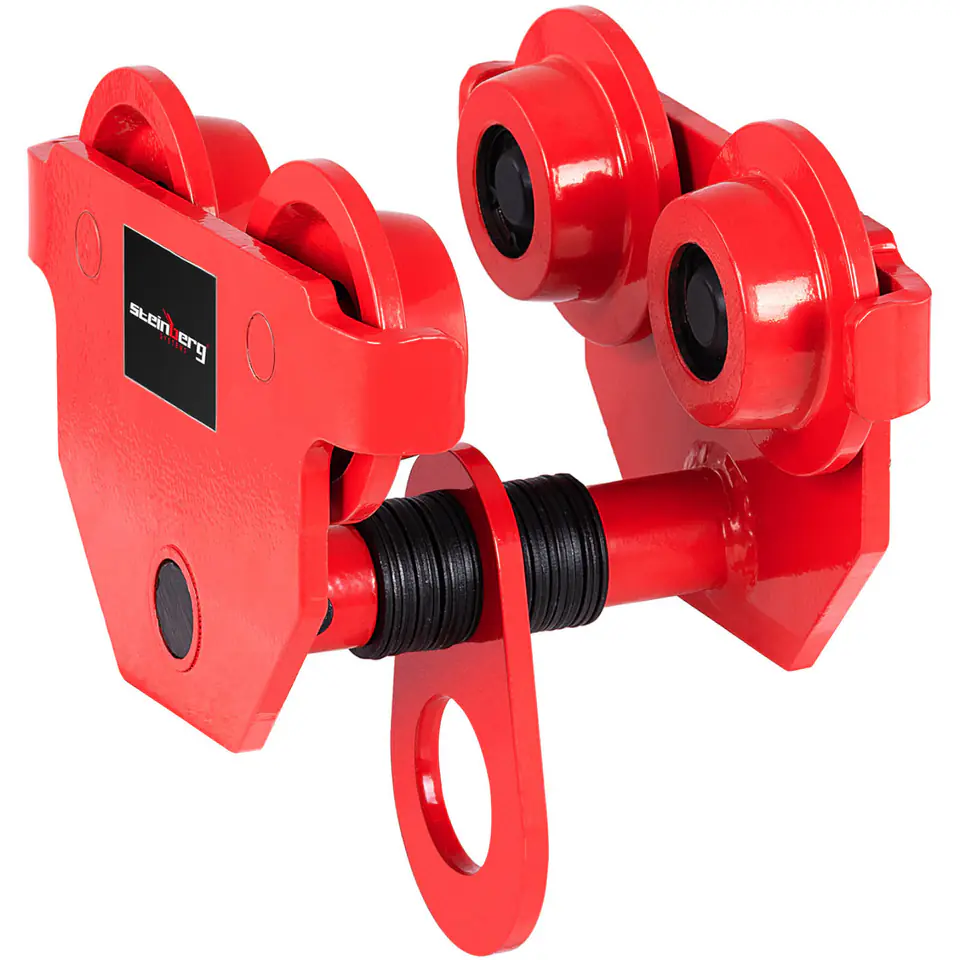

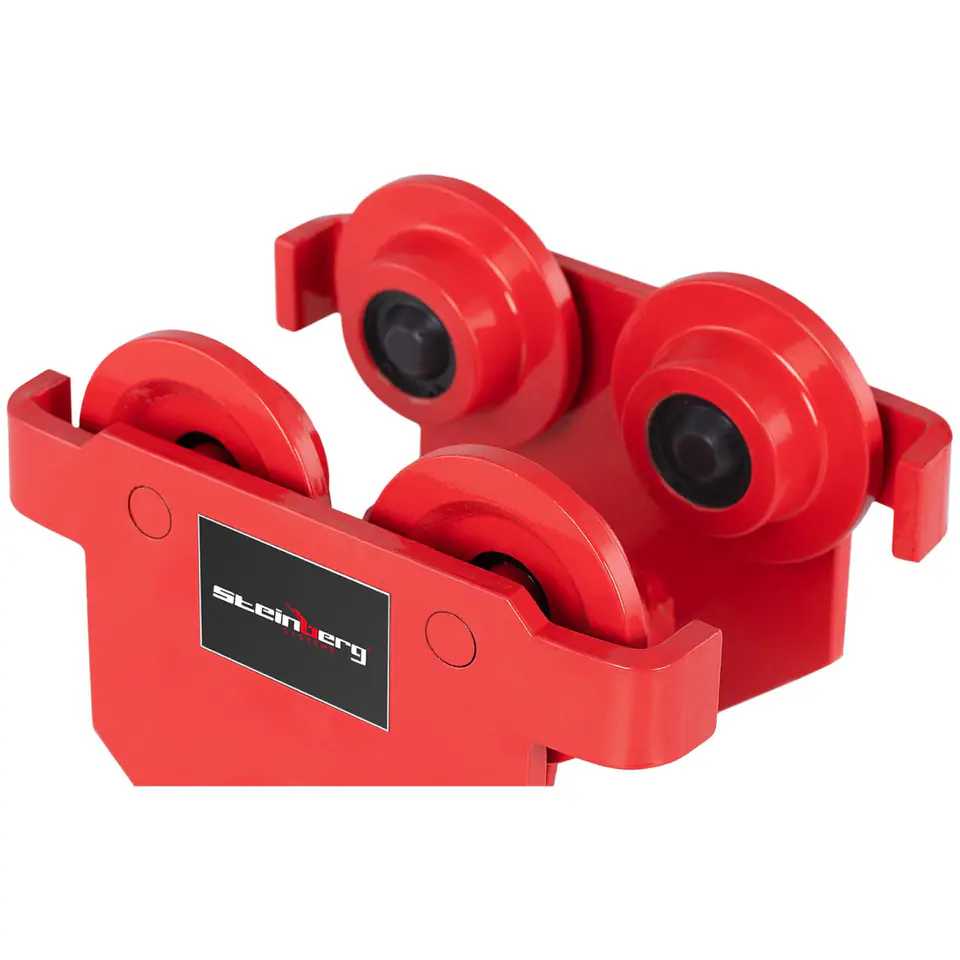

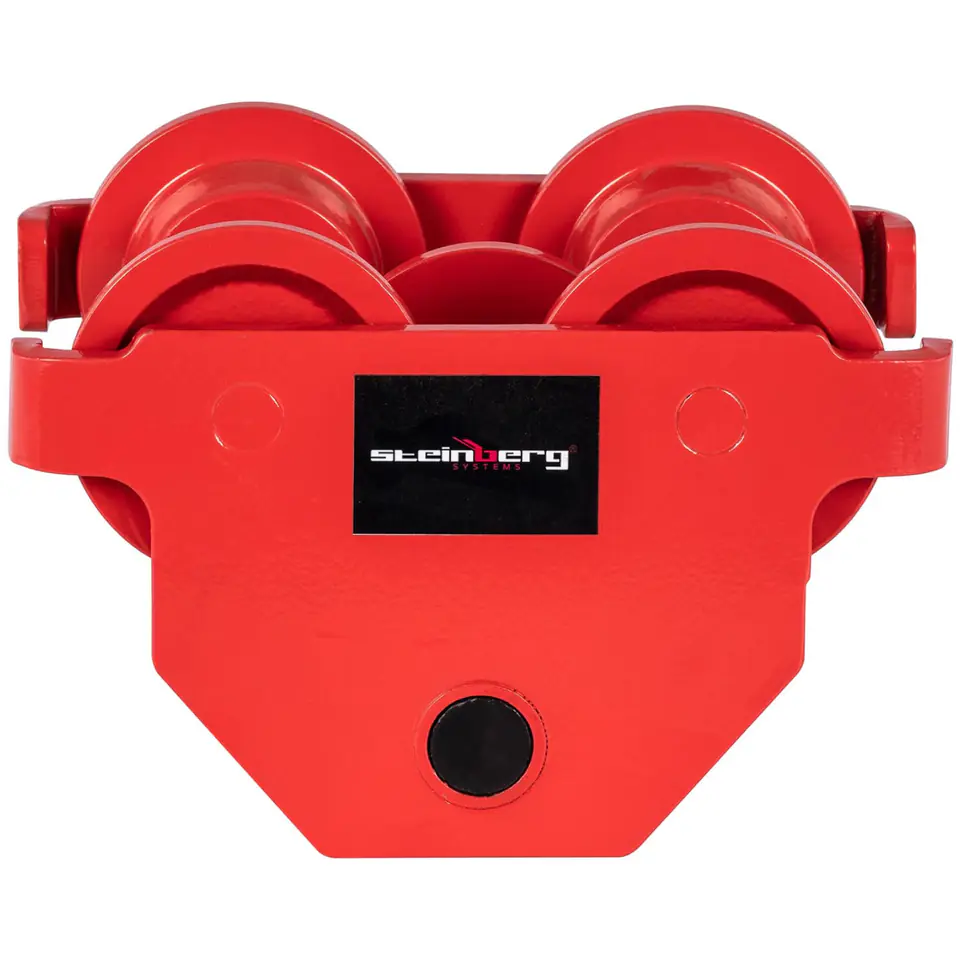

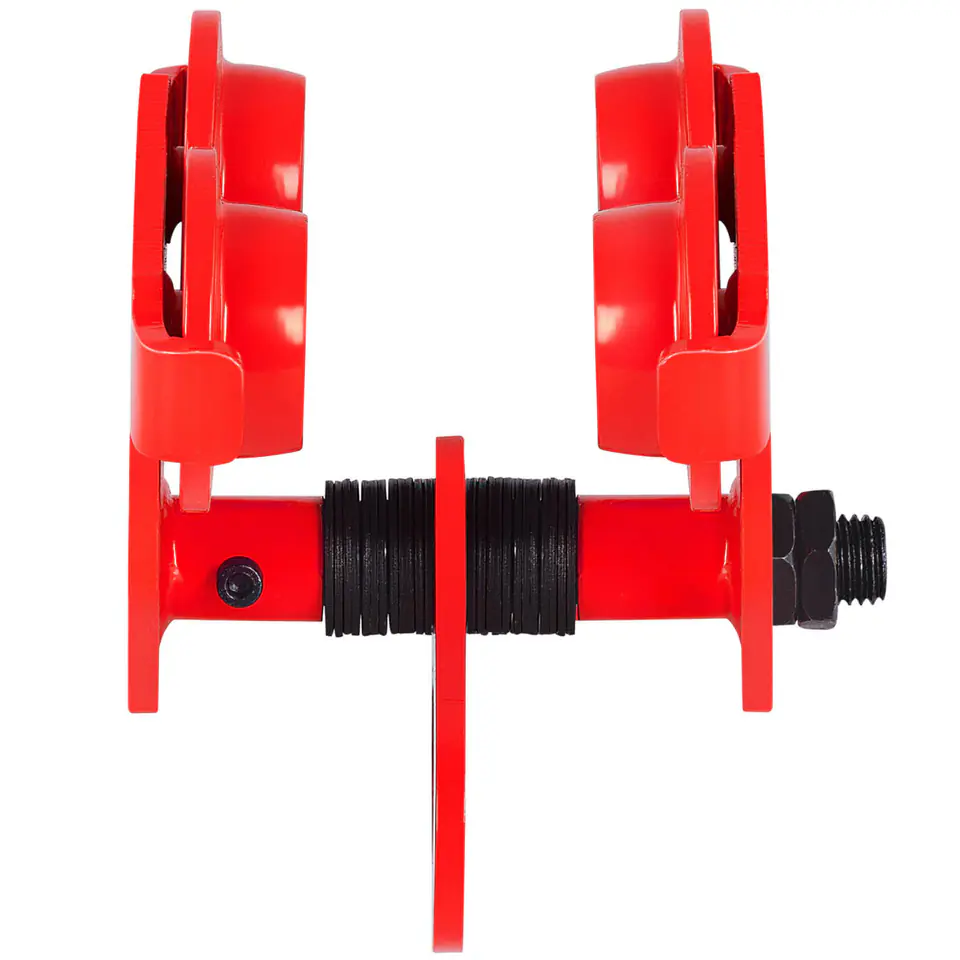

The crane trolley from Steinberg Systems is a device for moving heavy loads in a straight line, e.g. on an I-beam. The lifting capacity is max. 1000 kg (it must not be exceeded!). The equipment is safe to use and easy to maintain. The adjustment range is in the range of 65-110 mm, and thanks to the rims it is possible to move on curved profiles. The free spacing of the idlers to the crane is ensured by shafts without axles. This eliminates friction, resulting in longer equipment life and lighter handling. A special tread allows for a slope above 1:6 or below 1:6.
Product features:
- - Equipment with a load capacity of up to 1000 kg,
- - Safety factor 1,25,
- - Double roller system,
- - Adjustment in the range of 65-110 mm,
- - Ability to move around curved profiles.
- - Catalogue number - 10030676
- - Article status - New
- - Manufacturer - Steinberg Systems
- - Model - SBS-RT-1000N2
- - Adjustment range [mm] - 65-110
- - Mandrel material - Carbon steel Q235
- -Max. lifting capacity [kg] - 1000
- - Safety factor - 1,25
- - Wheels - 4 x cast iron wheel
- - Dimensions (LxWxH) [cm] - 22 x 16 x 16
- - Weight [kg] - 13
- - Shipping dimensions (LxWxH) [cm] - 25 x 22 x 18
- - Shipping weight [kg] - 14.4
- - Crane trolley,
- -Manual.
