Manufacturer number: MSW 10060181

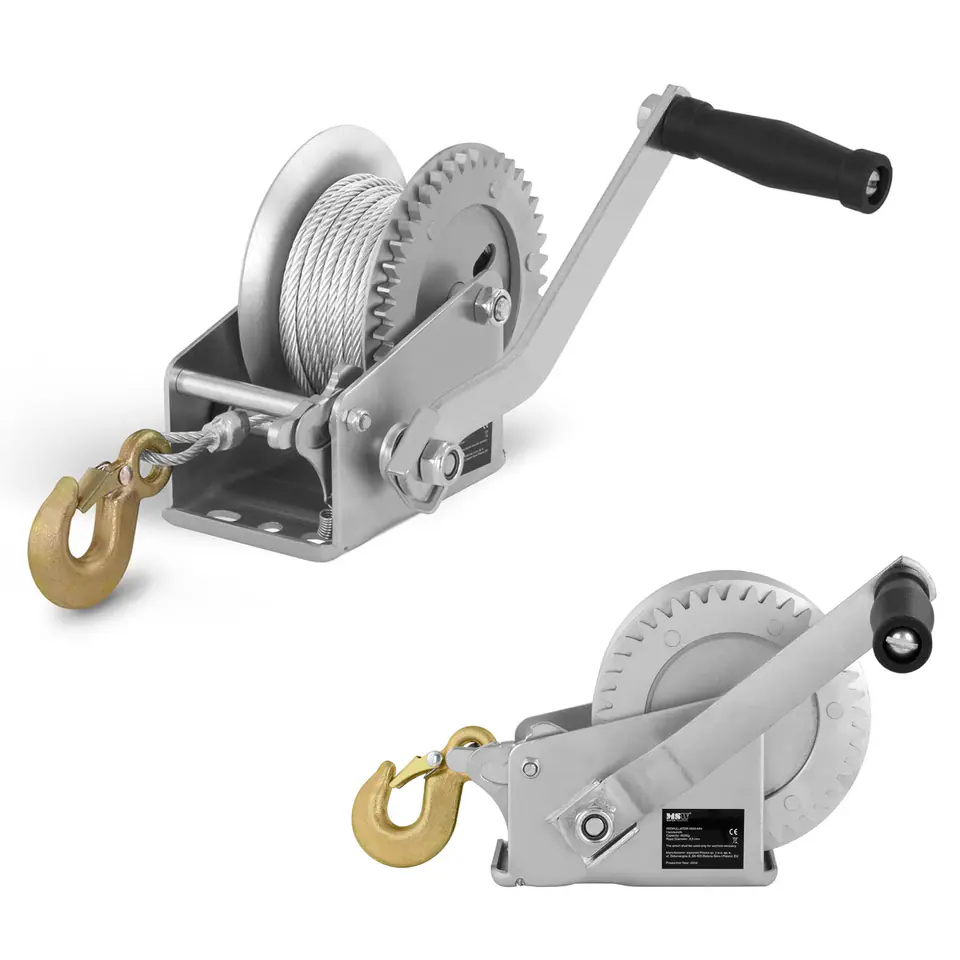

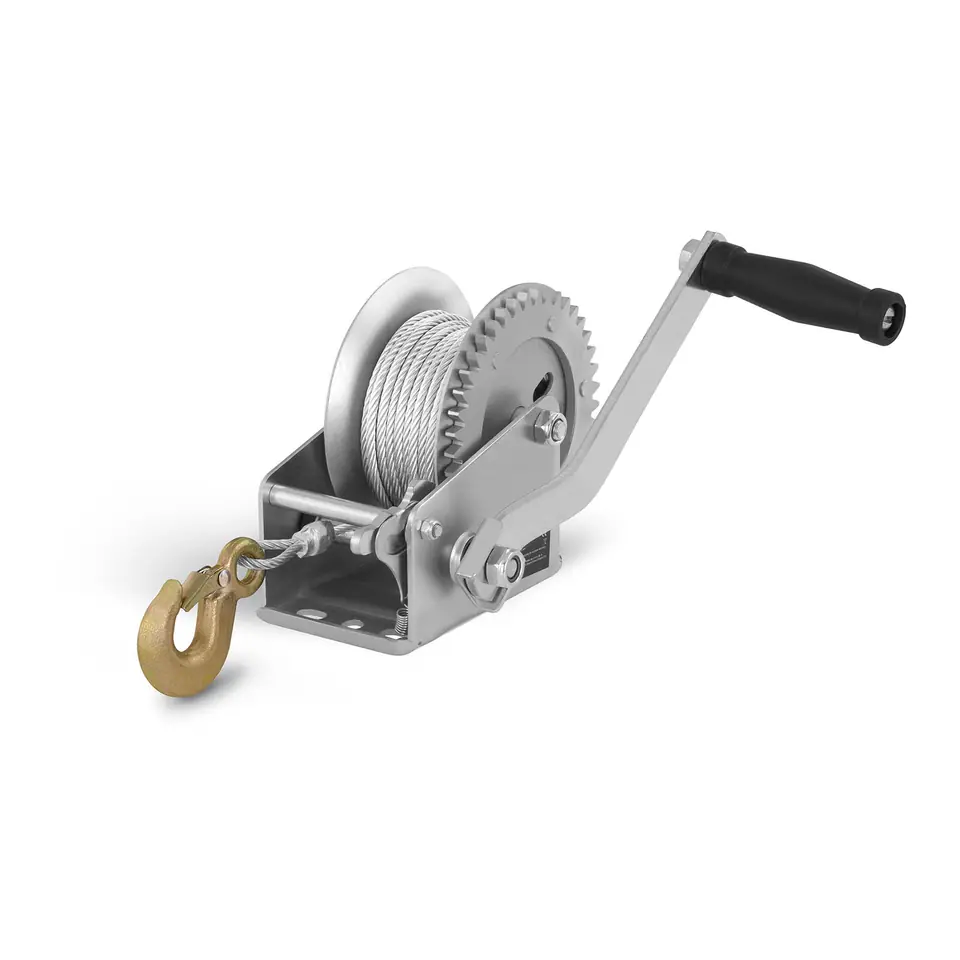

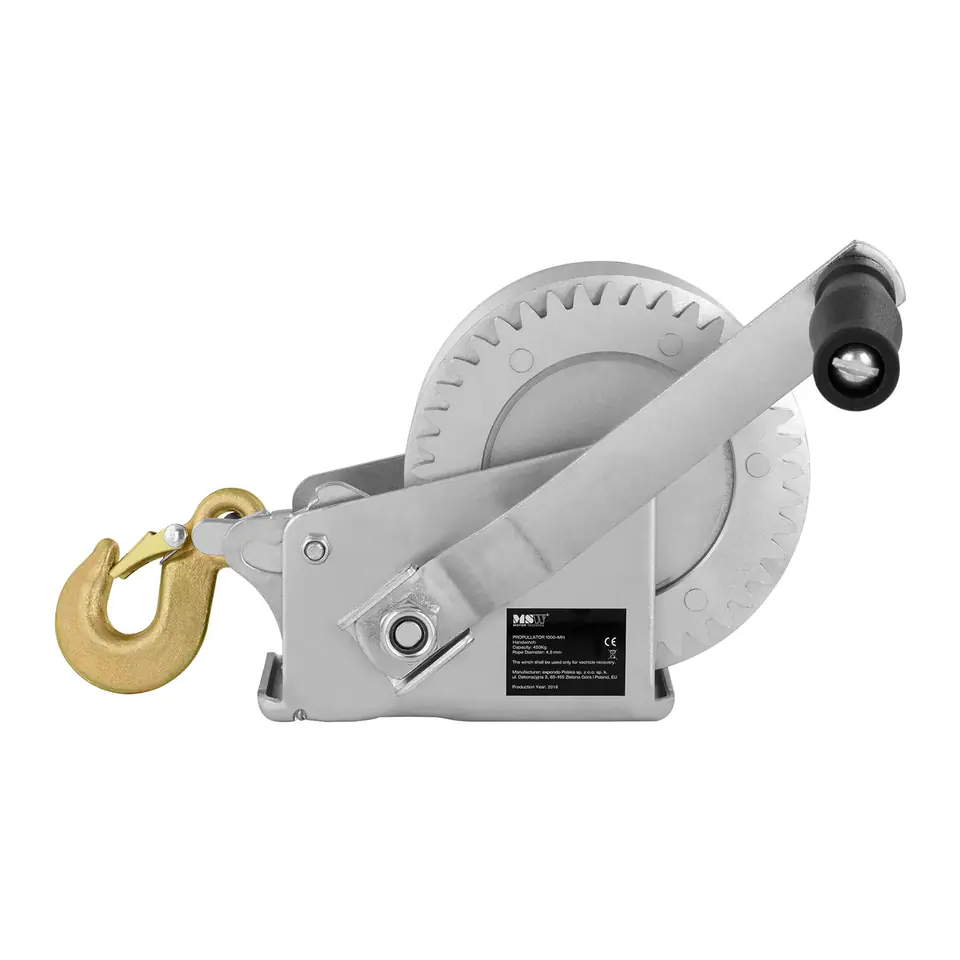

A practical manual crank winch is able to pull objects weighing up to 1200 kg if they are on wheels. For lying and floating objects, the maximum lifting capacity is 450 kg and 950 kg respectively . Thanks to the use of a 3.5: 1 touch, the equipment effectively converts muscle strength into pulling force, which allows for smooth use of the winch. A firm grip is guaranteed by a swivel handle mounted on the crank.
The product is equipped with a rope with a length of 10 m made of galvanized steel. It is characterized by resistance to twists and long service life. In addition, a strong hook with a latch is placed at its end. Galvanized steel is also responsible for the high strength of the housing . It affects the resistance of the equipment to damage and weather conditions.
Safety during operation is guaranteed by an automatic braking system. In the event of loss of adhesion, it ensures that the retractable object remains in place. In addition, the ratchet mechanism ensures a confident rotation of the crank.
Product features:
- - Power - high lifting capacity, the possibility of increasing the force with the help of a blob,
- - Safety - automatic brake, ratchet mechanism,
- - Efficiency - smooth operation ensured by applying 3.5: 1,
- - Strength - housing and rope made of galvanized steel.
- - Model - PROPULLATOR 1000-MH
- - Catalog no. - 10060181
- - Housing material - Galvanized steel
- - Rope material - Galvanized steel
- - Crank operation - Manual
- - Gear ratio - 3.5:1
- - Pulling force - 450 kg for standing/lying objects / 950 kg for floating objects / 1200 kg for rolling objects
- - Rope length - 10 m total; 9.5 m usable
- - Rope diameter - 4 mm
- - Brake system - Automatic
- - Work control - Crank mechanism with ratchet
- - Mounting plate size (LxW) - 14 x 9 cm
- - Mounting plate thickness - 4 mm
- - Freewheel function - Yes
- - Dimensions (LxWxH) - 19 x 11.5 x 14.7 cm
- - Weight - 3.45 kg
- - Shipping dimensions (LxWxH) - 22 x 13 x 17 cm
- - Shipping weight - 3.6 kg
- - Hand winch
- - Manual EN
