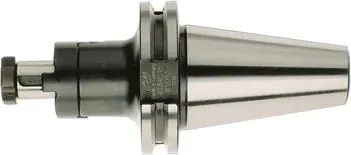

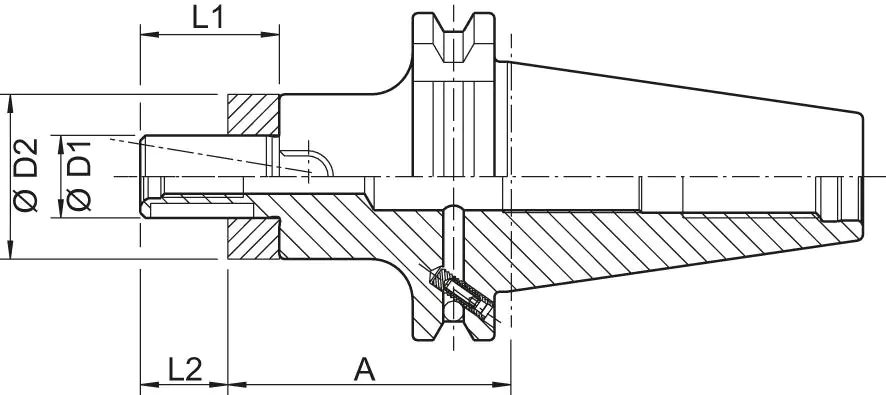

Universal milling pin for mounting the head, DIN 69871, shape AD/B, SK40
Execution: precisely balanced. Alloy steel for carburizing, core tensile strength approx. 950 N/mm2, minimum hardening depth 0.5 mm. Cone acc. to DIN 254. With transverse and longitudinal grooves. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control.
Cone tolerance: AT3
Hardness after quenching: 60 –2 HRC
Application: for mounting DIN 841 and DIN 1880 cylindrical end milling cutters, DIN 842 angle disc milling cutters and DIN 1830 end milling cutters.
Scope of delivery: milling mandrel for mounting the head with cuttering screw, carrier ring and key.
