Mandrel cutter, solid carbide
Application: for circumferential milling, edge milling and high-precision finishing. Extremely quiet operation thanks to the variable 45° groove line for good workpiece surface quality. Significantly longer durability compared to ordinary tools.
Mandrel cutter. SL DIN6527 full. FIRE,type NH,6-person 6mm GÜHRING
€27.96
Shipping from warehouse: B6
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9057450060000 / 4031093685429
Share this product:
Specification
| Aluminium > 8% silicon: | 360 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 220 |

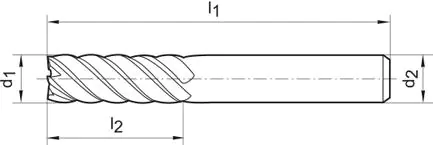

| Cutting part length l2: | 13 mm |
| Diameter d1 = h10: | 6 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 55 |
| Inox austenite.: | 96 |
| Inox duplex: | 77 |
| Inox ferrite./martenz.: | 120 |
| Number of blades: | 6 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.031 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 105 |
| Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
