Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for milling keyways and keyways P9 and for universal machining.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.

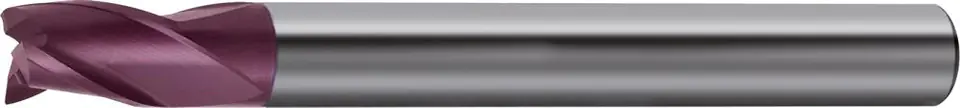

Mandrel cutter, full. TiALN,3-pers.14mm tuple DIN6527,GÜHRING
€71.77
Shipping from warehouse: B6
Estimated shipping: Tue, Aug 5 - Fri, Aug 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9035580140000 / 4031093645836
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 80 |

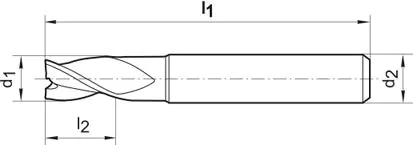

| Cutting part length l2: | 14 mm |
| Diameter d1 = h 10: | 14.0 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Shank diameter d2 = h6: | 14 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.054 mm/rev |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 75 mm |
