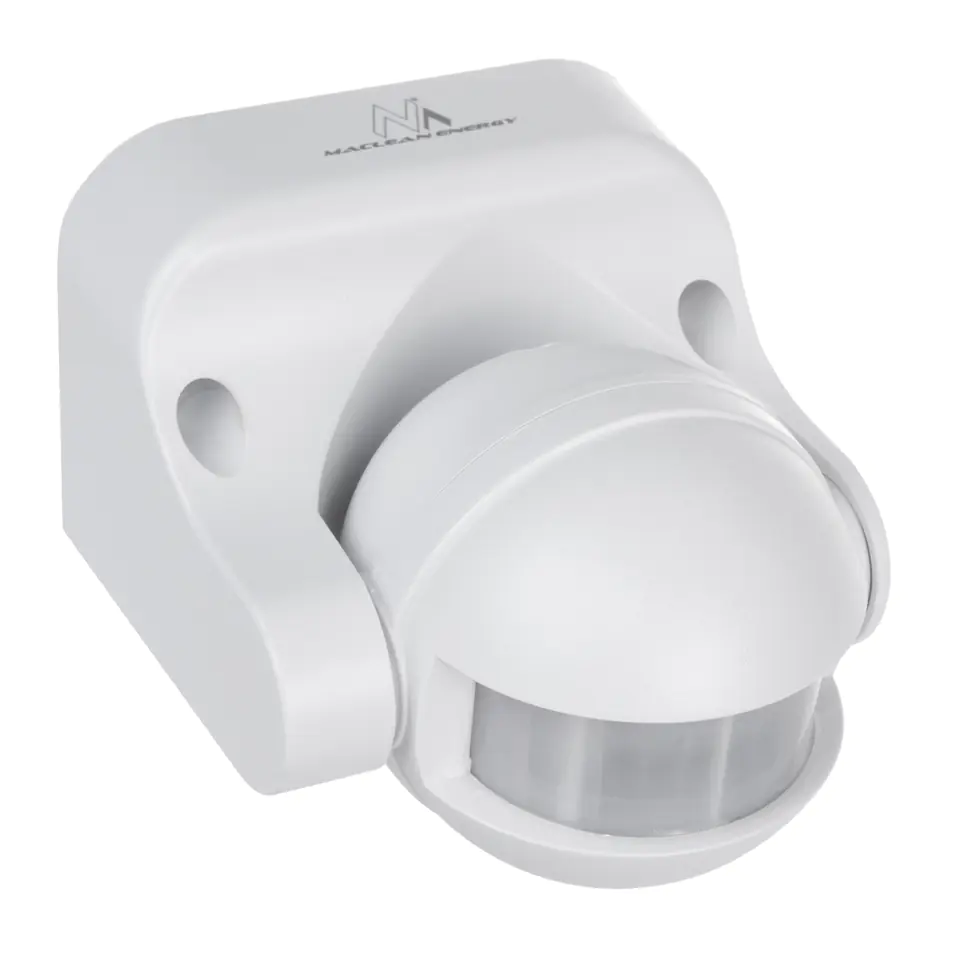

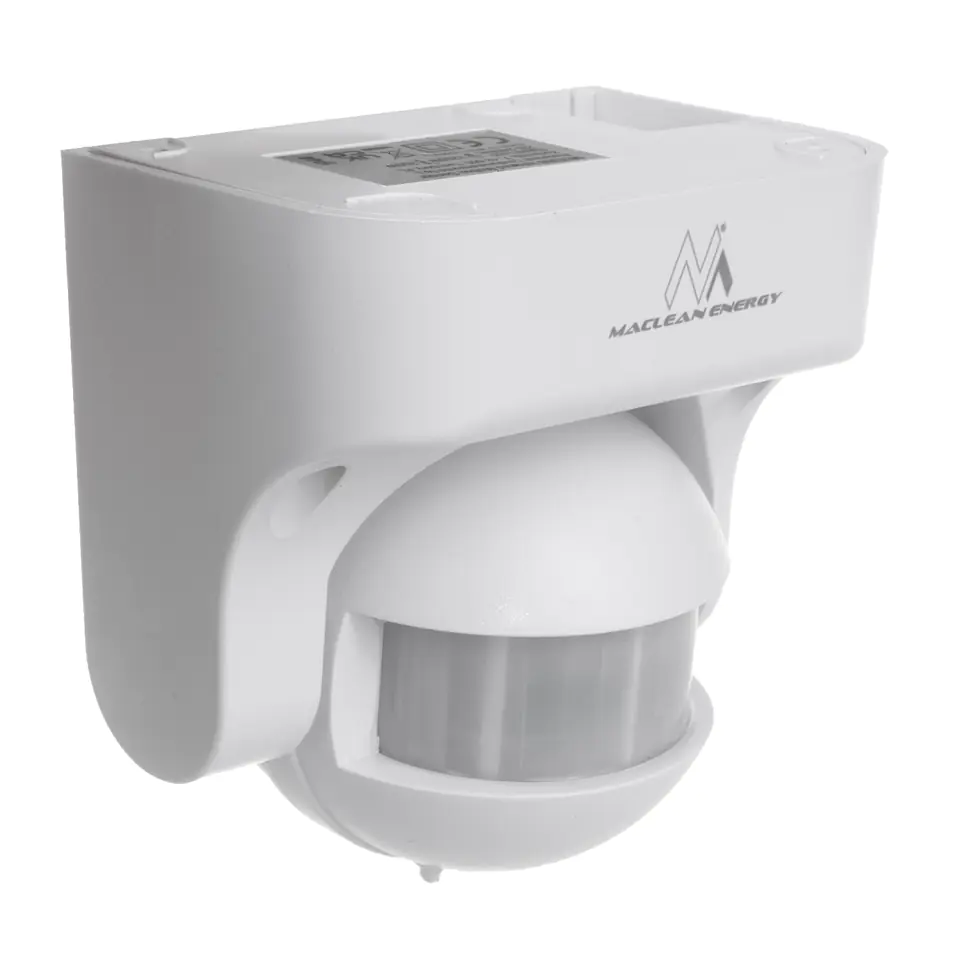

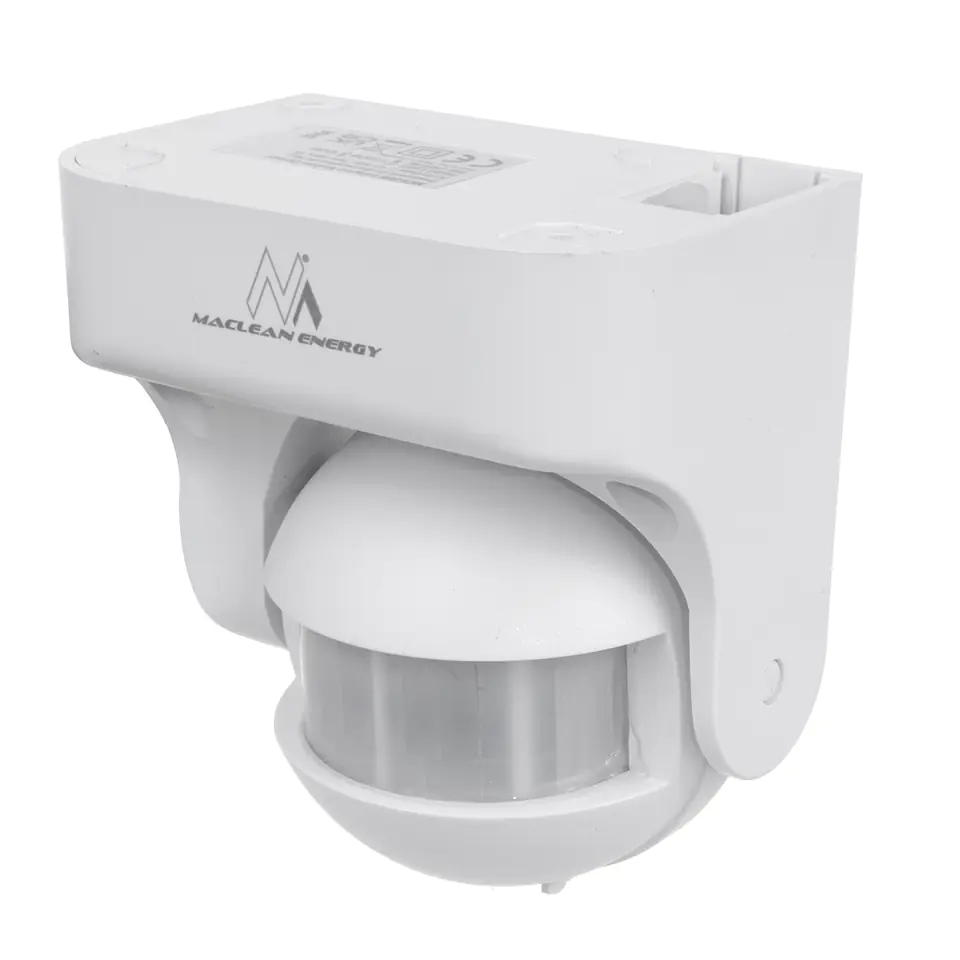

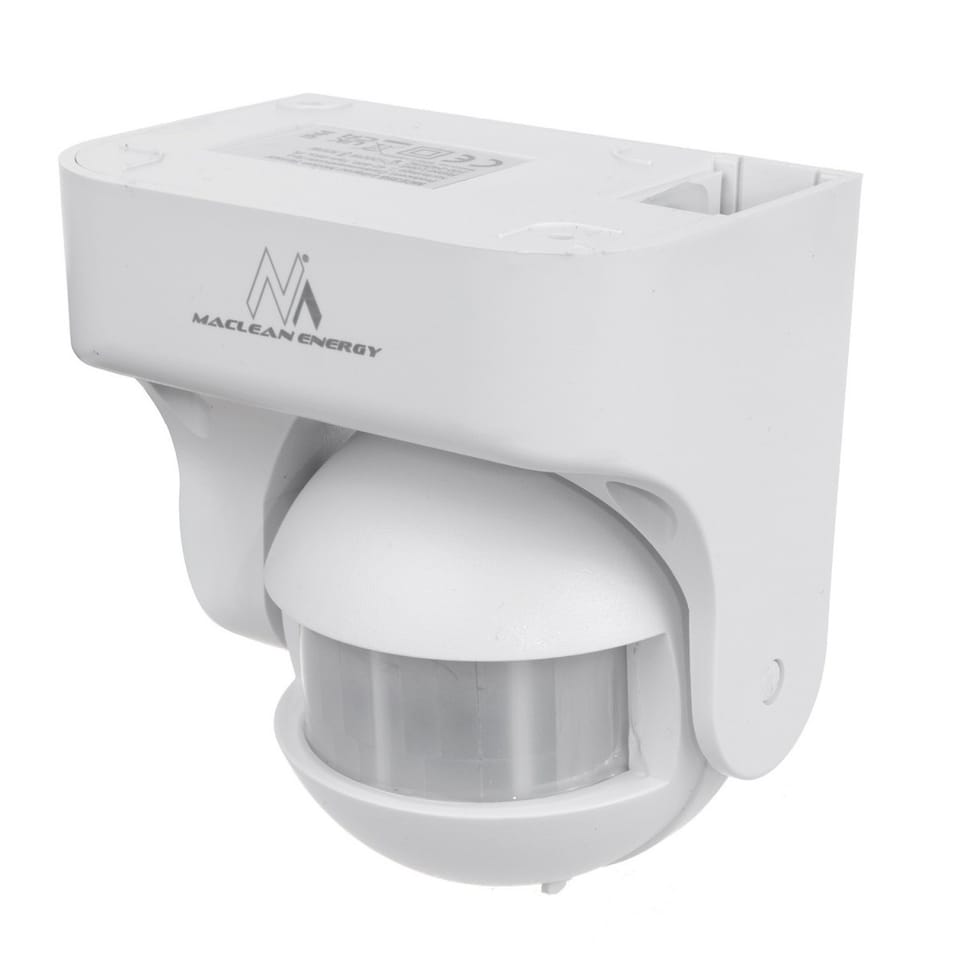

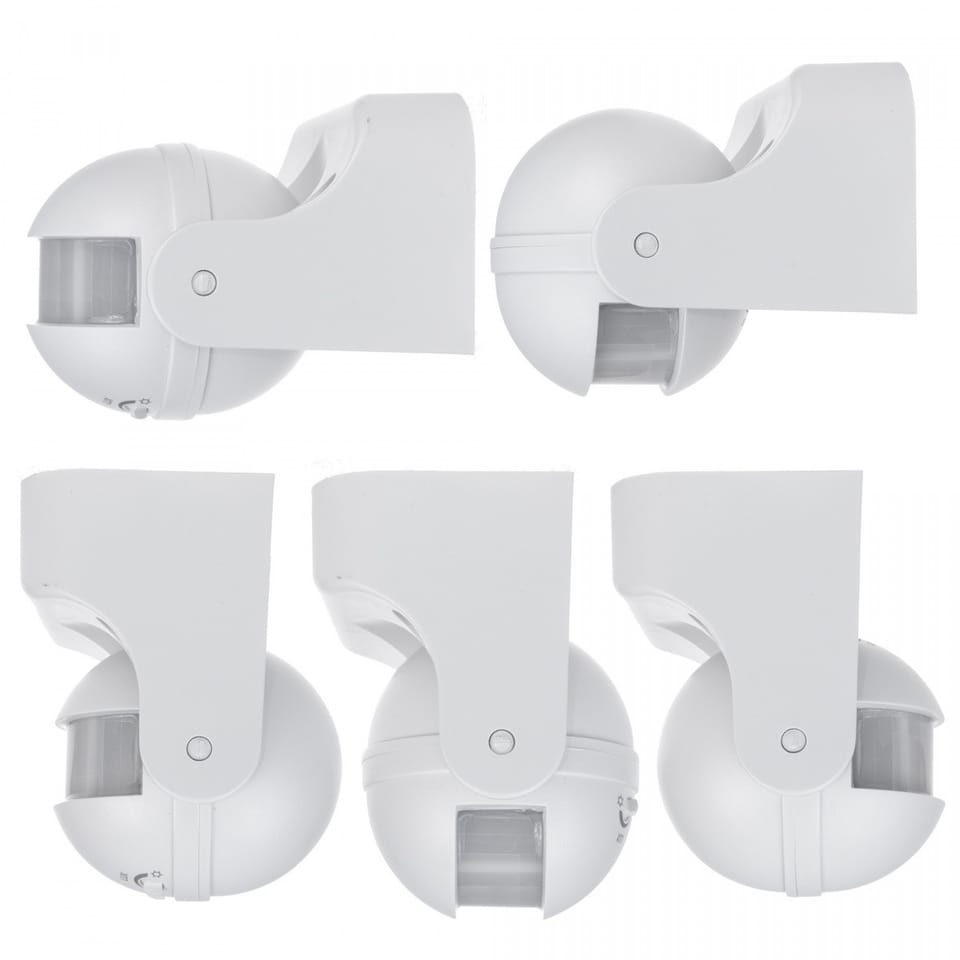

Wall sensor with dusk sensor and 180° motion sensor Maclean MCE358 W.
It is ideal for use in the garden, around the house or terrace, at gates, passages, corridors, basements, warehouses, garages and other places that require the inclusion of lighting or other equipment when motion is detected.
IP44 protection provides resistance against raindrops falling at any angle, from all sides. The sensor has high sensitivity and a very good level of workmanship. The main features are automatism, energy efficiency and built-in practical functions.
The sensor identifies day and night (dusk sensor), turns on and off depending on the appearance of an object in the detection field.
Highest quality and versatility
The main purpose of the presented sensor is automatic lighting control, but it is also possible to connect other electrical devices (e.g. electric heating, air conditioning, etc.), provided that the energy receiver does not load the switch with a power greater than 1200 W (resistive load) or 300 W (inductive load).
Versatile application for lighting control of various objects:
- facades of residential buildings, courtyards, entrances, gates, garden greenery
- car parks - external walls of buildings and other architectural objects
- advertising boards and billboards, shop windows
- many other objects, also in the interiors

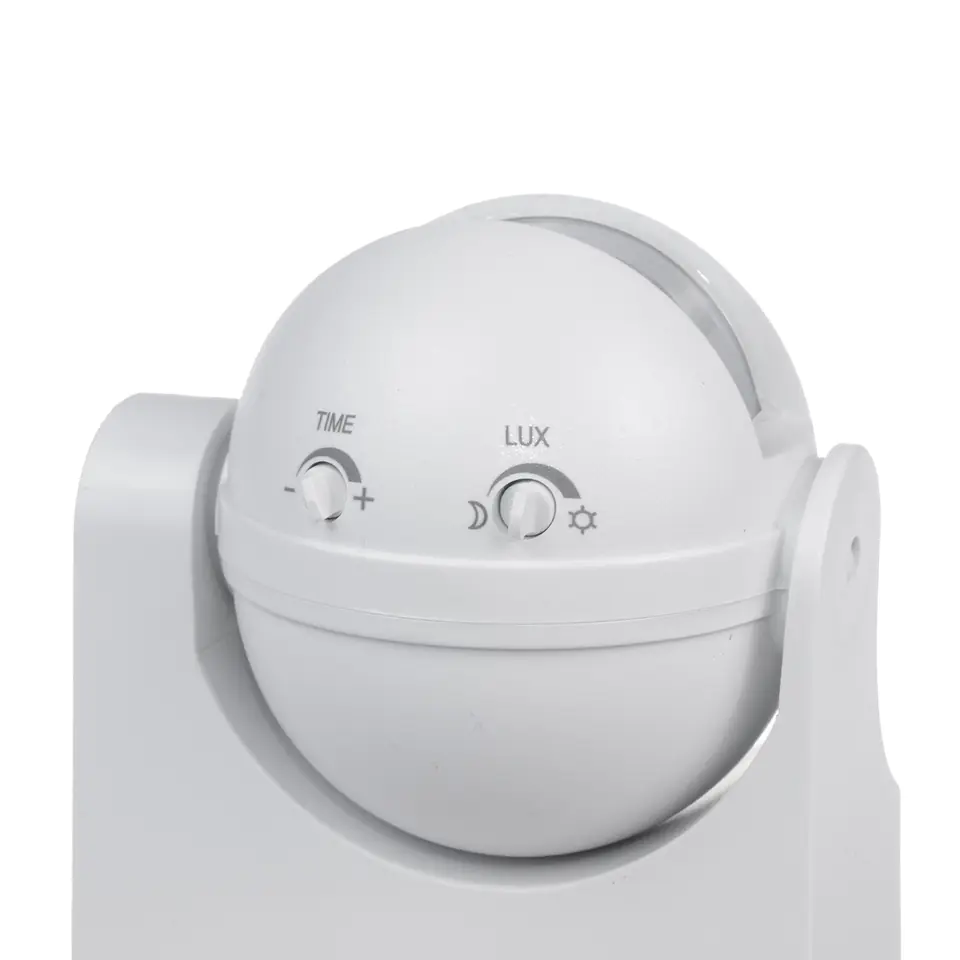

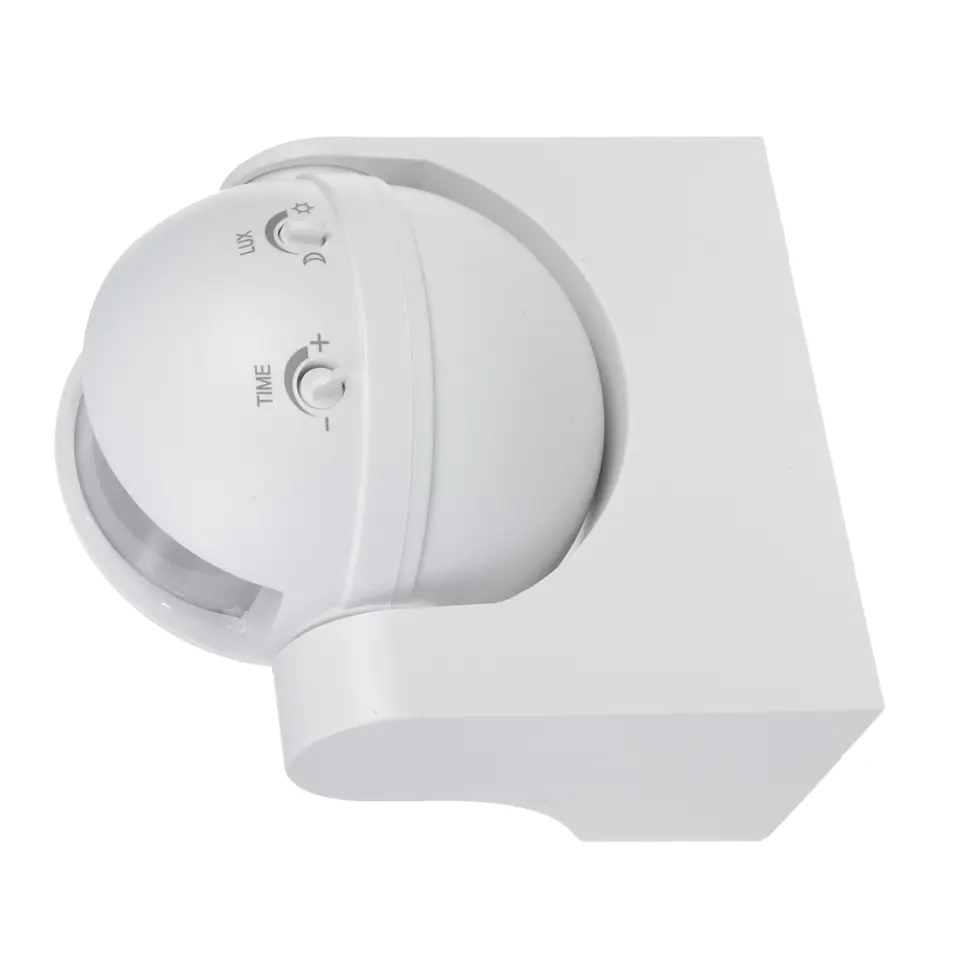

The device can work both at night and during the day. The TIME knob is used to adjust the lighting time (from about 10 sec to 7 minutes).
Use the LUX knob to set the sensitivity of ambient light (range from 3 to 2000 LUX ). When the ambient light is insufficient and we want the device to work both day and night, set the knob to the day position (sun icon). When the ambient light is less than 3 LUX, the knob should be set to night (moon icon).
Specification
- Operating voltage: 220-240V/50Hz
- Maximum power: 1200 W (resistive load) / 300 W (inductive load)
- Detection angle: 180°
- Adjustable lighting sensitivity: 3-2000 LUX (adjustable)
- Detection range: max. 12m (<24°C)
- Operating temperature: -20 to +40 °C
- Operating humidity range: <93%RH
- Sensor: PIR (infrared) detector
- Protection class: IP44 (waterproof)
- Mounting height: 1.8 to 2.5 m
- Motion detection speed: 0.6-1.5 m/s
- Lighting time adjustment: from 10 sec. to 7 min.
The set includes
- PIR motion sensor Maclean MCE358 W
- User manual in Polish

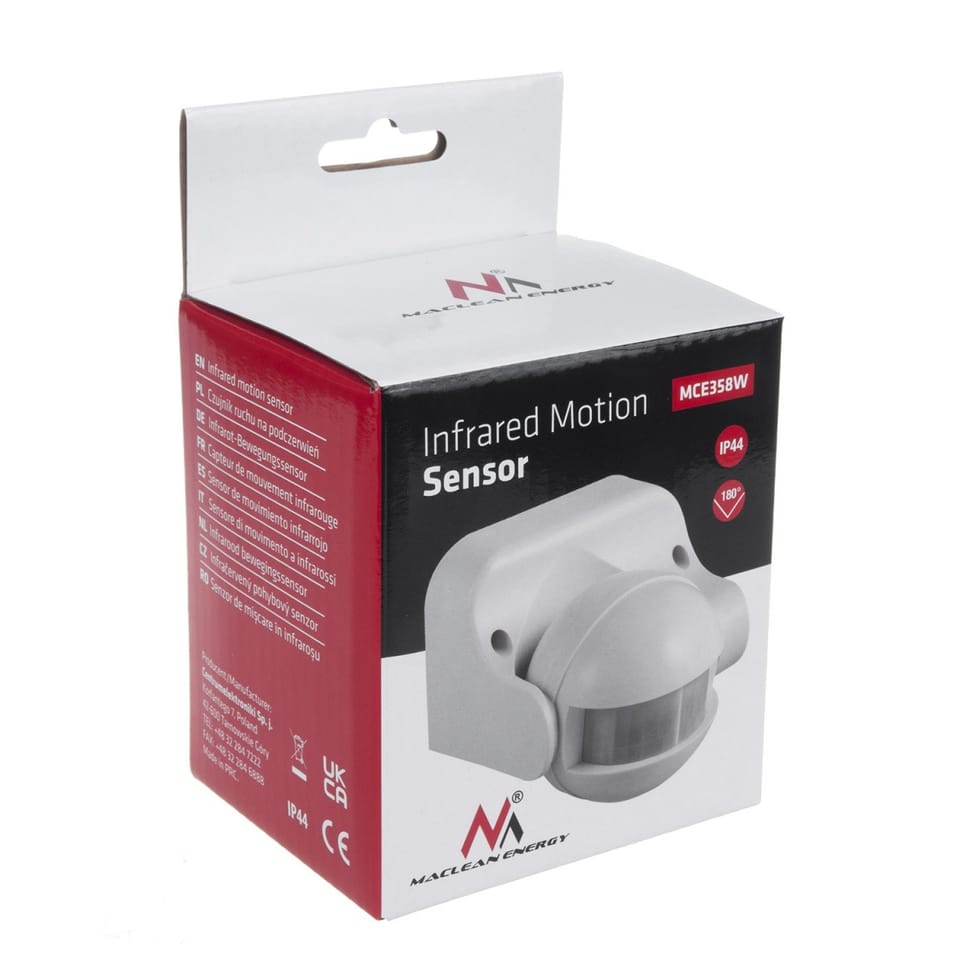

- Manufacturer's packaging
Features
- 180° motion detection angle
- Adjustable infrared PIR sensor
- Maximum power: 1200 W (resistive load)
- Works with LED lighting
- Built-in light intensity sensor
- Ability to adjust the lighting time and the level of light intensity at which the device starts to operate (dusk sensor)
- Sensor range: max. 12 m
