| Always < 1400 n/mm²: | 2 |
|---|---|
| Execution: | with through grip |
| Grip ø: | 18 mm |
| Grip square: | 14.5 mm |
| Jump: | 3 mm |
| No: | 9015760240000 |
| Ø thread hole: | 21.5 mm |
| Overall length: | 160 mm |
| Shell: | TiAlN |
| Standard: | DIN 376 |
| Thread: | M24 |
Machine tap for through holes

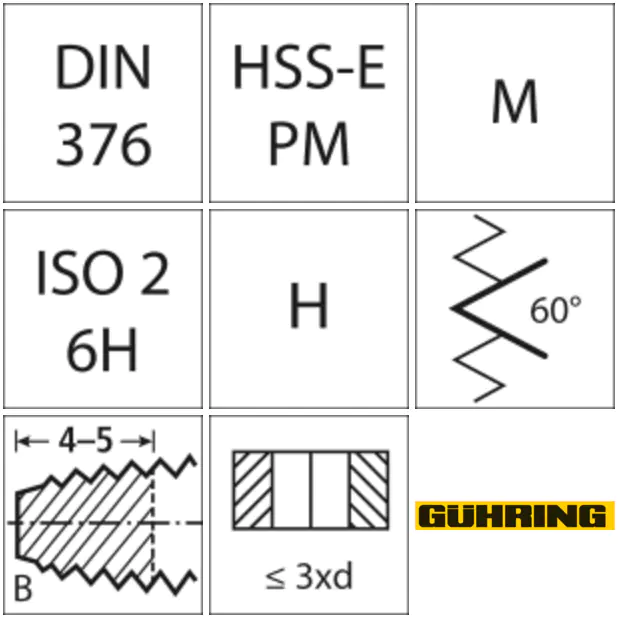

Execution: HSS-E, tolerance area ISO 2/6H, H, section shape B (4-5 turns).
Use: For metric ordinary threads according to ISO DIN 13. Designed especially for high-strength steels such as heat conditioning steels, cold alloy steels and high-speed steels.
