| Always < 1400 n/mm²: | 2 |
|---|---|
| Execution: | with reinforced grip |
| Grip ø: | 4.5 mm |
| Grip square: | 3.4 mm |
| Jump: | 0.7 mm |
| No: | 9015750040000 |
| Ø thread hole: | 3.3 mm |
| Overall length: | 63 mm |
| Shell: | TiAlN |
| Standard: | DIN 371 |
| Thread: | M4 |

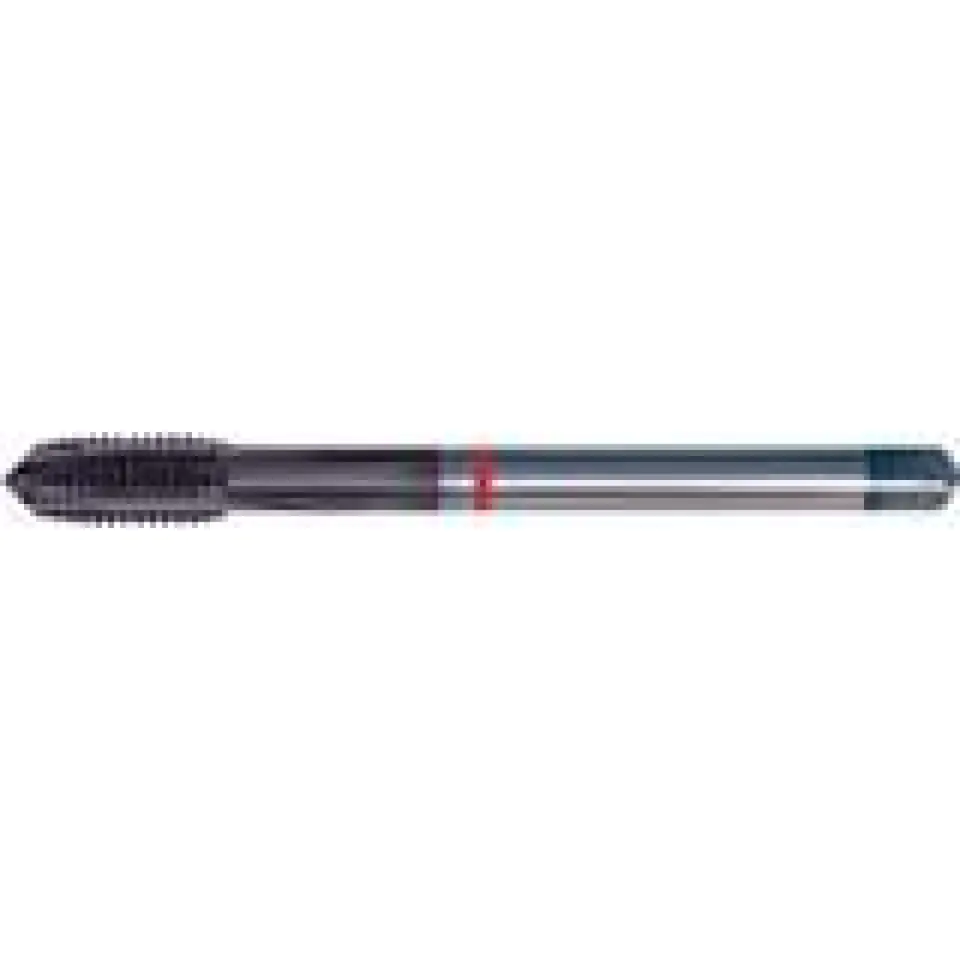

Machine tap for through holes

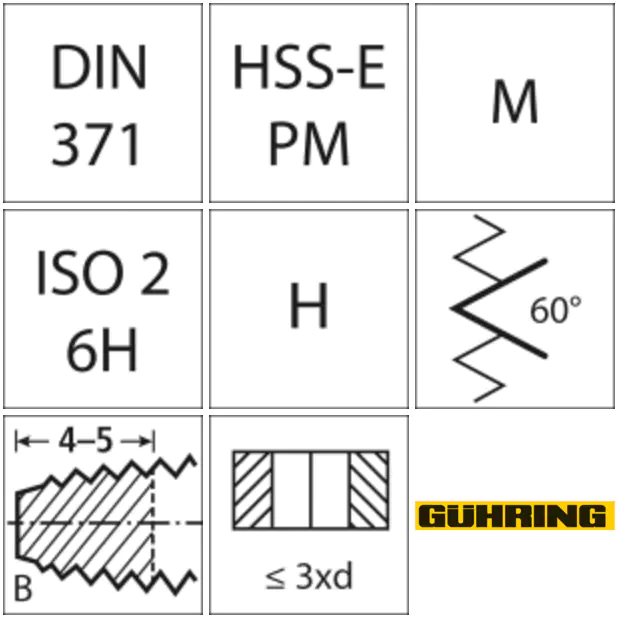

Execution: HSS-E, tolerance area ISO 2/6H, H, section shape B (4-5 turns).
Use: For metric ordinary threads according to ISO DIN 13. Designed especially for high-strength steels such as heat conditioning steels, cold alloy steels and high-speed steels.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
