The logarithmic antenna designed for use in GSM/DCS/UMTS/HSDPA/LTEAntena telephony systems is designed to work with LTE modems (equipped with two antenna connectors), telephones and modems: GSM, DCS, 3G

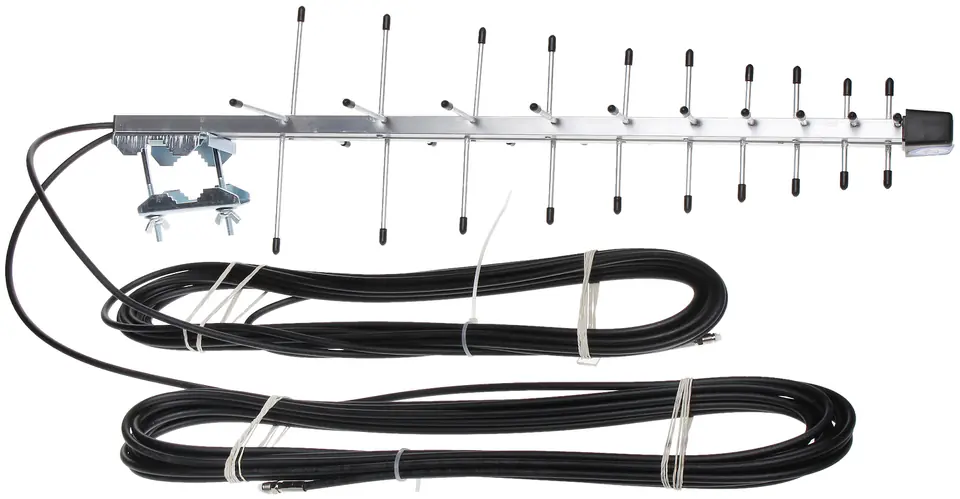

LOGARITHMIC ANTENNA ATK-LOG/LTE+FME/10 GSM/DCS/UMTS/HSDPA/LTE
PLN 217.07
Shipping from warehouse: D4
Estimated shipping: Fri, Oct 31 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- ATK-LOG/LTE+FME/10 / 5907634500256
Share this product:
Specification
| Dimensions:: | 670 x 220 x 190 mm |
|---|---|
| Energy gain :: | Max. 5 dBi |
| Frequency range:: | 800 ... 2170 MHz GSM/DCS/UMTS/HSDPA/LTE |
| Impedance:: | 50 Ω |

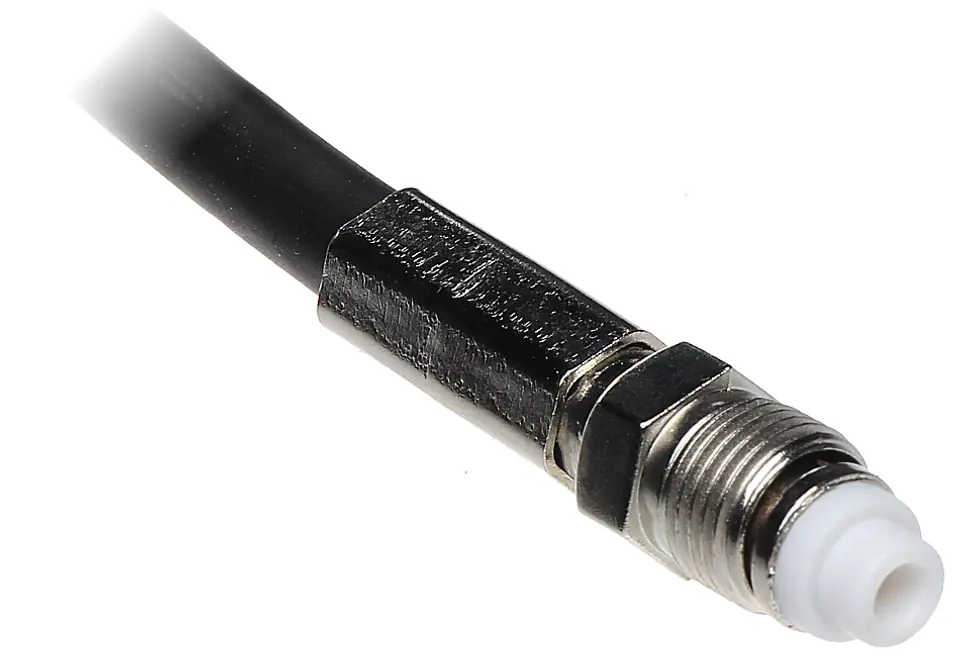

| Joint:: | 2 x FME connectors |
| Polarity:: | Vertical / Horizontal |
| Scales:: | 1.19 kg |
| Selected features:: | Cable lengths - 2 x 10 m, 2 x 2 MIMO - 2 Connectors, Maximum mast diameter 50 mm Very simple and quick installation |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
