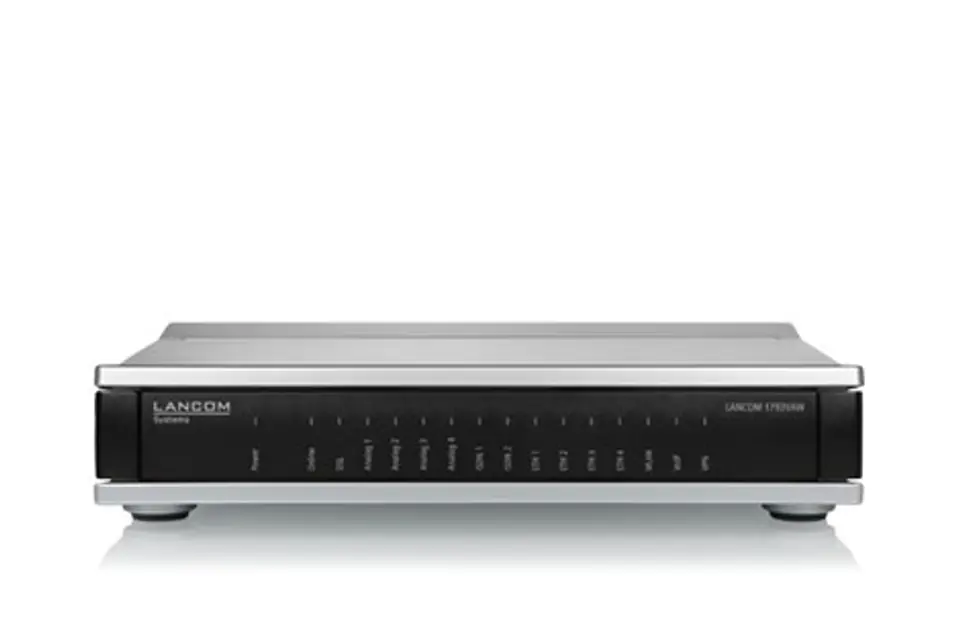

LANCOM 1793VAW EU
Specification
| Ac input voltage: | 230 V |
|---|---|
| Access control list (acl): | Yes |
| Adsl2: | Yes |
| Adsl2+: | Yes |
| Antenna design: | Internal |
| Authentication method: | PAP, CHAP, MS-CHAP, MS-CHAPv2 |
| Cables included: | LAN (RJ-45), DSL |
| Cabling technology: | 10/100/1000Base-T(X) |
| Country of origin: | Germany |
| Customs product code (taric): | 85176200 |
| Dc-in jack: | Yes |
| Depth: | 140 mm |
| Dhcp client: | Yes |
| Dhcp server: | Yes |
| Dmz support: | Yes |
| Dos attack prevention: | Yes |
| Dsl wan: | Yes |
| Dynamic dns (ddns): | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 4 |
| Ethernet lan data rates: | 100, 1000, 10 |
| Ethernet lan interface type: | Gigabit Ethernet |
| Ethernet wan: | Yes |
| Filtering: | Yes |
| Firewall: | Yes |
| Firewall security: | SIF |
| Guest access: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 45 mm |
| Housing material: | Plastic |
| Ip address filtering: | Yes |
| Led indicators: | DSL, LAN, Power, VPN |
| Load balancing system: | Yes |
| Mac address filtering: | Yes |
| Management protocols: | SNMPv1,v2c,v3, SNMP-TRAPS |
| Manual: | Yes |
| Memory card slot(s): | No |
| Mimo: | Yes |
| Multicast support: | Yes |
| Network address translation (nat): | Yes |
| Networking standards: | IEEE 802.11i, IEEE 802.11b, IEEE 802.3az, IEEE 802.1x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.3, IEEE 802.11a, IEEE 802.3ab, IEEE 802.11u, IEEE 802.11ac |
| Number of data streams: | 2x2 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | 0 - 35 °C |
| Output current: | 2 A |
| Output voltage: | 12 V |
| Package depth: | 288 mm |
| Package height: | 94 mm |
| Package weight: | 1.64 kg |
| Package width: | 385 mm |
| Policy-based routing: | Yes |
| Port forwarding: | Yes |
| Power source type: | AC |
| Product colour: | Grey, Black |
| Product type: | Tabletop router |
| Quality of service (qos) support: | Yes |
| Reset button: | Yes |
| Rj-11 ports quantity: | 2 |
| Routing protocols: | LISP, BGP4, OSPFv2, RIP-2 |
| Security algorithms: | RSA, SSH, SSL/TLS, SHA-1, SHA-256, 3DES, MD5, AES, FIPS 140-2, 802.1x RADIUS, DES |
| Static route: | Yes |
| Supported network protocols: | DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP, SNMPv1,v2c,v3, TFTP, TACACS+ |
| Supports isdn connection: | Yes |
| System event log: | Yes |
| Top wi-fi standard: | Wi-Fi 5 (802.11ac) |
| Url filtering: | Yes |
| Usb 2.0 ports quantity: | 1 |
| Usb port: | Yes |
| Vdsl: | Yes |
| Vdsl2: | Yes |
| Voip protocols: | SIP ALG |
| Vpn tunnels quantity: | 5 |
| Web-based management: | Yes |
| Web-based setup wizard: | Yes |
| Weight: | 500 g |
| Wi-fi band: | Dual-band (2.4 GHz / 5 GHz) |
| Wi-fi standards: | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, 802.11a, Wi-Fi 4 (802.11n) |
| Width: | 210 mm |
| Wlan data transfer rate (first band): | 300 Mbit/s |
| Wlan data transfer rate (max): | 1733 Mbit/s |
| Wlan data transfer rate (second band): | 867 Mbit/s |
