UTP LAN cable 1GB/S 305M CCA wire, red
- Data transmission speed: 1Gb/s
- Conductor design: copper-plated (CCA)
- AWG 23 (4 x 2 x 0.57 mm)
- Conductor structure: single wire
- Length counter print for every meter of cable
- External PVC insulation: 5.6 mm
- HDPE insulation of the core: 0.95 mm
- Operation up to 250 MHz

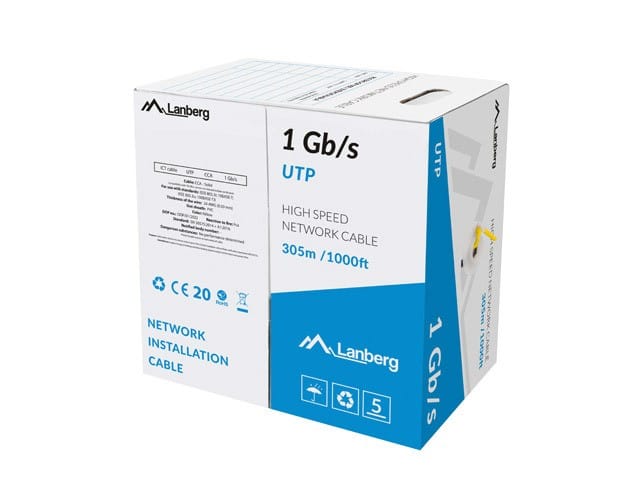

- Packaging: carton
Electrical parameters (20 degrees):
- Core resistance (max.):
- Rated voltage:
- Maximum current: 0.5 A
- Storage and transportation temperature: 0 - 60 degrees
- Operating temperature: -20 - 75 degrees
- Operating distance: 100 m
PURPOSE: cable intended only for cutting into short lengths (up to 10 m). For use only in installations without Fluke certification (EN 50173).
