KRUX Orio case A breath of fresh air and ARGB brilliance in your position as a real player.

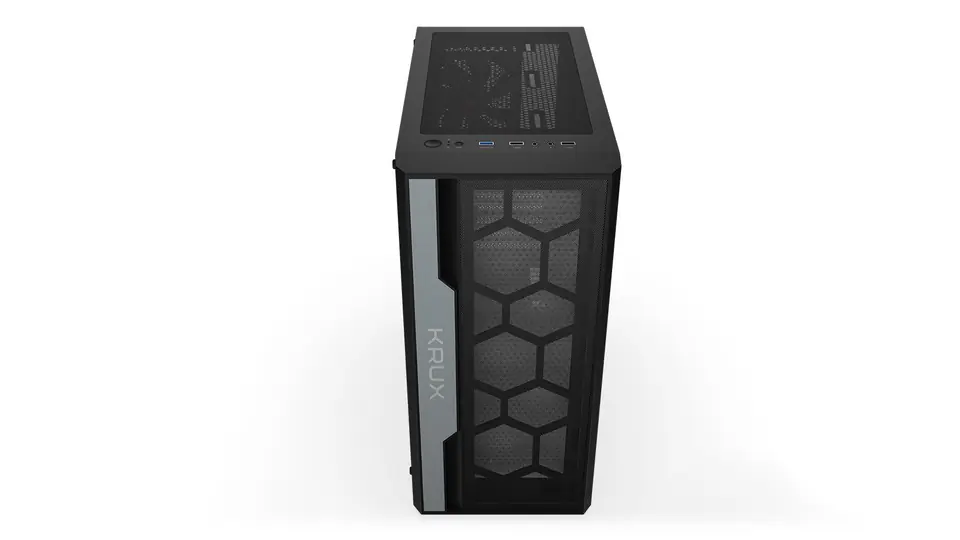

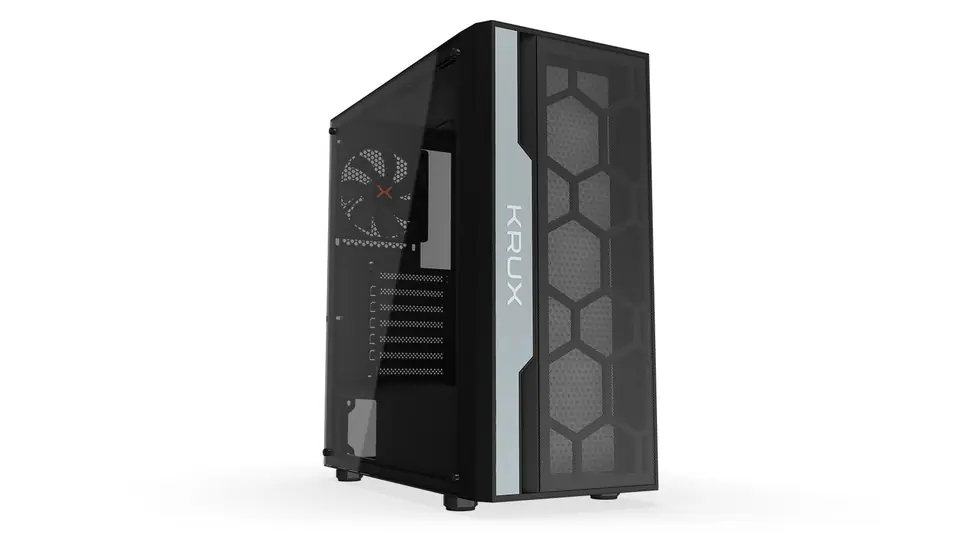

Breathable and stylish front panel The design of the front panel in Orio is based primarily on the light emitted by ARGB LEDs, which perfectly melts on the white background color - i.e. the dust filter. This translates into a beautiful mixing of dancing colors on the white surface of the filter. In front of the canvas for ARGB colors is visible mesh structure - protecting the inside of the computer from large and uninvited intruders. The aesthetic experience is also enhanced by the reinforcement of the honeycomb structure, and as everyone knows, bees need to be taken care of.

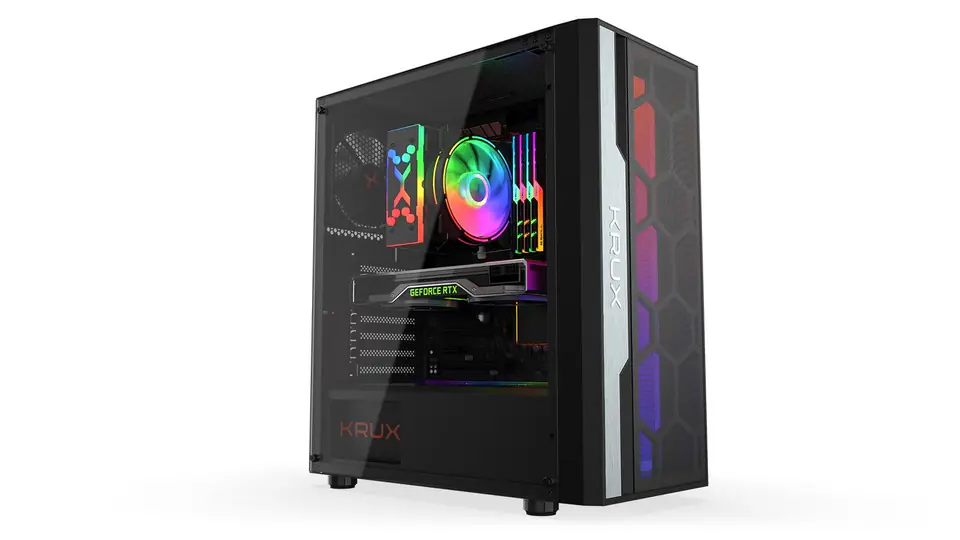

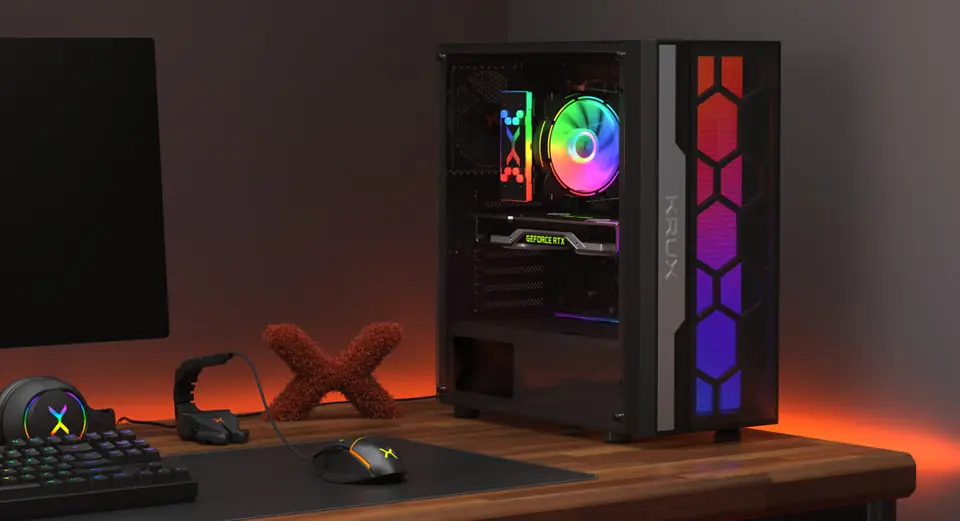

ARGB rays spilling over a white background The first thing that catches your eye after connecting and running kompa, is the ARGB colors melting on the front dust filter. Due to its white color, it works like a screen for a projector, only that in this case ARGB LEDs make a projector. The behavior of the LEDs is controllable and in accordance with the will of the user, who can choose one of 10 modes, and even fully turn off the backlight in case of fire. And all this thanks to the manipulator on the front panel.

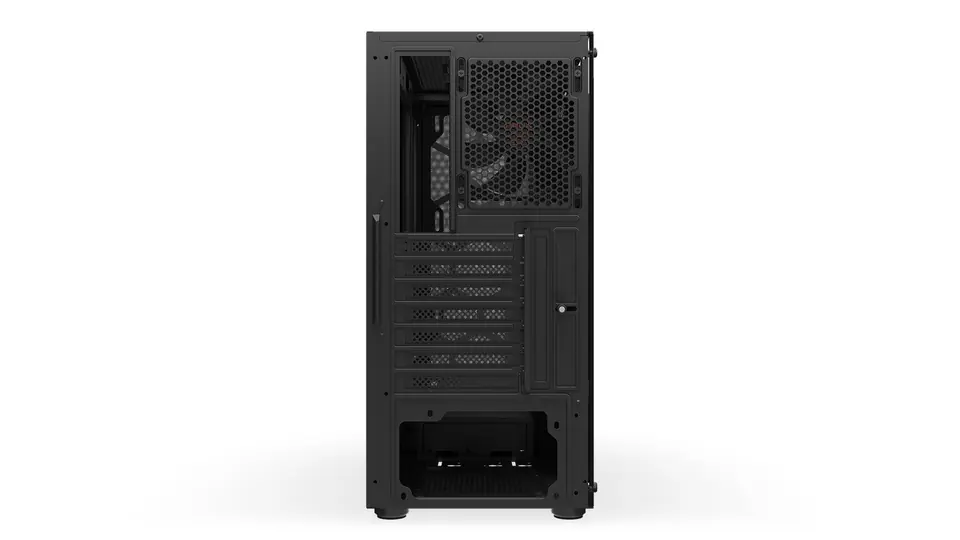

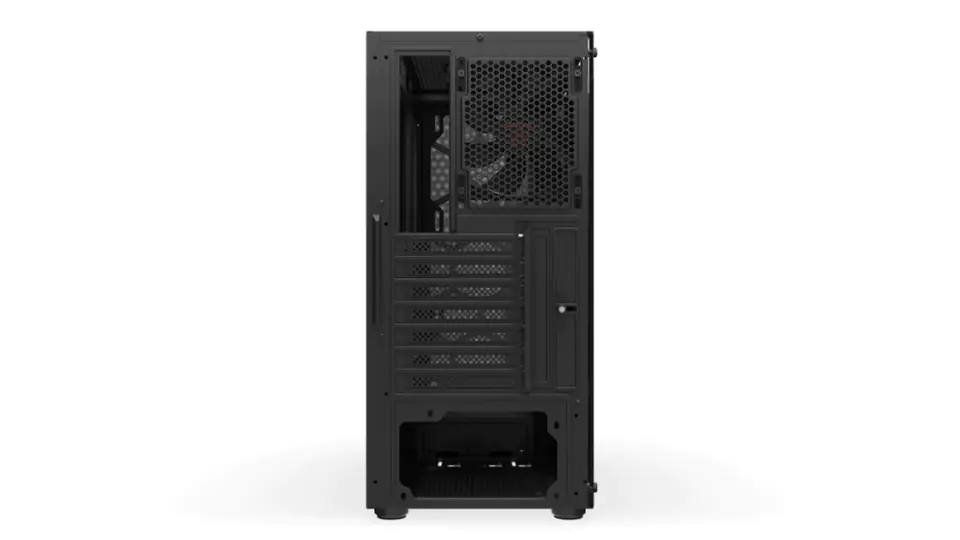

Ventilation is provided by a 120 mm fan The air flow in KRUX Orio is supported by one propeller with a diameter of 12 cm, which we mounted on the back of the housing so that it draws air out of the housing and does not interfere with our front design. However, if someone would like to mount something else, no problem. 5 additional fans will enter our kennel, which is a total of 6!

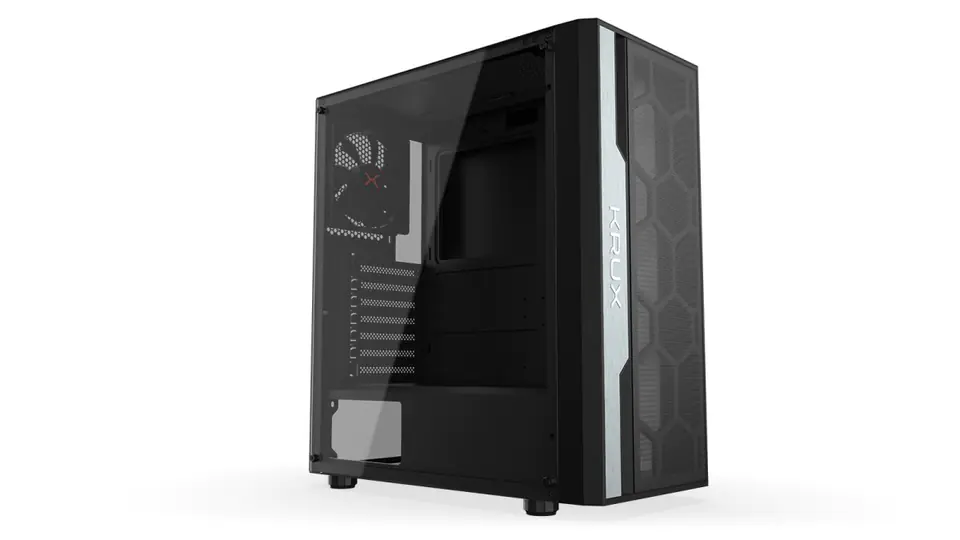

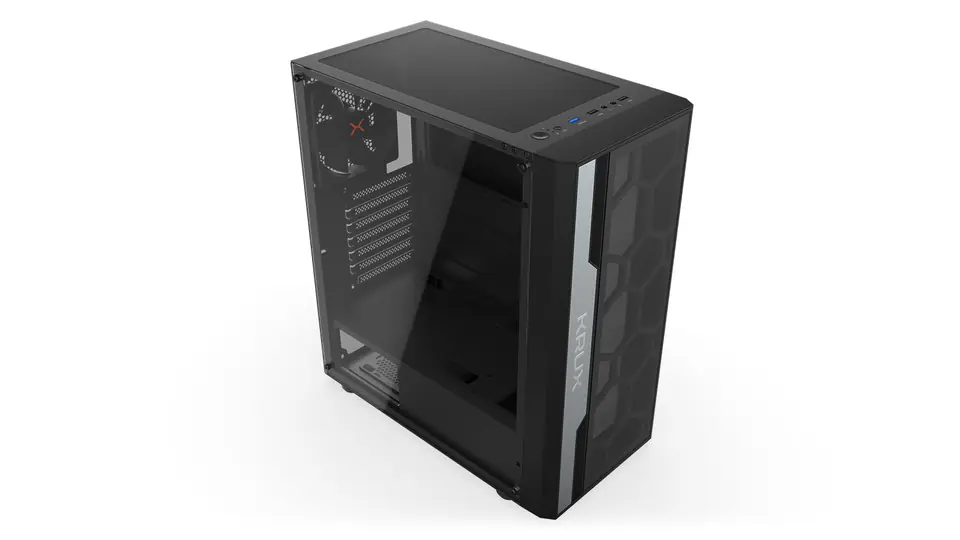

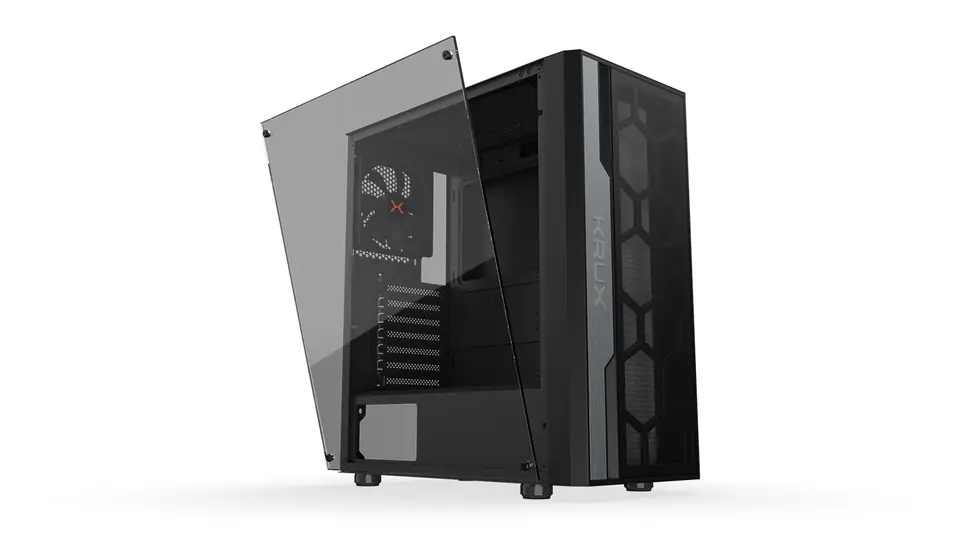

Roomy design with tempered glass side panel When looking for a new kennel, you already have a plan of what you want to fill it. So let's see if your dream setup will fit Orio like a perfectly matched glove. Starting with mobas: you can fit Micro ATX, Mini-ITX and ATX formats there.
Compatible with 160mm CPU cooler Moving on to the flail on which you can mount the turret (or two, if you are a fan of Tolkien), i.e. CPU cooling reaching up to 15 cm. If you are a fan of liquids, and the air is only for breathing, then you will be happy to be able to install integrated liquid cooling (AIO). Radiators: 120 mm, 240 mm and even 360 mm will easily enter the front. However, if you would like to dispense with the factory-installed valve, you can fit a 120 mm radiator at the rear.

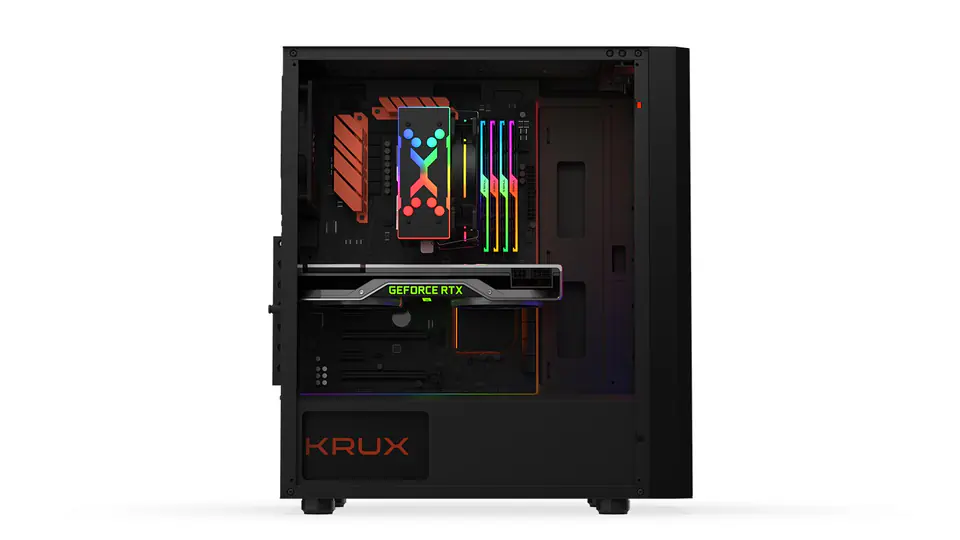

Compatible with 345mm GPU length A graphics card is also essential, of course, if you manage to get it, you will use it for research and educational purposes, not for digging. Even the RTX series cards worthy of MSFS 2020 can fit into Orio, the number of slots and the type of cooling are irrelevant, here it will park everything up to 345 mm long. In addition, it would also be useful to add some RAM. Be sure to choose one that will not only be cavernous, pieruńsko fast and reliable, but will also blend well with the rest of the furnace.

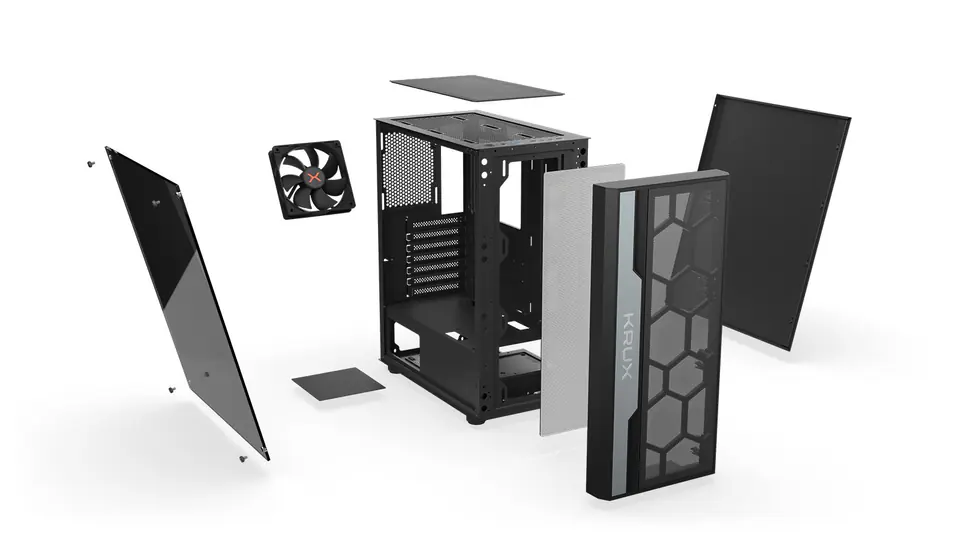

A set of dustfilters In order to safely and without major problems use the awakened KRUX Orio housing, we have installed a total of three filters to it. Front milky that perfectly harmonizes with ARGB, consisting of shapes resembling beautiful crystals. The upper one, protecting against dust from other higher places, and the lower one, especially for the power supply, so that it does not have to breathe dirty air. When they require loosening and cleaning, this will not be a problem. Light and pleasant installation facilitates this extremely important activity.
Data storage An equally important element is the place for data. Programs? Games? And if you plan to make your own copy of the Internet, you've come to the right place, because KRUX Orio can accommodate two 3.5 drives with very large capacities, even 20 TB each! Be sure to let us know how much time you will need to fill them to the brim. If, on the other hand, the place of the plates is for you in the kitchen and not in your supercomputer, then remember that in Orio we have also prepared two additional slots for solid-state 2.5 SSD media, if you give up the platters, if not then the dessert with SSD can consist of only two media.

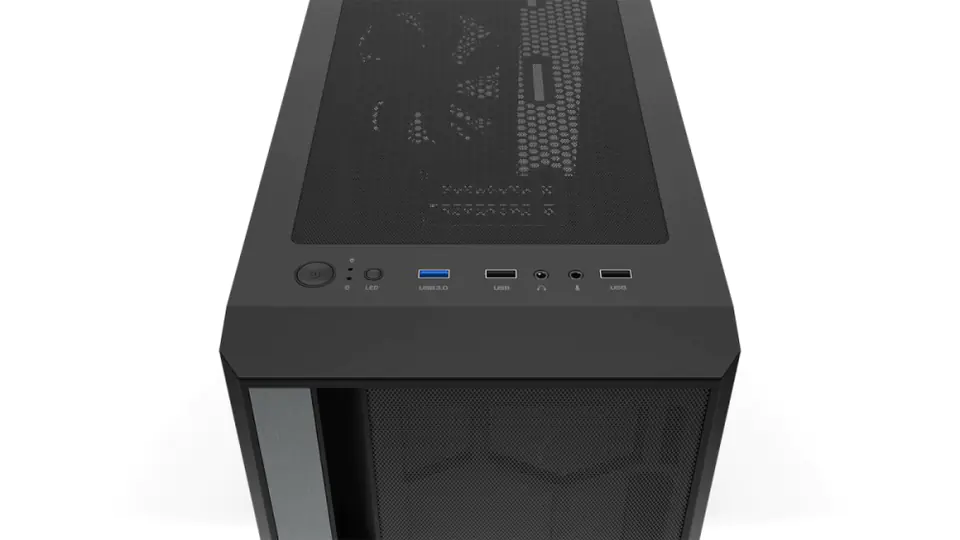

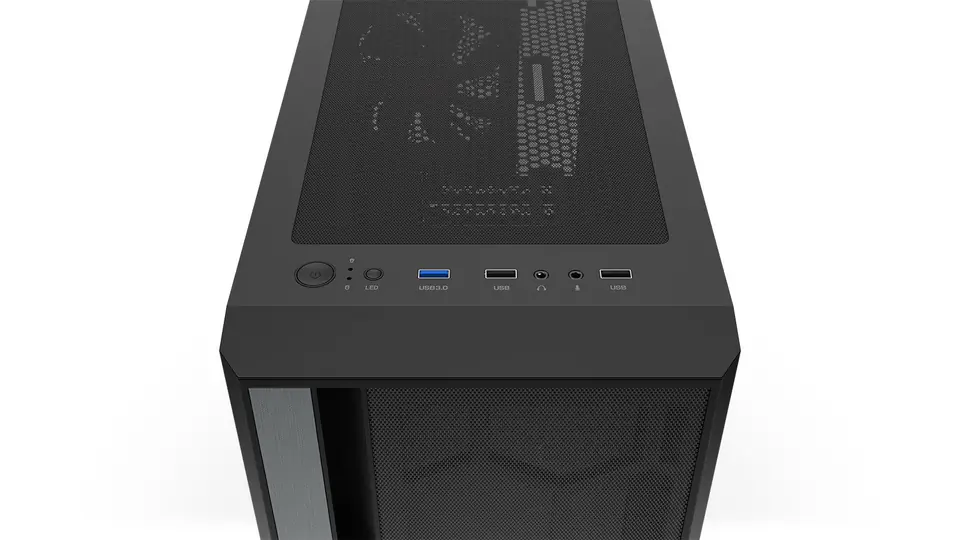

USB 3.0 I/O panel with audio jacks At the front of KRUX Orio we have put only the most necessary functions. Something to turn on, something to reload the system in case of jamming and a set of the most necessary connectors. If you still use Jack or have already switched to USB-only equipment, you will find here both types of connectors. Here you will also find the most important button, the one answered with the RGB LED. Something good for everyone!
Main features of the KRUX Orio housing:
RGB bar controlled by built-in button
Front milky-white filter, blending perfectly with RGB.
120 mm valve for draft.
You can fit here graphics that can handle even the new Tony Hawk (up to 345 mm).
CPU freezing can be provided by a turret with a height of up to 160 mm.
And if you prefer water, 120 mm, 240 mm or even full 360 mm radiators can fly into the kennel
Disk storage provides space for 2x2.5 x 2x3.5 disks.
Comprehensive package of protection against cat fur, dog hair, scorpion venom, somsiada dust. Easy to grasp.
For gentlemen: 3x USB and audio on the front.
440 * 210 * 410mm
Expansion Card Slots: 7*
Dust filters:
o Front
o Top
o Under the power supply
Maximum graphics card length: 345 mm*
Maximum CPU Cooling Height: 160mm*
Maximum length of power supply: 200 mm*
Cooling system (1 fan included, 6 max):
o Rear: 1 × KRUX 120 mm 3-pin (max. 1200 rpm)
AIO compatibility:
o Front: 1 × 120/240/360 mm*
o Rear: 1 × 120 mm*
