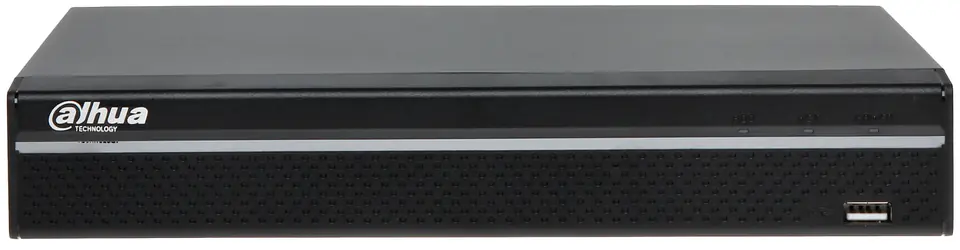

IP RECORDER NVR2108HS-8P-S3 (8 CHANNELS, 8 POE DAHUA)
€108.39
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- NVR2108HS-8P-S3 / 6923172533241
Share this product:
Specification
| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app Watch the video on how to set up P2P in Dahua DVRs and how to enable the mobile app |
|---|---|
| Archiving on external media:: | Backup to USB drive (pendrive, external drive) |
| Audio codecs: | PCM; G711A; G711U; G726 |
| Audio inputs:: | 1 pc. CINCH |
| Audio outputs:: | 1 pc. CINCH |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Audio support:: | 8 Channels - Audio from cameras |
| Backup function: | Yes |
| Bitrate:: | Max. 80 Mbps |

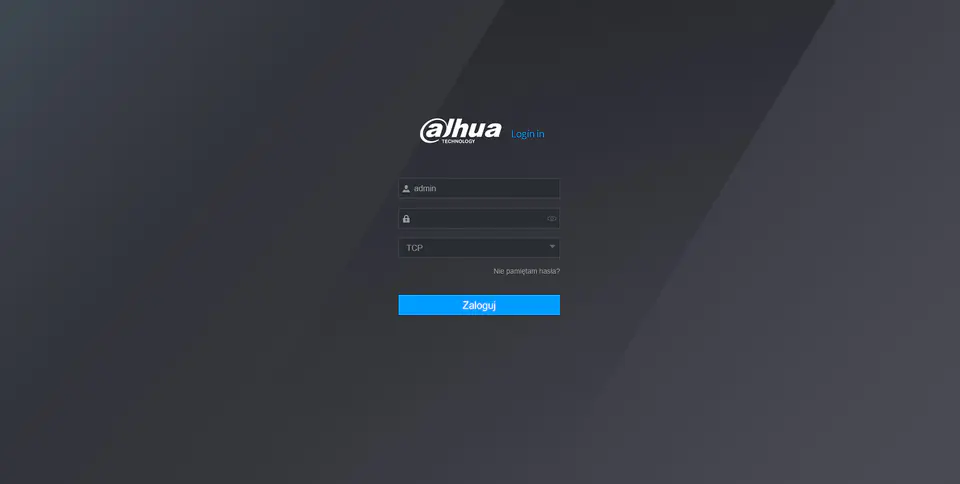

| Browser supported: | Chrome; IE 9 or later; Firefox |
| Built-in processor: | Yes |
| Country of origin:: | China |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |
| Depth: | 232.7 mm |
| Dimensions:: | 260 x 233 x 48 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100 Mbit/s, 10 |
| Hdd interface: | SATA |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 |
| Input bandwidth: | 80 Mbit/s |
| Led indicators: | HDD, Power, Network |
| Manufacturer / brand:: | DAHUA |
| Maximum frame rate: | 30 fps |
| Maximum storage capacity: | 16 TB |
| Mobile operating systems supported: | iOS, Android |
| Network features:: | Full network support, Remote copying of recordings, Built-in web server |
| Network protocols:: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search, P2P, ONVIF |
| Number of hdds installed: | 1 |
| Operating relative humidity (h-h): | 10 - 93% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Output bandwidth: | 60 Mbit/s |
| Output current: | 2 A |
| Output voltage: | 48/53 V |
| Package depth: | 373 mm |
| Package height: | 307 mm |
| Package weight: | 1.94 kg |
| Package width: | 117 mm |
| Playback modes: | Pause, Play, Stop |

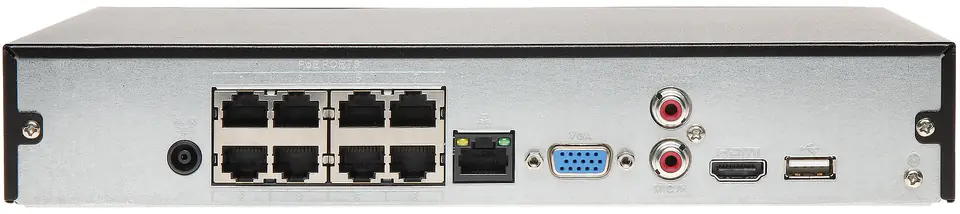

| Poe switch:: | Built-in 8-port PoE switch, 25.5 W / Channel - PoE (802.3af/at), max. 72 W (total) |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 8 |
| Power:: | 53 V DC / 1.8 A (power supply included) |
| Product colour: | Black |
| Ptz rotary heads control:: | IP PTZ control |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes: | Manual |
| Recording modes:: | Manual, motion detection, scheduler |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 0.9 kg |
| Searching and playing recordings:: | Search for recordings by time and type of events. Playback: forward, backward, acceleration, slowing down recordingScale playback function ("frame by frame")Channels played simultaneously :1 @ 12 Mpx, 30 fps1 @ 8 Mpx, 30 fps2 @ 5 Mpx, 30 fps3 @ 4 Mpx, 30 fps6 @ 1080p, 30 fps |
| Selected features:: | The functions are carried out in cooperation with the recorder with cameras supporting these functions Advanced perimeter protection functions: intrusion, line crossing taking into account separate rules for vehicles and pedestrians, classification of people and vehicles, SMD PLUS - search for an object classified as: human, motor vehicle Motion detection Privacy zones |
| Standard:: | TCP/IP |
| Supported hard drives:: | 1 x 16 TB SATA |
| Supported languages:: | English, Polish |
| Supported resolutions:: | Max. 12 Mpx - 4000 x 3000 px, |
| Usb 2.0 ports quantity: | 2 |
| Usb:: | 2 pcs. USB 2.0 |
| Vga (d-sub) output ports: | 1 |
| Video codecs: | Smart H.265; H.265; Smart H.264; H.264 |
| Video input channels: | 8 channels |
| Video motion detection: | Yes |
| Video outputs:: | 1 pc. HDMI1 pcs. VGA |
| Video recording modes: | 720p, 1080p |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Weight: | 890 g |
| Width: | 260 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
