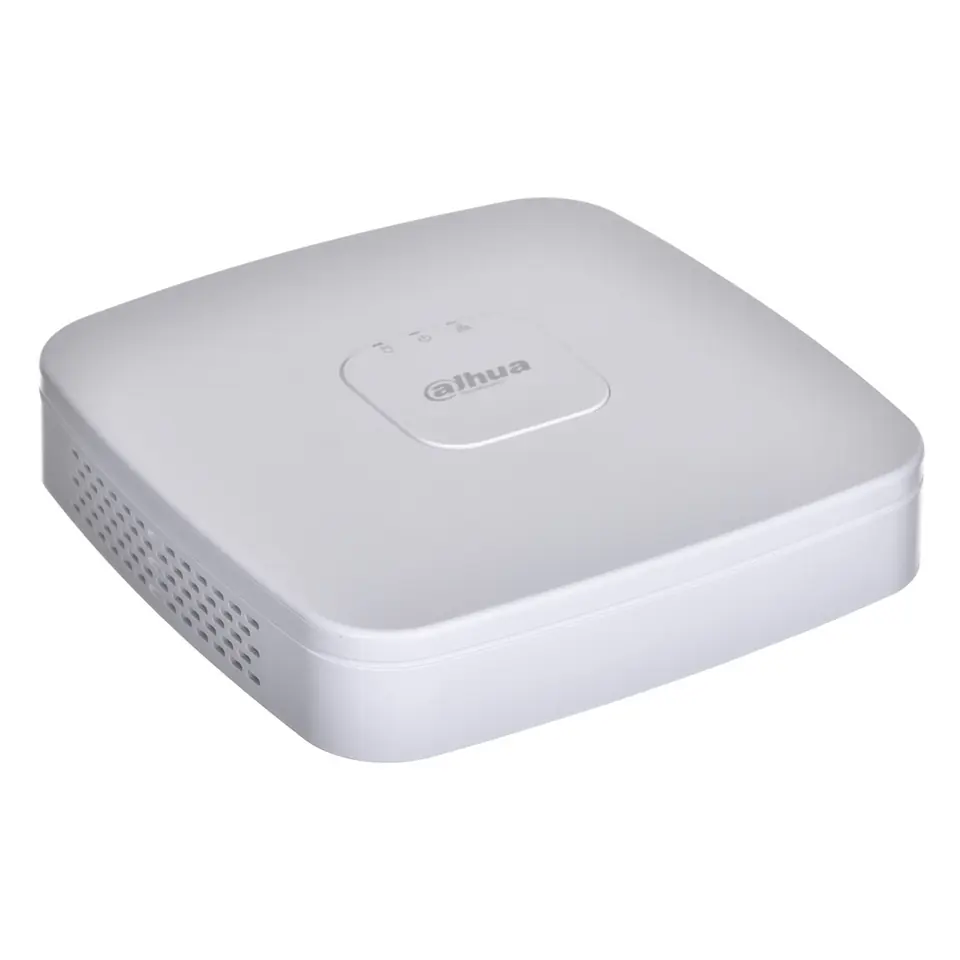

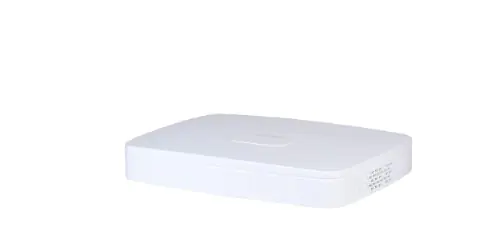

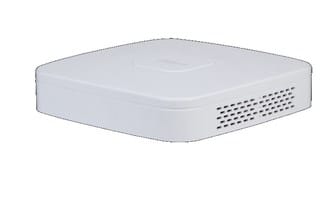

Network recorder with advanced intelligent video analysis
IP DVR: NVR2108-I2 (8CH) DAHUA
€112.81
Shipping from warehouse: H7
Estimated shipping: Mon, May 6 - Wed, May 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Dahua
- Product code:
- NVR2108-I2 / 6923172508812
Share this product:
Specification
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
|---|---|
| Audio codecs: | PCM; G711A; G711U; G726 |
| Audio inputs: | 1 pc CINCH |
| Audio outputs: | 1 pc CINCH |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Audio support: | 8 Channels - Audio from cameras |
| Backup function: | Y |
| Bitrate: | .max. 80 Mbps |
| Browser supported: | Chrome; IE9 or later; Firefox |
| Built-in processor: | Yes |
| Dc-in jack: | Yes |

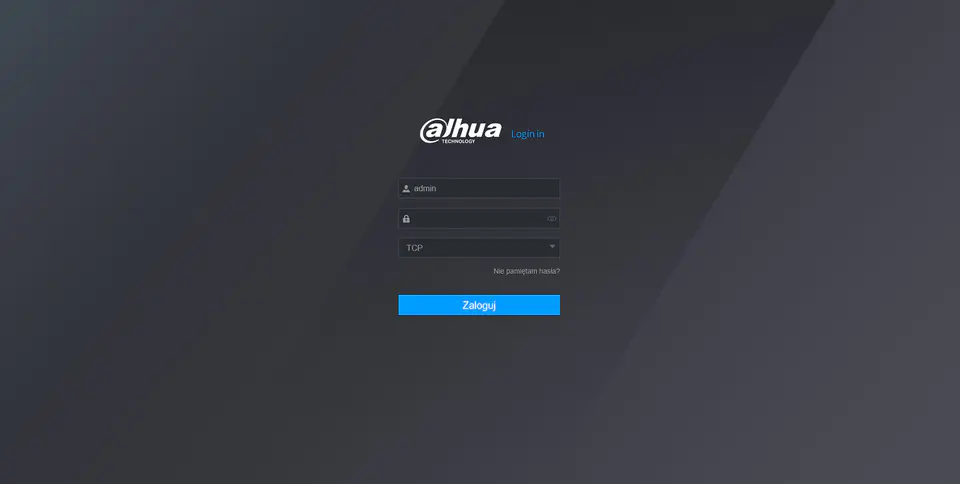

| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Depth: | 206.4 mm |
| Dimensions: | 206 x 205 x 48 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10, 1000 Mbit/s |
| Face detection: | Y |
| Hdd interface: | SATA III |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 48.1 mm |
| Image compression method: | H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| Input bandwidth: | 80 Mbit/s |

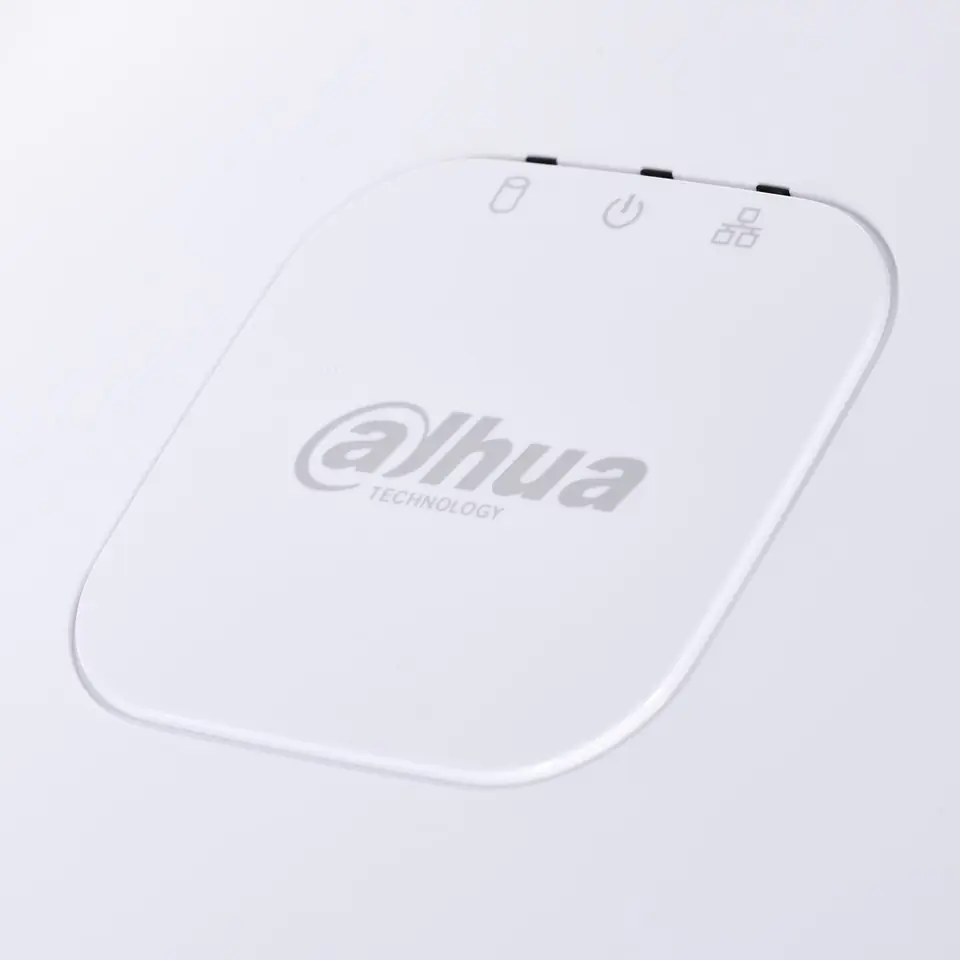

| Led indicators: | Y |
| Linux operating systems supported: | Y |
| Maximum resolution: | 4096 x 2400 pixels |
| Maximum storage capacity: | 10 TB |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | iOS, Android |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
| Motion detection: | 22 x 18 detection fields - after motion detection, only cameras with detection are recorded |
| Multi-screen: | Y |
| Network features: | Full network support, Remote copying of recordings, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, P2P, ONVIF |
| Number of hdds installed: | 1 |
| Number of simultaneously playbacked channels: | 8 channels |
| Operating relative humidity (h-h): | 10 - 93% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Output bandwidth: | 60 Mbit/s |
| Output current: | 1.5 A |
| Output voltage: | 12 V |
| Package depth: | 364 mm |
| Package height: | 261 mm |
| Package volume: | 1070 cm³ |
| Package weight: | 1.8 kg |
| Package width: | 96 mm |
| Pc app access ports: | 37777 |
| Playback modes: | Pause, Play, Stop |

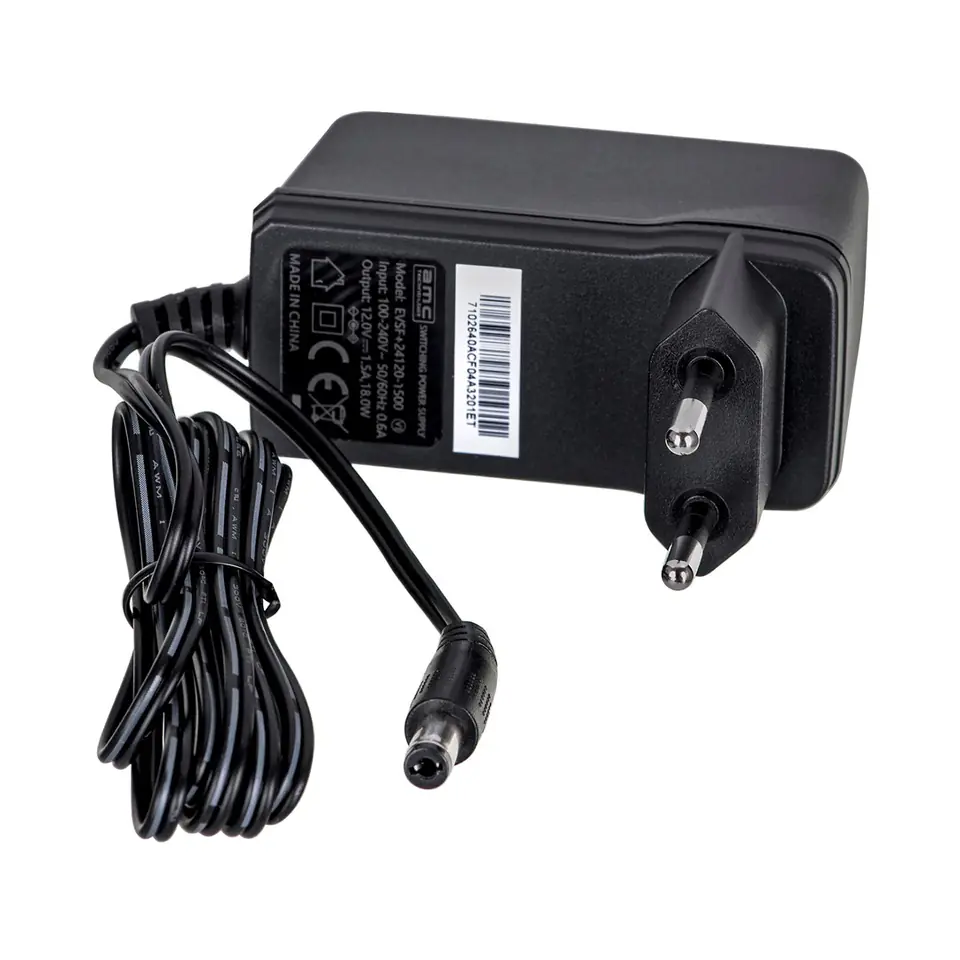

| Power: | 12 V DC / 1.5 A (power adapter included) |
| Power over ethernet (poe): | Y |
| Power over ethernet (poe) ports quantity: | 8 |
| Power over ethernet (poe) power per port: | 25.5 W |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Ptz rotary head control: | IP Speed Dome cameras |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes: | Manual |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.45 kg |
| Search and play back recordings: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow downAdvanced search (up to the second)Synchronous playback of all channels, Smart Search |
| Selected features: | Advanced perimeter protection features: intrusion, line crossing with separate rules for vehicles and pedestrians, classification of people and vehicles, Real-time facial recognition and analysis (max. 12 pictures per second) : Comparison of faces with images from the database Face analysis: determination of gender, age and characteristic elements of appearance (glasses, facial hair, mask) Real-time search of people based on the provided collateral information in the field of corresponding features recognized by the device's artificial intelligence Support for up to 10 face databases, including 5000 face photos Face databases can be used globally or locally for one video channel - depending on the need In addition to face photography, the database can also store such information as: name, gender, date of birth, nationality, address, ID SMD PLUS - search for an object classified as: man, motor vehicle, non-motor vehicle |
| Standard: | TCP/IP |
| Storage relative humidity (h-h): | 30 - 85% |
| Storage temperature (t-t): | 0 - 40 °C |
| Supported hard drives: | 1 x 10 TB SATA III |
| Supported languages: | Polish, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Slovenian, Serbian, Spanish, Swedish |
| Supported resolutions: | .max. 12 MP |
| Total power over ethernet (poe) budget: | 72 W |
| Usb: | 2 pcs. USB 2.0 |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video codecs: | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Video input channels: | 8 channels |
| Video motion detection: | Y |
| Video outputs: | 1 pc HDMI 4K1 pcs. VGA |
| Video recording modes: | 720p, 1080p |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Weight: | 450 g |
| Width: | 204.6 mm |
