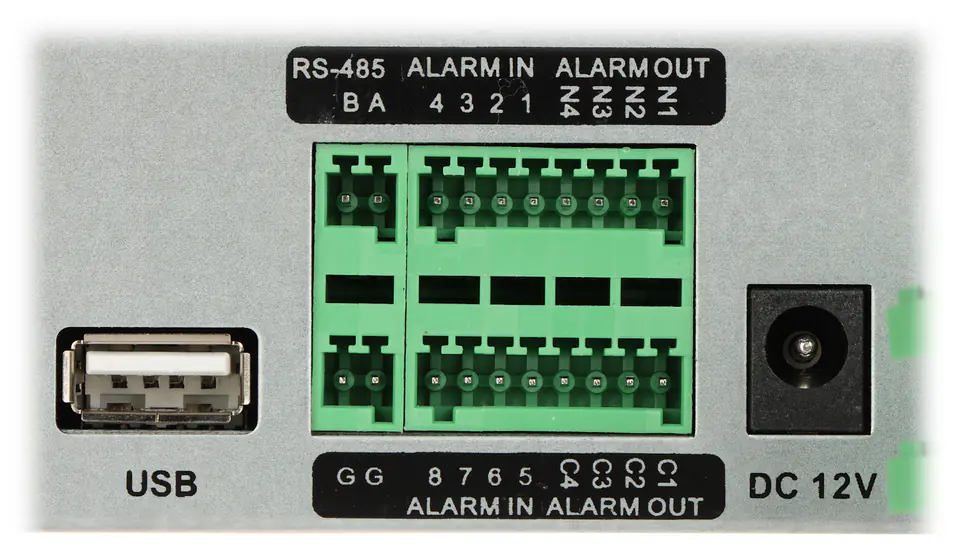

| Alarm inputs / outputs: | 8 / 4 |
|---|---|
| Archiving on external media: | Archiving recordings in (.avi) format to a USB drive (pendrive) |
| Audio inputs: | 1 pc Cinch socket |
| Audio outputs: | 1 pc Cinch socket |
| Audio support: | 25 Channels - Audio from cameras |
| Bitrate: | 100 Mbps |
| Default administrator login / password: | admin / 12345 |
| Default ip address: | 192.168.1.88 |
| Dimensions: | 310 x 305 x 46 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Mobile app access port: | 80, 5000, 554 |
| Mobile phone access: | Port: 6000 or access via cloud (P2P) Android: Free BitVision application, Android: Free iVMS320 application iOS (iPhone): Free BitVision application, iOS: Free iVMS320 application |
| Motion detection: | Zoning: 24 x 18 detection fields |
| Network features: | Client program and IE browser: live viewing, playback and archiving of recordings, configuration of DVR parameters |
| Network protocols: | TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE, ONVIF |
| Operating temperature: | -10 °C ... 55 °C |
| Pc app access ports: | 80, 5000, 554 |
| Power: | 12 V DC / 4 A |
| Producer / brand: | APTI |
| Ptz rotary head control: | IP Speed Dome cameras |
| Recording modes: | Manual, motion detection, scheduling |
| Scales: | 1.31 kg |
| Search and play back recordings: | Search for recordings in the timeline or file list. Playback: forward, speed up recording. Simultaneous playback : 1 Channel @ 8 MP 1 Channel @ 5 MP 2 Channels @ 4 MP 2 Channels @ 3 Mpx 4 Channels @ 1080p 4 Channels @ 960p 4 Channels @ 720p |
| Standard: | TCP/IP |
| Supported hard drives: | 2 x 8 TB SATA |
| Supported languages: | Polish, Bulgarian, Czech, English, French, German, Greek, Hungarian, Italian, Portuguese, Russian, Spanish, Turkish |
| Supported resolutions: | .max. 8.3 Mpx 4K UHD - 3840 x 2160 px |
| Usb: | 2 pcs. USB 2.0 |
| Video outputs: | 1 pc HDMI1 pcs. VGA |
| Warranty: | 2 years |
| Web access ports: | 80, 5000, 554 |

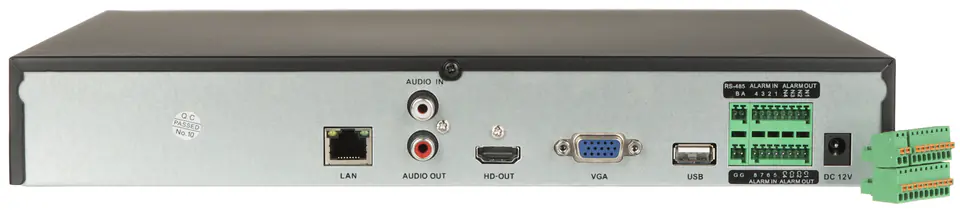

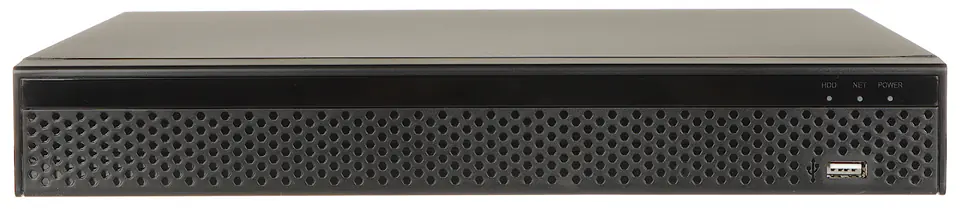

APTI-N2522-4KS5 DVR is a professional device used in IP CCTV systems
Recording takes place in the H.265 / H.264 compression standard, which allows to obtain the best image quality using minimal network bandwidth and disk capacityMenu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the recorder settings
