| Audio: | Built-in microphone Network audio streaming Audio detection Built-in speaker |
|---|---|
| Case: | Compact, Metal + Plastic |
| Colour: | white |
| Default administrator login / password: | admin / 123456 |
| Default ip address: | DHCP or 192.168.1.13 |

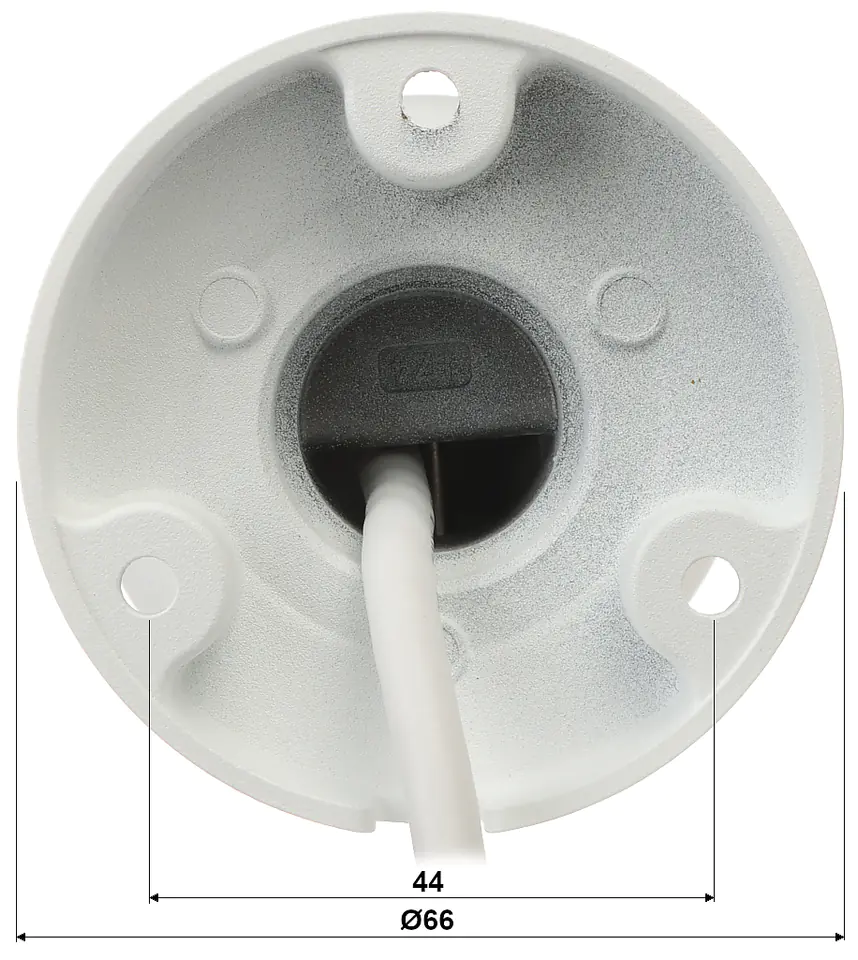

| Dimensions: | 191 75 x 74 mm |
| Image compression method: | Ultra 265 / H.265 / H.264 / MJPEG |
| Ir illuminator range: | 30 m |
| Main stream transmission speed: | 20 fps @ 8.3 Mpx25 fps @ 5 Mpx |
| Max. number of on-line users: | 32 |

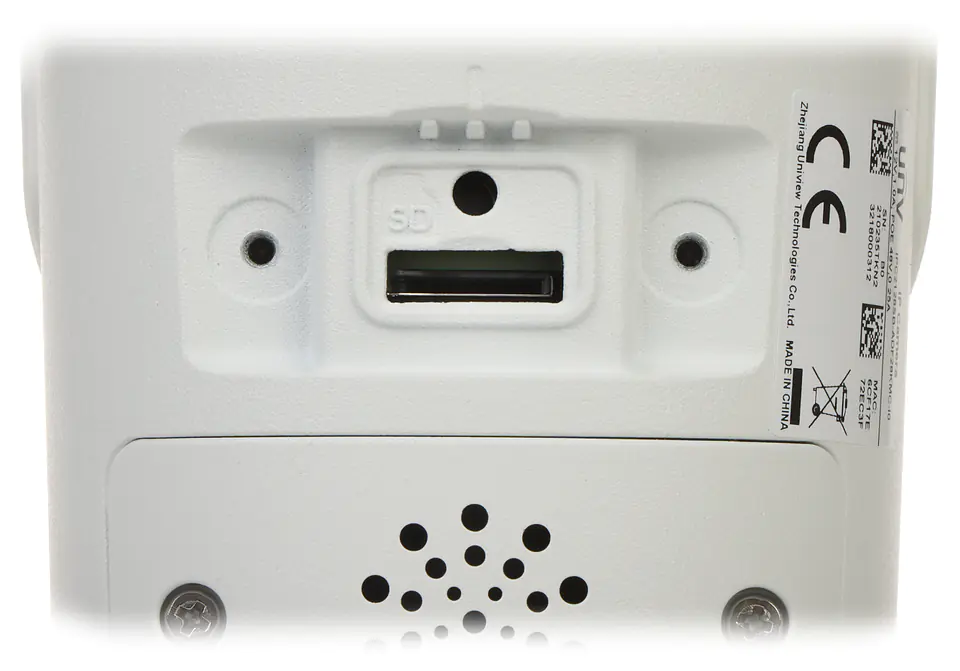

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Mobile app access port: | 80 |
| Mobile phone access: | Cloud access (P2P) Android: Free EZView app iOS (iPhone): Free EZView app |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, IEEE 802.1x, SNMP, QoS, SSL / TLS, SSH |
| Objective: | 2.8 mm |
| Operating temperature: | -30 °C ... 60 °C |
| Pc app access ports: | Port: 80 or cloud access (P2P) - PC: Free EZStation app |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 880 mA |
| Power consumption: | ≤ 10.5 watts |
| Producer / brand: | UNIVIEW |
| Range of white light illuminator (led): | 30 m |
| Resolution: | 3840 x 2160 - 8.3 MP 4K UHD ,3072 x 1728 - 5.3 MP, 2560 x 1440 - 3.7 MP, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Rtsp url: | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream ównyrtsp://192.168.1.13:554/unicast/c1/s1/live - Sub-stream |
| S/n ratio (s/n): | > 52 dB |
| Scales: | 0.41 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 2D-DNR, 3D-DNR - Digital noise reduction in the image F-DNR (Defog) - Noise reduction associated with precipitation ROI - improving the quality of selected parts of the image ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization NAS - Network Attached Storage - allows you to connect storage resources directly to the computer network Active deterrent function Alarm light and sound - Strobe light and audible alarm function to warn of intruders Corridor mode - useful for monitoring corridors, entrance gates and narrow rooms BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Mirror - Mirror image Motion detection - max. 4 privacy zones - max. 4 Sharpness - Sharpening Image Contours Intelligent Image Analysis: Intrusion, Line Crossing, Classification of People and Vehicles, Area Entry Detection/Area Exit, Face Detection, People Counting |
| Sensor size: | 8.3 MP |
| Standard: | TCP/IP |
| Supported languages: | Polish, Czech, English, Hungarian, Italian, French, German, Portuguese, Slovak, Spanish |
| Transducer: | 1/2.8" Progressive Scan CMOS |
| Viewing angle: | 112°(manufacturer data) 101° (our tests) |
| Warranty: | 3 years |
| Web access ports: | 80, 554 |
| Web server: | Built-in |
IP camera with powerful Ultra 265 image compression algorithm for clearer and smoother image streaming at a maximum resolution of 3840 x 2160 - 4K
The possibility of PoE power supply, in accordance with the 802.3af standard, makes the device even more versatile and easier to installThe range of the illuminator given by the manufacturer depends on the environmental conditions (transparency of air, environment, wall color, i.e. the so-called scene reflectance)
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
