| Adjustment shutter speed: | Auto/Manual |
|---|---|

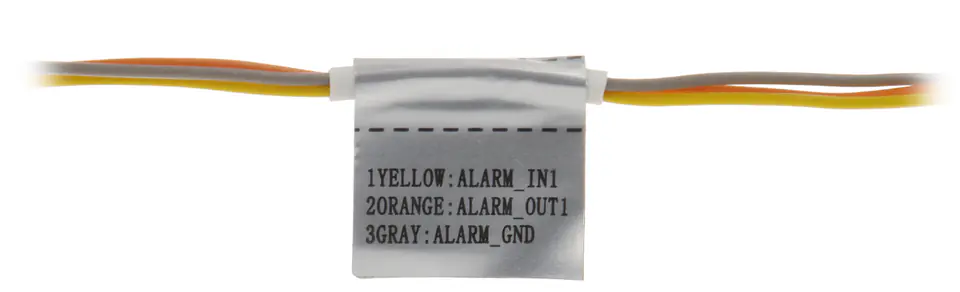

| Alarm inputs / outputs: | 1 / 1 |

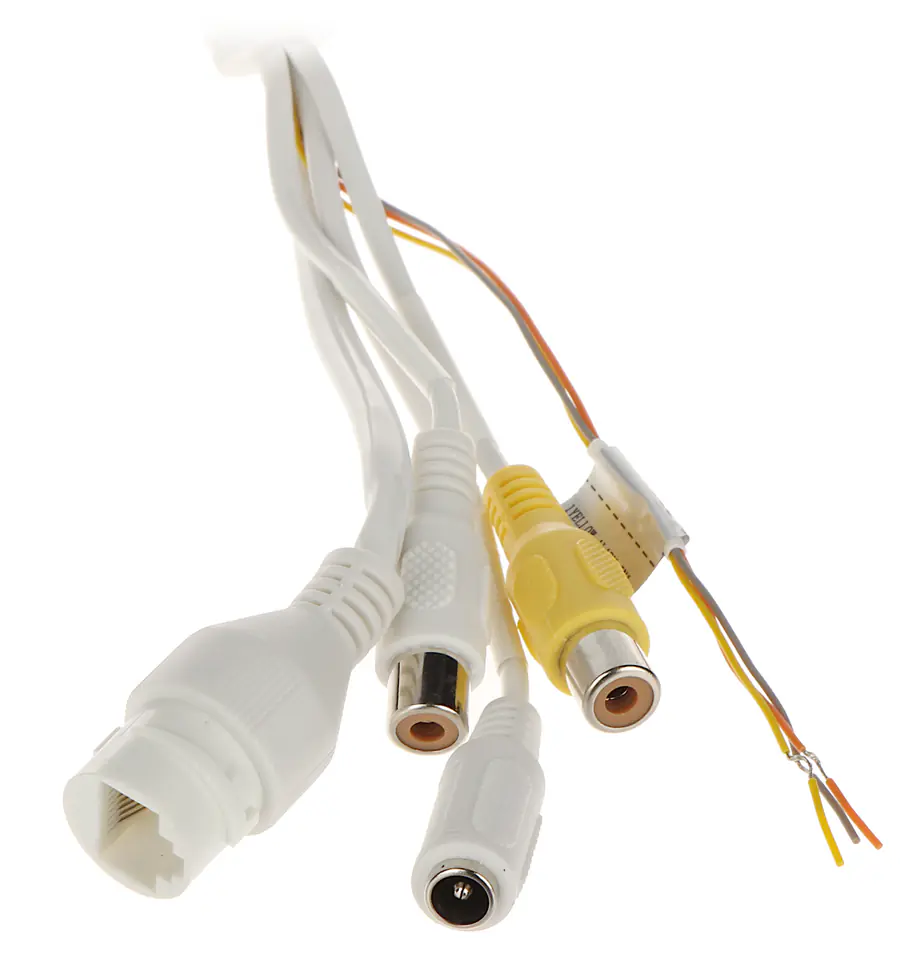

| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
| Audio formats supported: | PCM, G.711Mu, G.726, G.723, G.711a |
| Back light compensation (blc): | Yes |
| Bit rate: | 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Case: | Compact - Metal |
| Closest focusing distance: | 1.1 m |
| Colour: | white |
| Connectivity technology: | Wired |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Degree of protection ik: | IK10 |
| Depth: | 192.7 mm |

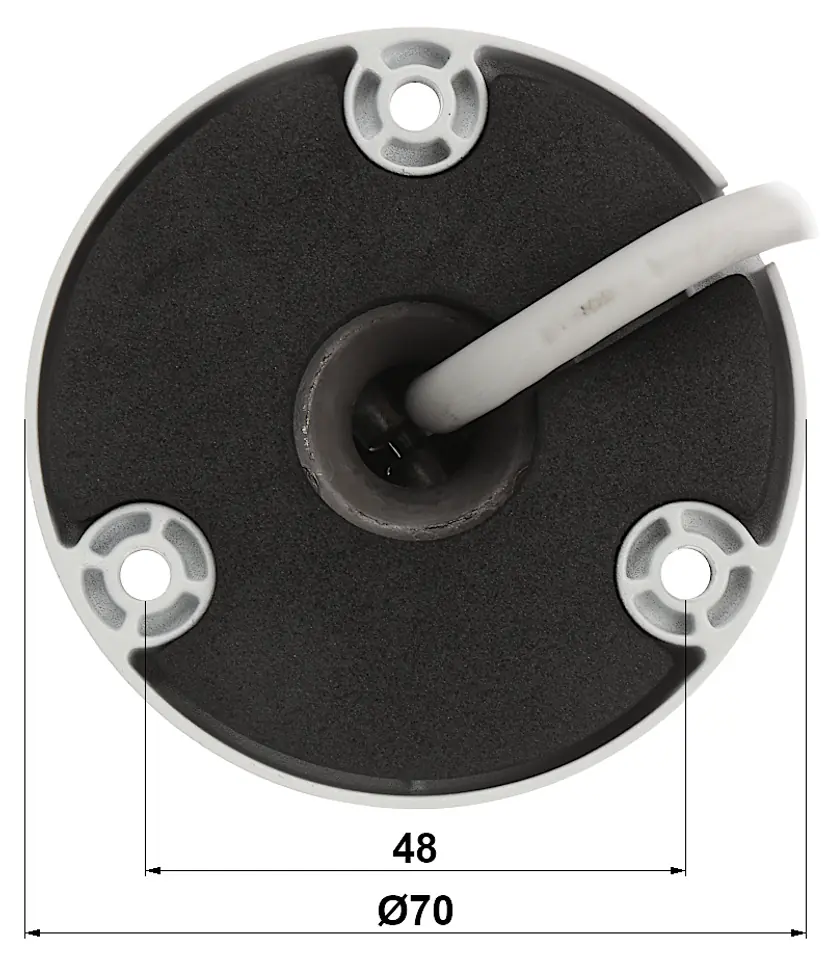

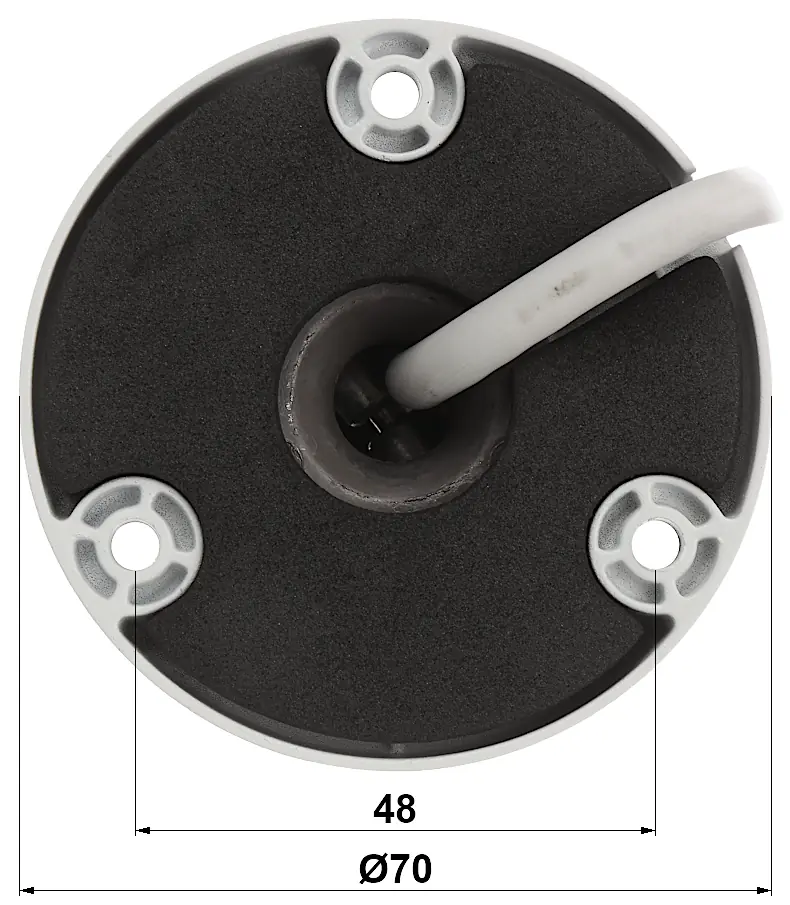

| Dimensions: | 193 x 71 x 67 mm |
| Ethernet interface type: | Fast Ethernet |
| Focal length range: | 2.8 mm |
| Form factor: | Tube/dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 66.4 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal, Plastic |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Internal memory: | 512 MB |
| International protection (ip) code: | IP67 |
| Ir illuminator range: | 50 m |
| Led type: | IR |
| Lens type: | Fixed focal length lens |
| Lens viewing angle, diagonal: | 132° |
| Lens viewing angle, horizontal: | 111° |
| Lens viewing angle, vertical: | 58° |
| Main stream transmission speed: | 20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Max. number of on-line users: | 20 |
| Maximum aperture number: | 1.4 |
| Maximum resolution: | 2960 x 1668 px |

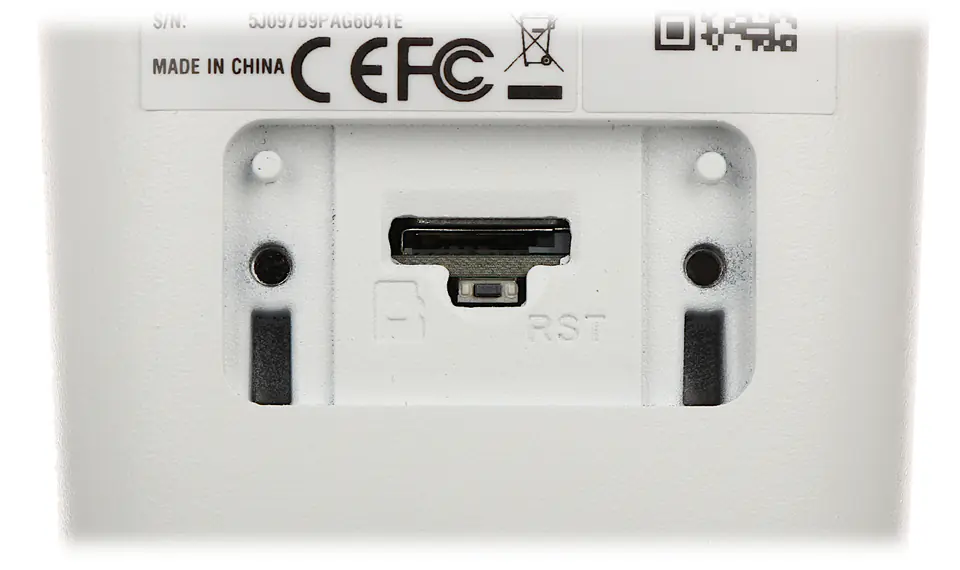

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Minimum illumination: | 0.005 lx |
| Mirror function: | Yes |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | iOS, Android |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Mounting type: | Ceiling |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 50 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of illumination leds: | 1 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 20 user(s) |
| Objective: | 2.8 mm |
| Onvif: | 21.12 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Pan range: | 0 - 360° |
| Pc app access ports: | 37777 |
| Placement supported: | External / Internal |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 490 mA |
| Power consumption: | ≤ 6.5 watts @ PoE ≤ 3.7 watts @ 12 volts |
| Power consumption (max): | 5.3 W |
| Power consumption (power over ethernet (poe)): | 6.5 W |
| Power source type: | DC, PoE |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Resolution: | 2960 x 1668 - 5 Mpx, 2880 x 1620 - 4.7 Mpx, 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
| Rom capacity: | 128 MB |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.59 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image F-DNR (Defog) - Noise reduction associated with precipitation AFSA - Anti-flicker Self-adaption - Technology eliminating the eye-tiring effect of image flickering AI SSA - .AI Smart Scene Adaptive - auto-adaptation of the scene using deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flickering to set optimal image parameters SMD 4.0 - search for an object classified as: human, motor vehicle - increased detection distance and immunity to false alarms NAS - Network Attached Storage - allows you to connect storage resources directly to your computer network BLC/HLC - Background / strong light compensation Day/night mode ICR - Mechanical IR filter AGC Auto White Balance - Automatic adjustment of image gain Ability to change resolution, quality and bandwidth Mirror - Mirror image Motion detection Configurable privacy zones IVS analysis : line crossing, intrusion - classification of people and vehicles, scene change, Sound detection |
| Sensor size: | 5 MP |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Standard: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 640 x 480 (VGA), 1280 x 720 (HD 720), 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 352 x 240, 2304 x 1296, 2880 x 1620, 2960 x 1668, 704 x 576, 1280 x 960, 704 x 480, 2688 x 1520, 2560 x 1440 |
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian |
| Tilt angle range: | 0 - 90° |
| Total megapixels: | 5 MP |
| Transducer: | 1/2.7" Progressive Scan CMOS |

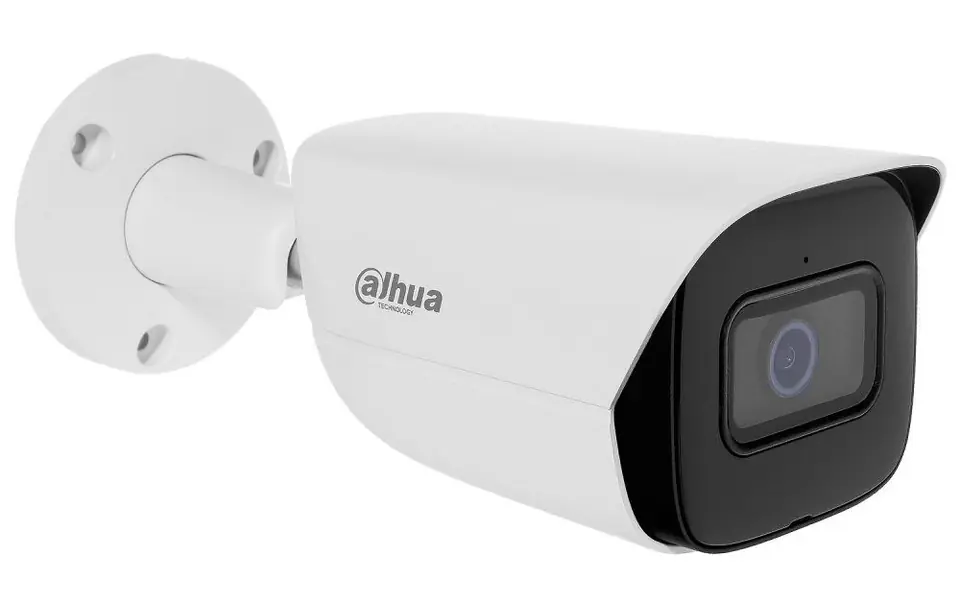

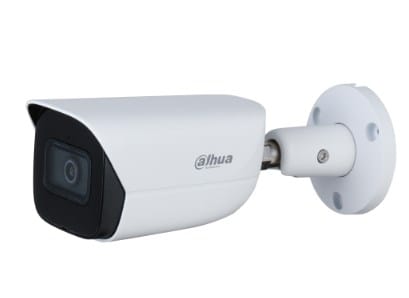

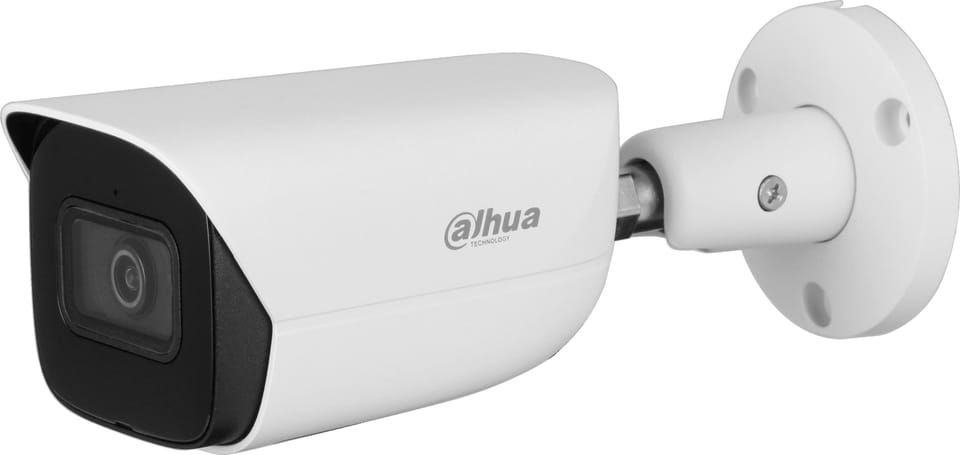

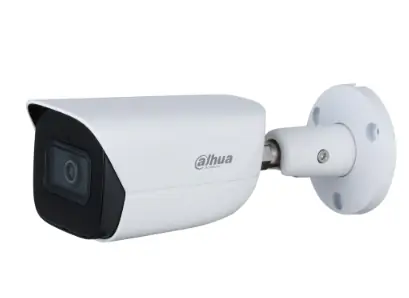

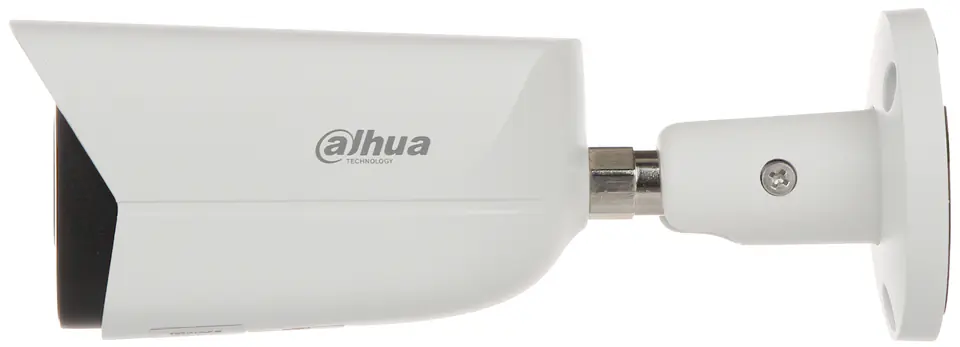

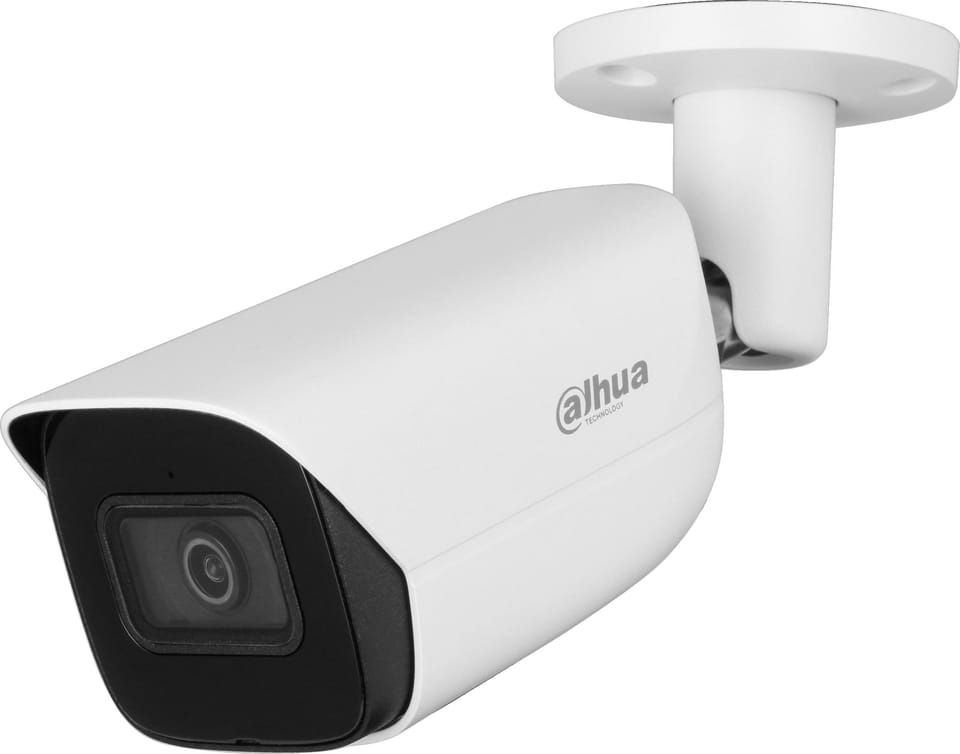

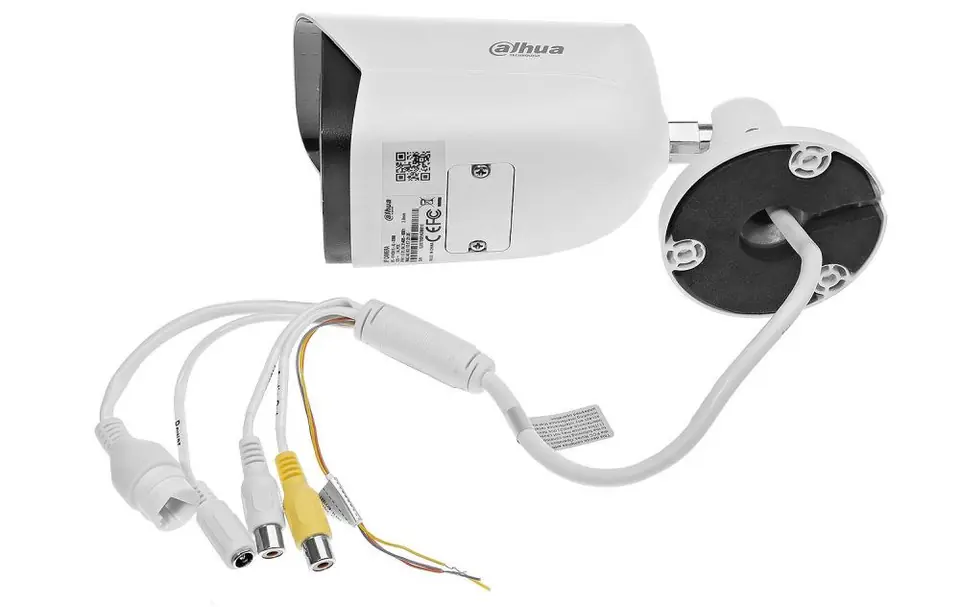

| Type: | IP security camera |
| Video compression formats: | M-JPEG, H.264B, H.265, H.264, H.264H |
| Video streaming: | Yes |
| Viewing angle: | 111 ° |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 590 g |
| White balance: | Manual, Outdoor, Auto, Street lamp, Natural |
| Wi-fi: | No |
| Wide dynamic range (wdr): | 120 dB |
| Width: | 70.5 mm |
IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at maximum resolution of 5 MPx
Thanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color imageThe possibility of PoE power supply, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
The camera has extensive intelligent image analysis functions
