| Active tampering alarm: | Yes |
|---|

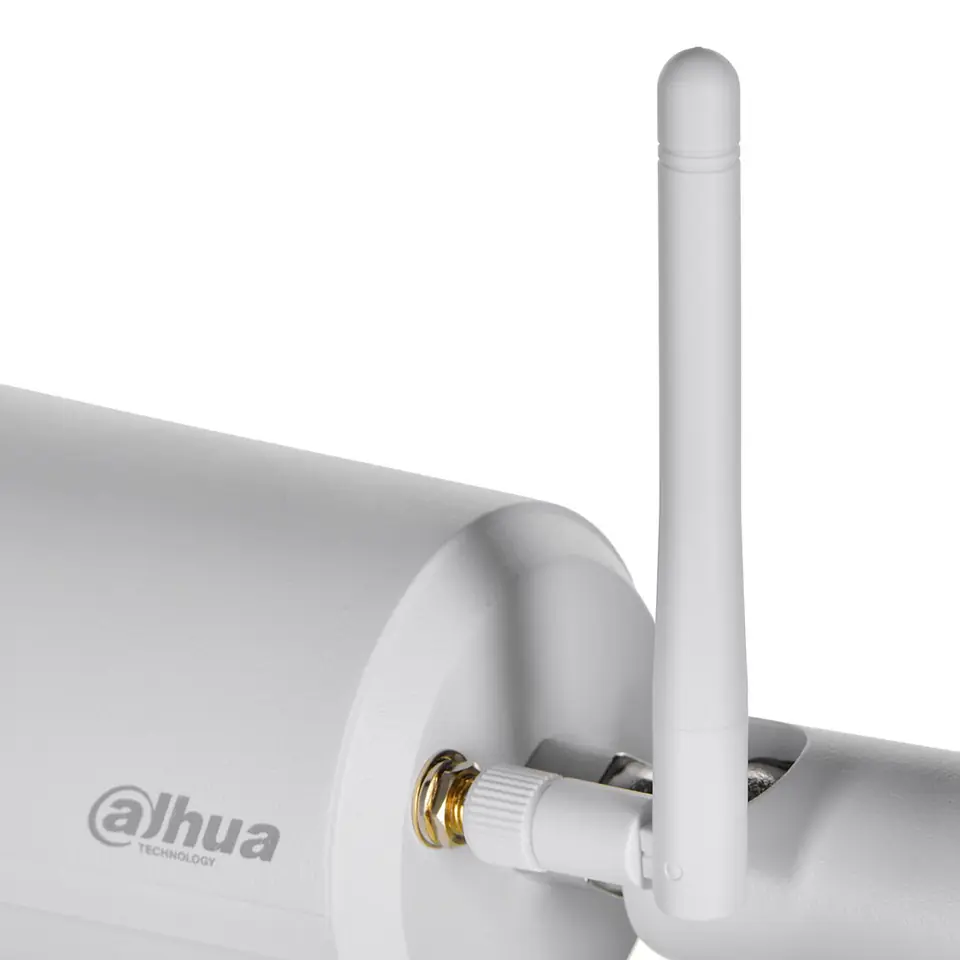

| Antenna type: | External |
|---|
| Antennas quantity: | 1 |
|---|
| Audio: | Built-in microphone Sound detection Network audio streaming |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bit rate: | H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
|---|
| Built-in microphone: | Yes |
|---|
| Camera shutter speed: | 1/3 -1/100000 s |
|---|
| Camera shutter type: | Mechanical, Electronic |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact - Metal |
|---|
| Closest focusing distance: | 1 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSD (TransFlash) |
|---|
| Connectivity technology: | Wired & Wireless |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | DHCP |
|---|
| Depth: | 166.2 mm |
|---|
| Detect distance: | 68 m |
|---|
| Diameter: | 7 cm |
|---|
| Digital wide dynamic range (dwdr): | Yes |
|---|

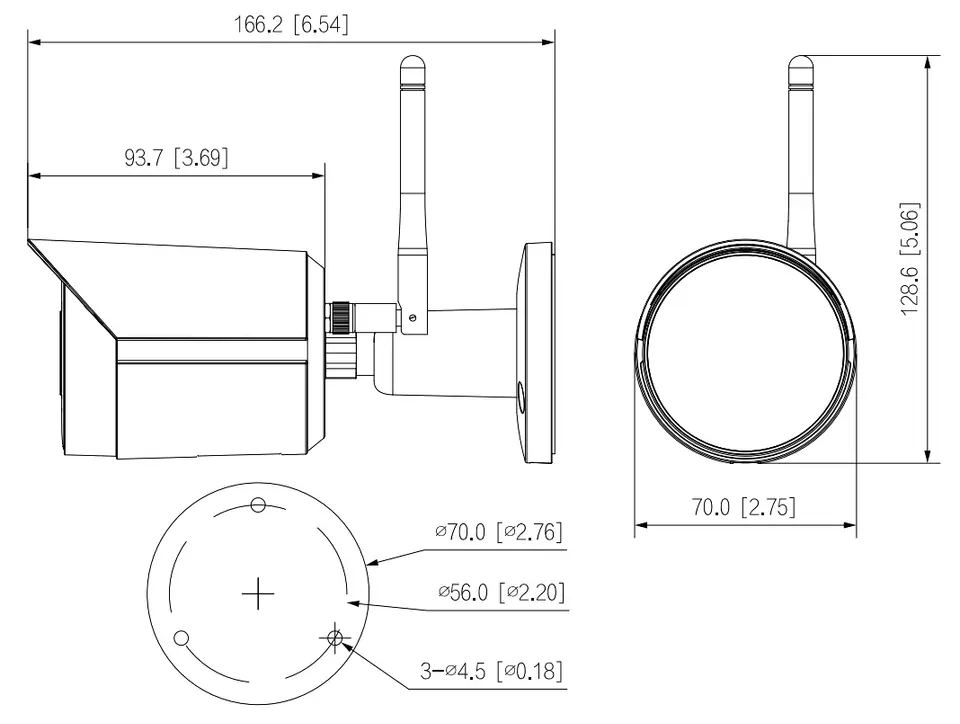

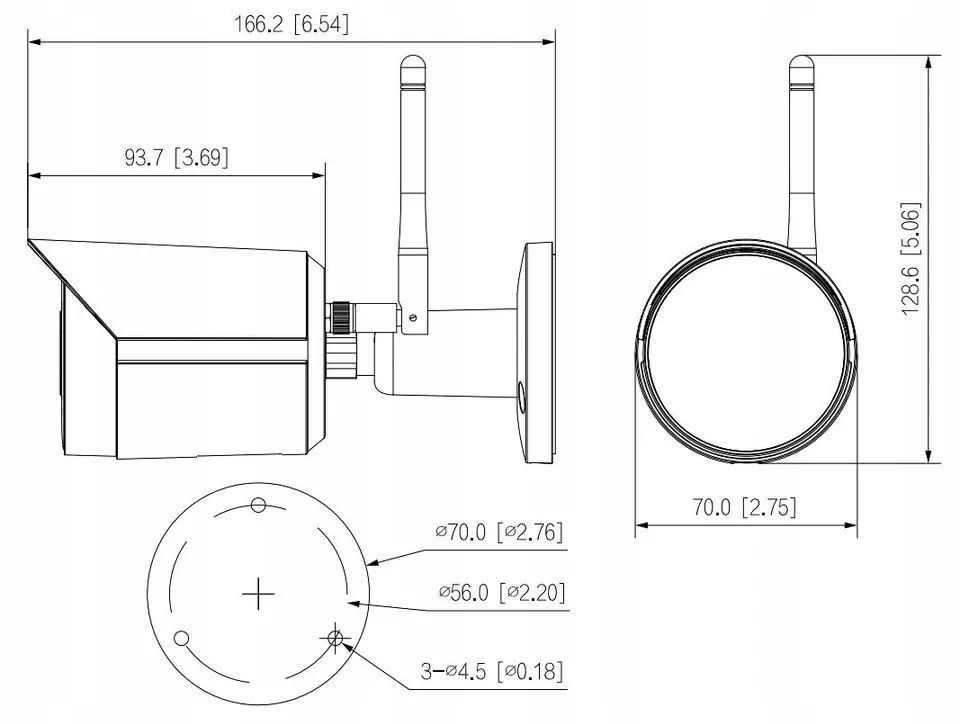

| Dimensions: | 166 x 70 x 129 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Focal length range: | 2.8 mm |
|---|

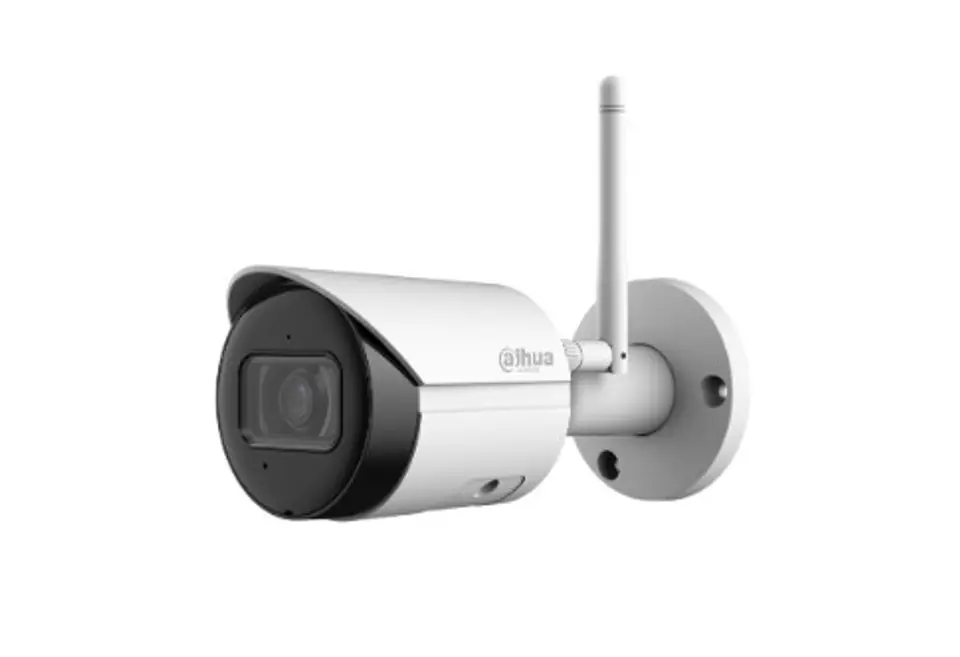

| Form factor: | Bullet |
|---|
| Frame rate: | 30 fps |
|---|
| Gain control type: | Auto |
|---|
| Height: | 128.6 mm |
|---|
| Identify distance: | 6.8 m |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
|---|
| Internal memory: | 64 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 30 m |
|---|
| Led type: | IR |
|---|
| Lens viewing angle, diagonal: | 107° |
|---|
| Lens viewing angle, horizontal: | 90° |
|---|
| Lens viewing angle, vertical: | 50° |
|---|
| Main stream transmission speed: | 20 fps @ 4 Mpx25 fps @ 3 Mpx |
|---|
| Management software: | Smart PSS; DSS; DMSS |
|---|
| Maximum aperture number: | 2 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 2560 x 1440 pixels |
|---|

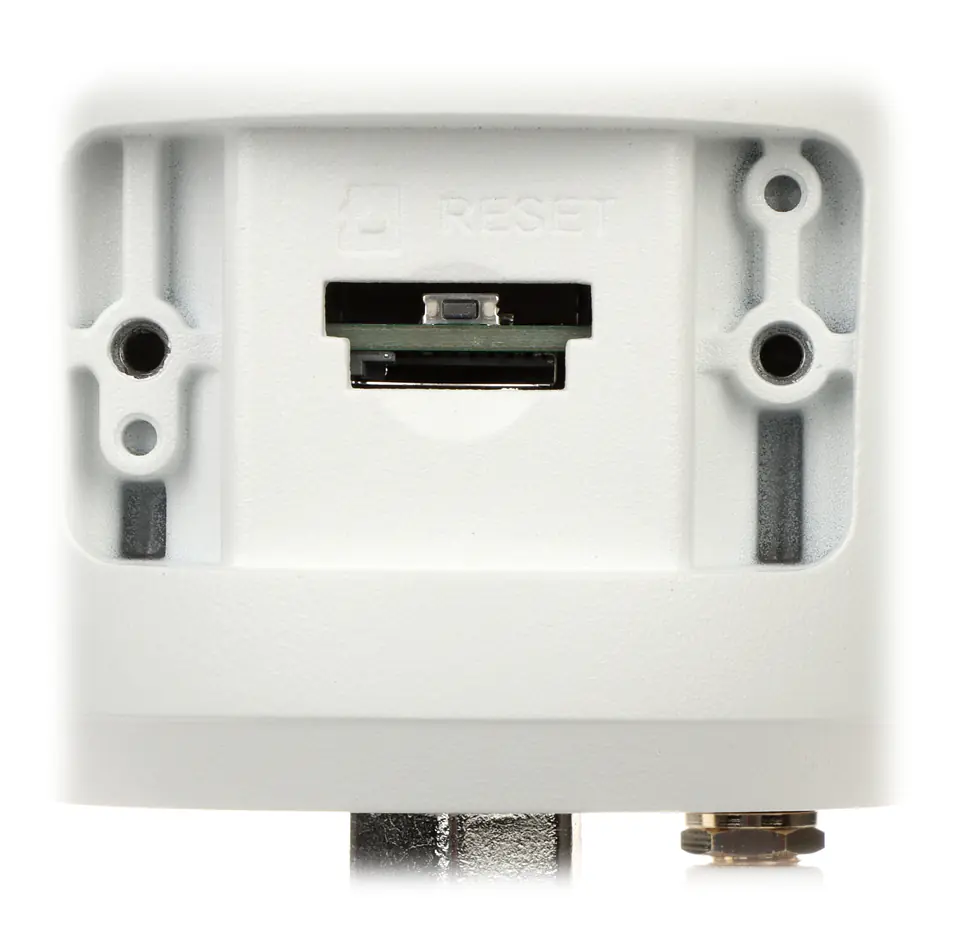

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | iOS, Android |
|---|
| Mobile phone access: | Cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|

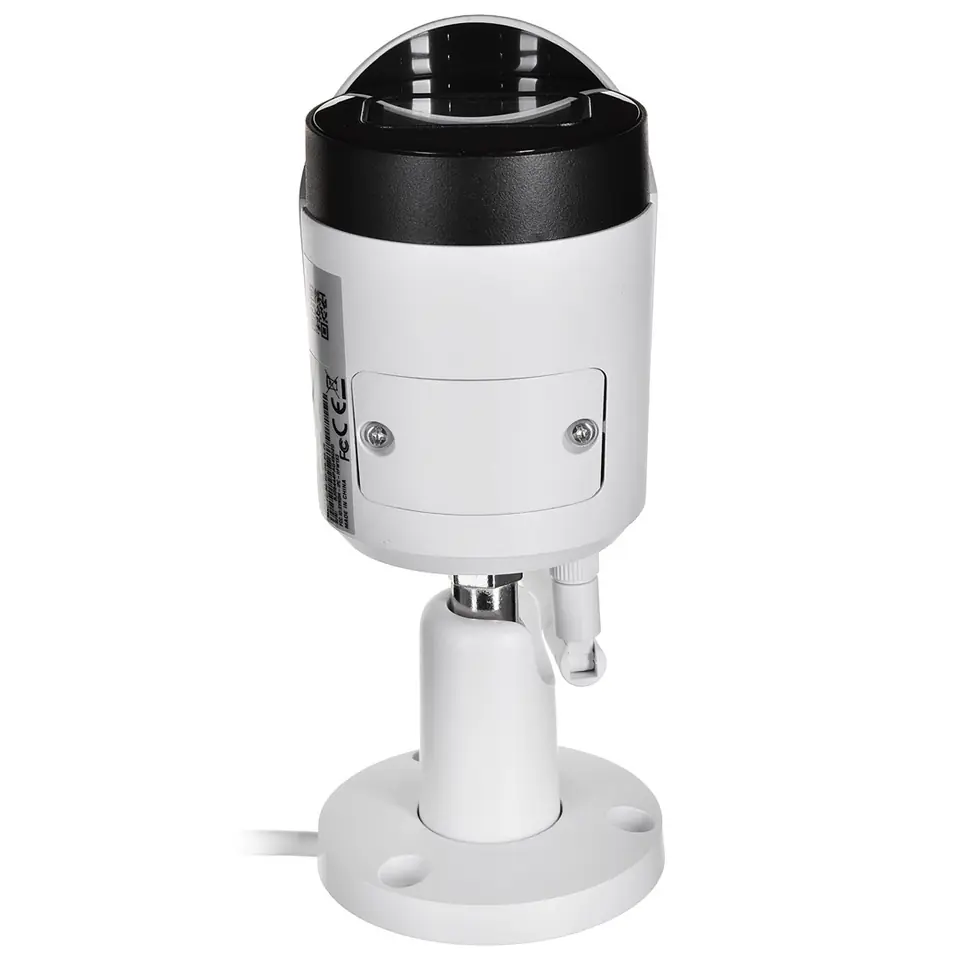

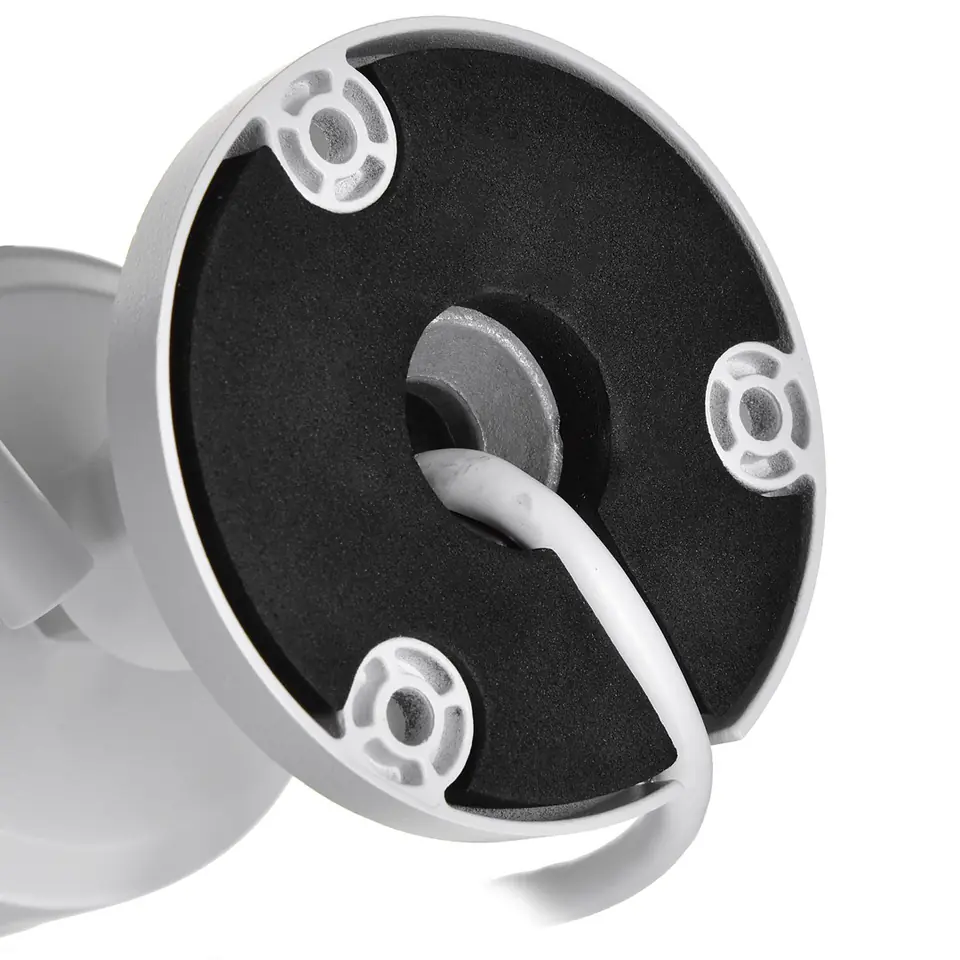

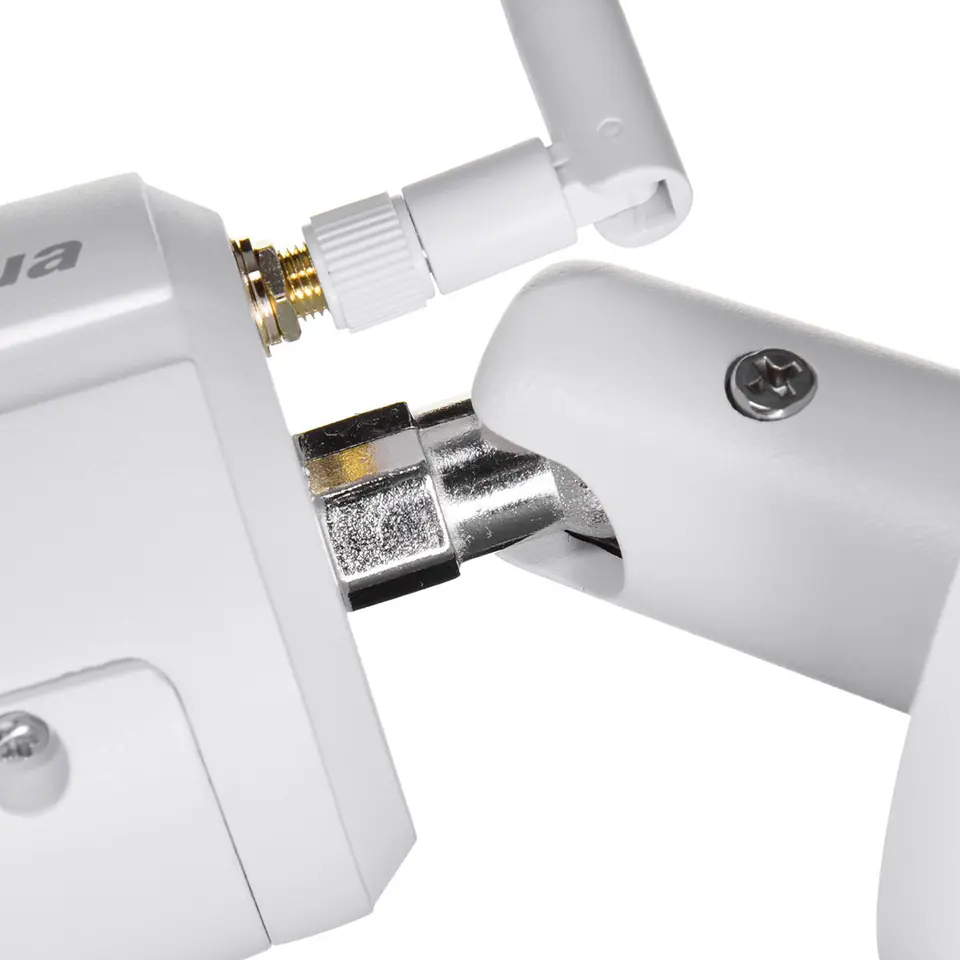

| Mounting type: | Ceiling/wall |
|---|

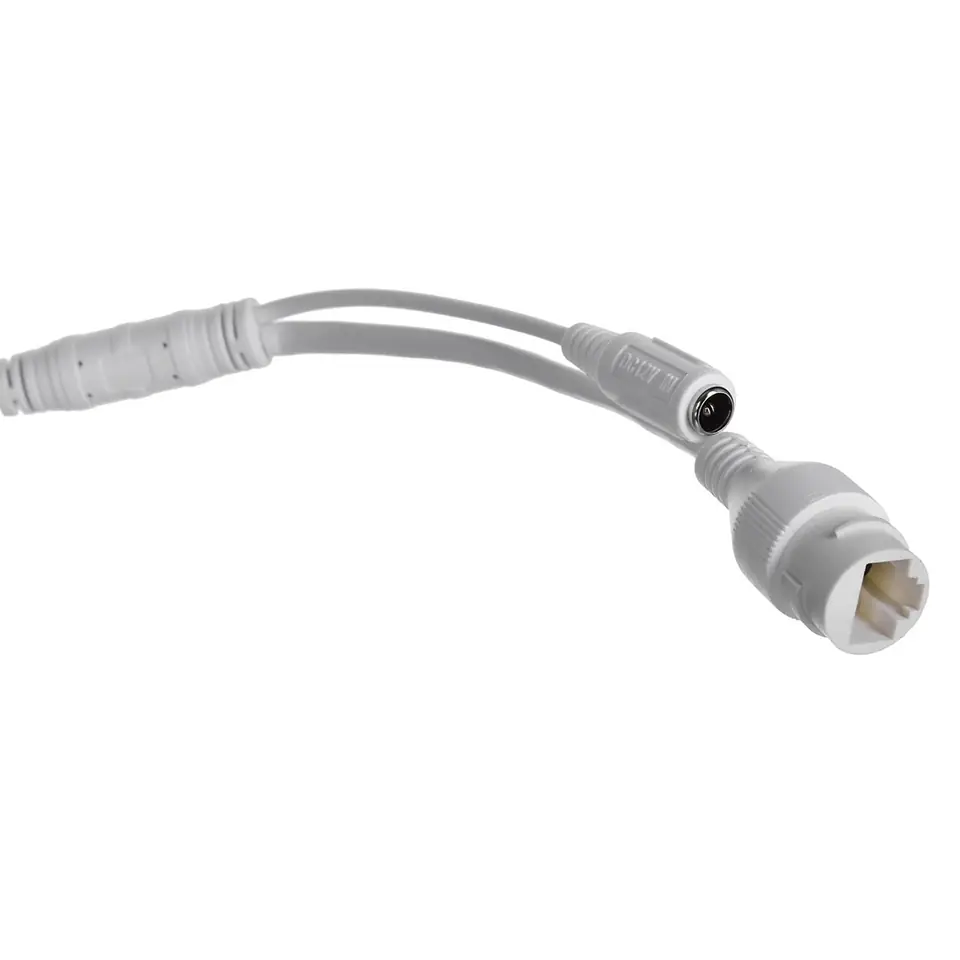

| Network interface: | Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of effective pixels (h x v): | 2560 x 1440 pixels |
|---|
| Number of illumination leds: | 1 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Objective: | 2.8 mm |
|---|
| Observe distance: | 27.2 m |
|---|
| Onvif: | 20.06 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -40 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -40 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
|---|
| Package weight: | 696.5 g |
|---|
| Pan range: | 0 - 360° |
|---|
| Pc app access ports: | 37777 |
|---|
| Placement supported: | Indoor & outdoor |
|---|
| Port onvif: | 80 |
|---|

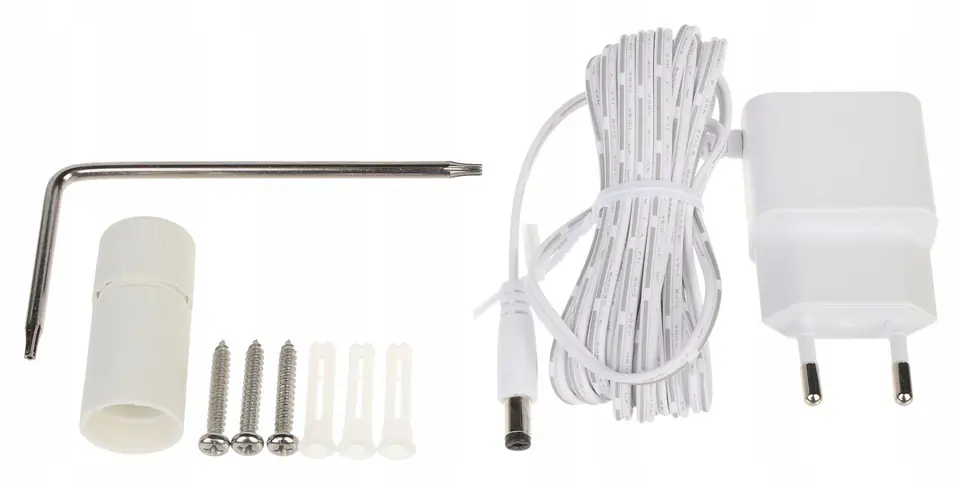

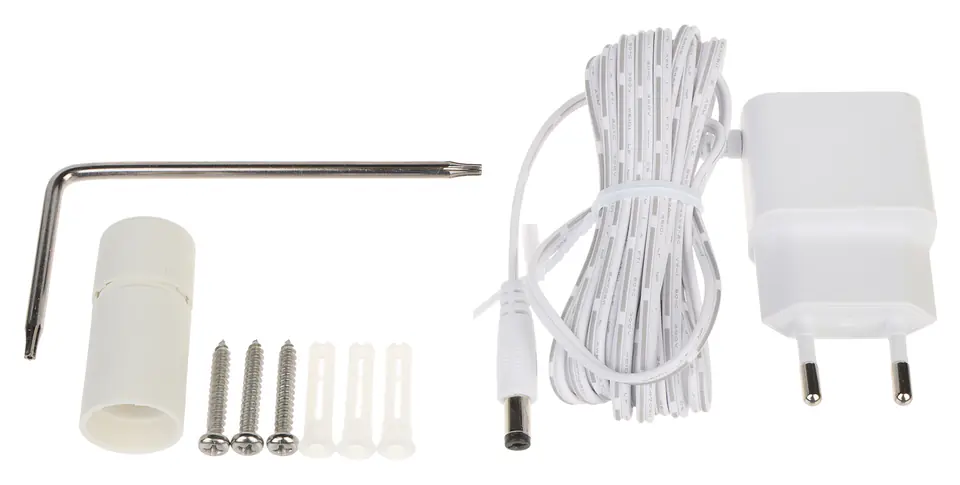

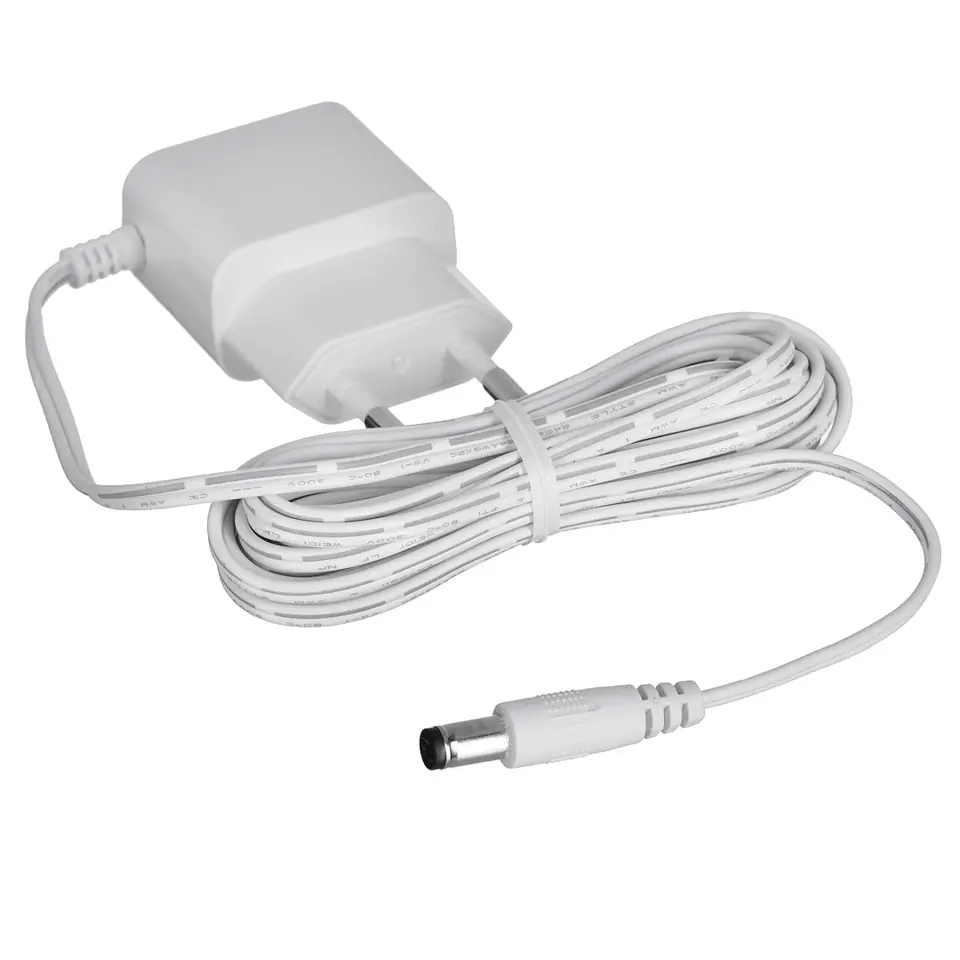

| Power: | 12 V DC / 350 mA (power adapter included) |
|---|
| Power consumption: | ≤ 4.1 watts |
|---|
| Power consumption (max): | 4.1 W |
|---|
| Power consumption (typical): | 2 W |
|---|
| Power source type: | DC |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Recognize distance: | 13.6 m |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Resolution: | 2560 x 1440 - 4 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
|---|
| Rom capacity: | 16 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.48 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Wi-Fi module, Range : 80 m (open area) ; Antenna - SMA D-WDR socket - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC - configurable backlight compensation Auto white balance AGC - Automatic image gain adjustment Day/night mode ICR - Mechanical IR filter Mirror - Mirror image Motion detection - max. 4 zones - Human detection |
|---|
| Sensor size: | 4 MP |
|---|
| Sensor type: | CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Smart ir: | Yes |
|---|
| Smartphone remote support: | Yes |
|---|
| Smartphone/tablet remote support: | Yes |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -30 - 70 °C |
|---|
| Streaming method: | Multicast |
|---|
| Supported graphics resolutions: | 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 1280 x 720 (HD 720), 2560 x 1440 |
|---|
| Supported languages: | English, Spanish, Russian |
|---|
| Supported network protocols: | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; |
|---|
| Supported video modes: | 1080p, 720p |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 4 MP |
|---|
| Transducer: | 1/3" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | H.264H, H.265, H.264B, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 90 ° |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in |
|---|
| Weight: | 477.9 g |
|---|
| White balance: | Outdoor, Manual, Street lamp, Auto, Natural |
|---|
| Wi-fi: | Yes |
|---|
| Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11b, 802.11g |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
| Width: | 70 mm |
|---|
