| 4g lte: | N |
|---|
| Adjustment shutter speed: | Auto/Manual |
|---|
| Audio: | Built-in microphone Sound detection |
|---|
| Audio codecs: | G.711a / G.711Mu / G.723 / G.726 / PCM |
|---|
| Bluetooth: | No |
|---|
| Built-in loudspeaker: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Case: | Dome - Metal |
|---|
| Closest focusing distance: | 0.8 m |
|---|
| Colour: | white |
|---|
| Connectivity technology: | Wired |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|
| Depth: | 122 mm |
|---|

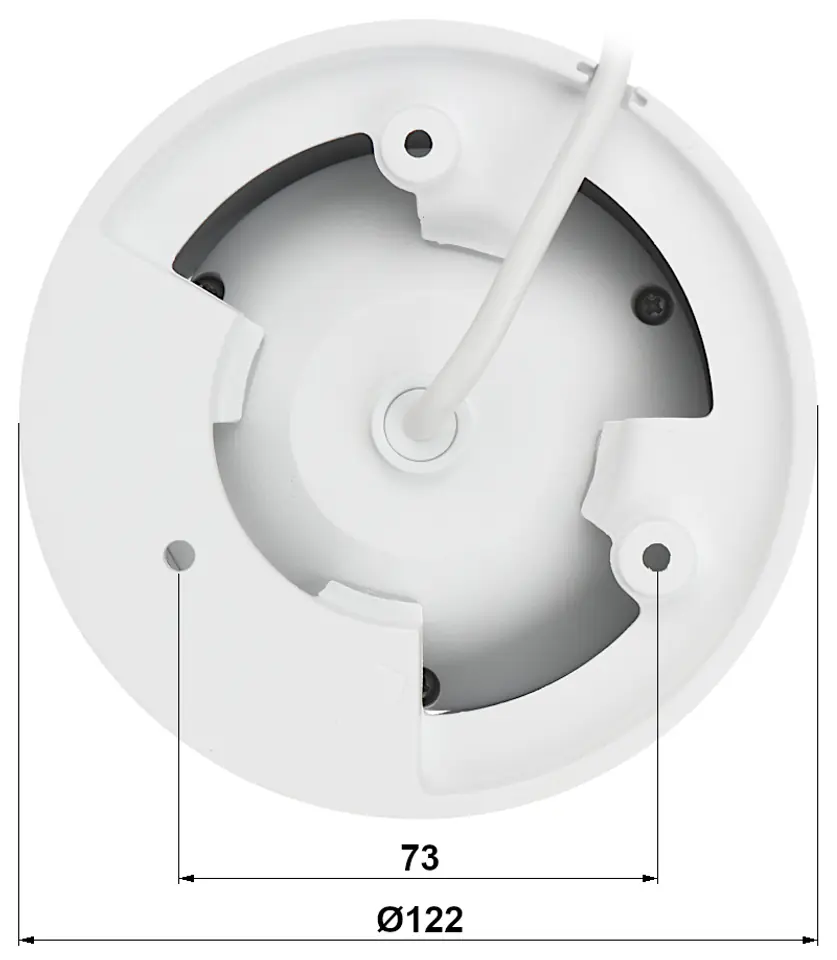

| Dimensions: | Ø 122 x 105 mm |
|---|
| Ethernet interface type: | 10 Megabit Ethernet, 100 Megabit Ethernet |
|---|
| Form factor: | Tube/dome |
|---|
| Frame rate: | 20 fps |
|---|
| Height: | 108.3 mm |
|---|
| Horizontal rotation angle: | 0 - 360° |
|---|
| Housing material: | Metal, Plastic |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 40 m |
|---|
| Led type: | IR |
|---|
| Lens type: | Varifocal moto zoom |
|---|
| Lens viewing angle, horizontal: | 99 - 28° |
|---|
| Lens viewing angle, vertical: | 71 - 21° |
|---|
| Main stream transmission speed: | 20 fps @ 5 Mpx 25 fps @ 4 Mpx |
|---|
| Max. number of on-line users: | 20 |
|---|
| Maximum aperture number: | 1.5 |
|---|
| Maximum resolution: | 2960 x 1668 px |
|---|

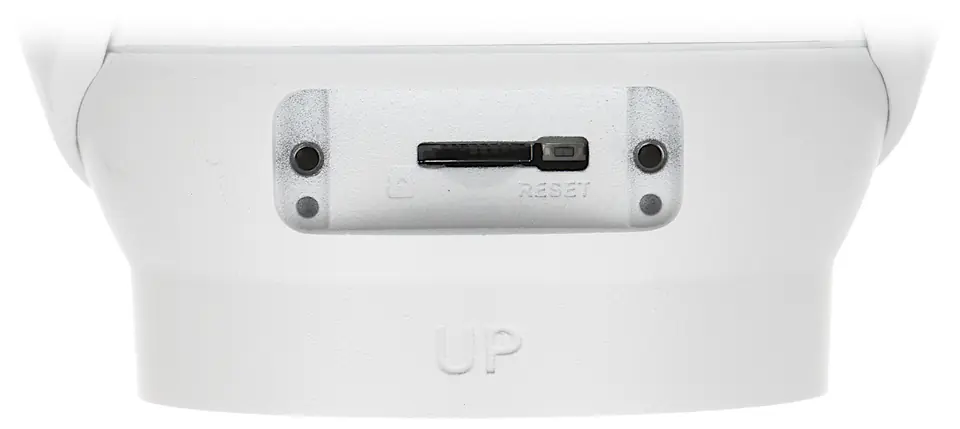

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum illumination: | 0.005 lx |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | iOS, Android |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Motion detection: | Yes |
|---|
| Mounting type: | Wall/ceiling |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
|---|
| Networking standards: | IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 40 m |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 2 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Objective: | 2.7 ... 13.5 mm @ F1.5 - Motozoom |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
|---|
| Pc app access ports: | 37777 |
|---|
| People detection: | Yes |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 745 mA |
|---|
| Power consumption: | .max. 10.2 W @ PoEmax. 8.9 watts @ 12 volts |
|---|
| Power consumption (max): | 8.9 W |
|---|
| Power consumption (power over ethernet (poe)): | 10.2 W |
|---|
| Power consumption (typical): | 5.7 W |
|---|
| Power source type: | DC, PoE |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Ram capacity: | 512 MB |
|---|
| Resolution: | 2960 x 1668 - 5 Mpx, 2880 x 1620 - 4.7 Mpx, 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
|---|
| Rom capacity: | 128 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.69 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Motozoom lens - Control from browser, NVR or WDR software - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction F-DNR (Defog) - Noise reduction associated with precipitation ROI - Improving the quality of selected parts of the ICR image - Mechanical IR filter Day/night mode (color/b&w/auto) BLC - configurable backlight compensation HLC - Strong (spot) light compensation WB - White balance (ATW/AWB/manual/internal/external) AGC - Automatic Image Gain Adjustment Mirror - Mirror EIS - AFSA Electronic Image Stabilization - Anti-flicker Self-adaption - Technology that eliminates tiring image flicker SSA - Smart Scene Adaptive - intelligent scene adaptation by automatically adjusting exposure parameters for a better image SMD 4.0 motion detection - searching for an object classified as: human, motor vehicle - increased distance detection and immunity to false alarms Configurable privacy zones IVS analysis : line crossing, intrusion, scene change |
|---|
| Sensor size: | 5 MP |
|---|
| Sensor type: | HD CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -30 - 60 °C |
|---|
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian, Vietnamese |
|---|
| Total megapixels: | 5 MP |
|---|
| Transducer: | 1/2.7" Progressive Scan CMOS |
|---|
| Two-way talk: | N |
|---|
| Type: | IP security camera |
|---|
| Vertical rotation angle: | 0 - 78° |
|---|
| Video compression formats: | M-JPEG, H.265+, H.264H, H.264+, H.264B, H.265, H.264 |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 99 ° ... 28 ° (manufacturer's data) 110 ° ... 31° (our tests) |
|---|
| Viewing angle, diagonal: | 134 - 35° |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in, Web Viewer |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 715 g |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | 120 dB |
|---|
| Width: | 122 mm |
|---|
